MORI SEIKI NZ 1500
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
NZ 1500
Condition:
Not Specified
Year:
2008
Stock #:
33489
Status:
Sold
Description:

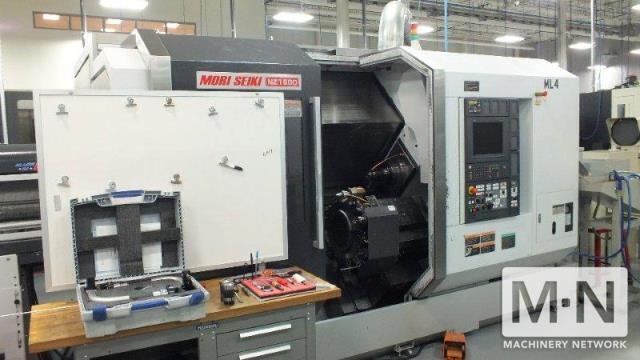

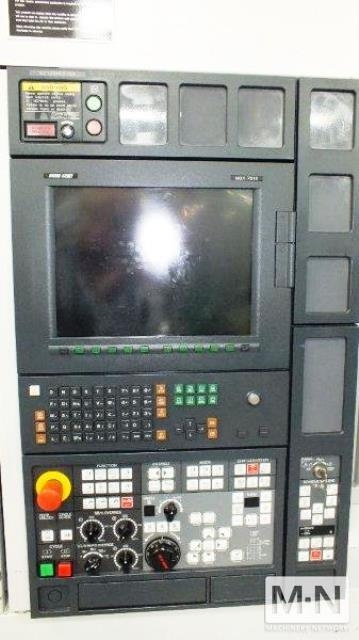

2008 Mori Seiki NZ 1500 T2Y2 With MSX701 III
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

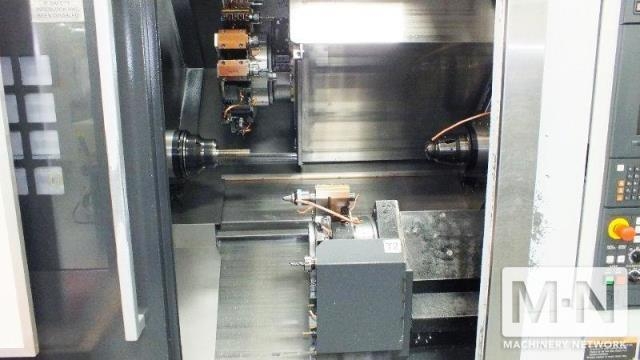

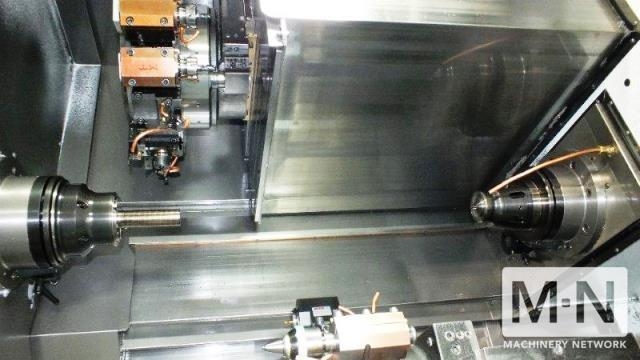

1) USED MORI SEIKI NZ 1500 T2Y2 MULTI AXIS CNC TURNING/MILLING CENTER NEW: 2008 SPECIFICATIONS: SWING OVER BED:.......................31.5" SWING OVER CROSS SLIDE:...............31.5" MAX DISTANCE BETWEEN SPINDLE NOSES:...44.4" MAX TURNING DIAMETER:.................12.5" STANDARD TURNING DIAMETER:............7.9" MAX. WORKPIECE DIAMETER:..............11.8" MAX. TURNING LENGTH:..................31.9" BAR CAPACITY:.........................2.0" TRAVELS: X1, X2:.............................8.3 Y1:.................................4.3 <+ 2.6, -1.8> Y2:.................................4.3 <+ 1.8, -2.6> Z1, Z2:.............................31.9 SPINDLE 2 B:........................35.4" SPINDLE 1 & 2: MAX SPINDLE SPEED:....................6000 RPM 2 SPEED RANGES SPINDLE NOSE:.........................JIS A2-5 THROUGH SPINDLE HOLE DIAMETER:........2.4" SPINDLE BEARING INSIDE DIAMETER:......3.9" MAX SPINDLE INDEXING INCREMENT:.......001 TURRET: (2) 16 STATION TURRETS................32 TOOL STATIONS TURRET INDEX TIME:....................18 SEC 1 STATION ROTARY TOOL SPINDLE SPEED:............6000 FEEDRATE RAPID TRAVERSE: X1, X2:..............................1181.1 IPM Y1, Y2:..............................787.4 IPM Z1, Z2:..............................1968.5 IPM .....................................82.6 KVA WEIGHT:...............................18,260 LBS. EQUIPPED WITH: MSX 701III CNC CONTROL LNS SERVO S3 MAGAZINE BARFEEDER TOOLSETTER COLLET CHUCKS ON MAIN & SUBSPINDLES (12) LIVE TOOL HOLDERS FIRE SUPRESSION CHIP CONVEYOR PARTS CONVEYOR CHIP BLASTER HIGH PRESSURE COOLANT PUMPS
