Machinery Network > Used Inventory > MORI SEIKI NL2500SY

MORI SEIKI NL2500SY

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

MORI SEIKI

Model:

NL2500SY

Condition:

Not Specified

Year:

2008

Stock #:

33265

Status:

Sold

Description:

MSX-850III CTRL, SUB SP, C & Y AXES, 2"

Location:

Maryland, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

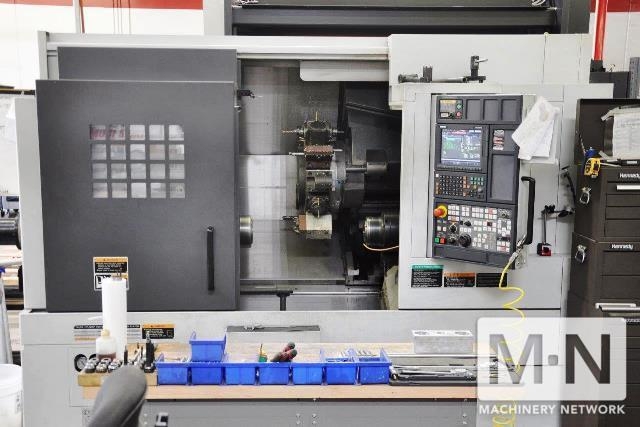

1) USED MORI SEIKI NL2500SY/700 CNC TURN-MILL MACHINE
NEW: 2008

SPECIFICATIONS:
SWING OVER BED.............. 36.4"
MAX CUTTING DIAMETER........ 14"
MAX CUTTING LENGTH.......... 27.7"
X-AXIS TRAVEL............... 10.2"
Z-AXIS TRAVEL............... 31.3"
Y-AXIS TRAVEL............... 3.9"
RAPID FEEDRATE (X & Z)...... 1181 IPM
RAPID FEEDRATE (Y AXIS)..... 394 IPM
TURRET POSITIONS............ 12
LIVE TOOL SPINDLE SPEED..... 6,000 RPM
MAIN SPINDLE MOTOR.......... 25 HP
MAIN SPINDLE SPEED.......... 4,000 RPM
MAIN SPINDLE BORE........... 3.15"
MAIN SPINDLE NOSE........... A2-8
SUB SPINDLE MOTOR........... 15 HP
SUB SPINDLE SPEED........... 6,000 RPM
SUB SPINDLE BORE............ 1.69"
SUB SPINDLE NOSE............ A2-6
SUB SPINDLE TRAVEL.......... 28.9"

EQUIPPED WITH:

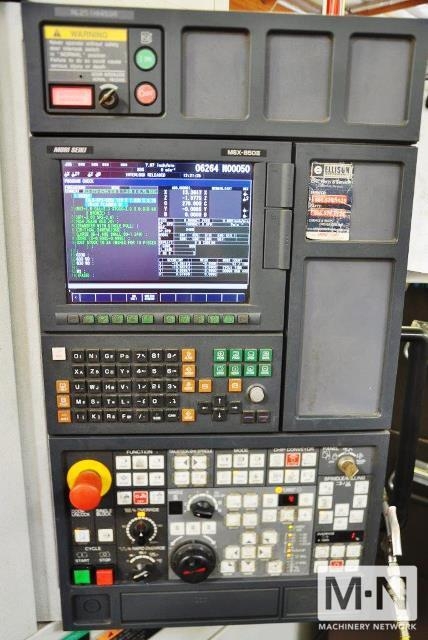

MORI-SEIKI MSX-850III CONTROL
FULL C-AXIS ON FRONT & BACK SPINDLES
Y AXIS, LIVE MILLING
10" KITAGAWA CHUCK FOR MAIN SPINDLE (NEVER USED)
6" KITAGAWA CHUCK FOR SUB SPINDLE (NEVER USED)
CHIP CONVEYOR
TOOL PRESETTER
PARTS CATCHER
BARFEED INTERFACE

* CUTTING HOURS AS OF 07/2013 - 2,073
** MACHINE CUT 6061 & 304 STAINLESS
** 1 AXIAL & 1 RADIAL LIVE TOOL HOLDER INCLUDED IN SALE
** COLLET CHUCKS SHOWN ON MACHINE - NOT INCLUDED IN SALE
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & REMOVAL
** REPLACEMENT COST AS EQUIPPED - $215,000
