MORI SEIKI NT3200DCG 1000SZ
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
NT3200DCG 1000SZ
Condition:
Not Specified
Year:
2006
Stock #:
31425
Status:
Sold
Description:

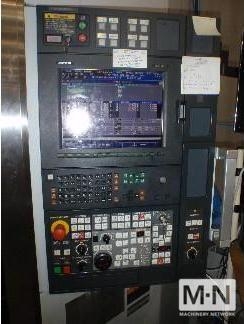

MSX701 MAPPS 3 Control, 180 ATC, Parts Catcher, CC
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

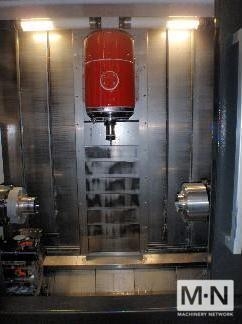

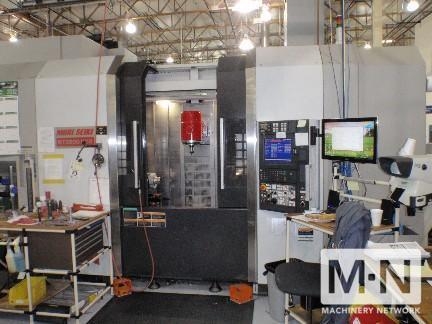

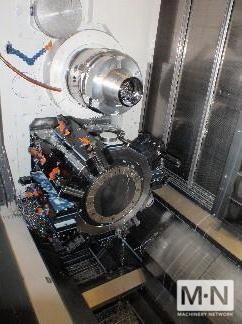

(1) MORI SEIKI NT3200DCG 1000SZ CNC TURNING CENTER NEW 2006
SPECIFICATIONS: MAX. SWING OF WORKPIECE: .................... 23.6" STD. SWING OVER CROSS SLIDE: ................ 23.6" TURRET 2 SWING OVER CROSS SLIDE: ............ 13.4" MAX. DISTANCE BETWEEN CENTERS: .............. 49.4" MAX. TOOL SPINDLE TURNING DIAMETER: ......... 23.6" TURRET 2 TURNING DIAMETER: .................. 8.2" MAX. TURNING LENGTH: ........................ 38.2" X-AXIS TRAVEL: .............................. 27" Z-AXIS TRAVEL: .............................. 42.3" Y-AXIS TRAVEL: .............................. +/- 4.9" B-AXIS TRAVEL: .............................. +/- 120MM X-AXIS TRAVEL TURRET 2: ..................... 5.1" Z-AXIS TRAVEL TURRET 2: ..................... 38.2" SPINDLE 1: MAX. SPINDLE SPEED: ......................... 5,000 MIN.-1 NO. OF SPINDLE SPEED RANGES: ................ 2 SPINDLE 1 DRIVE MOTOR (30MIN./CONT.):........ 33.3 HP / 30 HP BAR WORK CAPACITY: .......................... 2.6" THRU-SPINDLE HOLE DIAMETER: ................. 2.9" TYPE OF SPINDLE NOSE: ....................... A2-6 MIN. SPINDLE INDEXING INCREMENT: ............ 0.0001 DEG SPINDLE MAX. SPINDLE SPEED: ......................... 5,000 MIN.-1 NO. OF SPINDLE SPEED RANGES: ................ 2 SPINDLE 2 DRIVE MOTOR (30MIN./CONT.): ....... 33.3 HP / 30 HP BAR WORK CAPACITY: .......................... 2.6" THRU-SPINDLE HOLE DIAMETER: ................. 2.9" TYPE OF SPINDLE NOSE: ....................... A2-6 MIN. SPINDLE INDEXING INCREMENT: ............ 0.0001 DEG TOOL SPINDLE: NO. OF TOOL STATIONS: ....................... 1 TAPER: ...................................... BT40 TOOL CAPACITY: .............................. 180 TOOL CHANGING TIME: ......................... 1.25 SEC MAX. TOOL DIAMETER W/ADJACENT TOOLS: ........ 2.7" MAX. TOOL DIAMETER W/O ADJACENT TOOLS: ...... 4.9" MAX. TOOL LENGTH: ........................... 11.8" MAX. TOOL WEIGHT: ........................... 8.8 LBS STD. B-AXIS INDEXING TIME: ................. 0.65 SEC. STD. MAX. TOOL SPINDLE SPEED: ............... 12,000 MIN.-1 STD. TOOL SPINDLE DRIVE MOTOR: .............. 7.5 HP / 5 HP TURRET 2: NO. OF TOOL STATIONS: ....................... 12 NO. OF ROTARY TOOLS ON TURRET: .............. 12 TURRET INDEXING TIME: ....................... 0.2 SEC MAX. ROTARY TOOL SPINDLE SPEED: ............. 6,000 MIN.-1 TURRET 2 ROTARY TOOL SPINDLE DRIVE MOTOR: ... 7.5 HP / 5 HP DIMENSIONS: FLOOR SPACE (LXW) W/O CONVEYOR CHIP: ........ 165.5" X 116.8" STD. CHIP CONVEYOR I/F ONLY: ................ 108.9" HINGE TYPE: ................................. 108.9" HINGE TYPE + SCRAPER TYPE + DRUM FILTER: .... 110" WEIGHT: ..................................... 35,860 LBS COOLANT TANK CAPACITY: ...................... 184.3" COOLANT PUMP MOTOR: ......................... 60HZ: 1.61 HP / 50HZ: 0.97HP ELECTRICAL POWER: ........................... 86.5 KVA COMPRESSED AIR SUPPLY: ...................... 72.5 PSI
EQUIPPED WITH: COOLJET, CHIP CONVEYOR TOOL PRESETTER, PARTS CATCHER, INTERFACE 1MG MEMORY 1000 PART PROGRAM 480 TOOL OFF SET 6 WORK 2) 8" KITAGAWA CHUCKS FULL B-AXIS .001 DEGREE FULL CONTOURING 1000 PSI HIGH PRESSURE SYSTEM ****MANUFACTURED IN 12/2006 AND SOLD NEW IN 2008.****
SPECIFICATIONS: MAX. SWING OF WORKPIECE: .................... 23.6" STD. SWING OVER CROSS SLIDE: ................ 23.6" TURRET 2 SWING OVER CROSS SLIDE: ............ 13.4" MAX. DISTANCE BETWEEN CENTERS: .............. 49.4" MAX. TOOL SPINDLE TURNING DIAMETER: ......... 23.6" TURRET 2 TURNING DIAMETER: .................. 8.2" MAX. TURNING LENGTH: ........................ 38.2" X-AXIS TRAVEL: .............................. 27" Z-AXIS TRAVEL: .............................. 42.3" Y-AXIS TRAVEL: .............................. +/- 4.9" B-AXIS TRAVEL: .............................. +/- 120MM X-AXIS TRAVEL TURRET 2: ..................... 5.1" Z-AXIS TRAVEL TURRET 2: ..................... 38.2" SPINDLE 1: MAX. SPINDLE SPEED: ......................... 5,000 MIN.-1 NO. OF SPINDLE SPEED RANGES: ................ 2 SPINDLE 1 DRIVE MOTOR (30MIN./CONT.):........ 33.3 HP / 30 HP BAR WORK CAPACITY: .......................... 2.6" THRU-SPINDLE HOLE DIAMETER: ................. 2.9" TYPE OF SPINDLE NOSE: ....................... A2-6 MIN. SPINDLE INDEXING INCREMENT: ............ 0.0001 DEG SPINDLE MAX. SPINDLE SPEED: ......................... 5,000 MIN.-1 NO. OF SPINDLE SPEED RANGES: ................ 2 SPINDLE 2 DRIVE MOTOR (30MIN./CONT.): ....... 33.3 HP / 30 HP BAR WORK CAPACITY: .......................... 2.6" THRU-SPINDLE HOLE DIAMETER: ................. 2.9" TYPE OF SPINDLE NOSE: ....................... A2-6 MIN. SPINDLE INDEXING INCREMENT: ............ 0.0001 DEG TOOL SPINDLE: NO. OF TOOL STATIONS: ....................... 1 TAPER: ...................................... BT40 TOOL CAPACITY: .............................. 180 TOOL CHANGING TIME: ......................... 1.25 SEC MAX. TOOL DIAMETER W/ADJACENT TOOLS: ........ 2.7" MAX. TOOL DIAMETER W/O ADJACENT TOOLS: ...... 4.9" MAX. TOOL LENGTH: ........................... 11.8" MAX. TOOL WEIGHT: ........................... 8.8 LBS STD. B-AXIS INDEXING TIME: ................. 0.65 SEC. STD. MAX. TOOL SPINDLE SPEED: ............... 12,000 MIN.-1 STD. TOOL SPINDLE DRIVE MOTOR: .............. 7.5 HP / 5 HP TURRET 2: NO. OF TOOL STATIONS: ....................... 12 NO. OF ROTARY TOOLS ON TURRET: .............. 12 TURRET INDEXING TIME: ....................... 0.2 SEC MAX. ROTARY TOOL SPINDLE SPEED: ............. 6,000 MIN.-1 TURRET 2 ROTARY TOOL SPINDLE DRIVE MOTOR: ... 7.5 HP / 5 HP DIMENSIONS: FLOOR SPACE (LXW) W/O CONVEYOR CHIP: ........ 165.5" X 116.8" STD. CHIP CONVEYOR I/F ONLY: ................ 108.9" HINGE TYPE: ................................. 108.9" HINGE TYPE + SCRAPER TYPE + DRUM FILTER: .... 110" WEIGHT: ..................................... 35,860 LBS COOLANT TANK CAPACITY: ...................... 184.3" COOLANT PUMP MOTOR: ......................... 60HZ: 1.61 HP / 50HZ: 0.97HP ELECTRICAL POWER: ........................... 86.5 KVA COMPRESSED AIR SUPPLY: ...................... 72.5 PSI
EQUIPPED WITH: COOLJET, CHIP CONVEYOR TOOL PRESETTER, PARTS CATCHER, INTERFACE 1MG MEMORY 1000 PART PROGRAM 480 TOOL OFF SET 6 WORK 2) 8" KITAGAWA CHUCKS FULL B-AXIS .001 DEGREE FULL CONTOURING 1000 PSI HIGH PRESSURE SYSTEM ****MANUFACTURED IN 12/2006 AND SOLD NEW IN 2008.****
