MORI SEIKI ZL-200 SMC
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
ZL-200 SMC
Condition:
Not Specified
Year:
2000
Stock #:
30539
Status:
Sold
Description:
MSC-501 Control
Location:
Washington, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

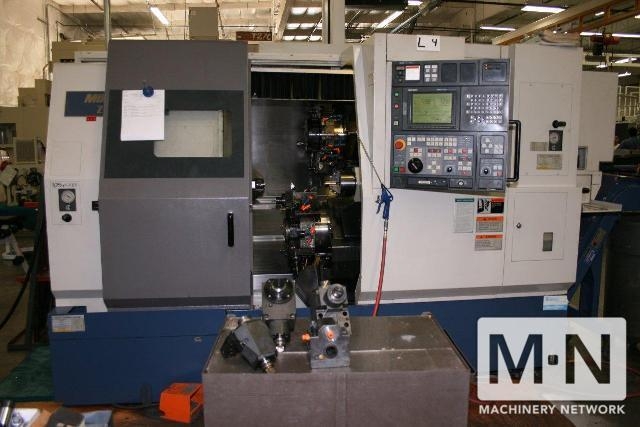

(1) USED MORI SEIKI ZL-200 SMC CNC 3 AXIS TURNING CENTER
NEW 2000
Specification Description Swing Over Bed / Cross Slide 26.8" / 20.1" Max Turning DIA. Turret # 1 15.3" Max Turning DIA. Turret # 2 11.5" Max Turning Length: 17.8" Spindle Speeds: 40 - 4,000 RPM Spindle Motor: 15/10 HP AC Spindle Nose A2-6 Spindle Bore: 2.5" Max Bar Size 2.0" Turret Stations: 12 / 8 Turret Index Time 0.3 Sec Z- Axis 20.5" X- Axis 9.3" Z- Axis 19.7" X- Axis 6.9" Rapid Travels: X and Z 708 / 944 ipm Tail Stock Yes Tail Stock Travel 15.7" Tail Stock Quill Travel 4.7" Tail Stock Taper MT # 4 Dimensions: H x L x W 83" x 156"x 85" Approximate Weight: 12,210 lbs
Equipped With:

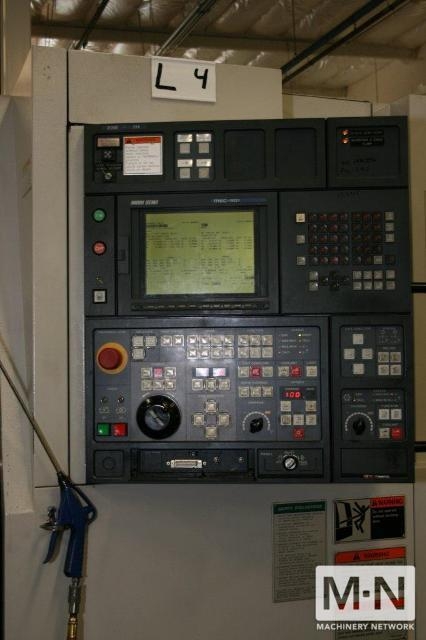

Mori Seiki MSC-501 (Fanuc 18iTA)
Parts Catcher
Bar-feeder inter-phase
8" Chuck on main and 6" on sub

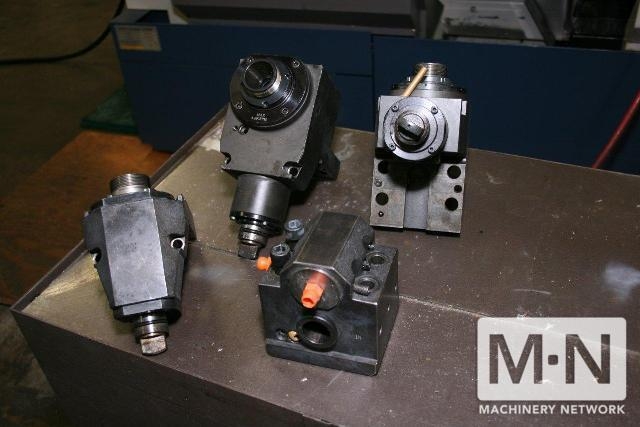

All Available Tooling and Manuals
NEW 2000
Specification Description Swing Over Bed / Cross Slide 26.8" / 20.1" Max Turning DIA. Turret # 1 15.3" Max Turning DIA. Turret # 2 11.5" Max Turning Length: 17.8" Spindle Speeds: 40 - 4,000 RPM Spindle Motor: 15/10 HP AC Spindle Nose A2-6 Spindle Bore: 2.5" Max Bar Size 2.0" Turret Stations: 12 / 8 Turret Index Time 0.3 Sec Z- Axis 20.5" X- Axis 9.3" Z- Axis 19.7" X- Axis 6.9" Rapid Travels: X and Z 708 / 944 ipm Tail Stock Yes Tail Stock Travel 15.7" Tail Stock Quill Travel 4.7" Tail Stock Taper MT # 4 Dimensions: H x L x W 83" x 156"x 85" Approximate Weight: 12,210 lbs
Equipped With:
Mori Seiki MSC-501 (Fanuc 18iTA)
Parts Catcher
Bar-feeder inter-phase
8" Chuck on main and 6" on sub
All Available Tooling and Manuals
