MORI SEIKI SL-2500Y
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
SL-2500Y
Condition:
Not Specified
Year:
2001
Stock #:
30006
Status:
Sold
Description:
10" CHUCK
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

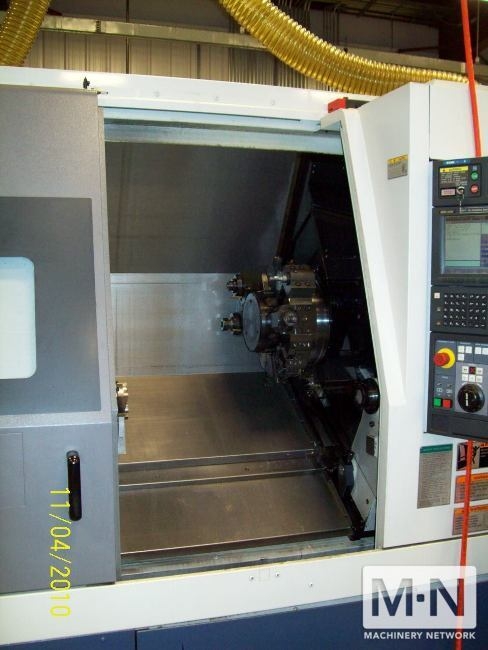

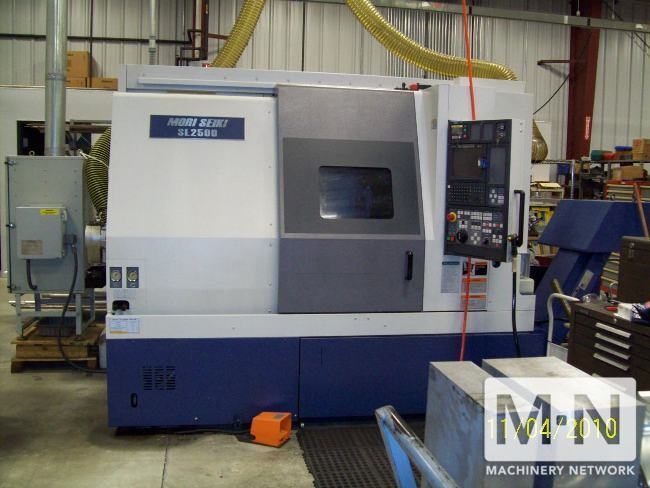

(1) USED MORI SEIKI SL-2500Y CNC TURNING CENTER
NEW: 2001
SPECIFICATIONS:
Chuck Size 10"
Max Diameter Bar Capacity 2.8"
Max Swing Over Bed / Front Cover 34.3"/18.3"
Turning Diameter (Max / Std) 19.2"/10.2"
Max Machining Length 25.5"
Spindle Motor 30/24.7 HP
Spindle Speed 4000 RPM
Spindle Bore 3.5"
Spindle Nose A2-8

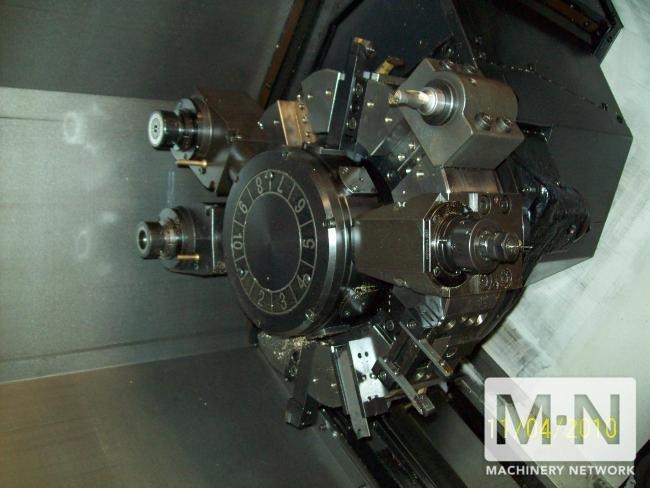

Tools 10 (All Live)
Milling Motor 7.5/3 HP
Milling Speed 6000 RPM
Rapid Traverse Rates (X / Y / Z) 945/787/472 IPM
X-Axis Travel 12"
Z-Axis Travel 27.2"
C-Axis Index .001 Degrees
Y-Axis Travel +/- 2.4"
Turret Index (Single Step) 0.2 Seconds
Tailstock Taper MT#5
Machine Dimensions (L x W x H) 100.4"x73.8"x84.6"
Machine Weight 11,000 lbs.
FEATURES:

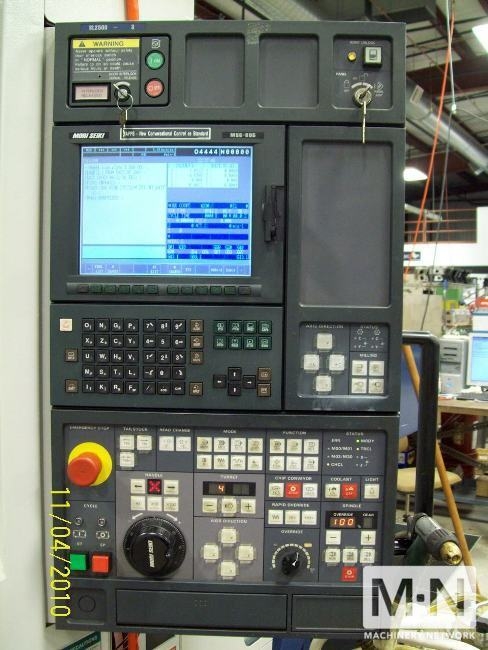

MORIC MSG-805L (MITSUBISHI) CNC CONTROL
10.4" Color TFT
C & Y-Axis Milling Capability
MAPPS Conversational Programming

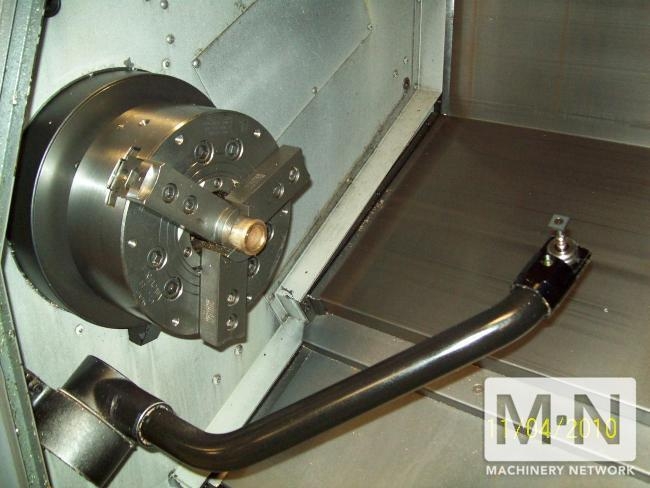

10" Hydraulic Chuck
Tool Presetter

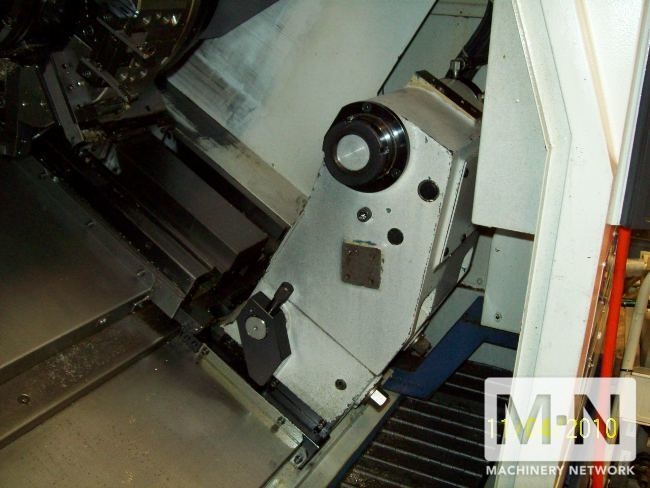

Tow-Along Tailstock
Chip Conveyor
(2) OD Live Holders
(2) Face Live Holders
Slant Bed Box Way Construction
9999 Power on Hours
4274 Operating Hours
642 Cutting Hours
NEW: 2001
SPECIFICATIONS:
Chuck Size 10"
Max Diameter Bar Capacity 2.8"
Max Swing Over Bed / Front Cover 34.3"/18.3"
Turning Diameter (Max / Std) 19.2"/10.2"
Max Machining Length 25.5"
Spindle Motor 30/24.7 HP
Spindle Speed 4000 RPM
Spindle Bore 3.5"
Spindle Nose A2-8
Tools 10 (All Live)
Milling Motor 7.5/3 HP
Milling Speed 6000 RPM
Rapid Traverse Rates (X / Y / Z) 945/787/472 IPM
X-Axis Travel 12"
Z-Axis Travel 27.2"
C-Axis Index .001 Degrees
Y-Axis Travel +/- 2.4"
Turret Index (Single Step) 0.2 Seconds
Tailstock Taper MT#5
Machine Dimensions (L x W x H) 100.4"x73.8"x84.6"
Machine Weight 11,000 lbs.
FEATURES:
MORIC MSG-805L (MITSUBISHI) CNC CONTROL
10.4" Color TFT
C & Y-Axis Milling Capability
MAPPS Conversational Programming
10" Hydraulic Chuck
Tool Presetter
Tow-Along Tailstock
Chip Conveyor
(2) OD Live Holders
(2) Face Live Holders
Slant Bed Box Way Construction
9999 Power on Hours
4274 Operating Hours
642 Cutting Hours
