MORI SEIKI SL-400 BMC

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

MORI SEIKI

Model:

SL-400 BMC

Condition:

Not Specified

Year:

2000

Stock #:

26558

Status:

Sold

Description:

FANUC 18 CNC, 15" 3 JAW CHUCK, 28.0" SWG, 44.3" B/W CENTERS, CHIP CONV,

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

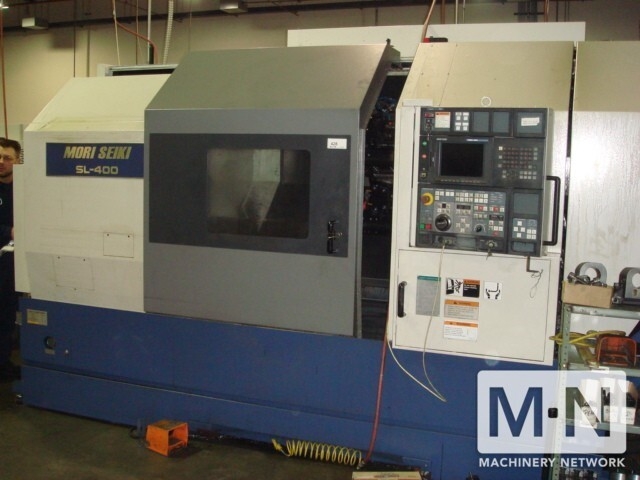

(1) USED MORI SEIKI SL-400B-MC 3-AXIS UNIVERSAL CNC LATHE
NEW-2000

SPECIFICATIONS:

CAPACITY SWING OVER BED:................. 28.0"
SWING OVER CROSS SLIDE:.................. 29.1"
BETWEEN CENTERS:......................... 44.3"
MAXIMUM TURNING DIAMTER:................. 25.5"
MAXIMUM TURNING LENGTH:.................. 33.9"
TRAVEL X-AXIS TRAVEL:.................... 13.6"
Z-AXIS TRAVEL:.................... 35.4"
SPINDLE MAXIMUM SPINDLE SPEED:........... 2,400 R.P.M
NUMBER OF SPINDLE SPEED RANGES:.......... 2
TYPE OF SPINDLE NOSE:.................... JIS A(2)-11
THROUGH SPINDLE HOLE DIAMETER:........... 5.1"
SPINDLE BEARING INNER DIAMETER:.......... 7.1"

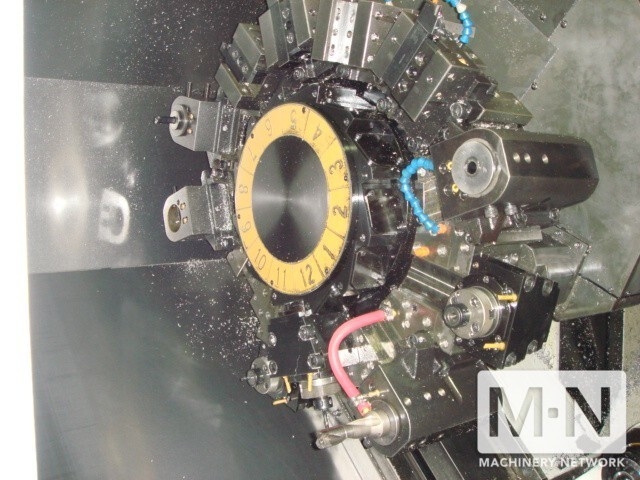

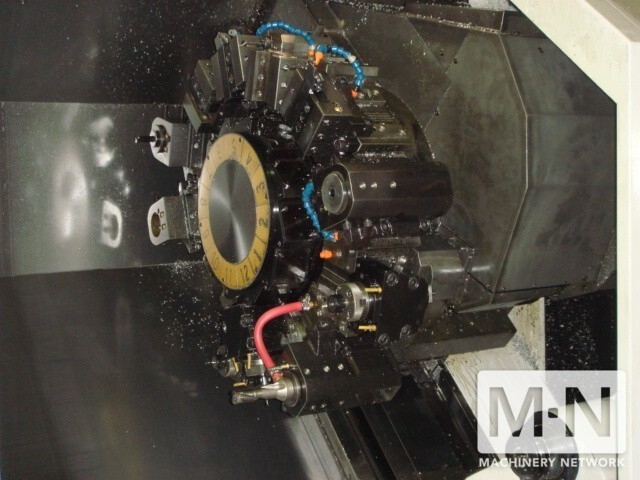

TURRET NUMBER OF TOOL STATIONS:.......... 12
SHANK HEIGHT FOR SQUARE TOOL:............ 1 1/4"
SHANK DIAMETER FOR BORING BAR:........... 2 1/2"
MAXIMUM ROTARY TOOL SPINDLE SPEED:....... 3,000

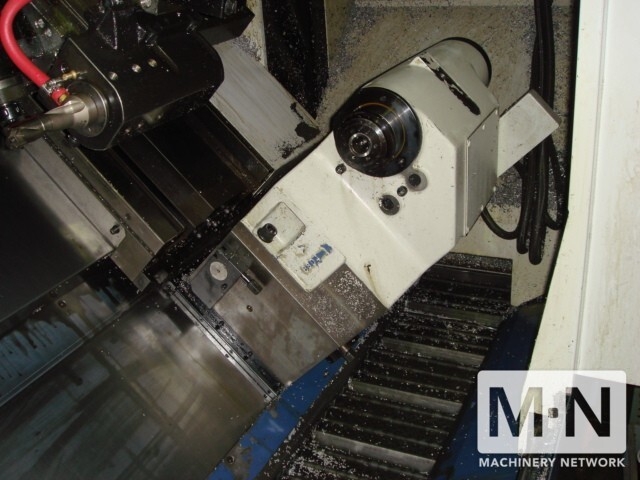

TAILSTOCK TAILSTOCK TRAVEL:.............. 33.5"
TAILSTOCK SPINDLE TRAVEL:................ 5.9"
MOTOR SPINDLE DRIVE MOTOR:............... 40/30HP
ROTARY TOOL SPINDLE DRIVE MOTOR:......... 12HP
MACHINE SIZE MACHINE HEIGHT:............. 96.5"
FLOOR SPACE:............................. 159.4"X 112.6"
APPROXIMATE MACHINE WEIGHT:.............. 26,400 LBS.

EQUIPPED WITH:

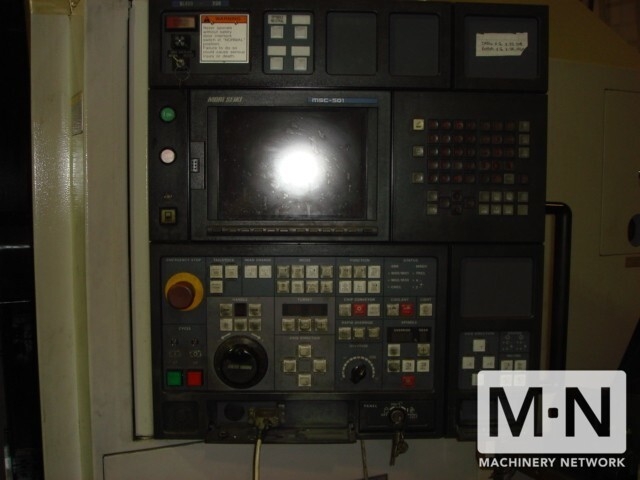

FANUC 18T-i CNC 3-AXIS CONTROL

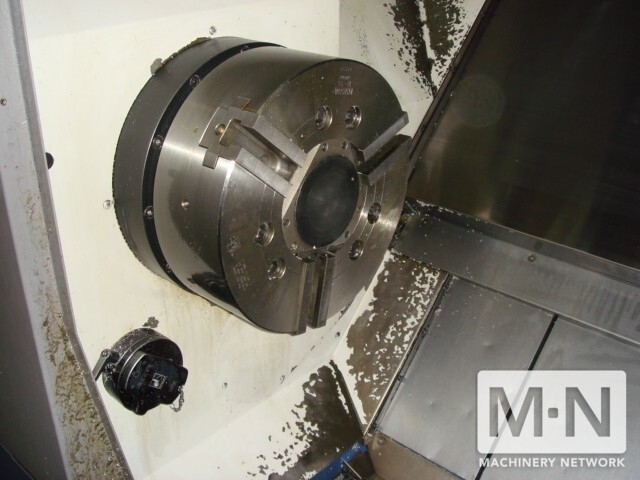

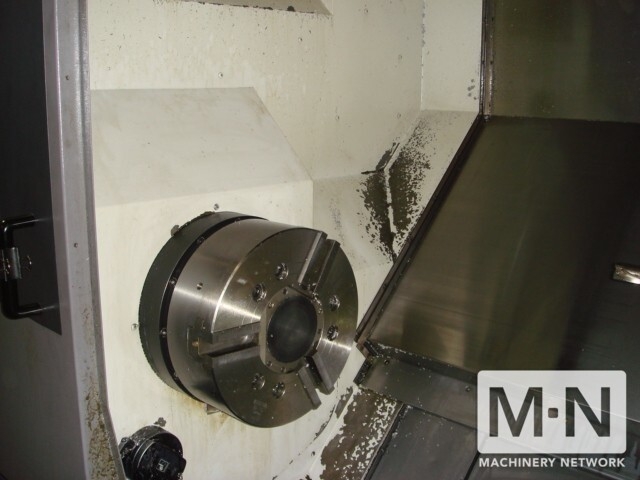

15" KITAGAWA 3-JAW HOLLOW CHUCK

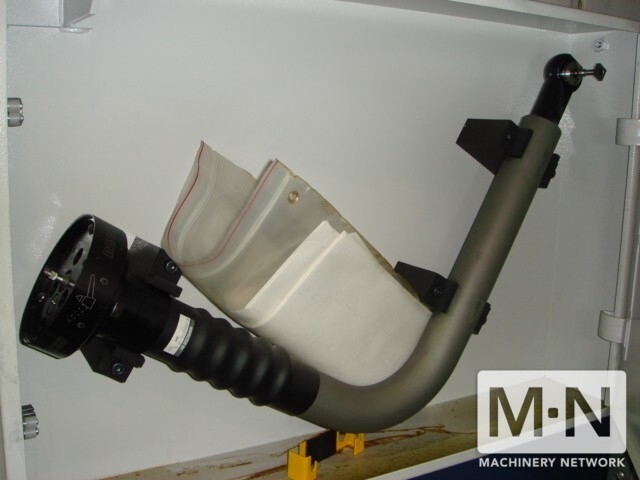

TOOL PRESETTER
CHIP CONVEYOR
3 LIVE HOLDERS AND STANDARD TOOL MANUALS
OPTIONAL 50 HP SPINDLE MOTOR
