OKUMA LU-15-M1000
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
OKUMA
Model:
LU-15-M1000
Condition:
Not Specified
Year:
2002
Stock #:
23050
Status:
Sold
Description:
E-100L; 4500 MAIN SPINDLE; CHIP CONVEYOR; 3 Z LIVE TOOLS & 2 X LIVE TOOLS
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

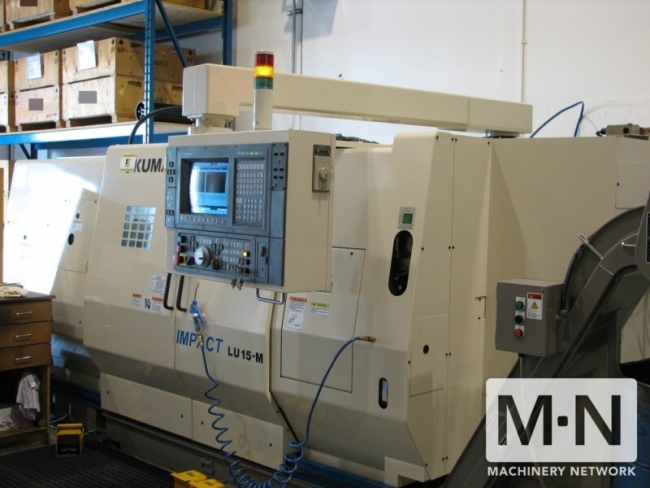

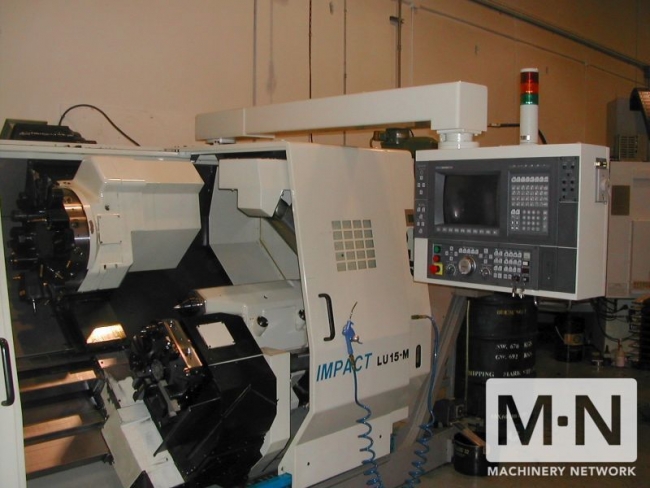

1) OKUMA LU-15M 5 AXIS CNC TURNING CENTER
NEW IN 2002
** LESS THAN 2000 CUTTING HOURS"
SPECIFICATIONS:
NUMBER OF CONTROLLED AXIS 5
SWING OVER BED 20.87"
SWING OVER CARRIAGE 14.96"
SWING OVER CROSS SLIDE 12.99"
DISTANCE BETWEEN CENTERS 39.96"
MAX. TURNING DIAMETER 13.38"
SPINDLE:
SPINDLE DIAMETER MAIN SPINDLE 3.94"
SPINDLE NOSE MAIN SPINDLE A2-6
SPINDLE THRU HOLE MAIN 2.44"
SPINDLE SPEED RANGES MAIN STEPLESS X AUTOMATIC 2 STEPS
SPINDLE SPEED MAIN 45-4500 RPM
CROSS SLIDE: (X AXIS)
AXIS TRAVEL UPPER TURRET 7.09" + 3.15"
AXIS TRAVEL LOWER TURRET 4.13" + 1.38"
FEED RATE .00001 TO 39.37 IPR
RAPID FEED RATE 590.55 IPR
CARRIAGE: (Z AXIS)
AXIS TRAVEL UPPER TURRET 25.20"
AXIS TRAVEL LOWER TURRET 24.21"
FEED RATE .00001 TO 39.37 IPR
RAPID FEED RATE 797.40 IPR

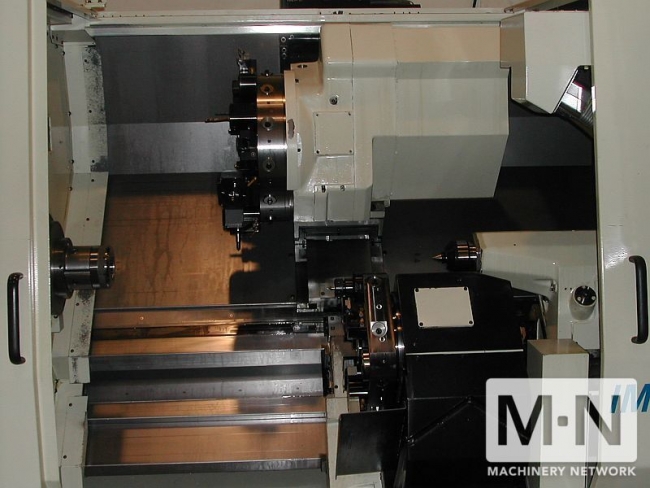

TURRET:
TYPE UPPER V 12 POSITION
TYPE LOWER V 8 POSITION
BOTH V.D.I
NUMBER OF TOOLS TOTAL 20
SPINDLE DRIVE MOTOR 20 HP CONT./ 30 HP 30 MIN.
APPROX. OVERALL DIMENSIONS 155.98" X 82.68" X 76.06" TALL
APPROX. MACHINE WEIGHT 11,660 LBS
MACHINE EQUIPPED WITH:

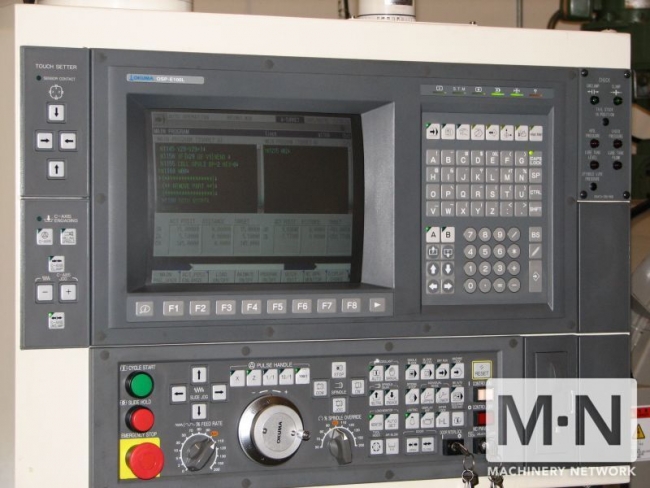

OKUMA E-100L CNC CONTROL
8" KITAGAWA HYDRAULIC CHUCK

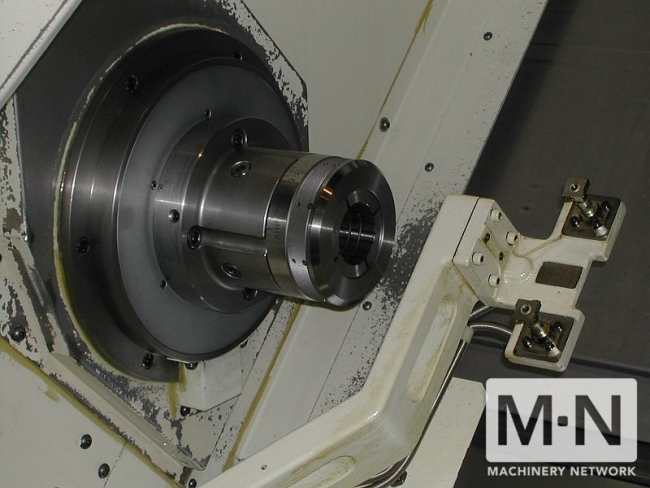

ROHM DEAD LENGTH COLLET CHUCK
LIVE QUILL TAILSTOCK
HIGH PRESSURE COOLANT SYSTEM
TRANSFORMER
SIDE DISCHARGE CHIP CONVEYOR
ONE TOUCH IGF-XL
INCH/METRIC
TOOL LIFE MANAGEMENT
0.1 MICRON CONTROL
HARMONIC SPINDLE SPEED CONTROL
CALENDER TIMER
TOUCHSETTER "M"
STANDARD TOOLING PACKAGE
SANDVIK Z AXIS LIVE TOOLHOLDER
0.5" SPINDLE LINER; 1" SPINDLE LINER
ROYAL BAR PULLER
NEW IN 2002
** LESS THAN 2000 CUTTING HOURS"
SPECIFICATIONS:
NUMBER OF CONTROLLED AXIS 5
SWING OVER BED 20.87"
SWING OVER CARRIAGE 14.96"
SWING OVER CROSS SLIDE 12.99"
DISTANCE BETWEEN CENTERS 39.96"
MAX. TURNING DIAMETER 13.38"
SPINDLE:
SPINDLE DIAMETER MAIN SPINDLE 3.94"
SPINDLE NOSE MAIN SPINDLE A2-6
SPINDLE THRU HOLE MAIN 2.44"
SPINDLE SPEED RANGES MAIN STEPLESS X AUTOMATIC 2 STEPS
SPINDLE SPEED MAIN 45-4500 RPM
CROSS SLIDE: (X AXIS)
AXIS TRAVEL UPPER TURRET 7.09" + 3.15"
AXIS TRAVEL LOWER TURRET 4.13" + 1.38"
FEED RATE .00001 TO 39.37 IPR
RAPID FEED RATE 590.55 IPR
CARRIAGE: (Z AXIS)
AXIS TRAVEL UPPER TURRET 25.20"
AXIS TRAVEL LOWER TURRET 24.21"
FEED RATE .00001 TO 39.37 IPR
RAPID FEED RATE 797.40 IPR
TURRET:
TYPE UPPER V 12 POSITION
TYPE LOWER V 8 POSITION
BOTH V.D.I
NUMBER OF TOOLS TOTAL 20
SPINDLE DRIVE MOTOR 20 HP CONT./ 30 HP 30 MIN.
APPROX. OVERALL DIMENSIONS 155.98" X 82.68" X 76.06" TALL
APPROX. MACHINE WEIGHT 11,660 LBS
MACHINE EQUIPPED WITH:
OKUMA E-100L CNC CONTROL
8" KITAGAWA HYDRAULIC CHUCK
ROHM DEAD LENGTH COLLET CHUCK
LIVE QUILL TAILSTOCK
HIGH PRESSURE COOLANT SYSTEM
TRANSFORMER
SIDE DISCHARGE CHIP CONVEYOR
ONE TOUCH IGF-XL
INCH/METRIC
TOOL LIFE MANAGEMENT
0.1 MICRON CONTROL
HARMONIC SPINDLE SPEED CONTROL
CALENDER TIMER
TOUCHSETTER "M"
STANDARD TOOLING PACKAGE
SANDVIK Z AXIS LIVE TOOLHOLDER
0.5" SPINDLE LINER; 1" SPINDLE LINER
ROYAL BAR PULLER
