OKUMA SPACE TURN LB 4000 EXII MY/1500

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

OKUMA

Model:

SPACE TURN LB 4000 EXII MY/1500

Condition:

Not Specified

Year:

2015

Stock #:

36708

Status:

Sold

Description:

OKUMA OSP P300L , 26" MAX SWING, 4.33 BORE,

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) USED OKUMA SPACE TURN LB 4000 EXII MY/1500 CNC LATHE W/MILLING & Y-AXIS
NEW 2015

SPECIFICATIONS:
MAXIMUM SWING 26.38"
MAX TURNING DIAMETER 18.90''
MAXIMUN TURNING LENGTH 59.84''
MAX. WORK LENGTH 59.06"
SPINDLE NOSE A2-11"
BORE DIAMETER 4.33"
X - AXIS TRAVEL 11.81"
Z - AXIS TRAVEL 62.2"
C - AXIS TRAVEL 0.001 DEGREE INCREMENTS 360,000
Y - AXIS TRAVEL 4.72"
SPINDLE SPEEDS 3000 RPM
MAIN SPINDLE DRIVE MOTOR 50 HP
MILL SPINDLE SPEED 24 - 6,000 RPM
MILL SPINDLE MOTOR 10 HP AC
RAPID TRAVERSE RATE X, Z 591, 787 IPM
TURRET POSITION 12
TAILSTOCK QUILL DIAMETER 4.72"
TAILSTOCK QUILL TRAVEL 6.69"
TAILSTOCK QUILL TAPER MT #5
WEIGHT 18,400

EQUIPPED WITH
(2) LIVE TOOL BLOCKS CROSS TOOL (2) LIVE TOOL BLOCKS FACE TOOLS

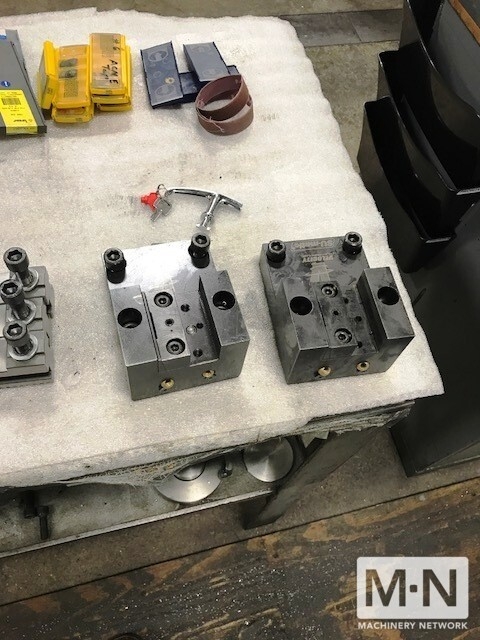

(2) STATIC TOOL BLOCKS OD-2-1.0" STICK SIZE (3) STATIC TOOL BLOCKS- 2.0" BORING

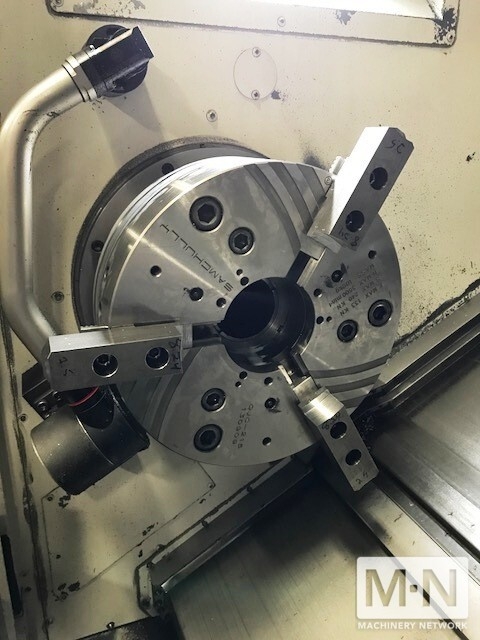

(4) STATIC TOOL BLOCKS OD-1-1.0" STICK SIZE 15" QUICK JAW CHANGE CHUCK WITH THRU HOLE
AOT IGF P3MY LB-EXMY BIG BORE A2-11" W/F 2511/DTUBE
CHIP CONVEYOR HELICAL CUTTING FOR MY
HYDRAULIC UNIT TEMPERATURE CONTROL MISC. JAWS
OKUMA OSP P300L CNC CONTROL OKUMA OSP P300L CNC CONTROL
THREADING FOR QJC-215 TOUCHSETTER M
