OKUMA LOC 650 GBB-2SC 1750
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
OKUMA
Model:
LOC 650 GBB-2SC 1750
Condition:
Not Specified
Year:
2005
Stock #:
35982
Status:
Sold
Description:
OSP E100L, 22" MAX TURN DIAM, 12" x 80", 500 RPM, 12 Turret Position, 32" Shunk Big Bore Air Chuck On Front, Misc Tooling, Chip Conveyor Coolant System
Location:
Kentucky, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

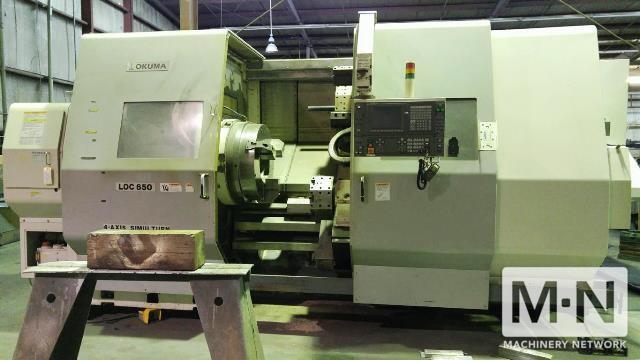

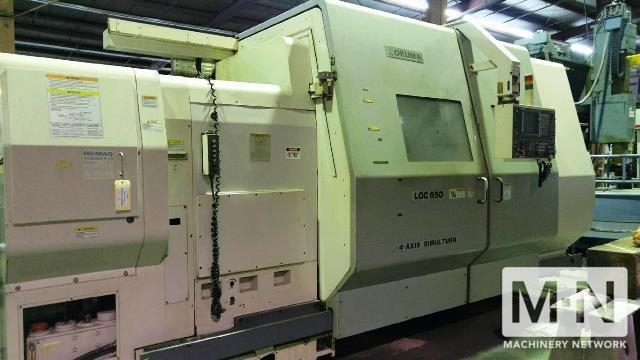

(1) USED OKUMA LOC 650 GBB-2SC 1750 CNC TWIN SPINDLE MULTIAXIS LATHE
NEW 2005
SPECIFICATIONS
MAXIMUM TURNING DIAMETER (UPPER / LOWER TURRET):..22.05 / 20.08"
X AXIS TRAVEL (UPPER TURRET): ....................12.99" / -5.51"
X AXIS TRAVEL (LOWER TURRET): ....................10.04" / -0.59"
MAXIMUM SWING ..................................31.50 IN
MACHINING DIAMETER................................19.69 IN
SPINDLE BORE ..................................14.76IN
CUTTING LENGTH ..................................68.89IN
X AXIS TRAVEL ..................................12.99IN
Z AXIS TRAVEL ..................................80.31IN
SPINDLE
POWER 30 MIN: ..................................50 HP
CONT: ............................................60 HP
SPEEDS............................................500 RPM
NOSE.............................................A2-20
BORE..............................................14.76 IN
CHUCK TYPE........................................AIR
CHUCK DIAMETER....................................32.00IN

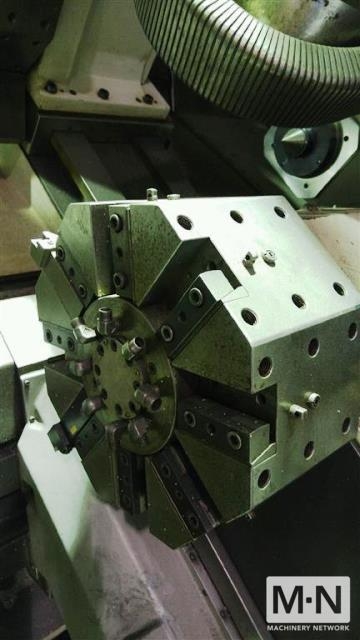

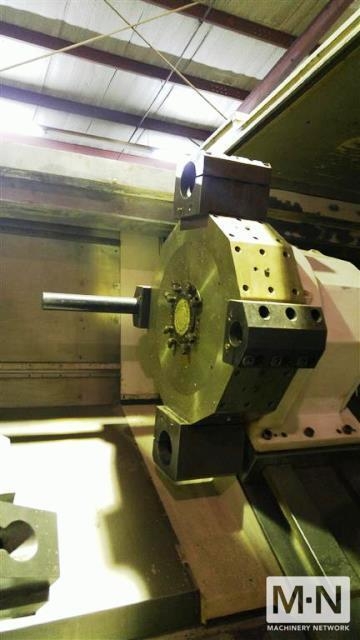

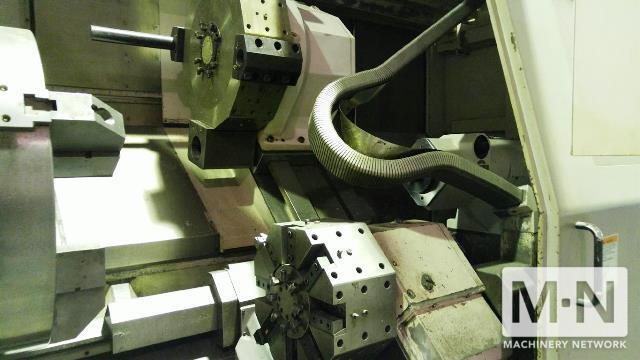

TURRETS
TYPE..............................................DRUM
POSITIONS.........................................12
TAILSTOCK
QUILL TAPER.......................................MT6
QUILL STROKE......................................7.87 IN
QUILL DIAMETER....................................7.09 IN
EQUIPPED WITH:

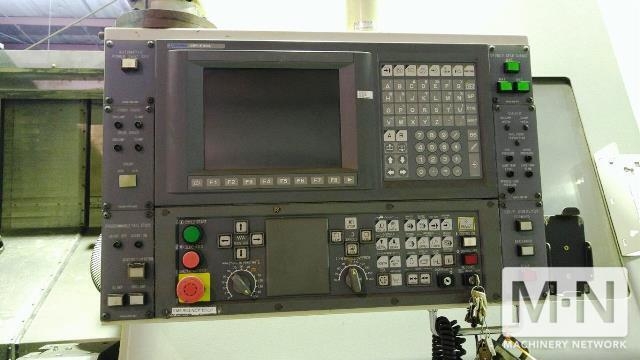

OSP E100L CNC CONTROL

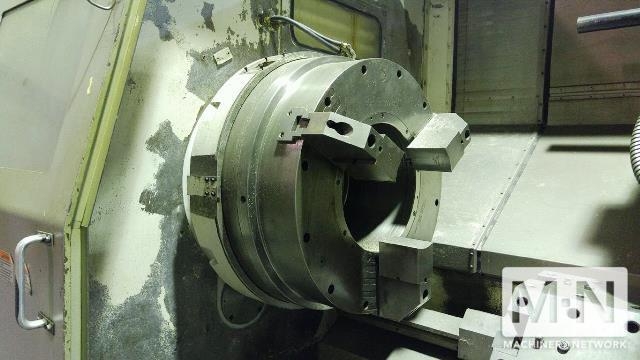

32" SHUNK BIG BORE AIR CHUCK ON FRONT
MISCELLANEOUS TOOLING

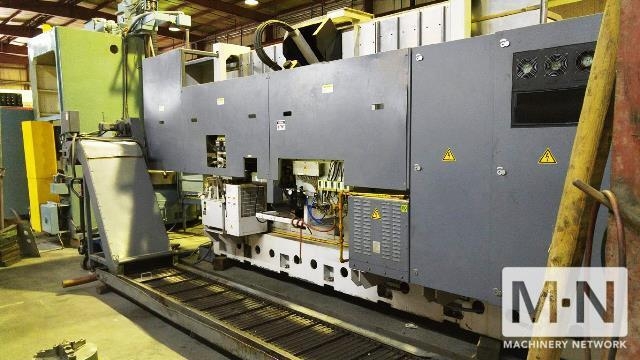

CHIP CONVEYOR COOLANT SYSTEM
WEIGHT 52,800 LBS
NEW 2005
SPECIFICATIONS
MAXIMUM TURNING DIAMETER (UPPER / LOWER TURRET):..22.05 / 20.08"
X AXIS TRAVEL (UPPER TURRET): ....................12.99" / -5.51"
X AXIS TRAVEL (LOWER TURRET): ....................10.04" / -0.59"
MAXIMUM SWING ..................................31.50 IN
MACHINING DIAMETER................................19.69 IN
SPINDLE BORE ..................................14.76IN
CUTTING LENGTH ..................................68.89IN
X AXIS TRAVEL ..................................12.99IN
Z AXIS TRAVEL ..................................80.31IN
SPINDLE
POWER 30 MIN: ..................................50 HP
CONT: ............................................60 HP
SPEEDS............................................500 RPM
NOSE.............................................A2-20
BORE..............................................14.76 IN
CHUCK TYPE........................................AIR
CHUCK DIAMETER....................................32.00IN
TURRETS
TYPE..............................................DRUM
POSITIONS.........................................12
TAILSTOCK
QUILL TAPER.......................................MT6
QUILL STROKE......................................7.87 IN
QUILL DIAMETER....................................7.09 IN
EQUIPPED WITH:
OSP E100L CNC CONTROL
32" SHUNK BIG BORE AIR CHUCK ON FRONT
MISCELLANEOUS TOOLING
CHIP CONVEYOR COOLANT SYSTEM
WEIGHT 52,800 LBS
