OKUMA LT200-MY
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
OKUMA
Model:
LT200-MY
Condition:
Not Specified
Year:
2007
Stock #:
31015
Status:
Sold
Description:
2.44" Bore Diam. ,2" Bar, FMB Turbo 5-55 bar feeder
Location:
Kentucky, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

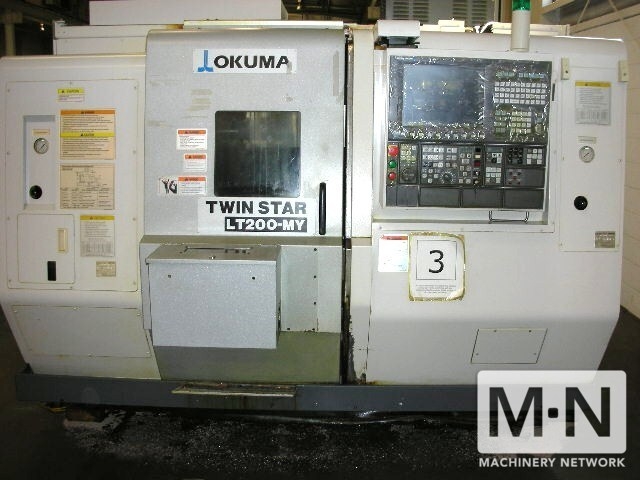

Okuma LT200-MY CNC Multi Axis Turning Center
NEW 2007
SPECIFICATIONS:
Swing Over Saddle:...............................................15.75"
Max. Distance Between Spindle Nos......................37.80"
Max Turning Diameter............................................8.27"
Max Machining Length...........................................21.26"
Spindle Nose (Main/Sub):......................................A2-6 / A2-6
Bore Diameter.......................................................2.44"
Bar Work Cap.......................................................2.0"
Range Of Spindle Speed (Main & Sub):...................4500 RPM
C-Axis Indexing (Mian & Sub).................................001 Deg.
Y-Axis Travel......................................................+ 1.65" / - 1.97"
Cross-Slide Travel
(XA-Axis)..............................................................7.56"
(XB-Axis)..............................................................7.56"
Longitudinal Travel
(ZA-Axis)..............................................................27.56"
(ZB-Axis)..............................................................27.56"
(W-Axis) Sub Spindle............................................28.74
Type And No Of Tool Stations

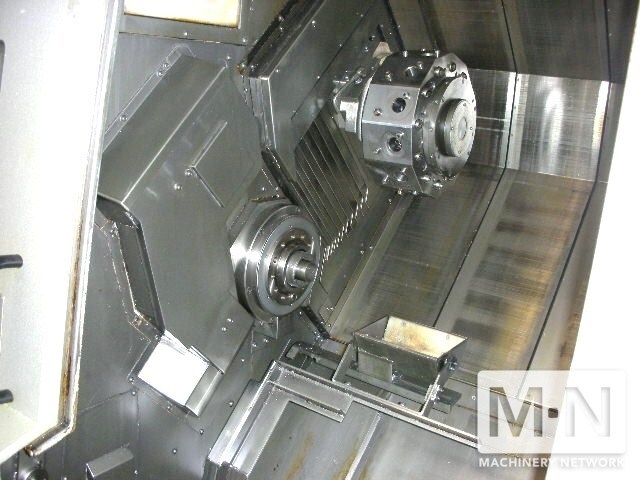

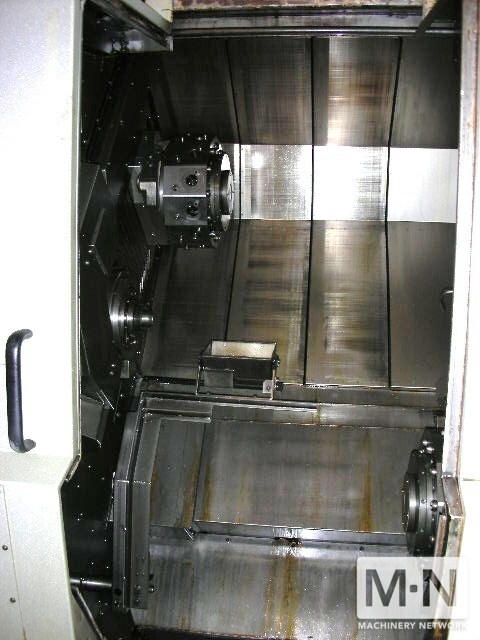

Turret No.1 (12 Rotary)..........................................Auto Vert. V 12
TURRET No.2 (12 Rotary)......................................Auto Vert. V 12
Main & Sub Spindle Drive Motor.............................15 /15 HP
Rotary Tool Spindle Speed.....................................6000 RPM
Rotary Tool Horse Power (Upper / Lower).................5.4 / 5.4 HP
EQUIPPED WITH:

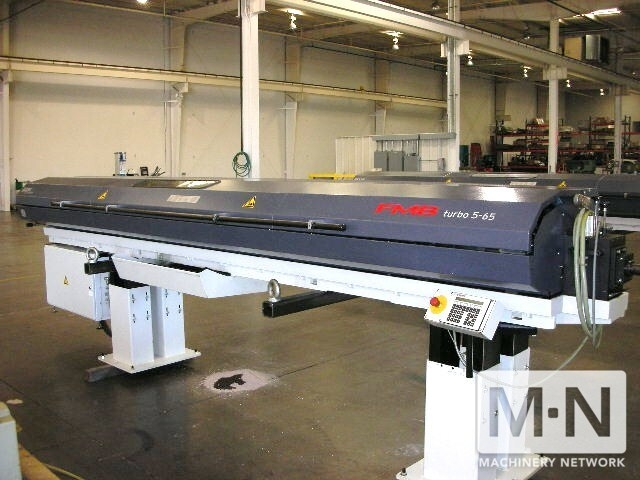

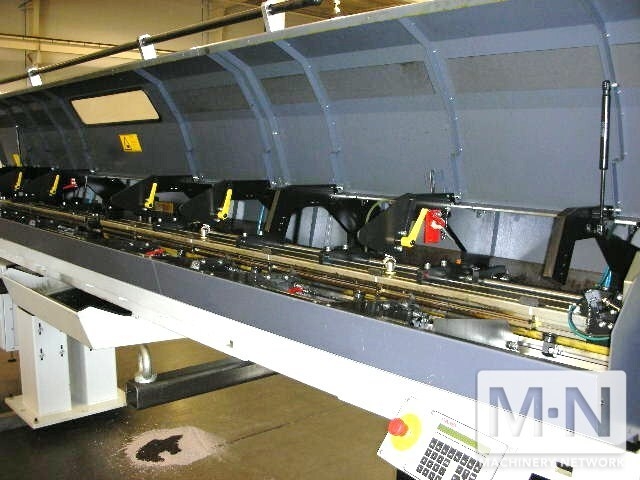

FMB TURBO 5-55 BAR FEEDER

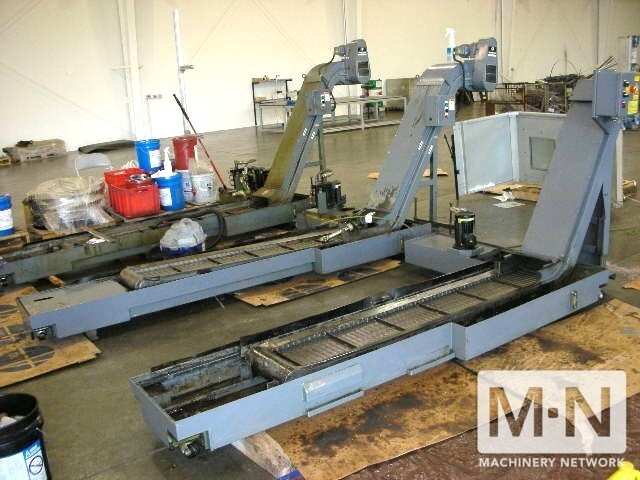

CHIP CONVEYOR
PARTS CATCHER
TOUCH SETTER (BOTH SPINDLES)
SHOWER COOLANT
BIG BORE A2-6
SCALE FEEDBACK Z B-AXIS
TRANSFORMER
PITCH ERROR COMP.
SPARE M CODES (4 SET)
NEW 2007
SPECIFICATIONS:
Swing Over Saddle:...............................................15.75"
Max. Distance Between Spindle Nos......................37.80"
Max Turning Diameter............................................8.27"
Max Machining Length...........................................21.26"
Spindle Nose (Main/Sub):......................................A2-6 / A2-6
Bore Diameter.......................................................2.44"
Bar Work Cap.......................................................2.0"
Range Of Spindle Speed (Main & Sub):...................4500 RPM
C-Axis Indexing (Mian & Sub).................................001 Deg.
Y-Axis Travel......................................................+ 1.65" / - 1.97"
Cross-Slide Travel
(XA-Axis)..............................................................7.56"
(XB-Axis)..............................................................7.56"
Longitudinal Travel
(ZA-Axis)..............................................................27.56"
(ZB-Axis)..............................................................27.56"
(W-Axis) Sub Spindle............................................28.74
Type And No Of Tool Stations
Turret No.1 (12 Rotary)..........................................Auto Vert. V 12
TURRET No.2 (12 Rotary)......................................Auto Vert. V 12
Main & Sub Spindle Drive Motor.............................15 /15 HP
Rotary Tool Spindle Speed.....................................6000 RPM
Rotary Tool Horse Power (Upper / Lower).................5.4 / 5.4 HP
EQUIPPED WITH:
FMB TURBO 5-55 BAR FEEDER
CHIP CONVEYOR
PARTS CATCHER
TOUCH SETTER (BOTH SPINDLES)
SHOWER COOLANT
BIG BORE A2-6
SCALE FEEDBACK Z B-AXIS
TRANSFORMER
PITCH ERROR COMP.
SPARE M CODES (4 SET)
