OKUMA MULTUS B300W

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

OKUMA

Model:

MULTUS B300W

Condition:

Not Specified

Year:

2008

Stock #:

33166

Status:

Sold

Description:

P200L CONTROL, 2.7" BAR, 10K RPM, CTS,

Location:

Michigan, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

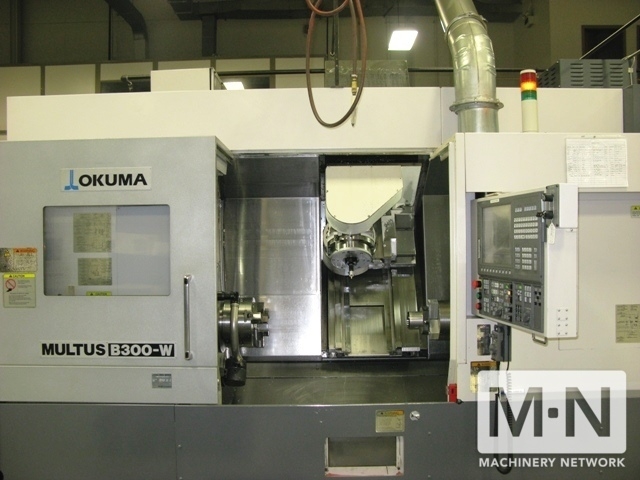

(1) USED OKUMA MULTUS B300W CNC MULTI FUNCTION TURNING & MILLING CENTER NEW 2008
SPECIFICATIONS: MAXIMUM SWING: .......................... 24.8" MAXIMUM TURNING DIAMETER: ............... 17.72" MAX. DISTANCE BETWEEN SPINDLES: ......... 35.43" X AXIS TRAVEL: .......................... 22.83" Z AXIS TRAVEL: .......................... 37.2" Y AXIS TRAVEL: .......................... 3.15" W AXIS TRAVEL (RIGHT SPINDLE TRAVEL): ... 39.37" C AXIS MINIMUM INCREMENT: ............... 0.001º B AXIS TRAVEL (ANGLE MILLING): .......... -30º TO +195º RAPID TRAVERSE RATE X & Z AXES: ......... 1575 IPM RAPID TRAVERSE RATE Y AXIS: ............. 1024 IPM RAPID TRAVERSE RATE W AXIS: ............. 787 IPM SPINDLE NOSE (MAIN & SUB SPINDLE): ...... A2-6 SPINDLE BORE (EITHER SPINDLE): .......... 2.44" SPINDLE SPEEDS (LEFT SPINDLE): .......... 38 - 5,000 RPM SPINDLE SPEEDS (RIGHT SPINDLE): ......... 38 - 5,000 RPM SPINDLE MOTOR (MAIN / SUB SPINDLE): ..... 10 HP / 5 HP TOOL CHANGER CAPACITY: .................. 40 STATIONS MILLING TOOLING SPEEDS: ................. 6,000 RPM MILLING MOTOR: .......................... 15 HP APPROX. DIMENSIONS (INCL CHIP): ......... 172" X 80" X 103" MACHINE WEIGHT (APPROX): ................ 22,000 LBS
EQUIPPED WITH: OSP-P200L CNC CONTROL BIG BORE OPTION CTS
