OKUMA LU35M

Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
OKUMA
Model:
LU35M
Condition:
Not Specified
Year:
2005
Stock #:
36169
Status:
Sold
Description:
OSP-U100L CNC Control, 18" Chuck, Live Milling, Tailstock, Chip Conveyor, Mist Collector, and Coolant TanK
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

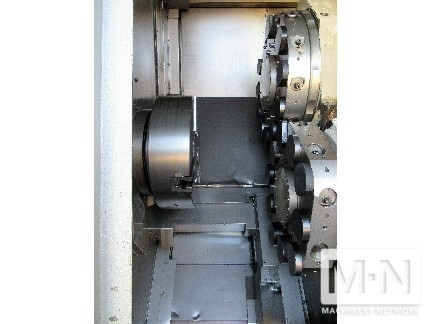

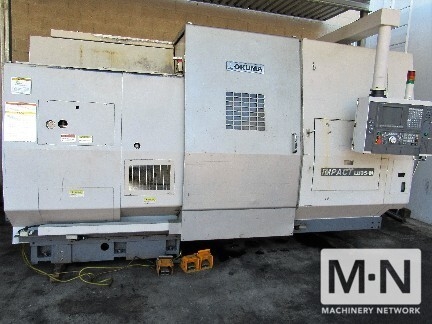

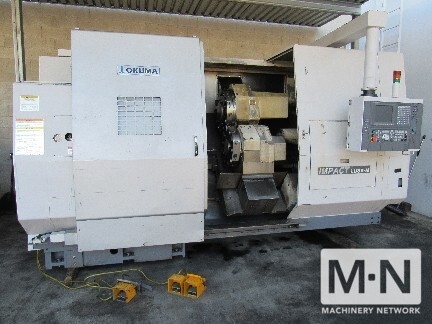

(1) USED OKUMA LU35M MULTIFUNCTIONAL 4-AXIS CNC LATHE 2005 DOUBLE TURRET LIVE MILLING
NEW 2005

SPECIFICATIONS:
SWING OVER BED ..................29.13"
SWING OVER SADDLE.................18.90"
MAX. TURNING DIAMETER UPPER.......21.65"
MAX. TURNING DIAMETER LOWER.......14.17"
XA-UPPER TRAVEL ..................14.96"
XB-LOWER TRAVEL ..................9.84"
ZA-UPPER TRAVEL ..................36.22"
ZB-LOWER TRAVEL ..................34.44"
MAX. WORK LENGTH-UPPER ..........36.22"
SPINDLE NOSE TYPE ..........A2-11
SPINDLE BORE ..................4.33"
TOTAL SPEED RANGE.................12-187-2800 RPM
STD. POWER ..................40/30 HP
SPINDLE BEARING I.D...............5.90"
SPINDLE MOTOR DRIVE..............BASE MOUNTED VAC
SPEED RANGES......................4 (2 COIL X 2 GEAR)
NO. OF TOOL STATIONS UPPER........NC-V12 / V10 VDI-50
NO. OF TOOL STATIONS LOWER.,......UPPER L10, I.D. OR O.D.
ROTARY SPEED RANGE ..........40-650-2000 RPM
ROTARY POWER......................7 / 5 HP
RAPID TRAVERSE....................591 IPM / 787 IPM
MIN./MAX. FEED RATE..............0.000040-39.3700 IPM
QUILL TYPE.....................MT #5
QUILL DIAMETER/STROKE.............4.72" / 6.69"
COOLANT PUMP......................0.7 HP
POWER REQUIREMENT.22.............0V/ 3-PH / 50/60HZ



EQUIPPED WITH:

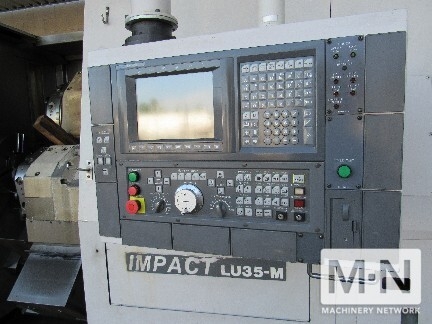

OSP-U100L CNC CONTROL
18" CHUCK

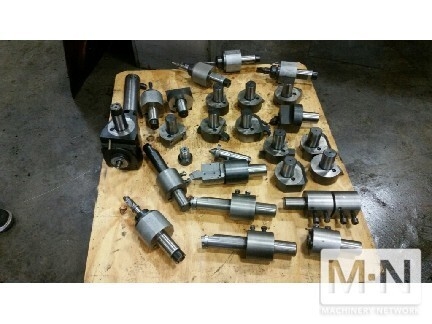

LIVE MILLING

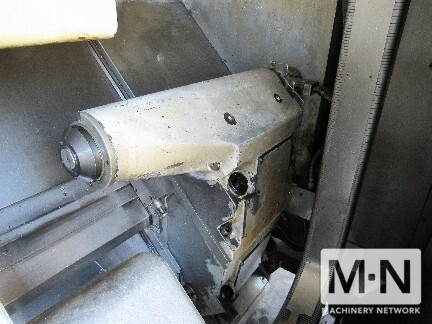

TAILSTOCK
CHIP CONVEYOR
MIST COLLECTOR
COOLANT TANK
