OKUMA MULTUS B750W
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
OKUMA
Model:
MULTUS B750W
Condition:
Not Specified
Year:
2010
Stock #:
35633
Status:
Sold
Description:

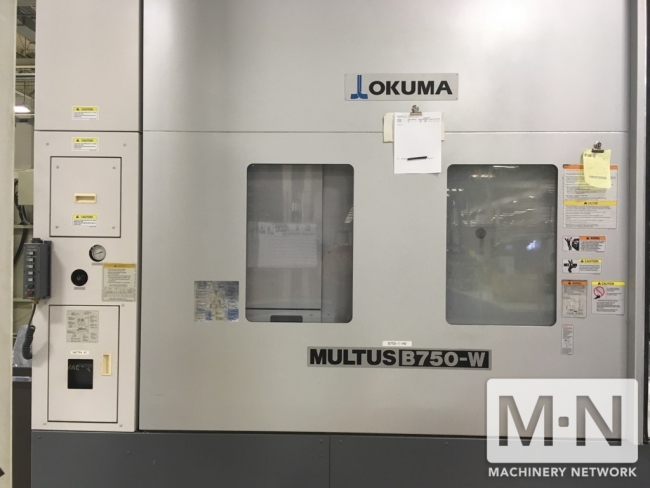

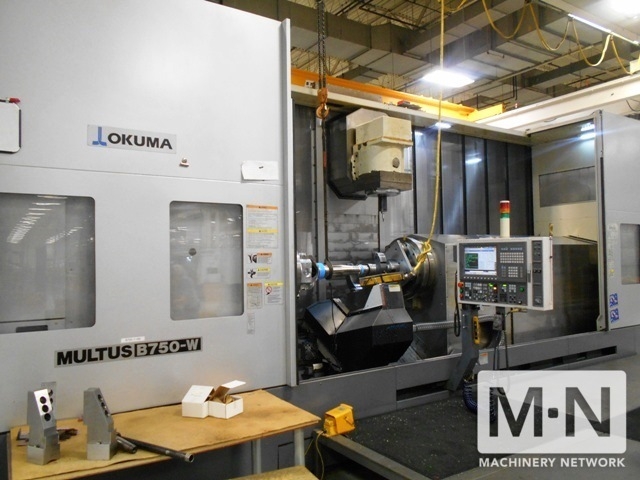

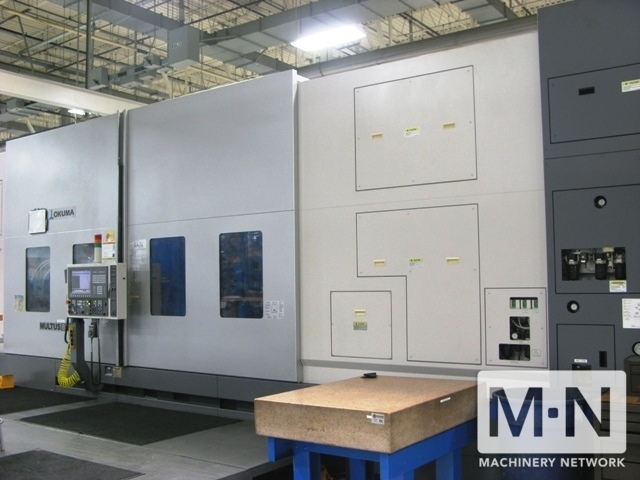

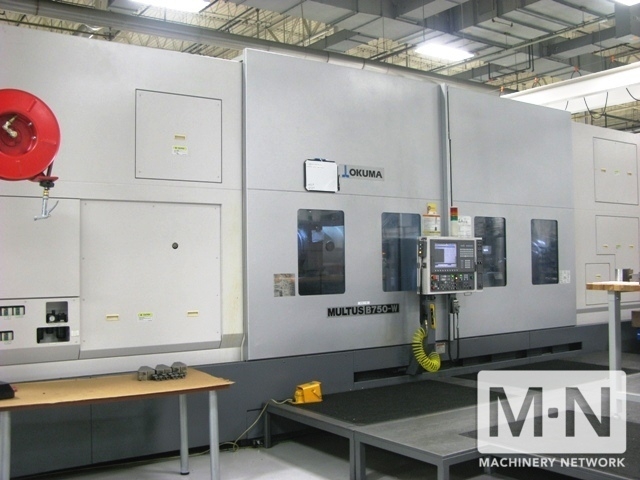

OKUMA MULTUS B750W
Location:
North Carolina, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED OKUMA MULTUS B750-W MULTI AXIS MILL TURN CENTER
NEW 2010
SPECIFICATIONS:
SWING OVER BED: ........................41.3"
SWING OVER SADDLE: .....................41.3"
DIST. BETWEEN SPINDLES: ................157"
TRAVELS
X-AXIS .................................42"
Z-AXIS .................................165"
Y-AXIS .................................24"
W-AXIS .................................180"
B-AXIS INDEX ANGLE: ....................0.001
SPINDLE SPEED: 1,500 RPM
SPEED RANGES: INFINITELY VARIABLE X AUTOMATIC 4 STEPS
SPINDLE NOSE:...........................A2
TAPERED BORE/BEARING DIAM.: ............7.28"/11.02"
TYPE: ..................................H1ATC
NO. OF TOOL STATIONS: ..................1 FOR BOTH L- AND M-TOOLS
TOOL SHANK/BORING BAR SHANK DIA.: ......1-1/4 / 2-1/2
SPEED RANGE: ...........................50,000
MAX TORQUE: ............................150.7
CUTTING FEED COMMAND RANGE: ............39.3 IPR
TOOL SHANK/PULL STUD: ..................BT50/P50TII
NO. OF TOOLS: ..........................60 ATC
MAX TOOL DIA.: .........................11.8"
MAX TOOL LENGTH: .......................23.6"
MAX TOOL WEIGHT: .......................66 LBS.
MAIN SPINDLE: ..........................50/40 HP
EQUIPPED WITH:

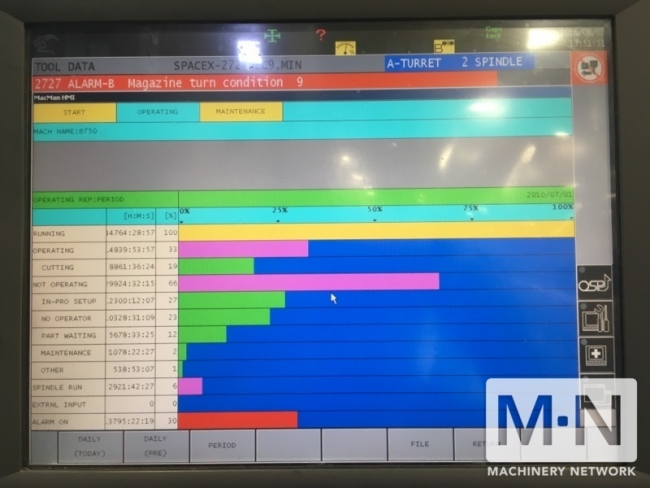

OSP P200L CONTROL
CHIP CONVEYOR
Y AXIS TRAVEL 24"

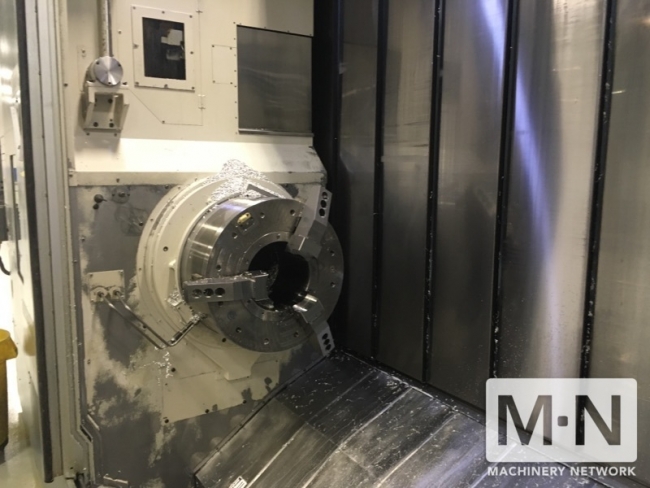

24" DIA. HYDRAULIC CHUCKS MAIN & SUB SPINDLE
COOLANT THROUGH MILLING HEAD
LASER PROBE
NEW 2010
SPECIFICATIONS:
SWING OVER BED: ........................41.3"
SWING OVER SADDLE: .....................41.3"
DIST. BETWEEN SPINDLES: ................157"
TRAVELS
X-AXIS .................................42"
Z-AXIS .................................165"
Y-AXIS .................................24"
W-AXIS .................................180"
B-AXIS INDEX ANGLE: ....................0.001
SPINDLE SPEED: 1,500 RPM
SPEED RANGES: INFINITELY VARIABLE X AUTOMATIC 4 STEPS
SPINDLE NOSE:...........................A2
TAPERED BORE/BEARING DIAM.: ............7.28"/11.02"
TYPE: ..................................H1ATC
NO. OF TOOL STATIONS: ..................1 FOR BOTH L- AND M-TOOLS
TOOL SHANK/BORING BAR SHANK DIA.: ......1-1/4 / 2-1/2
SPEED RANGE: ...........................50,000
MAX TORQUE: ............................150.7
CUTTING FEED COMMAND RANGE: ............39.3 IPR
TOOL SHANK/PULL STUD: ..................BT50/P50TII
NO. OF TOOLS: ..........................60 ATC
MAX TOOL DIA.: .........................11.8"
MAX TOOL LENGTH: .......................23.6"
MAX TOOL WEIGHT: .......................66 LBS.
MAIN SPINDLE: ..........................50/40 HP
EQUIPPED WITH:
OSP P200L CONTROL
CHIP CONVEYOR
Y AXIS TRAVEL 24"
24" DIA. HYDRAULIC CHUCKS MAIN & SUB SPINDLE
COOLANT THROUGH MILLING HEAD
LASER PROBE
