OKUMA LT200MY
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
OKUMA
Model:
LT200MY
Condition:
Not Specified
Year:
2008
Stock #:
31307
Status:
Sold
Description:
OSP-P200L CNC Ctrl, 6" 3 Jaw Chuck, Parts Catcher
Videos:
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

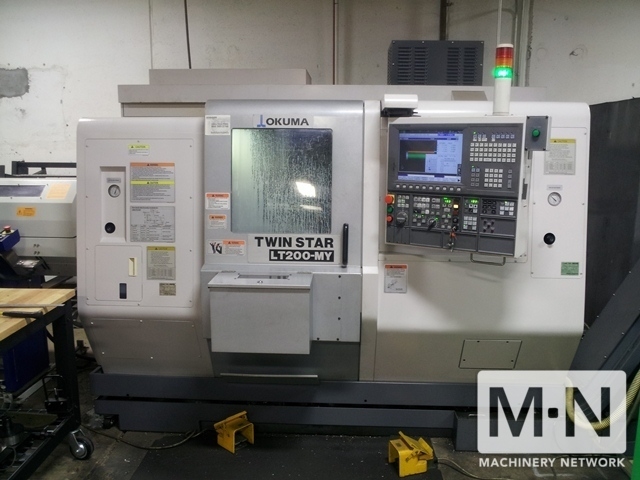

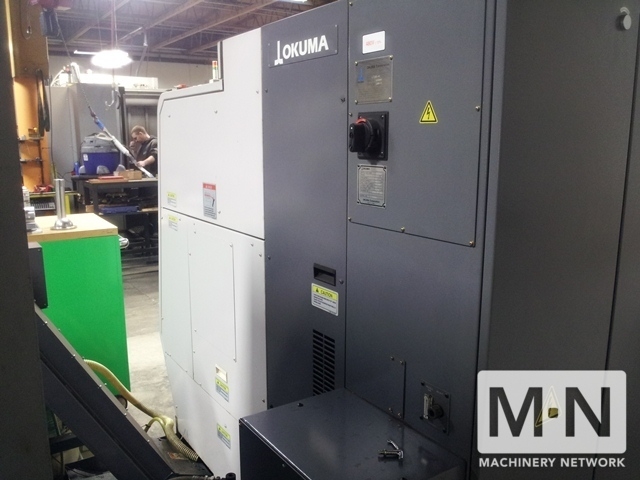

1) Used Okuma LT200MY CNC Multi Axis Turning Center
New 2008.

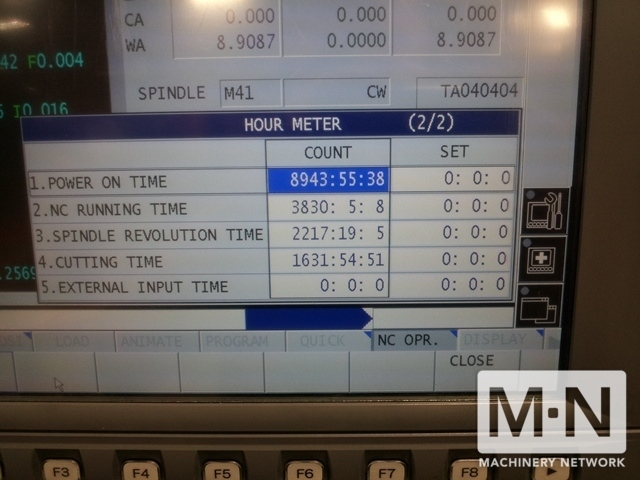

** Approx 1600 Cutting hours **
SPECIFICATIONS:
Swing Over Saddle:....................................................15.75"
Max. Distance Between Spindle Nos.........................37.80"
Max Turning Diameter................................................8.27"
Max Machining Length..............................................21.26"
Spindle Nose (Main/Sub):..........................................A2-6 / A2-6
Bore Diameter.............................................................2.0"
Bar Work Cap.............................................................1.75"
Range Of Spindle Speed (Main & Sub):....................4500 RPM
C-Axis Indexing (Mian & Sub)..................................001 Deg.
Y-Axis Travel..........................................................+ 1.65" / - 1.97"
Cross-Slide Travel
(XA-Axis)...................................................................7.56"
(XB-Axis)...................................................................7.56"
Longitudinal Travel
(ZA-Axis)...................................................................27.56"
(ZB-Axis)...................................................................27.56"
(W-Axis) Sub Spindle................................................28.74
Type And No Of Tool Stations

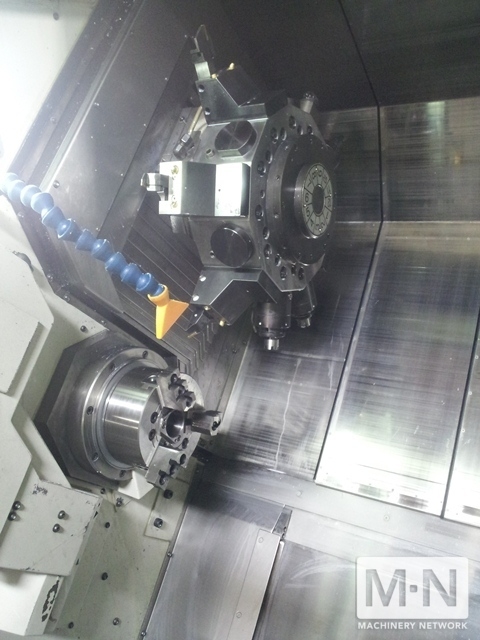

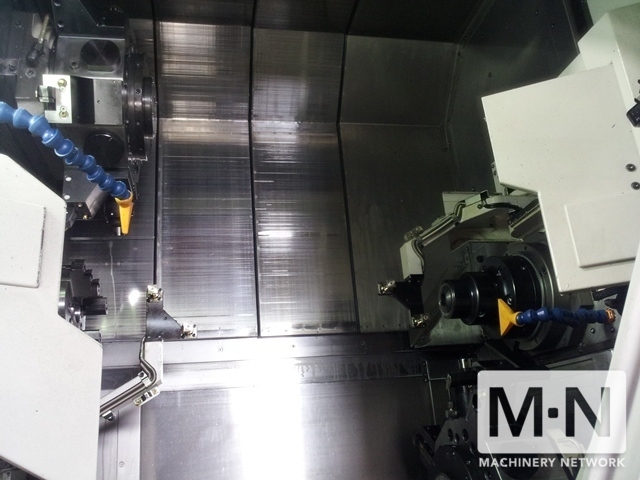

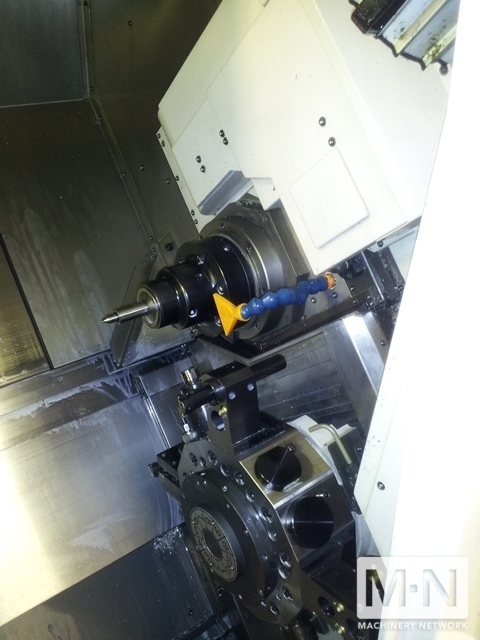

Turret No.1 (12 Rotary)..............................................Auto Vert. V 12
TURRET No.2 (12 Rotary)........................................Auto Vert. V 12
Main & Sub Spindle Drive Motor..............................15 /15 HP
Rotary Tool Spindle Speed.........................................6000 RPM
Rotary Tool Horse Power (Upper / Lower)................5.4 / 5.4 HP
EQUIPPED WITH:

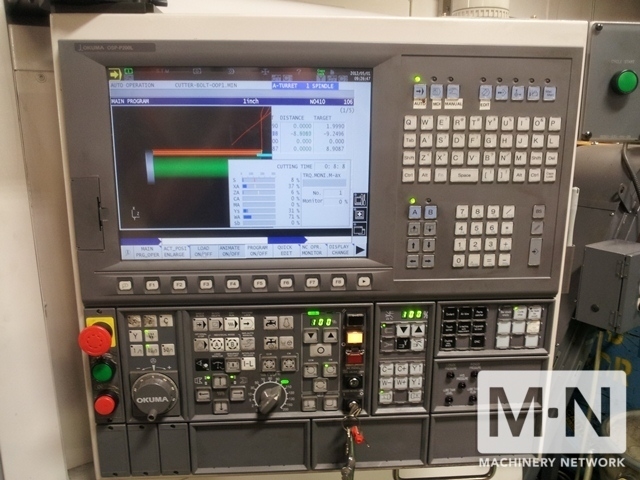

OSP-P200L

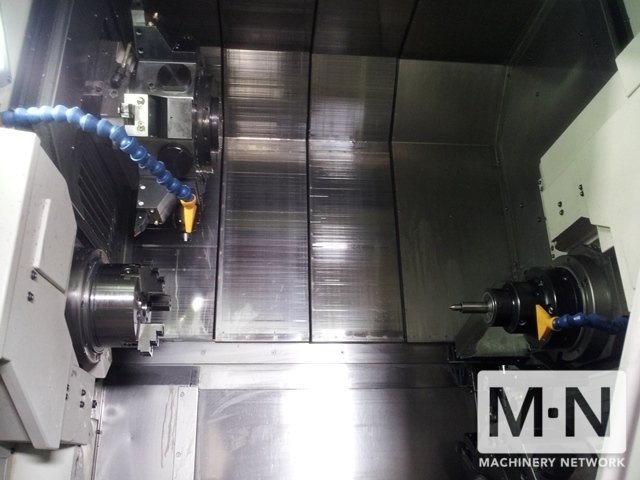

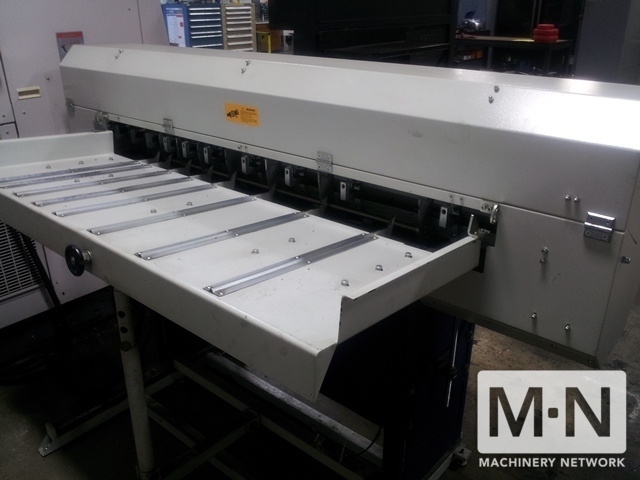

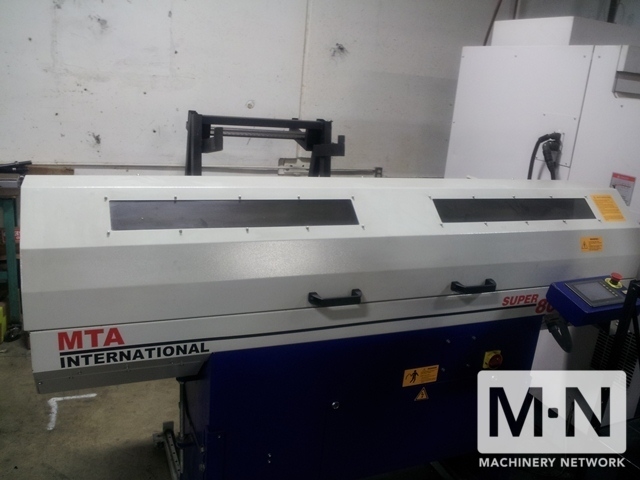

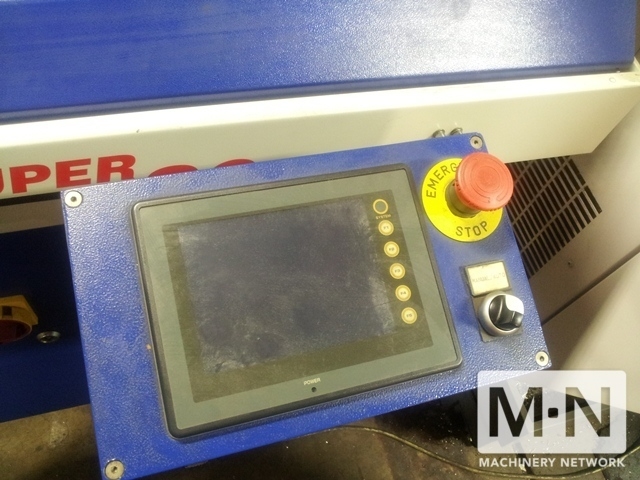

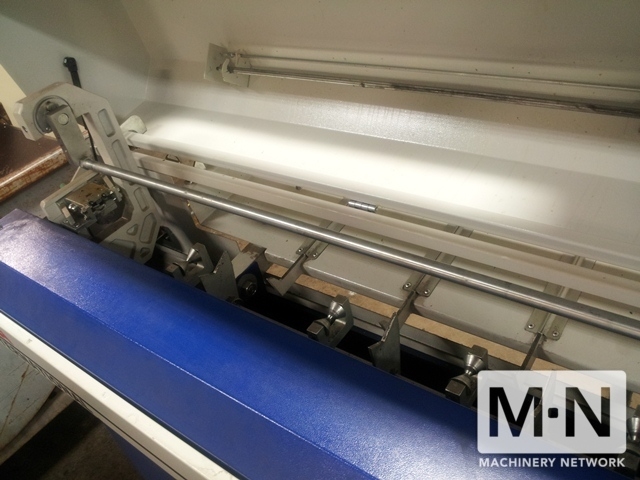

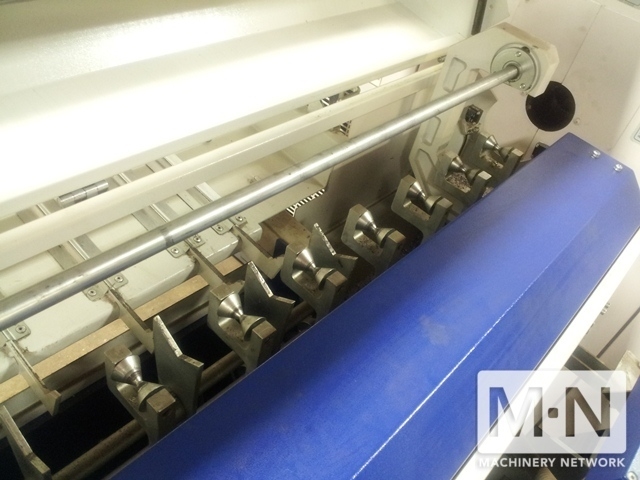

Parts catcher ABSO scale ZB (glass) Hinge high chip conveyor side Touchsetter Auto( Both sides) Barfeed interface Shower coolant Type A Auto Door Robotic Loader interface Show front window (Extra Large window) ATS 3J dead lenght collet chucks( Both Spindles) 6" 3 jaw chuck for main spindle T-MAC Addaptive maching Both spindles, Both turrets live tooling Static tooling package 4 Eppinger Radial Live tool units W/assortment of Preci-flex quick change adapters Spindle Liners .500, .625, .750, .8125, .875, 1.00, 1.0625, 3J collets (All Hardinge and a few Lyndex) .125 2x.375 2x.500 2x.625 2x.750 2x.8125 2x.875 2x1.00 2x1.0625 2x1.125 2x1.25 1.375 1.500 1.625 1.750
New 2008.
** Approx 1600 Cutting hours **
SPECIFICATIONS:
Swing Over Saddle:....................................................15.75"
Max. Distance Between Spindle Nos.........................37.80"
Max Turning Diameter................................................8.27"
Max Machining Length..............................................21.26"
Spindle Nose (Main/Sub):..........................................A2-6 / A2-6
Bore Diameter.............................................................2.0"
Bar Work Cap.............................................................1.75"
Range Of Spindle Speed (Main & Sub):....................4500 RPM
C-Axis Indexing (Mian & Sub)..................................001 Deg.
Y-Axis Travel..........................................................+ 1.65" / - 1.97"
Cross-Slide Travel
(XA-Axis)...................................................................7.56"
(XB-Axis)...................................................................7.56"
Longitudinal Travel
(ZA-Axis)...................................................................27.56"
(ZB-Axis)...................................................................27.56"
(W-Axis) Sub Spindle................................................28.74
Type And No Of Tool Stations
Turret No.1 (12 Rotary)..............................................Auto Vert. V 12
TURRET No.2 (12 Rotary)........................................Auto Vert. V 12
Main & Sub Spindle Drive Motor..............................15 /15 HP
Rotary Tool Spindle Speed.........................................6000 RPM
Rotary Tool Horse Power (Upper / Lower)................5.4 / 5.4 HP
EQUIPPED WITH:
OSP-P200L
Parts catcher ABSO scale ZB (glass) Hinge high chip conveyor side Touchsetter Auto( Both sides) Barfeed interface Shower coolant Type A Auto Door Robotic Loader interface Show front window (Extra Large window) ATS 3J dead lenght collet chucks( Both Spindles) 6" 3 jaw chuck for main spindle T-MAC Addaptive maching Both spindles, Both turrets live tooling Static tooling package 4 Eppinger Radial Live tool units W/assortment of Preci-flex quick change adapters Spindle Liners .500, .625, .750, .8125, .875, 1.00, 1.0625, 3J collets (All Hardinge and a few Lyndex) .125 2x.375 2x.500 2x.625 2x.750 2x.8125 2x.875 2x1.00 2x1.0625 2x1.125 2x1.25 1.375 1.500 1.625 1.750
