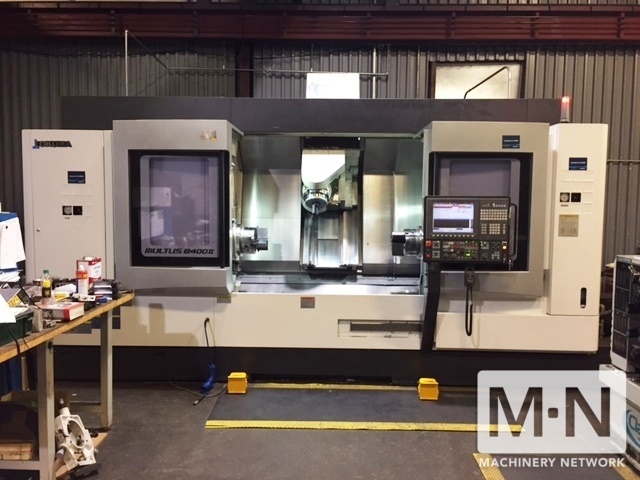

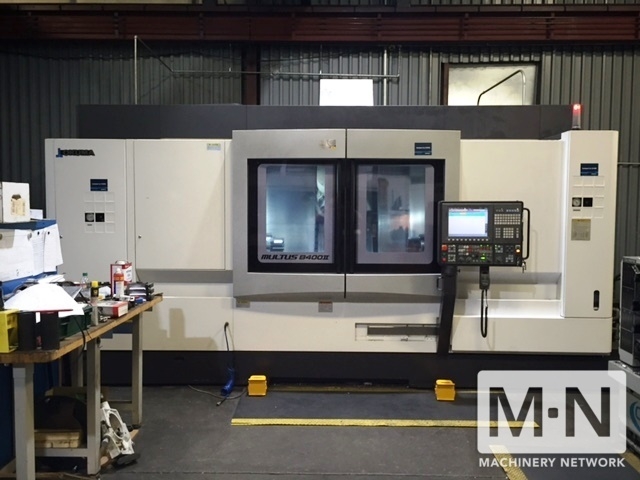

OKUMA MULTUS B400II

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

OKUMA

Model:

MULTUS B400II

Condition:

Not Specified

Year:

2014

Stock #:

36458

Status:

Sold

Description:

OSP-P300S-H , 10" CHUCK, 4.09" BORE, 3.6" BAR CAP.,

Location:

Illinois, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) USED OKUMA MULTUS B400II/1500BBW
NEW 2014

SPECIFICATIONS:
CHUCK SIZE 10" (2)
MAX DIAMETER BAR CAPACITY 3.62"
MAX SWING OVER BED / CARRIAGE 27.95" / 27.95"
MAX TURNING DIAMETER 26.37"
DISTANCE BETWEEN SPINDLES 60.83"
MAX MACHINING LENGTH 59.06"
SPINDLE MOTOR 30 / 20 HP
SPINDLE SPEED 38 - 3800 RPM
SPINDLE BORE 4.09"
SPINDLE NOSE A2-11
TOOLS 40
MILLING SPEED 50 - 6000 RPM
MILLING MOTOR 19 / 13 HP
SUB SPINDLE CHUCK SIZE 10"
SUB SPINDLE MOTOR 22 / 15 HP
SUB SPINDLE SPEED 38 - 3800 RPM
SUB SPINDLE INDEX 0.001 DEGREES
RAPID TRAVERSE RATES (X & Z /Y/W) 1574 / 1024 / 787 IPM
X-AXIS TRAVEL 27.17"
Y-AXIS TRAVEL +/- 4.53""
Z-AXIS TRAVEL 60.83"
B-AXIS INDEX 0.001 DEGREES
B-AXIS SWIVEL 225 DEGREES
C-AXIS INDEX 0.001 DEGREES
W-AXIS TRAVEL (SUB SPINDLE) 61.02"
MAX TOOL DIAMETER 3.54" / 5.12"
MAX TOOL LENGTH 15.75"
MAX TOOL WEIGHT 22 LBS.
MACHINE DIMENSIONS (L X W X H) 226.4" X 104.7" X 118.2"
MACHINE WEIGHT 34,100 LBS.

EQUIPPED WITH:

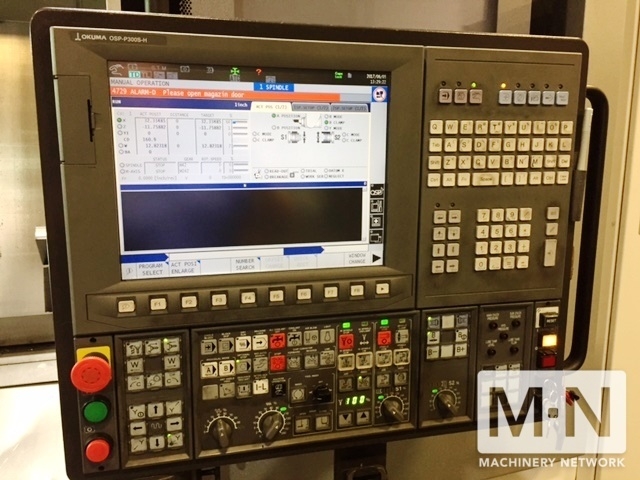

OSP-P300S-H CNC CONTROL
15" COLOR TFT
C, B & Y AXES MILLING CAPABILITY

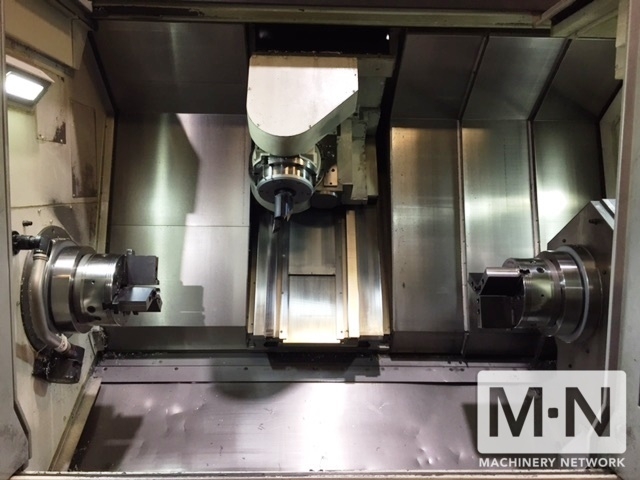

PROGRAMMABLE SUB SPINDLE
USB & PNC 3 PORTS

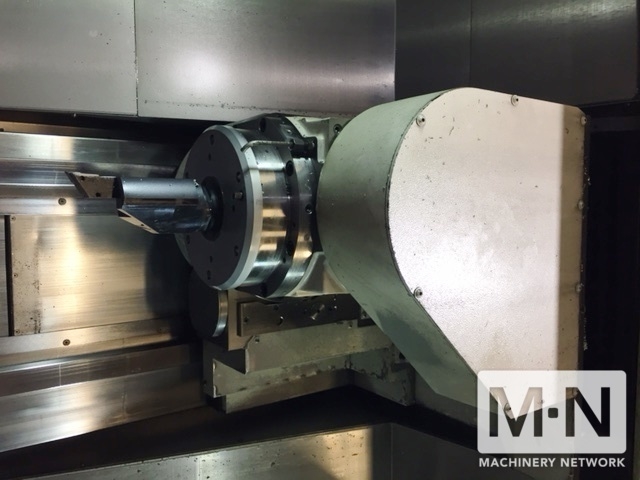

NC B-AXIS CONTOURING ON UPPER TOOL SPINDLE
ADVANCED ONE TOUCH IGF PC MULTI-TASKING
0.1 MICRON CONTROL RESOLUTION
BIG BORE A2-11 ON MAIN & SUB SPINDLES
HIGH PRECISION C-AXIS ON MAIN SPINDLE

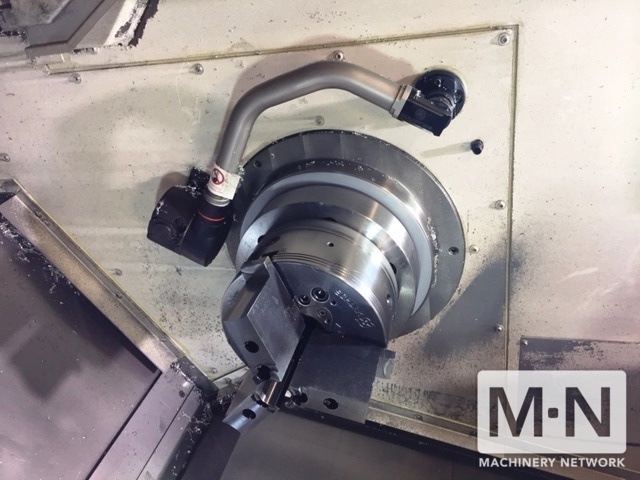

15" KITAGAWA HYDRAULIC CHUCK FOR MAIN SPINDLE

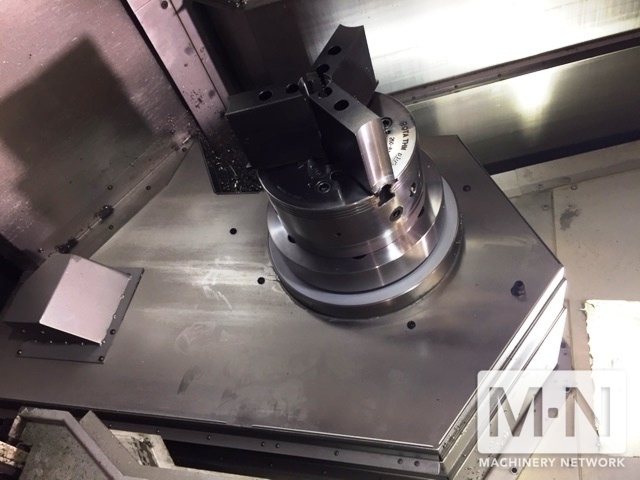

10" SCHUNK ROTA THW PLUS 260-81 QUICK CHANGE HYDRAULIC CHUCK FOR SUB SPINDLE
THROUGH SPINDLE COOLANT HIGH PRESSURE INTERFACE
TAS - S & C THERMAL COMPENSATION
40 TOOL MAGAZINE (CAPTO C6)
TOUCHSETTER A (AUTOMATIC TOOL PRESETTER)
AUTO GAUGING RENISHAW RMP60 TOUCH PROBE
SYNCHRONIZED TAPPING
HYDRAULIC OIL TEMPERATURE REGULATOR
BARFEED INTERFACE

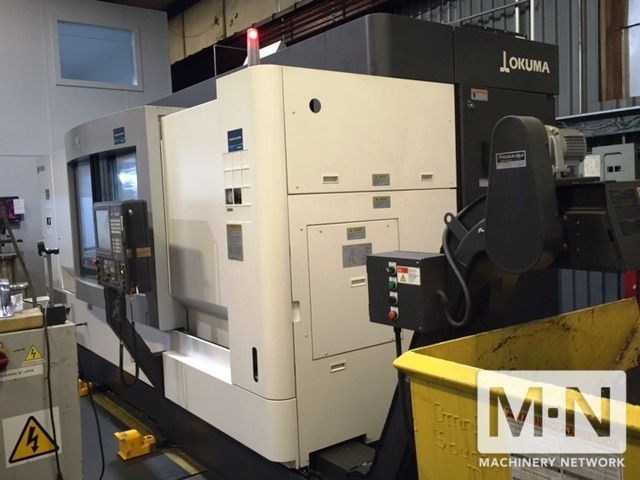

ENOMOTO CHIP CONVEYOR (SIDE EXIT HINGE TYPE)
MULTI-TAP TRANSFORMER (220 - 480 VOLTS, 60 KVA)
REMOTE JOG HANDLE
TOWER LIGHT
APPROXIMATELY (40) CAPTO C6 TOOL HOLDERS
MANUFACTURE DATE APRIL 2013
INSTALLED IN DECEMBER 2014
6872 POWER ON TIME
1403 NC RUNNING TIME
1279 SPINDLE REVOLUTION TIME
1138 CUTTING TIME
