MORI SEIKI SL-15MC
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
SL-15MC
Condition:
Not Specified
Stock #:
22908
Status:
Sold
Description:
6", FANUC 10T, LT, FULL C, P.C., TLM, LNS MAG. B.F.
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

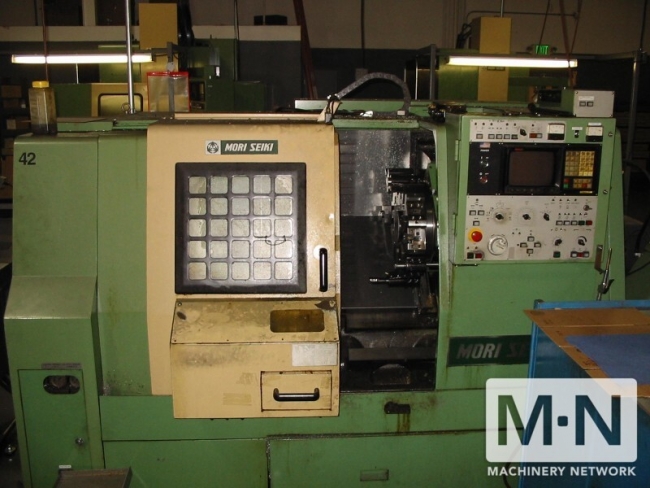

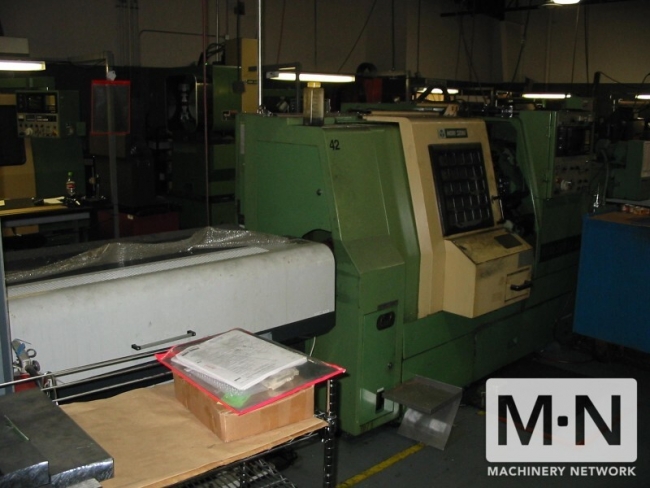

(1) USED MORI-SEIKI MODEL SL15-MC 3-AXIS CNC TURNING CENTER
NEW-1989
SPECIFICATIONS:
MAX. SWING OVER BED: 17.7"
MAX. SWING OVER CROSS SLIDE: 11.8"
DISTANCE BETWEEN CENTERS: 23.4"
MAX. TURNING DIAMETER: 6.3"
MAX. TURNING DIAMETER: 20.7"
X-AXIS TRAVEL: 8.7"
Z-AXIS TRAVEL: 22"
C-AXIS ROTATION: 360,000 POS.
SPINDLE SPEEDS: 60-6000 RPM.
SPINDLE MOTOR: 7.5/5.5 HP
ROTARY TOOL SPINDLE SPEEDS: 100 - 2000 RPM
ROTARY SPINDLE MOTOR: 2.2/1.5 HP
DIAMETER OF HOLE THRU SPINDLE: 2"
SPINDLE NOSE: A2-5
NUMBER OF TURRETPOSITIONS: 12
(6 Rotary Tools Attachable)
TAILSTOCK TRAVEL: 17.7
TAILSTOCK TAPER: MT-4
EQUIPPED WITH:
FANUC 10T CNC CONTROL
FULL C AXIS
6" HYD. CHUCK
TOOL LENGTH MEASUREMENT
LNS ECO-LOAD 6' MAGAZINE TYPE BARFEED (.25"-2.5" DIA.)
PARTS CATCHER, CHIP CONVEYOR,
COOLANT SYSTEM, BARFEED INTERFACE
NEW-1989
SPECIFICATIONS:
MAX. SWING OVER BED: 17.7"
MAX. SWING OVER CROSS SLIDE: 11.8"
DISTANCE BETWEEN CENTERS: 23.4"
MAX. TURNING DIAMETER: 6.3"
MAX. TURNING DIAMETER: 20.7"
X-AXIS TRAVEL: 8.7"
Z-AXIS TRAVEL: 22"
C-AXIS ROTATION: 360,000 POS.
SPINDLE SPEEDS: 60-6000 RPM.
SPINDLE MOTOR: 7.5/5.5 HP
ROTARY TOOL SPINDLE SPEEDS: 100 - 2000 RPM
ROTARY SPINDLE MOTOR: 2.2/1.5 HP
DIAMETER OF HOLE THRU SPINDLE: 2"
SPINDLE NOSE: A2-5
NUMBER OF TURRETPOSITIONS: 12
(6 Rotary Tools Attachable)
TAILSTOCK TRAVEL: 17.7
TAILSTOCK TAPER: MT-4
EQUIPPED WITH:
FANUC 10T CNC CONTROL
FULL C AXIS
6" HYD. CHUCK
TOOL LENGTH MEASUREMENT
LNS ECO-LOAD 6' MAGAZINE TYPE BARFEED (.25"-2.5" DIA.)
PARTS CATCHER, CHIP CONVEYOR,
COOLANT SYSTEM, BARFEED INTERFACE
