MORI SEIKI SL150 SMC
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
MORI SEIKI
Model:
SL150 SMC
Condition:
Not Specified
Year:
1996
Stock #:
34192
Status:
Sold
Description:

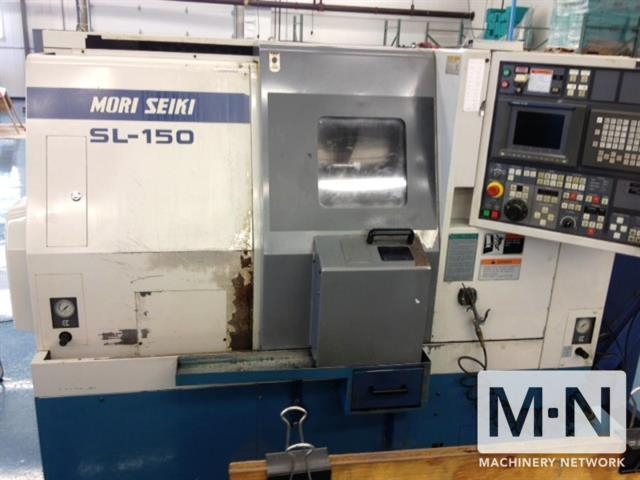

MORI SEIKI SL150 SMC WITH CNC TURNING CENTER WITH SUB SPINDLE AND LIVE TOOLING
Location:
Illinois, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED MORI SEIKI SL150 SMC CNC TURNING CENTER WITH SUB SPINDLE AND LIVE
NEW 1996
SPECIFICATIONS:
SWING OVER FRONT BED.............24.4"
SWING OVER CROSS SLIDE...........17.9"
MAX BAR CAPACITY.................1.86"
DISTANCE BETWEEN SPINDLES........24.8"
MAX CUTTING DIAMETER.............16.9"
SPINDLE SPEED (MAIN).............5,000 RPM
SPINDLE SPEED (SUB)..............3,500 RPM
SPINDLE MOTOR(MAIN/SUB)..........15/7.5 HP
X-AXIS TRAVEL....................9.1"
Z-AXIS TRAVEL....................20.5"
C-AXIS
RAPID TRAVERSE RATES (X/Z).......707/945 IPM
TURRET POSITIONS.................12
MACHINE WEIGHT...................9,500 LBS
MACHINE DIMENSIONS...............87"L X 68"W X72"H
EQUIPPED WITH:

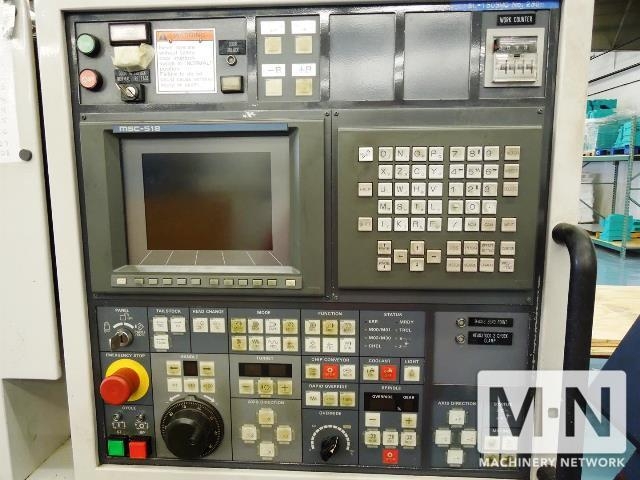

FANUC MSC518 CONTROL

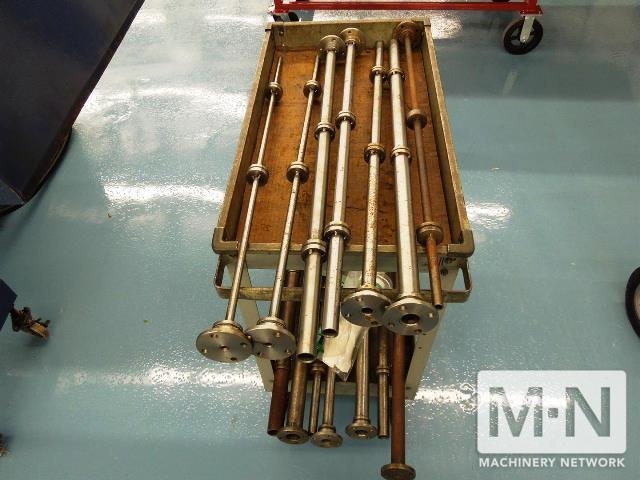

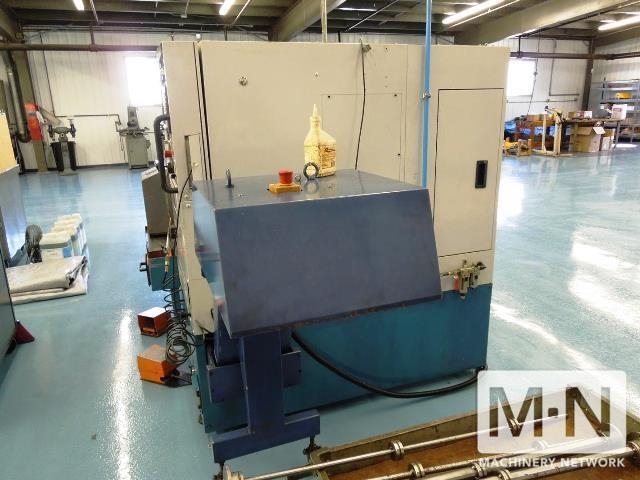

LNS SHORT BAR FEEDER ECO LOAD
CHIP CONVEYOR
S20 COLLET CHUCK ON MAIN SPINDLE
3J SUB-SPINDLE COLLET CHUCK

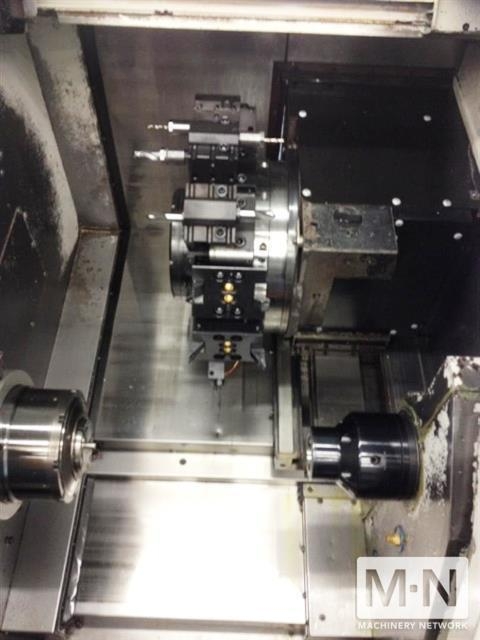

2) X AXIS LIVE TOOLHOLDERS
19) STATIC TOOLHOLDERS
NEW 1996
SPECIFICATIONS:
SWING OVER FRONT BED.............24.4"
SWING OVER CROSS SLIDE...........17.9"
MAX BAR CAPACITY.................1.86"
DISTANCE BETWEEN SPINDLES........24.8"
MAX CUTTING DIAMETER.............16.9"
SPINDLE SPEED (MAIN).............5,000 RPM
SPINDLE SPEED (SUB)..............3,500 RPM
SPINDLE MOTOR(MAIN/SUB)..........15/7.5 HP
X-AXIS TRAVEL....................9.1"
Z-AXIS TRAVEL....................20.5"
C-AXIS
RAPID TRAVERSE RATES (X/Z).......707/945 IPM
TURRET POSITIONS.................12
MACHINE WEIGHT...................9,500 LBS
MACHINE DIMENSIONS...............87"L X 68"W X72"H
EQUIPPED WITH:
FANUC MSC518 CONTROL
LNS SHORT BAR FEEDER ECO LOAD
CHIP CONVEYOR
S20 COLLET CHUCK ON MAIN SPINDLE
3J SUB-SPINDLE COLLET CHUCK
2) X AXIS LIVE TOOLHOLDERS
19) STATIC TOOLHOLDERS
