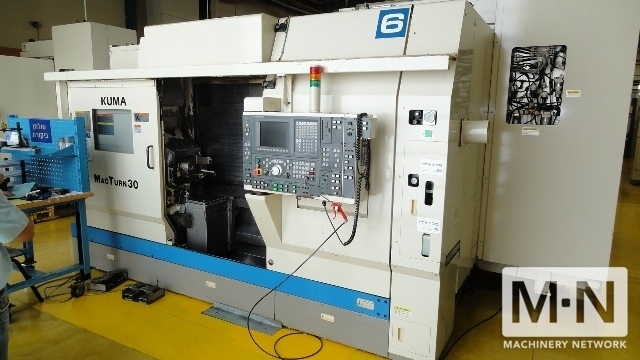

OKUMA MACTURN 30
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
OKUMA
Model:
MACTURN 30
Condition:
Not Specified
Stock #:
30996
Status:
Sold
Description:

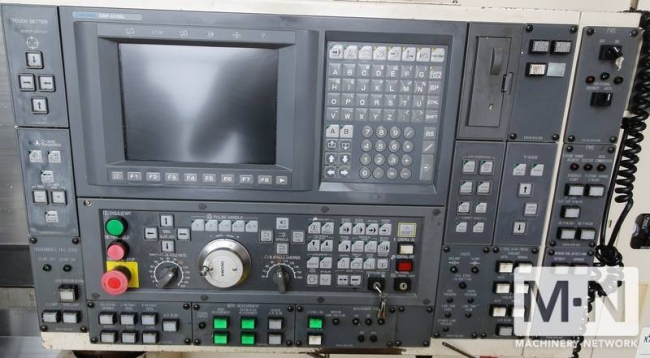

OSP U100L CONTROL, 21" SWING , 8" 3 JAW CHUCK
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

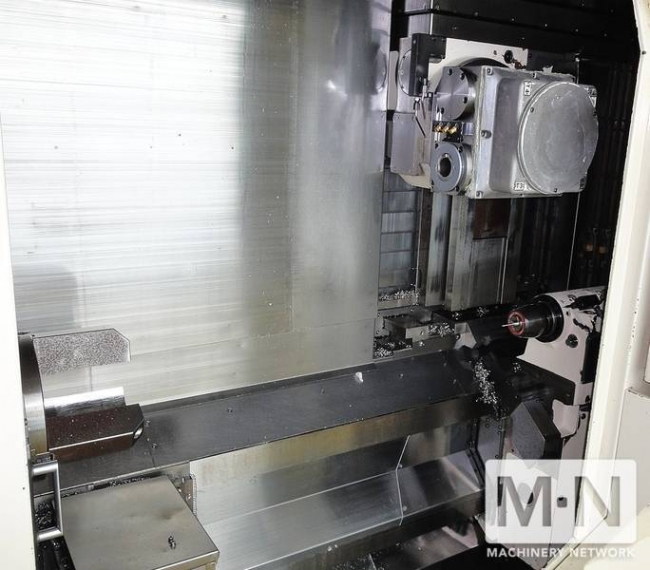

(1) OKUMA MAC TURN 30 MULTI-AXIS CNC TURNING CENTER STATE OF THE ART TURBINE NEW 2003
SPECIFICATIONS: MAX. SWING: .................................. 21.65" MAX. CUTTING DIA: ............................ 21.65" MAX. DISTANCE BETWEEN CENTERS: ............... 48" FROM FACE OF CHUCK TO FACE OF TAILSTOCK MAX. WORK LENGTH: ............................ 48" SPINDLE BORE: ................................ 2.5" SPINDLE NOSE: ................................ A2-6 SPINDLE BAR CAPACITY: ........................ 2.0" SPINDLE SPEEDS: .............................. 35-5000 RPM SPINDLE ROTATION ANGLE: ...................... 0.001 DEGREE SPINDLE HORSEPOWER: .......................... 30/20 HP TYPE OF TURRET: .............................. 1 POSITION W/ATC TYPE OF TURRET TOOL HOLDERS: ................. # 40 MAGAZINE CAPACITY: ........................... 80 ATC MAX. TOOL DIA. W/ ALL POCKETS FULL: .......... 3.54" MAX. TOOL DIA. W/ ADJACENT POCKETS EMPTY: .... 4.72" MAX. TOOL LENGTH: ............................ 9.84" MAX. TOOL WEIGHT: ............................ 15 LBS ROTARY TOOL SPINDLE SPEEDS: ............,..... 6,000 RPM ROTARY TOOL SPINDLE HORSEPOWER: .............. 10 HP AC ROTARY TOOL TORQUE: .......................... 46 FT / LBS Y-AXIS TRAVEL: ............................... +/- 3.75" X-AXIS TRAVEL: ............................... 18.70" Z-AXIS TRAVEL: ............................... 46.06" B-AXIS TRAVEL: ............................... -30 TO 195 DEG RAPID TRAVERSE RATE (X/Y/Z): ................. 1024 / 1181 / 1575 IPM MACHINE WEIGHT: .............................. 30,275 LBS MACHINE DIMENSIONS HXWXL: .................... 113" X 96" X 162" EQUIPPED WITH: OKUMA OSP U100L CONTROL REAR OR SIDE EXIT CHIP CONVEYOR RENISHAW PROBE IN PROCESS GAUGING 8" 3 JAW CHUCK TAILSTOCK BT 40
SPECIFICATIONS: MAX. SWING: .................................. 21.65" MAX. CUTTING DIA: ............................ 21.65" MAX. DISTANCE BETWEEN CENTERS: ............... 48" FROM FACE OF CHUCK TO FACE OF TAILSTOCK MAX. WORK LENGTH: ............................ 48" SPINDLE BORE: ................................ 2.5" SPINDLE NOSE: ................................ A2-6 SPINDLE BAR CAPACITY: ........................ 2.0" SPINDLE SPEEDS: .............................. 35-5000 RPM SPINDLE ROTATION ANGLE: ...................... 0.001 DEGREE SPINDLE HORSEPOWER: .......................... 30/20 HP TYPE OF TURRET: .............................. 1 POSITION W/ATC TYPE OF TURRET TOOL HOLDERS: ................. # 40 MAGAZINE CAPACITY: ........................... 80 ATC MAX. TOOL DIA. W/ ALL POCKETS FULL: .......... 3.54" MAX. TOOL DIA. W/ ADJACENT POCKETS EMPTY: .... 4.72" MAX. TOOL LENGTH: ............................ 9.84" MAX. TOOL WEIGHT: ............................ 15 LBS ROTARY TOOL SPINDLE SPEEDS: ............,..... 6,000 RPM ROTARY TOOL SPINDLE HORSEPOWER: .............. 10 HP AC ROTARY TOOL TORQUE: .......................... 46 FT / LBS Y-AXIS TRAVEL: ............................... +/- 3.75" X-AXIS TRAVEL: ............................... 18.70" Z-AXIS TRAVEL: ............................... 46.06" B-AXIS TRAVEL: ............................... -30 TO 195 DEG RAPID TRAVERSE RATE (X/Y/Z): ................. 1024 / 1181 / 1575 IPM MACHINE WEIGHT: .............................. 30,275 LBS MACHINE DIMENSIONS HXWXL: .................... 113" X 96" X 162" EQUIPPED WITH: OKUMA OSP U100L CONTROL REAR OR SIDE EXIT CHIP CONVEYOR RENISHAW PROBE IN PROCESS GAUGING 8" 3 JAW CHUCK TAILSTOCK BT 40
