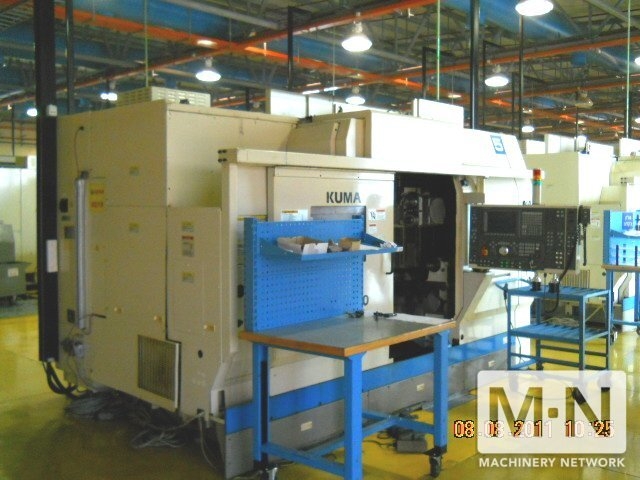

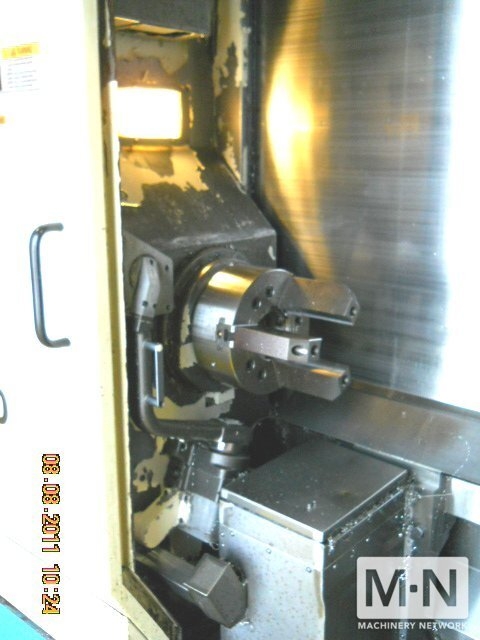

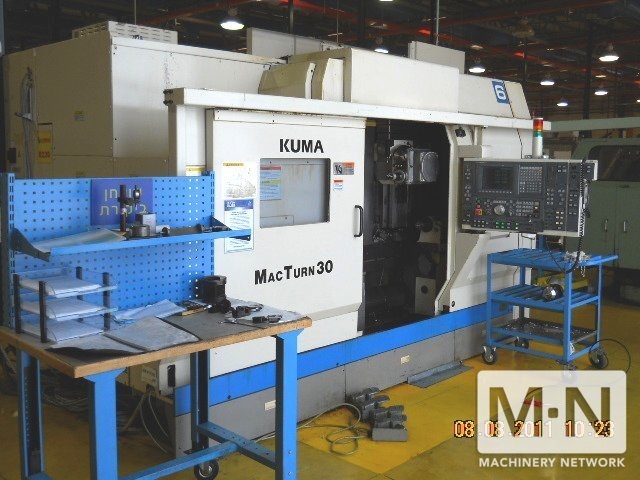

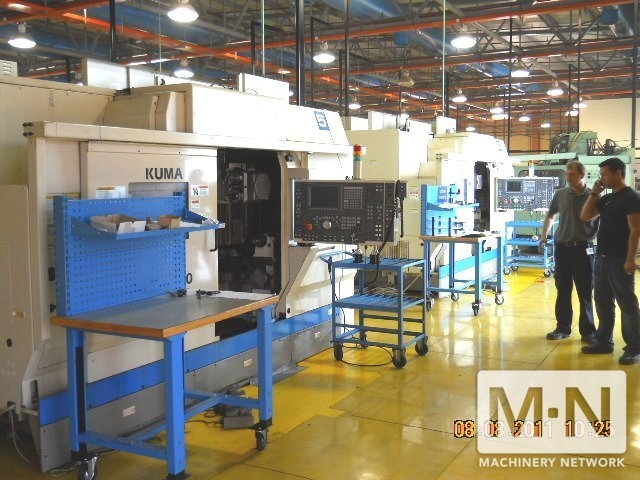

OKUMA MACTURN 30

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

OKUMA

Model:

MACTURN 30

Condition:

Not Specified

Year:

2003

Stock #:

30540

Status:

Sold

Description:

21" SWING

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

OKUMA MAC TURN 30-W MULTI AXIS CNC TURNING CENTER
NEW: 2003

Specifications
Max. Swing 21.65"
Max. Cutting Dia. 21.65"
Max. Distance Between Centers 39.37"
Max. Work Length 40.35"
Spindle Bore 2.44"
Spindle Nose A2-6
Standard Bar Capacity 2"
Spindle Speeds 35-5000 RPM
Spindle Rotation Angle 0.001 Degree
Spindle Horsepower 30/20 HP
Second Spindle Speeds 35-5000 RPM
Second-Spindle Nose A2-6"
Second Spindle Bore 1.73"
Second Spindle HP 20/10 HP AC
Second Spindle Indexing .001
Second Spindle Rapid Traverse Rate 787 IPM
Type Of Turret 1 Position W/ATC
Type of Turret Tool Holders # 40
Magazine Capacity 40 ATC
Max. Tool Dia. W/ All Pockets Full 3.54"
Max. Tool Dia. W/ Adjacent Pockets Empty 4.72"
Max. Tool Length 9.84"
Max. Tool Weight 15 lbs.
Rotary Tool Spindle Speeds 6,000 RPM
Rotary Tool Spindle Horsepower 10 HP AC
Rotary Tool Torque 46 FT/LBS.
Y-Axis Travel +/- 3.75"
X - Axis Travel 18.70"
Z - Axis Travel 46.06"
B - Axis Travel -30 to 195 deg
Rapid Traverse Rate (Y/X/Z) 1024/1181/1575 IPM
Machine Weight 30,275 lbs.

Equipped With:
OKUMA OSP U100L CONTROL
CHIP CONVEYOR
BT 40
