CITIZEN L20E X
Type:
AUTOMATIC SCREW MACHINES, SWISS TYPE, N/C & CNC
Manufacturer:
CITIZEN
Model:
L20E X
Condition:
Not Specified
Year:
2012
Stock #:
38360
Status:
Sold
Description:
3/4", LIVE TOOL, SUB, HP cool, Mist Collector, Bar Loader, Chip Conv
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED 3/4" CITIZEN L20E X CNC SWISS SCREW MACHINE
NEW 2012
SPECIFICATIONS:
MAXIMUM MACHINING DIAMETER (D) 20 MM (3/4")
MAXIMUM MACHINING LENGTH (L) 200 MM (8")
MAXIMUM FRONT DRILLING DIAMETER 10 MM (3/8")
MAXIMUM FRONT TAPPING DIAMETER M8
SPINDLE THROUGH-HOLE DIAMETER 24 MM
MAIN SPINDLE SPEED 10,000 RPM
MAXIMUM CHUCK DIA BACK SPINDLE 20 MM (3/4")
BACK SPINDLE SPEED 8,000 RPM
NUMBER OF TOOLS TO BE MOUNTED MAX 44
TURNING TOOLS ON THE GANG 5
GANG ROTARY TOOLS 25
LIVE X-DRILL TOOL ON THE GANG TOOL 4
LIVE SIDE/FRONT WORKING TOOL BLOCK 3
FRONT ID TOOL POST (STATIONARY) 6
LIVE TOOL ON BACK TOOL POST 8
FIRE SUPPRESSION SYSTEM DOES NOT INCLUDE TANK
SPINDLE DRIVE 2.2 / 3.7 KW
INPUT POWER CAPACITY 8 KVA
APPROX WEIGHT 4840 LBS
EQUIPPED WITH:

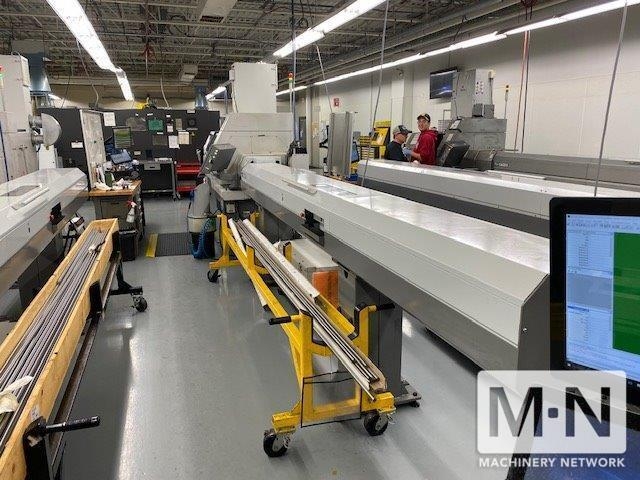

CITIZEN CAV20LE-IS MAGAZINE BAR LOADER

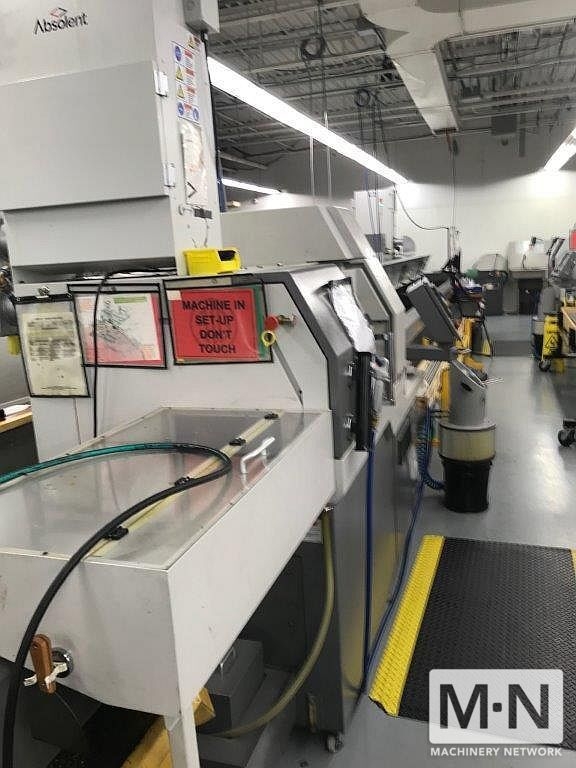

ABSOLENT MIST COLLECTION SYSTEM
COOL BLASTER BCB-CB510, HIGH PRESSURE COOLANT
LNS CHIP CONVEYOR

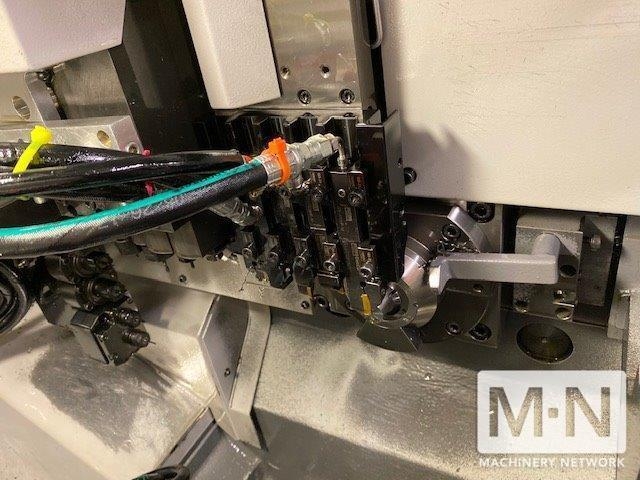

GSC310 3-LIVE AND GSC1307 2-TOOOL CROSS DRILL TOOL
B-AXIS TOOL BLOCK
(SET UP FOR 4-LIVE TOOLS IN THE GSC-310 TOOL BLOCK))

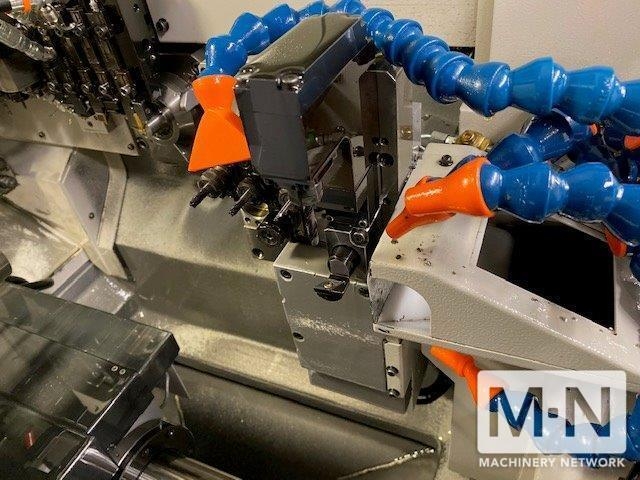

U155B 4-FIXED TOOLS + 4-ROTARY TOOLS BACK WORKING
TOOL BLOCK
NEW 2012
SPECIFICATIONS:
MAXIMUM MACHINING DIAMETER (D) 20 MM (3/4")
MAXIMUM MACHINING LENGTH (L) 200 MM (8")
MAXIMUM FRONT DRILLING DIAMETER 10 MM (3/8")
MAXIMUM FRONT TAPPING DIAMETER M8
SPINDLE THROUGH-HOLE DIAMETER 24 MM
MAIN SPINDLE SPEED 10,000 RPM
MAXIMUM CHUCK DIA BACK SPINDLE 20 MM (3/4")
BACK SPINDLE SPEED 8,000 RPM
NUMBER OF TOOLS TO BE MOUNTED MAX 44
TURNING TOOLS ON THE GANG 5
GANG ROTARY TOOLS 25
LIVE X-DRILL TOOL ON THE GANG TOOL 4
LIVE SIDE/FRONT WORKING TOOL BLOCK 3
FRONT ID TOOL POST (STATIONARY) 6
LIVE TOOL ON BACK TOOL POST 8
FIRE SUPPRESSION SYSTEM DOES NOT INCLUDE TANK
SPINDLE DRIVE 2.2 / 3.7 KW
INPUT POWER CAPACITY 8 KVA
APPROX WEIGHT 4840 LBS
EQUIPPED WITH:
CITIZEN CAV20LE-IS MAGAZINE BAR LOADER
ABSOLENT MIST COLLECTION SYSTEM
COOL BLASTER BCB-CB510, HIGH PRESSURE COOLANT
LNS CHIP CONVEYOR
GSC310 3-LIVE AND GSC1307 2-TOOOL CROSS DRILL TOOL
B-AXIS TOOL BLOCK
(SET UP FOR 4-LIVE TOOLS IN THE GSC-310 TOOL BLOCK))
U155B 4-FIXED TOOLS + 4-ROTARY TOOLS BACK WORKING
TOOL BLOCK
