CITIZEN L20 TYPE 7
Type:
AUTOMATIC SCREW MACHINES, SWISS TYPE, N/C & CNC
Manufacturer:
CITIZEN
Model:
L20 TYPE 7
Condition:
Not Specified
Year:
1998
Stock #:
36690
Status:
Sold
Description:
CITIZEN L20 TYPE VII 3/4" DIAM., LNS, MINT 1998,
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

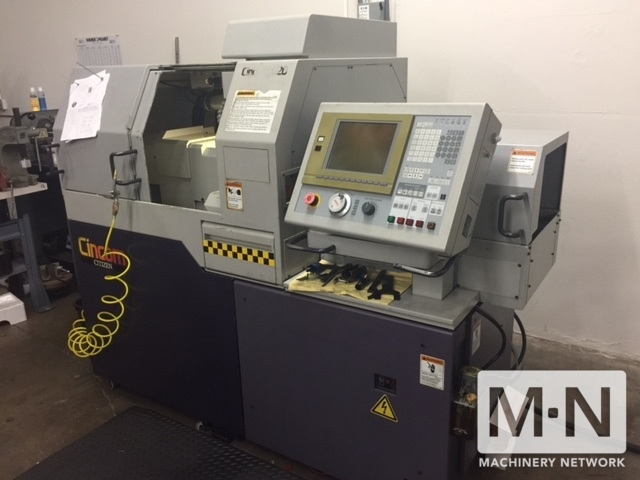

I USED CITIZEN L20 TYPE VII 1998
MINT CONDITION
SPECIFICATIONS:
MAIN SPINDLE .812 BAR STOCK MAX SPINDLE SLEEVE ID .840

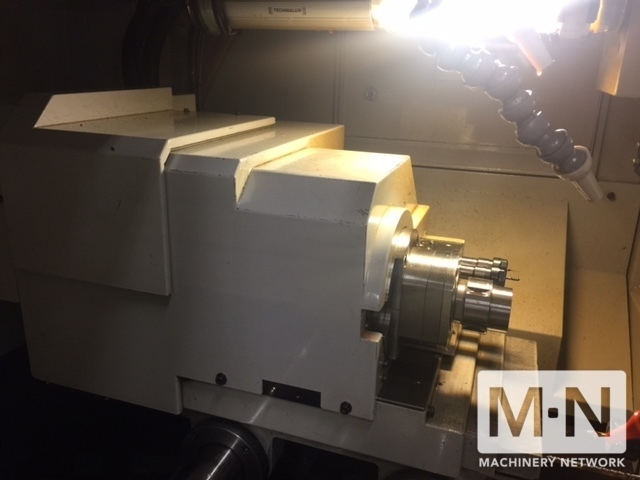

SUB-SPINDLE .790 MAX SPINDLE SLEEVE ID .800
ROTARY 1.25 MAX SAW (2.0" OPT)
LENGTH MAIN SPINDLE 7.874 MAX (1 CHUCK)
LENGTH SUB SPINDLE
W/EJECTOR 4.68 MAX (3.15 IN SPINDLE, 1.53 STICKING OUT)
LENGTH
(SUB SPINDLE-REAR EJECTION,OPT) 23.6 MAX WITH STD.
MAIN SPINDLE RPM 10,000 5 HP
SUB SPINDLE RPM 8,000 2 HP
ROTARY 5,000 1 HP

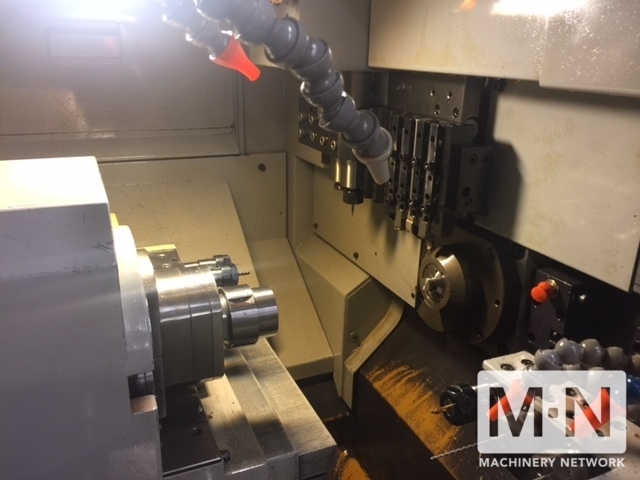

TOOLING:
MAIN SPINDLE GUIDE BUSHING, SHORT SLOTTED (TD25-NS), COLLET (TF25)
SUB SPINDLE COLLET (TF25) SMOOTH BORE
OD (STATIC) .500 SHANK T01-T06
OD (ROTARY) ER 16 COLLETS (.384 MAX) T07-T010
FRONT WORK 3/4" SHANK ER16 COLLETS (.394 MAX) T21-T23
BACK WORK 3/4" SHANK ER16 COLLETS (.394 MAX) T31-T33
NUMBER OF TOOLS 16
TURNING 6
CROSS DRILLING/MILLING 4
FRONT WORK 3
BACK WORK 3
MACHINE:
WEIGHT 4,000 LBS
FRONT PRINT 40"D X 83"W X 67"H
COOLANT TANK CAP. 31 GALLONS
POWER 208V, 3PHASE, 6KVA
LUBRICANTS:
WAY OIL VACTRA #2
COOLANT (OIL) HANGSTERFER'S HARDCUT 525 LITE
W/ HIGH PRESSURE PUMP CASTRO - ILOCUT 5721
COOLANT (WATER BASED) BLASER - BLASOCUT VALCOOL VNT 800

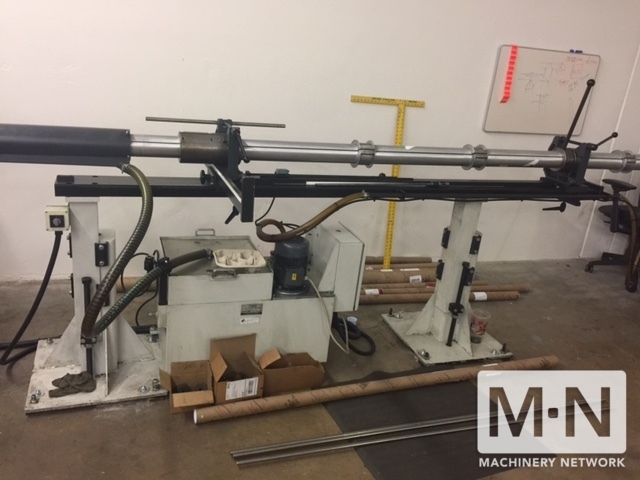

BARFEEDER
LNS 3.2 HYDROBAR .0625 -.812 NONE DTE HEAVY (ISO 100) 30 GAL

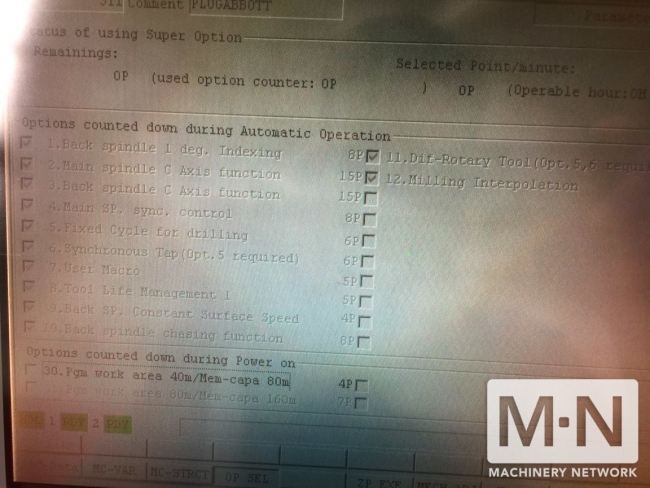

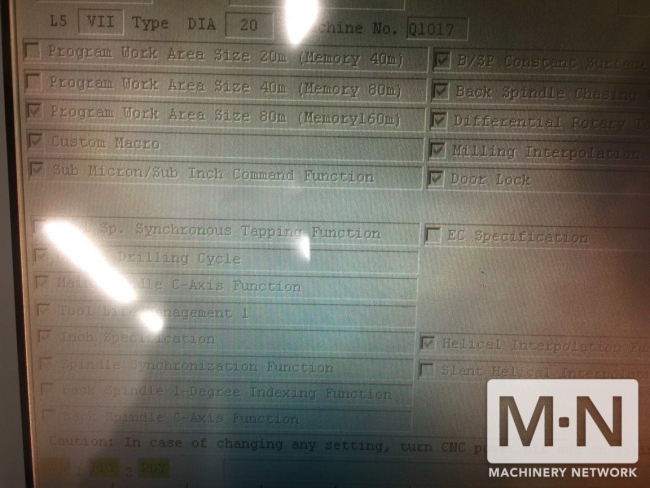

STANDARD:
SIMULTANEOUS 8 AXIS CONTROL
MAIN SPINDLE INDEXING 1 DEGREE
WORKPIECE SEPARATOR (L51620U60R)
BACK SPINDLE AIR BLOW UNIT (L516250U60R)
TOOL PACKAGE: GTF3113-6 TURNING & 4 ROTARY TOOLS

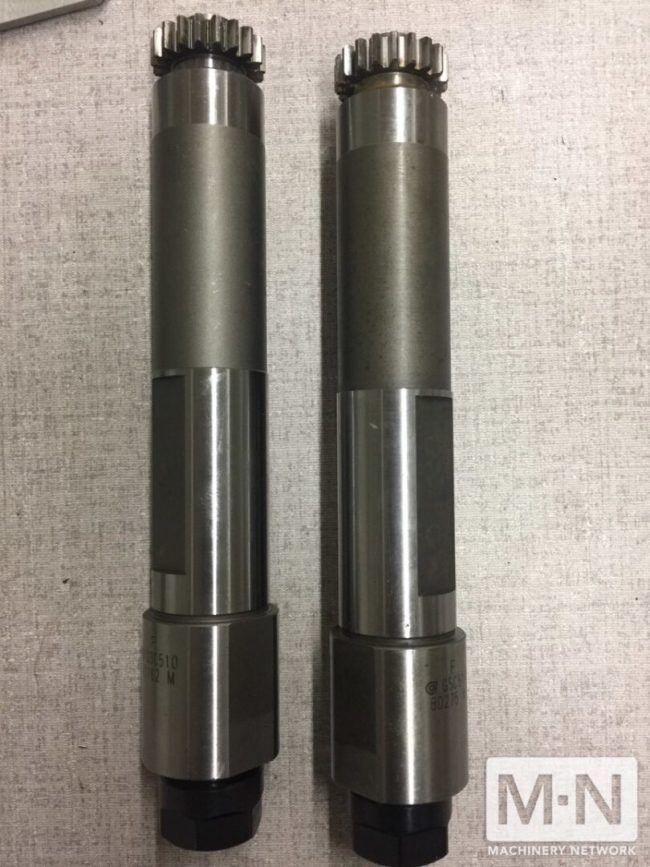

GSC510 ROTARY TOOL SPINDLE 4 PC
AUTOMATIC SETTING OF QUIDE BUCHING COLLETS
AUTOMATIC POWER OFF
PARAMETER LIST
ONE COMPLETE SET OF MANUALS
MINT CONDITION
SPECIFICATIONS:
MAIN SPINDLE .812 BAR STOCK MAX SPINDLE SLEEVE ID .840
SUB-SPINDLE .790 MAX SPINDLE SLEEVE ID .800
ROTARY 1.25 MAX SAW (2.0" OPT)
LENGTH MAIN SPINDLE 7.874 MAX (1 CHUCK)
LENGTH SUB SPINDLE
W/EJECTOR 4.68 MAX (3.15 IN SPINDLE, 1.53 STICKING OUT)
LENGTH
(SUB SPINDLE-REAR EJECTION,OPT) 23.6 MAX WITH STD.
MAIN SPINDLE RPM 10,000 5 HP
SUB SPINDLE RPM 8,000 2 HP
ROTARY 5,000 1 HP
TOOLING:
MAIN SPINDLE GUIDE BUSHING, SHORT SLOTTED (TD25-NS), COLLET (TF25)
SUB SPINDLE COLLET (TF25) SMOOTH BORE
OD (STATIC) .500 SHANK T01-T06
OD (ROTARY) ER 16 COLLETS (.384 MAX) T07-T010
FRONT WORK 3/4" SHANK ER16 COLLETS (.394 MAX) T21-T23
BACK WORK 3/4" SHANK ER16 COLLETS (.394 MAX) T31-T33
NUMBER OF TOOLS 16
TURNING 6
CROSS DRILLING/MILLING 4
FRONT WORK 3
BACK WORK 3
MACHINE:
WEIGHT 4,000 LBS
FRONT PRINT 40"D X 83"W X 67"H
COOLANT TANK CAP. 31 GALLONS
POWER 208V, 3PHASE, 6KVA
LUBRICANTS:
WAY OIL VACTRA #2
COOLANT (OIL) HANGSTERFER'S HARDCUT 525 LITE
W/ HIGH PRESSURE PUMP CASTRO - ILOCUT 5721
COOLANT (WATER BASED) BLASER - BLASOCUT VALCOOL VNT 800
BARFEEDER
LNS 3.2 HYDROBAR .0625 -.812 NONE DTE HEAVY (ISO 100) 30 GAL
STANDARD:
SIMULTANEOUS 8 AXIS CONTROL
MAIN SPINDLE INDEXING 1 DEGREE
WORKPIECE SEPARATOR (L51620U60R)
BACK SPINDLE AIR BLOW UNIT (L516250U60R)
TOOL PACKAGE: GTF3113-6 TURNING & 4 ROTARY TOOLS
GSC510 ROTARY TOOL SPINDLE 4 PC
AUTOMATIC SETTING OF QUIDE BUCHING COLLETS
AUTOMATIC POWER OFF
PARAMETER LIST
ONE COMPLETE SET OF MANUALS
