CITIZEN CINCOM C16 VII
Type:
AUTOMATIC SCREW MACHINES, SWISS TYPE, N/C & CNC
Manufacturer:
CITIZEN
Model:
CINCOM C16 VII
Condition:
Not Specified
Year:
2001
Stock #:
21578
Status:
Sold
Description:
CINCOM SYSTEM M6, MAIN/BACK SPDL, CAV C16 C BARFEEDER, C-
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

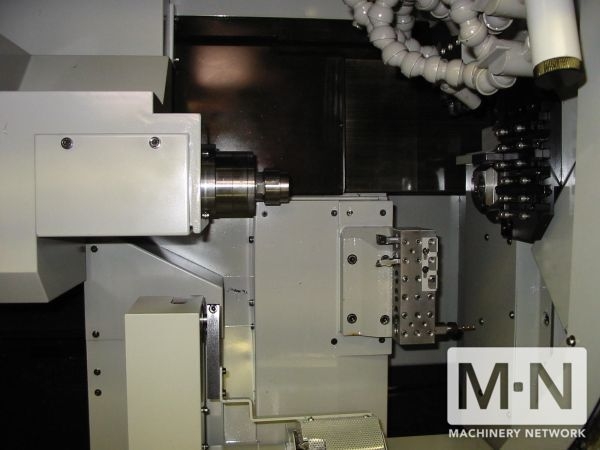

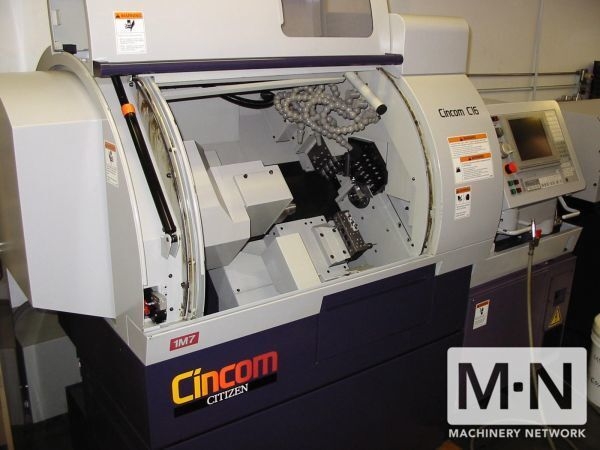

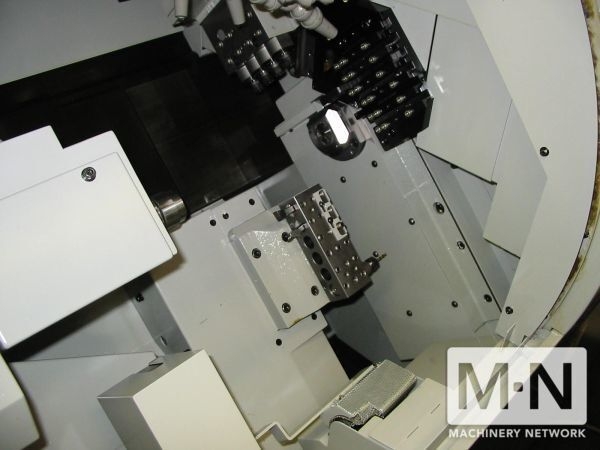

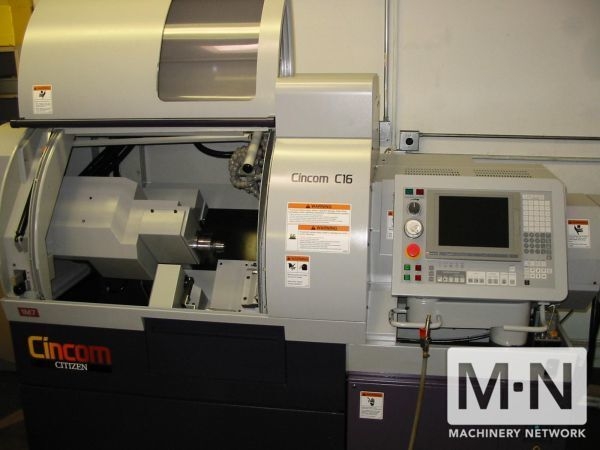

(1) USED CITIZEN CINCOM C16 VII CNC TURNING
CENTER NEW 2001
SPECIFICATIONS:
MAX MACHINING DIAMETER: 5/8"
MAX MACHINING LENGTH: 7.85"
MAX WORKPIECE LENGTH: 3.54"
SPINDLE THRU HOLE DIAMETER: .79"
SPINDLE SPEEDS
MAIN SPINDLE: 200 - 10000 RPM
ROTARY TOOL SPINDLE: 200 - 8000 RPM
BACK SPINDLE: 200 - 10000 RPM
MAX CHUCK DIAMETER: 5/8"
NUMBER OF TOOLS MOUNTED
GANG TOOL POST: 6 + 4 ROTARY
6 I.D. TOOL POST: 6 FRONT + 6 BACK
RAPID FEED RATE: 787 IPM
MOTORS MAIN: 3 HP
TOOL: 1 HP
BACK: 1 HP
CENTER HEIGHT: 41.3"
POWER INPUT: 5 KVA
MACHINE WEIGHT: 3640 LBS
EQUIPPED WITH:

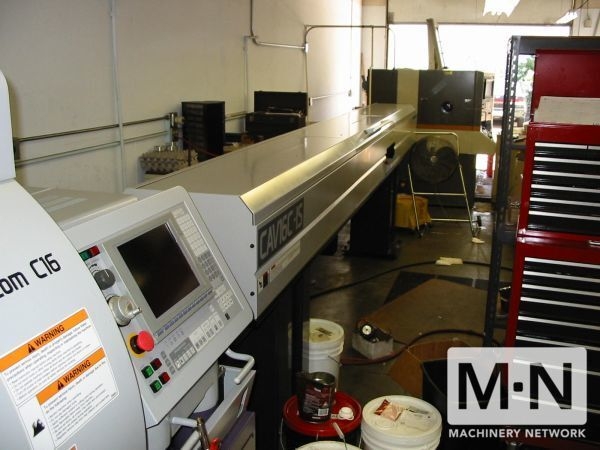

CAV C16 C BARFEEDER, CINCOM SYSTEM M6 NC UNIT,
C-AXIS - MAIN & BACK, MILLING INTERPOLATION,
CANNED CYCLE FOR DRILLING, TOOL LIFE MGMT,
1-DEGREE INDEXING, CHUCKS FOR MAIN & BACK SPDL,
WORKPIECE SEPARATOR, TOOL SPINDLE DRIVE UNIT,
SYNCHRONOUS ROTARY GUIDE BUSHING DEVICE,
COOLANT DEVICE, LUBRICATION OIL DEVICE, ROTARY
TOOL SPINDLE ON GANG TOOL POST, AIR-DRIVEN BACK
WORKPIECE KNOCKOUT DEVICE
PRICE:
PRICE
CENTER NEW 2001
SPECIFICATIONS:
MAX MACHINING DIAMETER: 5/8"
MAX MACHINING LENGTH: 7.85"
MAX WORKPIECE LENGTH: 3.54"
SPINDLE THRU HOLE DIAMETER: .79"
SPINDLE SPEEDS
MAIN SPINDLE: 200 - 10000 RPM
ROTARY TOOL SPINDLE: 200 - 8000 RPM
BACK SPINDLE: 200 - 10000 RPM
MAX CHUCK DIAMETER: 5/8"
NUMBER OF TOOLS MOUNTED
GANG TOOL POST: 6 + 4 ROTARY
6 I.D. TOOL POST: 6 FRONT + 6 BACK
RAPID FEED RATE: 787 IPM
MOTORS MAIN: 3 HP
TOOL: 1 HP
BACK: 1 HP
CENTER HEIGHT: 41.3"
POWER INPUT: 5 KVA
MACHINE WEIGHT: 3640 LBS
EQUIPPED WITH:
CAV C16 C BARFEEDER, CINCOM SYSTEM M6 NC UNIT,
C-AXIS - MAIN & BACK, MILLING INTERPOLATION,
CANNED CYCLE FOR DRILLING, TOOL LIFE MGMT,
1-DEGREE INDEXING, CHUCKS FOR MAIN & BACK SPDL,
WORKPIECE SEPARATOR, TOOL SPINDLE DRIVE UNIT,
SYNCHRONOUS ROTARY GUIDE BUSHING DEVICE,
COOLANT DEVICE, LUBRICATION OIL DEVICE, ROTARY
TOOL SPINDLE ON GANG TOOL POST, AIR-DRIVEN BACK
WORKPIECE KNOCKOUT DEVICE
PRICE:
PRICE
