CITIZEN L20 VIII

Type:

AUTOMATIC SCREW MACHINES, SWISS TYPE, N/C & CNC

Manufacturer:

CITIZEN

Model:

L20 VIII

Condition:

Not Specified

Year:

2006

Stock #:

38358

Status:

Sold

Description:

Cincom System L, 3/4", Full C-axis, CAV Loader, HPC, LPA, Chip Conv

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

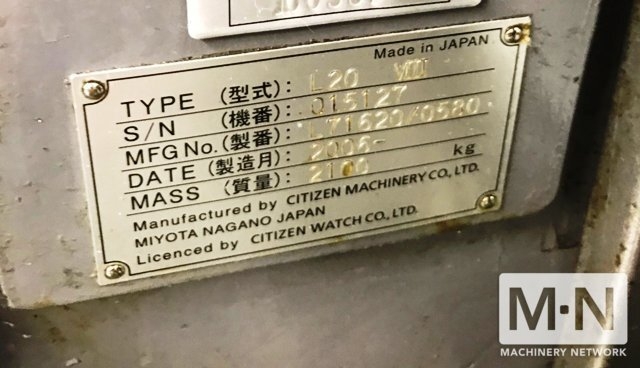

(1) USED 3/4" CITIZEN L20 VIII (7M8) CNC SWISS SCREW MACHINE
NEW 2006

SPECIFICATIONS
MAIN SPINDLE
MAX. MACHINING DIAMETER:................3/4" (.79")
MAX. MACHINING LENGTH PER ONE CHUCK:....7.87"
MAX. DRILLING DIAMETER:.................UP TO .394"
SPEED:..................................10,000 RPM
MIN. SPINDLE INPUT INCREMENT:...........FULL C-AXIS
MOTOR:..................................2.2/3.7 KW
TOOLING:................................1/2" (T01 5/8")
BACK-WORK:
MAX. CHUCKING DIA. OF PICK-OFF SPINDLE:.79"
PICK-OFF SPINDLE SPEED:.................8,000 RPM
PICK-OFF SPINDLE MOTOR:.............. .75/1.5 KW
MIN. SPINDLE INCREMENT...............FULL C-AXIS

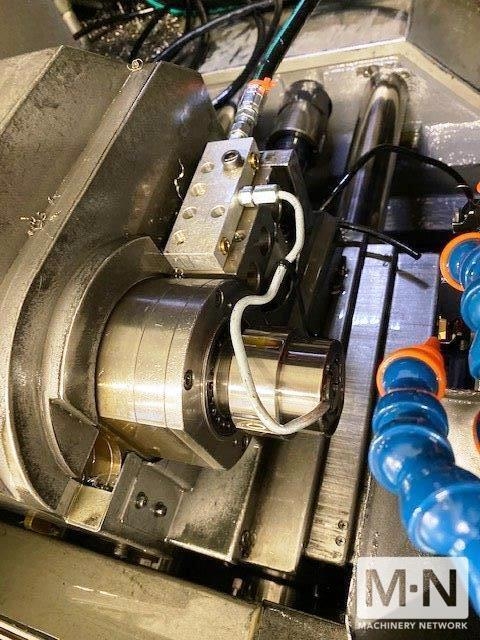

ROTARY TOOL:
ROTARY SPINDLE SPEED:................5000 RPM
ROTARY TOOL MOTOR:.....................1.0 KW

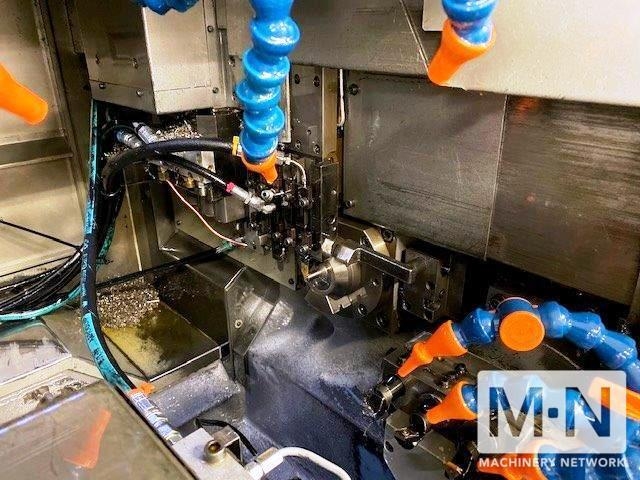

NUMBER OF TOOLS MOUNTED:...............18-21
TURNING/FRONT ID/BACK ID/LIVE TOOLS:....5 / 3 / 3 / 5
POWER CONSUMPTION:......................6 KVA
DIMENSIONS
MACHINE:....83.5" X 48" X 81" 4,700 LBS
CHIP PAN:...57.5" X 43" X 35" 545 LBS

EQUIPPED WITH:

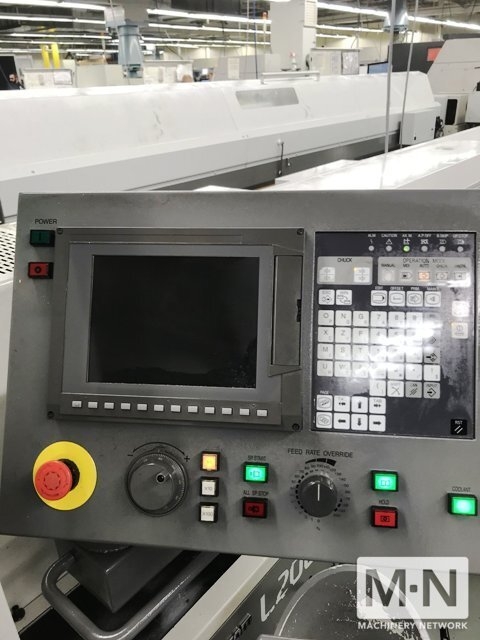

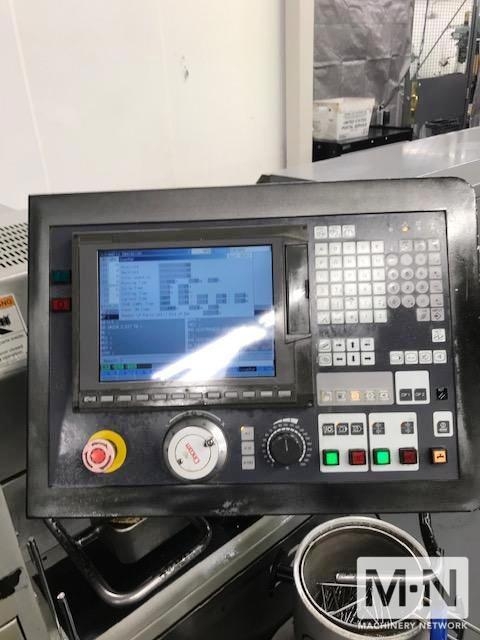

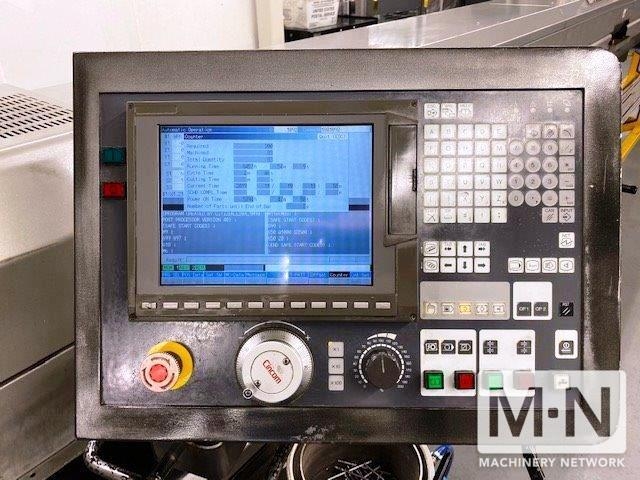

CINCOM SYSTEM L SIMULTANEOUS 8 AXIS CONTROL

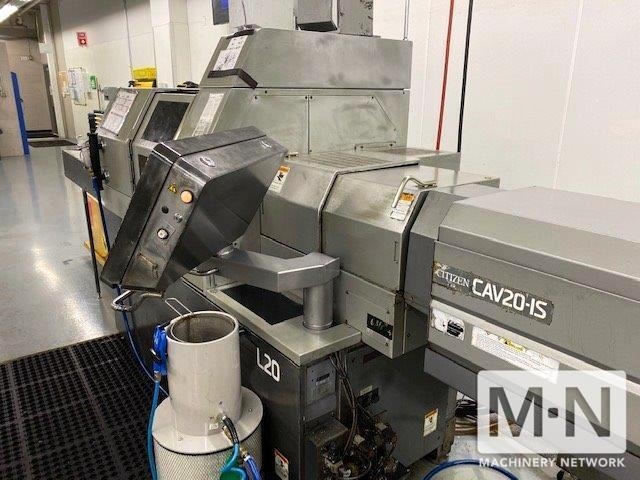

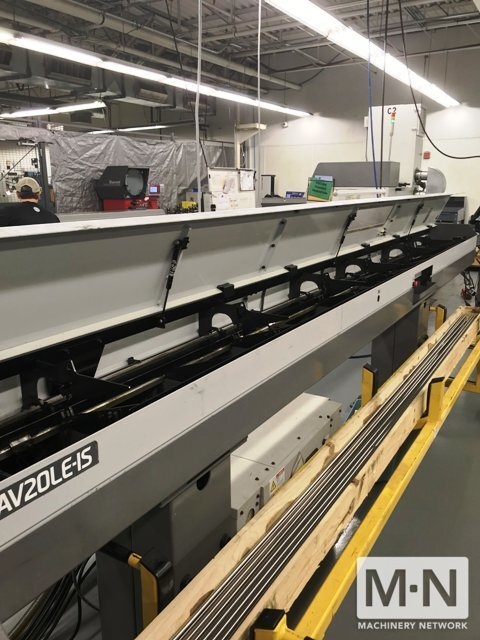

CITIZEN CAV20-IS MAGAZINE BAR LOADER

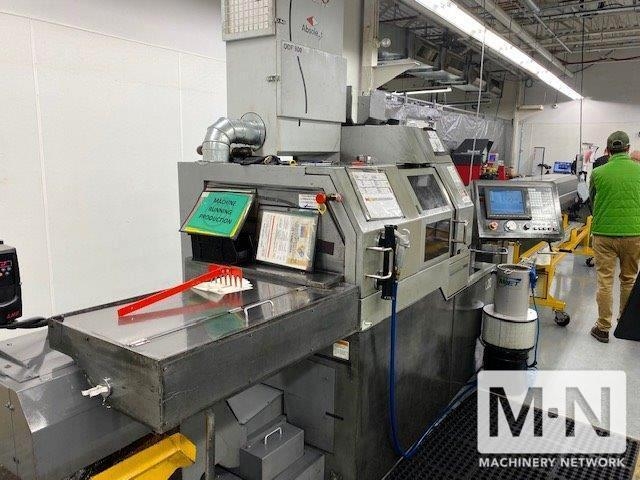

ABSOLENT ODF-800 MIST COLLECTOR

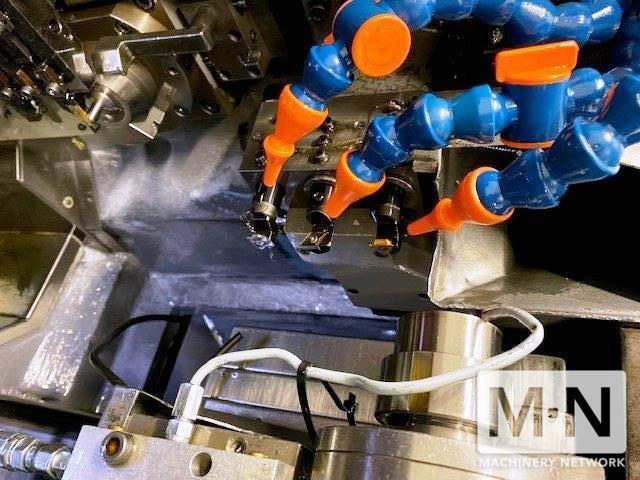

COOL BLASTER HIGH PRESSURE COOLANT SYSTEM

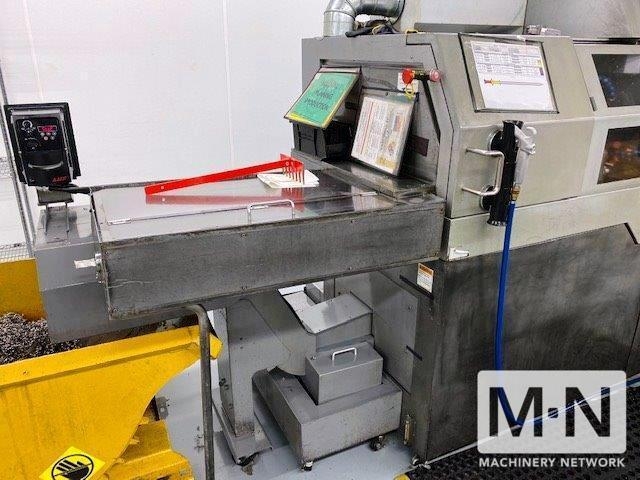

CHIP CONVEYOR, LOW PROFILE
LONG PARTS ADAPTOR
FIRE SUPRESSION SYSTEM, DOES NOT INCLUDE TANK
