CITIZEN L-20 VIII
Type:
AUTOMATIC SCREW MACHINES, SWISS TYPE, N/C & CNC
Manufacturer:
CITIZEN
Model:
L-20 VIII
Condition:
Not Specified
Year:
2005
Stock #:
36817
Status:
Sold
Description:
Cincom Control, Parts Catcher. Chip Conveyor,Federal Pacific Transformer, 30 KVA, 240/208 Volt
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

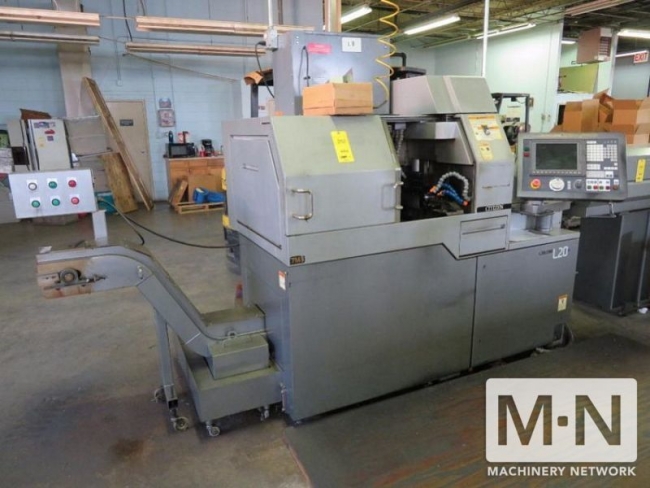

(1) USED CITIZEN L-20VIII CNC SCREW MACHINE
NEW 2005
SPECIFICATIONS:
MAXIMUM MACHINING DIAMETER..........0.79”
MAXIMUM MACHINING LENGTH............3.15”
MAIN SPINDLE SPEEDS.................10,000 RPM
MAIN SPINDLE INDEXING
FULL C-AXIS ......................(.001 DEGREE)
BACK SPINDLE SPEEDS.................200-8,0000 RPM
SUB-SPINDLE INDEXING................FULL C-AXIS (.001 DEGREE)
ROTARY TOOL SPEEDS..................200-4,500 RPM
BACK SPINDLE MAX CHUCKING DIAMETER..79"
TURNING TOOLS.......................5 OD TOOL POSITION BLOCK FOR ½" SQUARE TOOLS
ROTARY (LIVE) TOOLS ................5 LIVE CROSS DRILLING MILLING/DRILLING SPINDLES
FRONT ENDWORKING TOOLS .............3 FRONT ID TOOL POSITION BLOCK WITH COLLET SLEEVES
BACK ENDWORKING TOOLS...............3 BACKWORKING ID LIVE TOOL BLOCK
CUTTING TOOL SHANK/SLEEVE SIZE......1/2" SQUARE TURN / .75" (3) OR .63" (4) BORE
RAPID TRAVERSE (X/Y/Z)..............1257 IPM
MAIN SPINDLE DRIVE..................5 HP
BACK SPINDLE DRIVE..................2 HP
ROTARY TOOL DRIVE...................4 KW
EQUIPPED WITH:

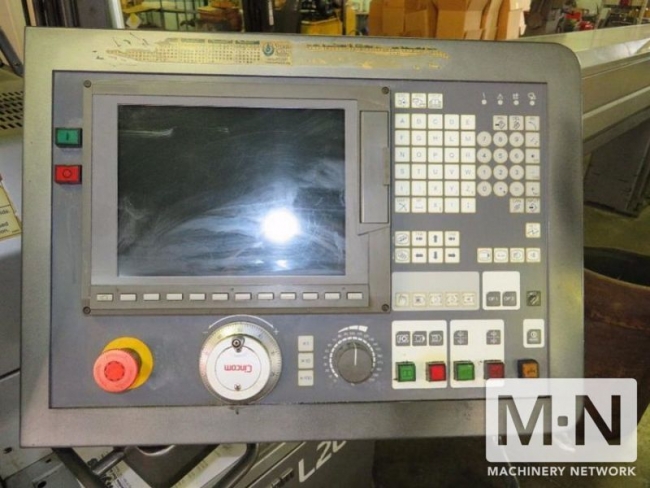

CINCOM CONTROL
PARTS CATCHER

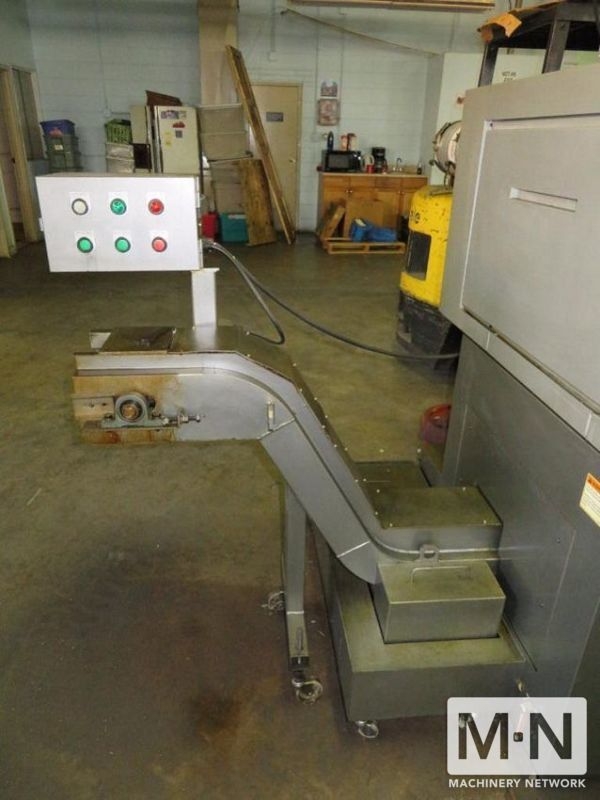

CHIP CONVEYOR

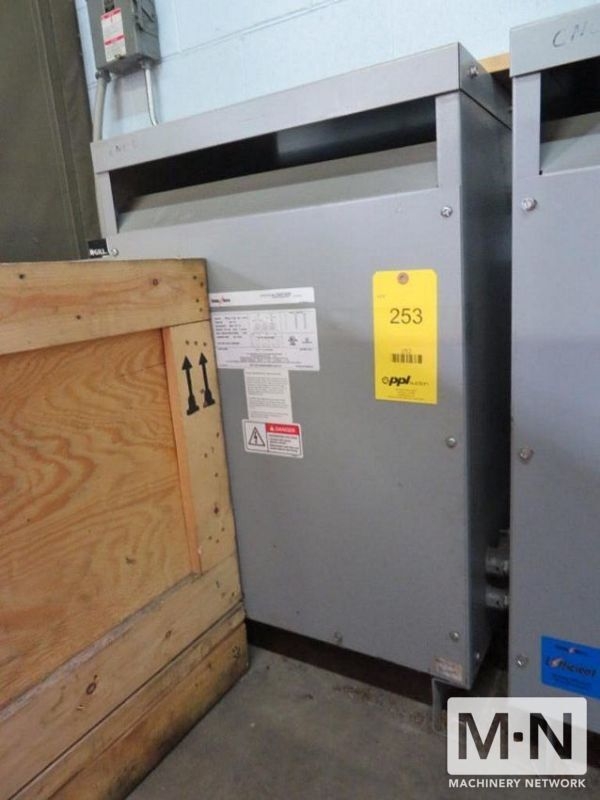

FEDERAL PACIFIC TRANSFORMER
30 KVA, 240/208 VOLT
NEW 2005
SPECIFICATIONS:
MAXIMUM MACHINING DIAMETER..........0.79”
MAXIMUM MACHINING LENGTH............3.15”
MAIN SPINDLE SPEEDS.................10,000 RPM
MAIN SPINDLE INDEXING
FULL C-AXIS ......................(.001 DEGREE)
BACK SPINDLE SPEEDS.................200-8,0000 RPM
SUB-SPINDLE INDEXING................FULL C-AXIS (.001 DEGREE)
ROTARY TOOL SPEEDS..................200-4,500 RPM
BACK SPINDLE MAX CHUCKING DIAMETER..79"
TURNING TOOLS.......................5 OD TOOL POSITION BLOCK FOR ½" SQUARE TOOLS
ROTARY (LIVE) TOOLS ................5 LIVE CROSS DRILLING MILLING/DRILLING SPINDLES
FRONT ENDWORKING TOOLS .............3 FRONT ID TOOL POSITION BLOCK WITH COLLET SLEEVES
BACK ENDWORKING TOOLS...............3 BACKWORKING ID LIVE TOOL BLOCK
CUTTING TOOL SHANK/SLEEVE SIZE......1/2" SQUARE TURN / .75" (3) OR .63" (4) BORE
RAPID TRAVERSE (X/Y/Z)..............1257 IPM
MAIN SPINDLE DRIVE..................5 HP
BACK SPINDLE DRIVE..................2 HP
ROTARY TOOL DRIVE...................4 KW
EQUIPPED WITH:
CINCOM CONTROL
PARTS CATCHER
CHIP CONVEYOR
FEDERAL PACIFIC TRANSFORMER
30 KVA, 240/208 VOLT
