CITIZEN L25
Type:
AUTOMATIC SCREW MACHINES, SWISS TYPE, N/C & CNC
Manufacturer:
CITIZEN
Model:
L25
Condition:
Not Specified
Year:
1998
Stock #:
26290
Status:
Sold
Description:
MELDAS 500, 6 AXIS, MAIN-SUB SPDL, FRONT-BACK MACH, LNS B.F
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

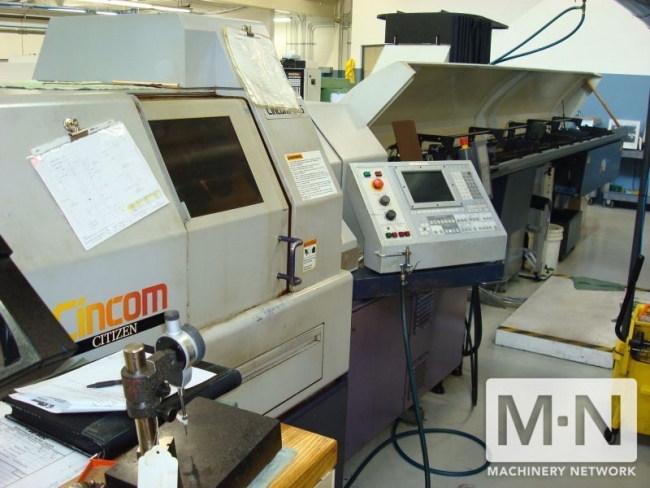

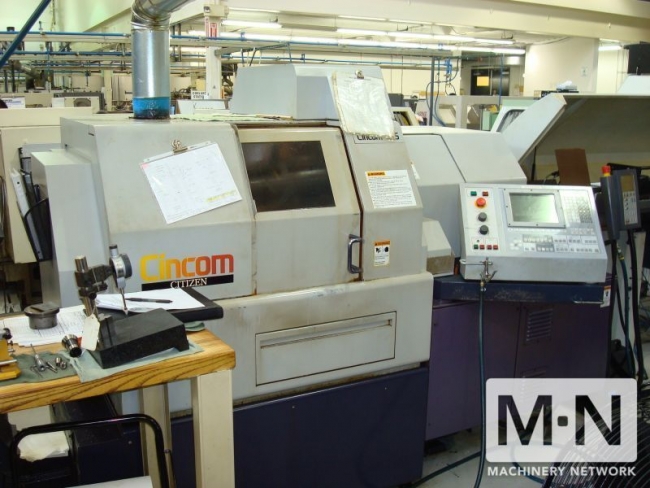

(1) USED 1" CITIZEN L25 CNC SWISS MACHINE
S/N: V6719, NEW 1998
SPECIFICATIONS:
MAX. BAR CAPACITY .................. 1"
MAX. TURNING LENGTH ................ 10"
MAX. DRILLING DIAMETER IN STEEL .... 0.47"
MAX THREAD SIZE .................... M10

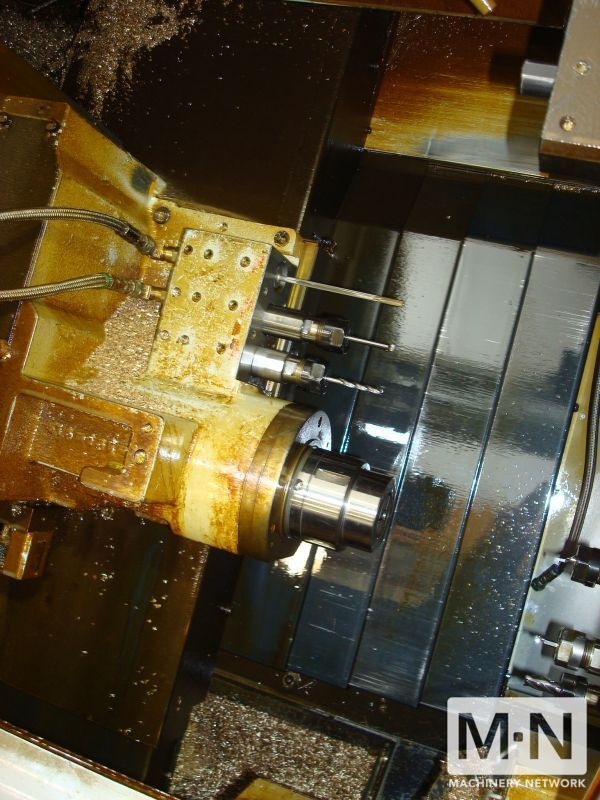

MAIN SPINDLE - MOTOR ............... 7.4 HP
- SPEEDS .............. 200-8000 RPM
- SPINDLE BORE ........ 1.57"
- SPINDLE INDEXING .... 5 DEG C AXIS
SUB SPINDLE - MAX PICK OFF DIAM. ... 1"
- MAX PICK OFF LENGTH .. 4.7"
- MOTOR ................ 3 HP
- SPEEDS ............... 200-6000 RPM
DRIVEN TOOLS - MOTOR ............... 1 HP
- SPEEDS .............. 200-5000

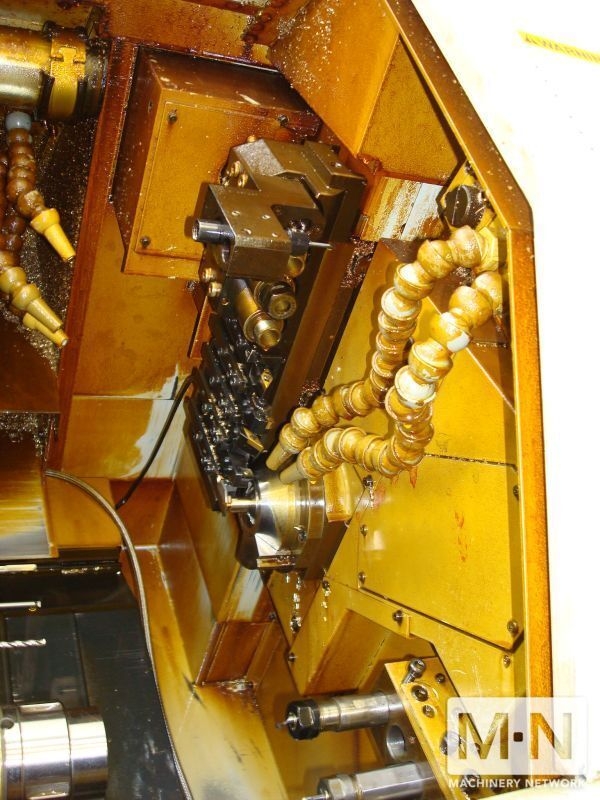

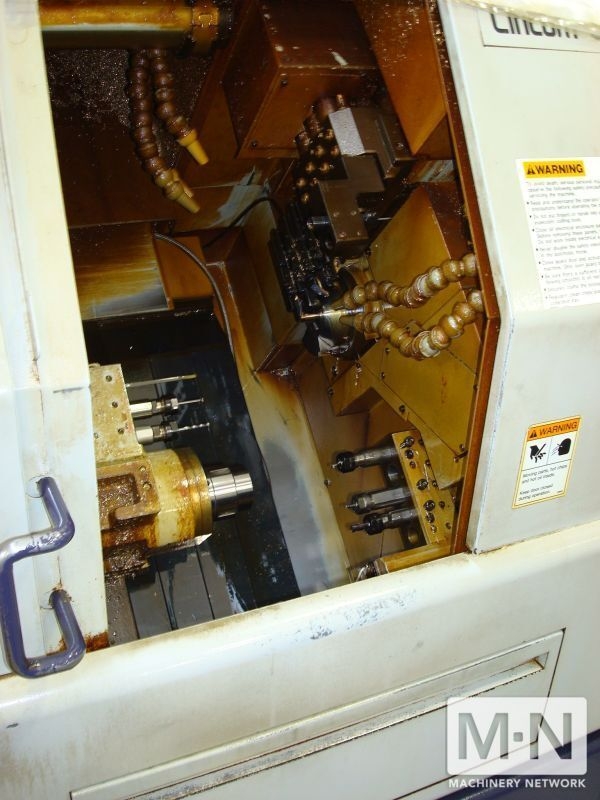

TOOLS - EXTERNAL MACHINING ......... 5
- INTERNAL MACHINING ......... 3
- DRIVEN ..................... 5
- BACK WORKING ............... 5
FEED RATE - Z1 ..................... 709 IPM
- X1 ..................... 630 IPM
- Y ...................... 787 IPM
- Z2 & X2 ................ 709 IPM
APPROX. DIMENSION - W/O BARFEED .... 99"X51"
APPROX WEIGHT - W/O BARFEED ........ 6000 LBS
EQUIPPED WITH:

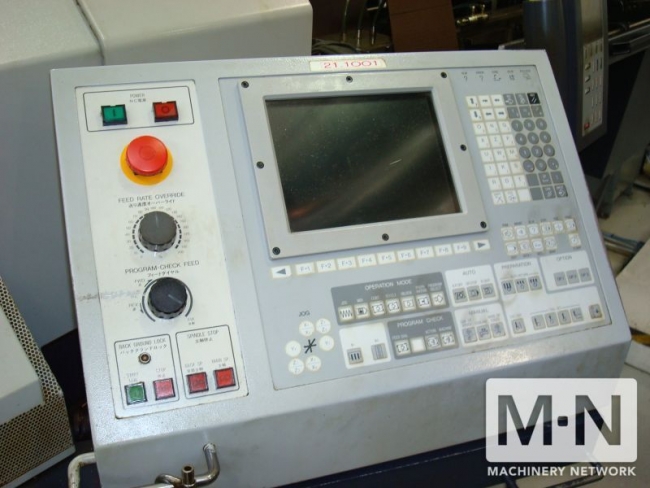

MITSUBISHI MELDAS 500 WINDOWS BASED CNC CONTROL
MAIN & SUB SPINDLE SYNCHRONIZATION

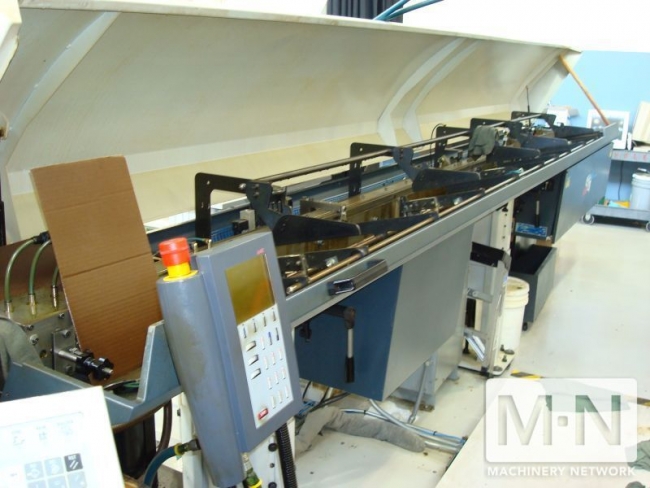

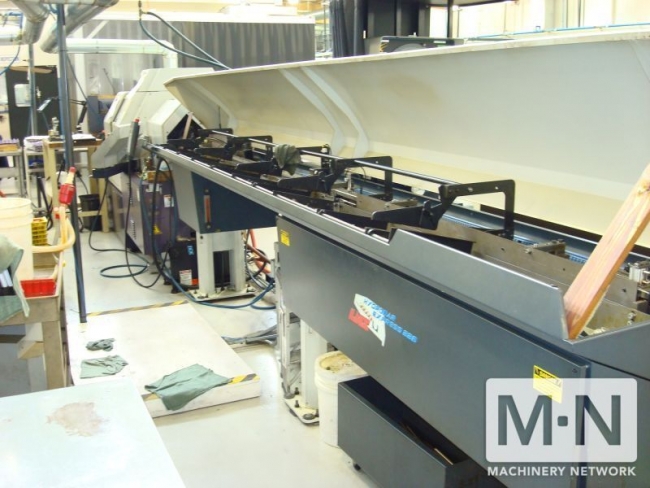

12' LNS HYDROBAR EXPRESS 226 MAGAZINE TYPE BAR LOADER
(2MM-26MM CAP.), S/N: 100028-98
COLLET CLOSERS ON MAIN & SUB SPINDLE
TURBO CHIP CONVEYOR
S/N: V6719, NEW 1998
SPECIFICATIONS:
MAX. BAR CAPACITY .................. 1"
MAX. TURNING LENGTH ................ 10"
MAX. DRILLING DIAMETER IN STEEL .... 0.47"
MAX THREAD SIZE .................... M10
MAIN SPINDLE - MOTOR ............... 7.4 HP
- SPEEDS .............. 200-8000 RPM
- SPINDLE BORE ........ 1.57"
- SPINDLE INDEXING .... 5 DEG C AXIS
SUB SPINDLE - MAX PICK OFF DIAM. ... 1"
- MAX PICK OFF LENGTH .. 4.7"
- MOTOR ................ 3 HP
- SPEEDS ............... 200-6000 RPM
DRIVEN TOOLS - MOTOR ............... 1 HP
- SPEEDS .............. 200-5000
TOOLS - EXTERNAL MACHINING ......... 5
- INTERNAL MACHINING ......... 3
- DRIVEN ..................... 5
- BACK WORKING ............... 5
FEED RATE - Z1 ..................... 709 IPM
- X1 ..................... 630 IPM
- Y ...................... 787 IPM
- Z2 & X2 ................ 709 IPM
APPROX. DIMENSION - W/O BARFEED .... 99"X51"
APPROX WEIGHT - W/O BARFEED ........ 6000 LBS
EQUIPPED WITH:
MITSUBISHI MELDAS 500 WINDOWS BASED CNC CONTROL
MAIN & SUB SPINDLE SYNCHRONIZATION
12' LNS HYDROBAR EXPRESS 226 MAGAZINE TYPE BAR LOADER
(2MM-26MM CAP.), S/N: 100028-98
COLLET CLOSERS ON MAIN & SUB SPINDLE
TURBO CHIP CONVEYOR
