CITIZEN M-32
Type:
AUTOMATIC SCREW MACHINES, SWISS TYPE, N/C & CNC
Manufacturer:
CITIZEN
Model:
M-32
Condition:
Not Specified
Year:
2004
Stock #:
31680
Status:
Sold
Description:
1-1/4", CINCOM M6B, LNS EXPRESS 332 BAR LOADER,
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

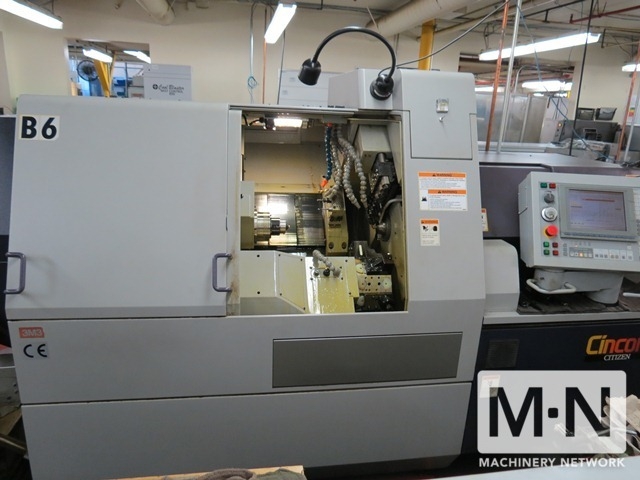

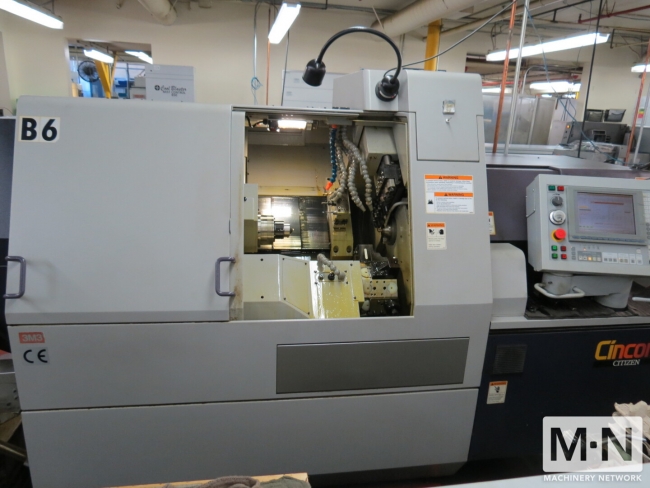

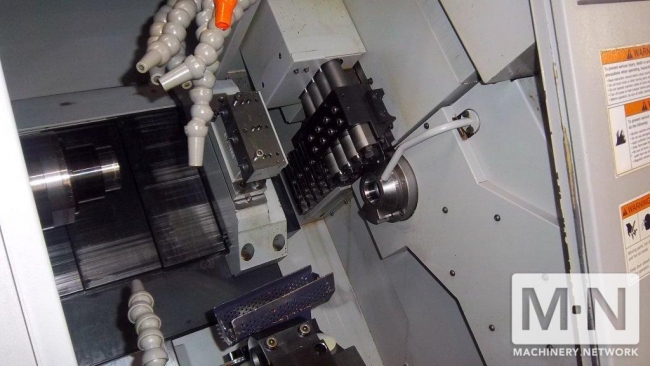

1) Used Citizen M32 Swiss Screw CNC Machining Center
New 2004
Specifications:
Axes:X1,Y1,Z1,C1(*),X2,Z2,C2(*),X3,Z3 (Misc Axes: Ti, A1,A2,A3)
Max. Machining Diameter:......................1-1/4" (32mm)
Max. Machining Length per chucking:...........12.8"
Main Spindle Speeds:..........................200 - 8000 rpm
Rotary Tool Speeds: (turret & gang plate):....250 - 5000 rpm
Backworking:
Max. Chucking Dia:..........................1-1/4" (32mm)
Max. Backwork Length:.......................5.80" (145mm)
Max. Drilling/Tapping:......................M8
Back Spindle Speeds:........................180 - 7000 rpm
Number of Installable Tools:

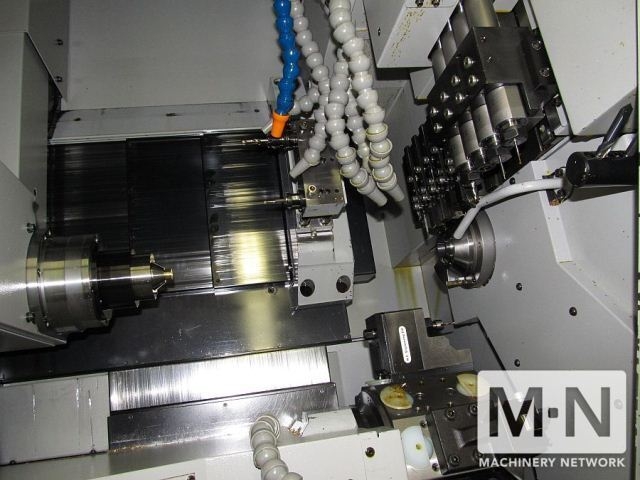

Turret Tooling:......................10 (20 in half index mode)
Gang-tool Tooling:.........................5 Turning + 3 Rotary
Back Working Tool Post:3 (plus rear facing tools on turret)
Tool Sizes:
Gang Tooling:..............................16mm x 16mm x 130mm
Turret Tooling:............................16mm x 16mm x 90mm
Sleeve Size:.............................25.4mm diameter
Motors:
Main Spindle Drive:...................3.7/5.5 KW (10 HP approx)
Rotary Tool Spindle Drive:
Gang Plate:.................75KW
Turret: ....................75/1.5KW
Back Spindle Drive:.......................1.5/2.2KW
Dimensions (approx.):.......................110" x 50" x 72"h
Weight (approx.):...........................6000 lbs.
Equipped with:

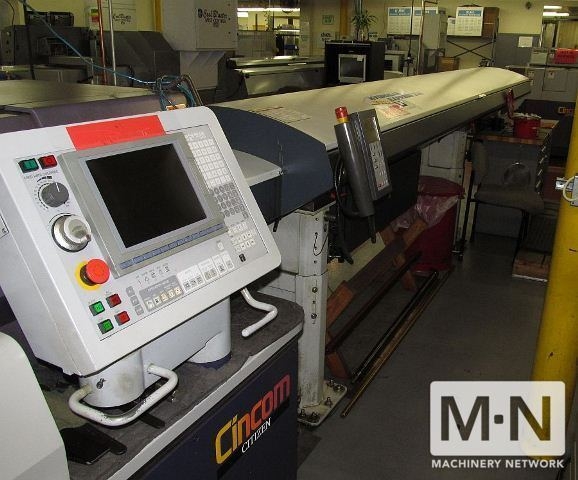

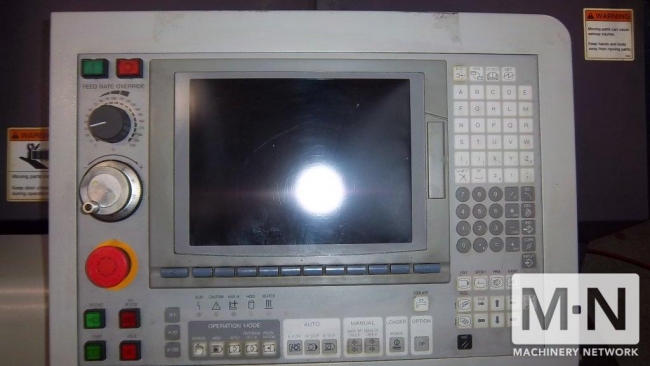

Cincom M6B (Mitsubishi)

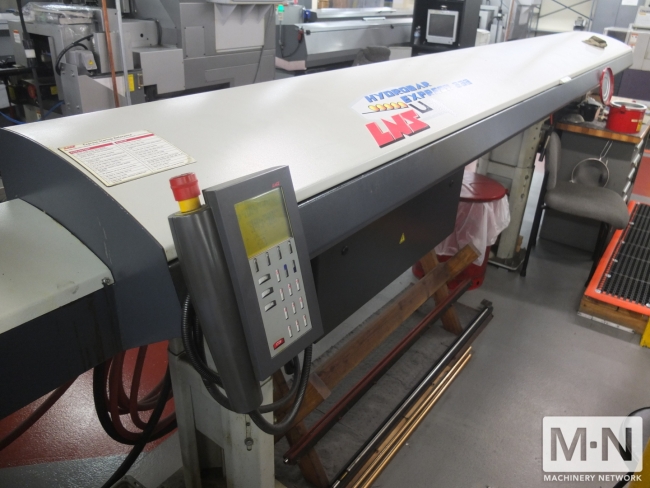

LNS Express 332 Magazine Bar Loader
(5) ID/OD and (1) live tool holder
Optional item: Cincom TP-1000 Tool Presetter (Price on Request)
New 2004
Specifications:
Axes:X1,Y1,Z1,C1(*),X2,Z2,C2(*),X3,Z3 (Misc Axes: Ti, A1,A2,A3)
Max. Machining Diameter:......................1-1/4" (32mm)
Max. Machining Length per chucking:...........12.8"
Main Spindle Speeds:..........................200 - 8000 rpm
Rotary Tool Speeds: (turret & gang plate):....250 - 5000 rpm
Backworking:
Max. Chucking Dia:..........................1-1/4" (32mm)
Max. Backwork Length:.......................5.80" (145mm)
Max. Drilling/Tapping:......................M8
Back Spindle Speeds:........................180 - 7000 rpm
Number of Installable Tools:
Turret Tooling:......................10 (20 in half index mode)
Gang-tool Tooling:.........................5 Turning + 3 Rotary
Back Working Tool Post:3 (plus rear facing tools on turret)
Tool Sizes:
Gang Tooling:..............................16mm x 16mm x 130mm
Turret Tooling:............................16mm x 16mm x 90mm
Sleeve Size:.............................25.4mm diameter
Motors:
Main Spindle Drive:...................3.7/5.5 KW (10 HP approx)
Rotary Tool Spindle Drive:
Gang Plate:.................75KW
Turret: ....................75/1.5KW
Back Spindle Drive:.......................1.5/2.2KW
Dimensions (approx.):.......................110" x 50" x 72"h
Weight (approx.):...........................6000 lbs.
Equipped with:
Cincom M6B (Mitsubishi)
LNS Express 332 Magazine Bar Loader
(5) ID/OD and (1) live tool holder
Optional item: Cincom TP-1000 Tool Presetter (Price on Request)
