MAZAK QUICK TURN 10
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
MAZAK
Model:
QUICK TURN 10
Condition:
Not Specified
Year:
1996
Stock #:
36695
Status:
Sold
Description:
Mazatrol T Plus, 6" Hyd. Chuck, 1.9" Spindle Bore, 19" Max Swing,
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

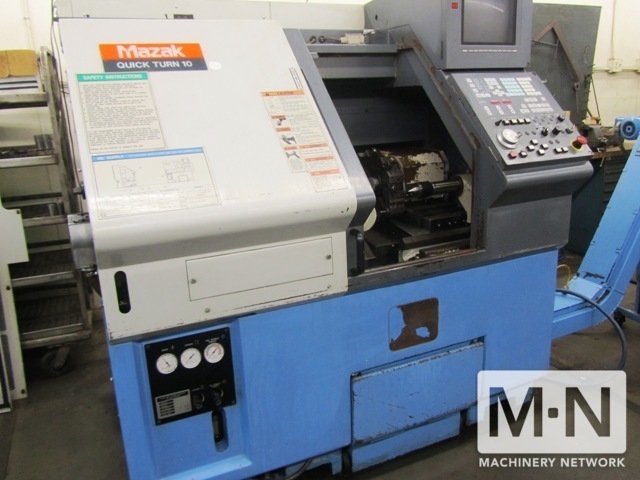

(1) USED MAZAK QUICK TURN 10 CNC TURNING CENTER
NEW 1996
SPECIFICATIONS:
MAXIMUM SWING ............. 19.25"
MAXIMUM CUTTING DIAMETER .. 6.30"
MAXIMUM BAR WORK SIZE ..... 1.57"
MAXIMUM CUTTING LENGTH .... 11.22"
X AXIS TRAVEL ............. 3.75"
Z AXIS TRAVEL ............. 11.40"
SPINDLE NOSE .............. A2-5
SPINDLE BORE .............. 1.97"
SPINDLE SPEED ............. 60 - 6000 RPM

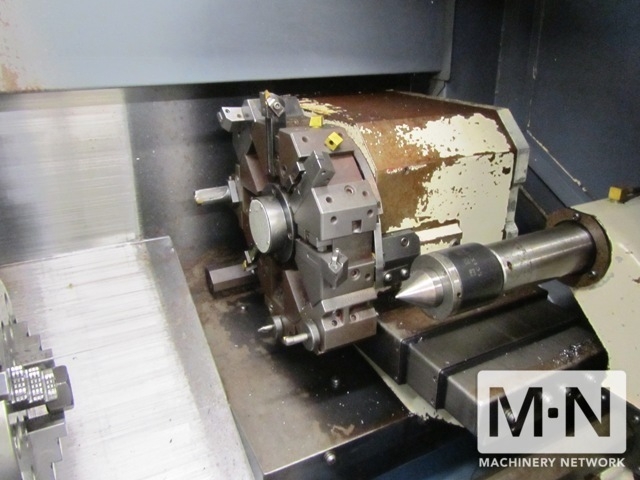

TURRET POSITIONS .......... 12
RAPID TRAVERSE
X-AXIS .................... 1200 IPM
Z-AXIS .................... 1300 IPM
MANUAL TAILSTOCK
STROKE OF TAILSTOCK BODY .. 13.38"
TAILSTOCK HOLE TAPER ...... MT # 4
TAILSTOCK STROKE .......... 12.80"
TAIL SPINDLE DIA. ......... 2.17"
TAIL SPINDLE STROKE ....... 3.74"
MAIN MOTOR ................ 10 HP
EQUIPPED WITH:
MAZATROL T PLUS

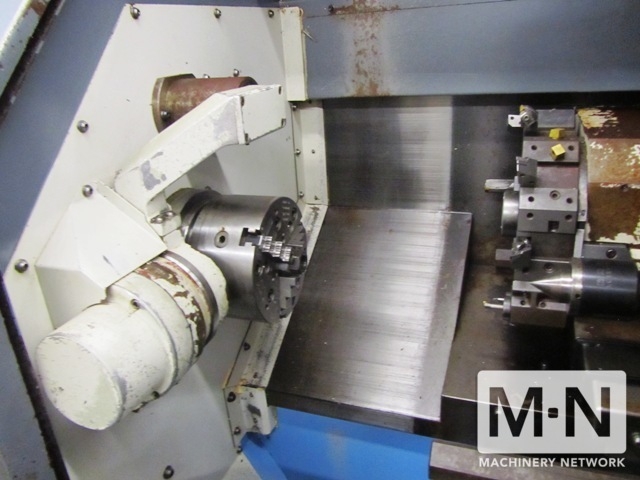

6” HYD CHUCK
TOOL PRESETTER
CHIP CONVEYOR
NEW 1996
SPECIFICATIONS:
MAXIMUM SWING ............. 19.25"
MAXIMUM CUTTING DIAMETER .. 6.30"
MAXIMUM BAR WORK SIZE ..... 1.57"
MAXIMUM CUTTING LENGTH .... 11.22"
X AXIS TRAVEL ............. 3.75"
Z AXIS TRAVEL ............. 11.40"
SPINDLE NOSE .............. A2-5
SPINDLE BORE .............. 1.97"
SPINDLE SPEED ............. 60 - 6000 RPM
TURRET POSITIONS .......... 12
RAPID TRAVERSE
X-AXIS .................... 1200 IPM
Z-AXIS .................... 1300 IPM
MANUAL TAILSTOCK
STROKE OF TAILSTOCK BODY .. 13.38"
TAILSTOCK HOLE TAPER ...... MT # 4
TAILSTOCK STROKE .......... 12.80"
TAIL SPINDLE DIA. ......... 2.17"
TAIL SPINDLE STROKE ....... 3.74"
MAIN MOTOR ................ 10 HP
EQUIPPED WITH:
MAZATROL T PLUS
6” HYD CHUCK
TOOL PRESETTER
CHIP CONVEYOR
