MAZAK SLANT TURN NEXUS 500

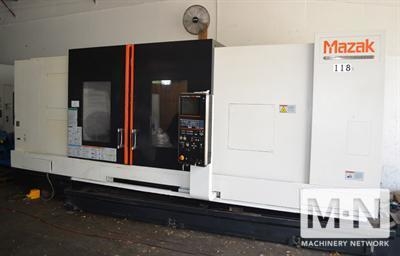

USED 2011 MAZAK SLANT TURN NEXUS 500/2000 CNC UNIVERSAL TURNING CENTER
Specs Maximum Swing Over Bed 40.9'' Maximum Machining Dia. 36'' Swing Over The Carriage 29.4'' Maximum Machining Length 86.38'' Spindle Nose A2-15'' Spindle Bore Main 7.28'' Spindle Speed 1600 RPM Number Of Gear Ranges 2 Maximum Spindle Torque 5163 FT/LBS. X - Axis Travel 18.25" Z - Axis Travel 89.8" Turret Positions 24 Turret Index Time .5'' Sec. Tailstock Travel Body 86.75'' Rapid Traverse Rates X, Z 787, 945 IPM Main Motor 60 HP Machine Weight 41,667 LBS. Equipped with 185MM (7.28'')SPINDLE BORE 21'' NOBLE 3 JAW MANUAL CHUCK ABSOLUTE POSITIONING ALL AVAIABLE TOOL HOLDERS ALL AVAILABLE MANUALS AUTO TOOL LENGTH MEASUREMENT CHIP CONVEYOR CHUCK OPEN CLOSE COMPARISON STOP EIA HELICAL TAP CYCLE EIA PATTERN CYCLE EIA/ISO PROGRAMMING / 12.1'' COLOR MONITOR EXT-DATA I/O FOOT PEDAL FOR HYDRAULIC OR AIR CHUCK GEOMETRIC HIGH PRESSURE COOLANT HYD. PRESSURE INTERLOCK INVERSE TIME MAZATROL MATRIX CNC CONVERSATIONAL CONTROL M-T CONNECT MULTITAP TRANSFORMER NETWORK INTERFACE PITCH ERROR COMP. POLAR COORDIANTE INPUT PROGRAMMABLE TAILSTOCK WITH BUILT IN MT #6 RE-THREAD ROTATION SCALING SPIRAL THREAD CUT SPEED OVERRIDE THREAD CUTTING FUNCTION THREAD START POINT COMP. TILTED WORKING PLANE VARIABLE 600 SETS
ALL AVAILABLE MANUALS

USED 2011 MAZAK SLANT TURN NEXUS 500/2000 CNC UNIVERSAL TURNING CENTER
Specs Maximum Swing Over Bed 40.9'' Maximum Machining Dia. 36'' Swing Over The Carriage 29.4'' Maximum Machining Length 86.38'' Spindle Nose A2-15'' Spindle Bore Main 7.28'' Spindle Speed 1600 RPM Number Of Gear Ranges 2 Maximum Spindle Torque 5163 FT/LBS. X - Axis Travel 18.25" Z - Axis Travel 89.8" Turret Positions 24 Turret Index Time .5'' Sec. Tailstock Travel Body 86.75'' Rapid Traverse Rates X, Z 787, 945 IPM Main Motor 60 HP Machine Weight 41,667 LBS. Equipped with 185MM (7.28'')SPINDLE BORE 21'' NOBLE 3 JAW MANUAL CHUCK ABSOLUTE POSITIONING ALL AVAIABLE TOOL HOLDERS ALL AVAILABLE MANUALS AUTO TOOL LENGTH MEASUREMENT CHIP CONVEYOR CHUCK OPEN CLOSE COMPARISON STOP EIA HELICAL TAP CYCLE EIA PATTERN CYCLE EIA/ISO PROGRAMMING / 12.1'' COLOR MONITOR EXT-DATA I/O FOOT PEDAL FOR HYDRAULIC OR AIR CHUCK GEOMETRIC HIGH PRESSURE COOLANT HYD. PRESSURE INTERLOCK INVERSE TIME MAZATROL MATRIX CNC CONVERSATIONAL CONTROL M-T CONNECT MULTITAP TRANSFORMER NETWORK INTERFACE PITCH ERROR COMP. POLAR COORDIANTE INPUT PROGRAMMABLE TAILSTOCK WITH BUILT IN MT #6 RE-THREAD ROTATION SCALING SPIRAL THREAD CUT SPEED OVERRIDE THREAD CUTTING FUNCTION THREAD START POINT COMP. TILTED WORKING PLANE VARIABLE 600 SETS
ALL AVAILABLE MANUALS
