MAZAK QTN 350/1250

Type:

LATHES, COMBINATION, N/C & CNC

Manufacturer:

MAZAK

Model:

QTN 350/1250

Condition:

Not Specified

Year:

2003

Stock #:

35826

Status:

Sold

Description:

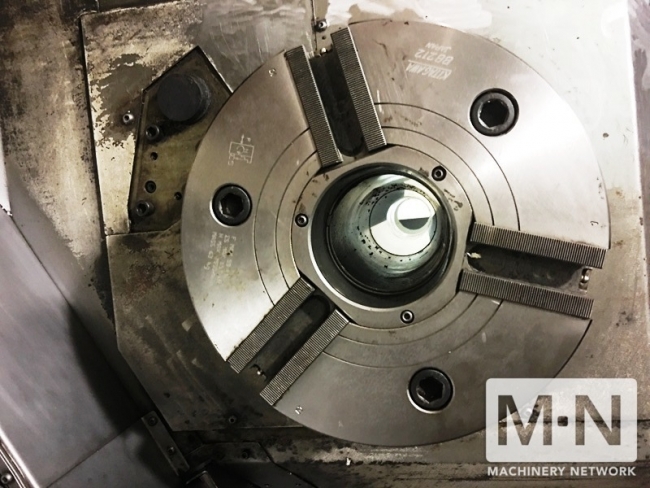

12" 3-JAW HYDRAULIC CHUCK, 25" MAX SWING, C.C.,

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

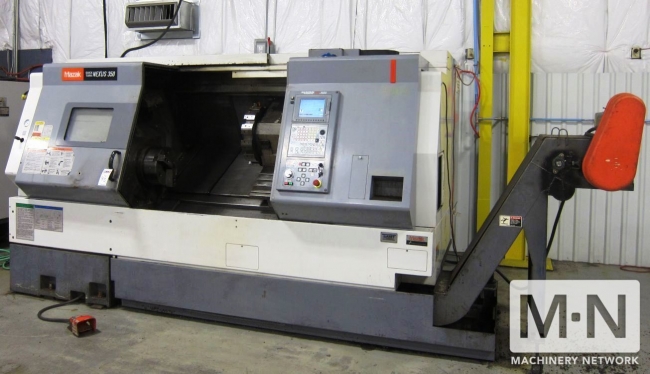

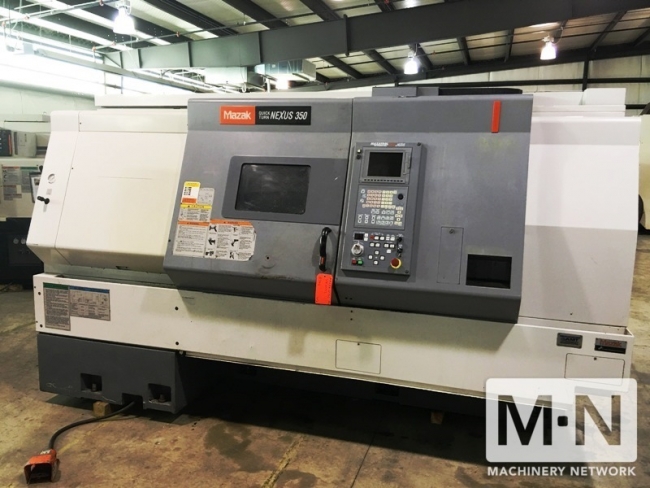

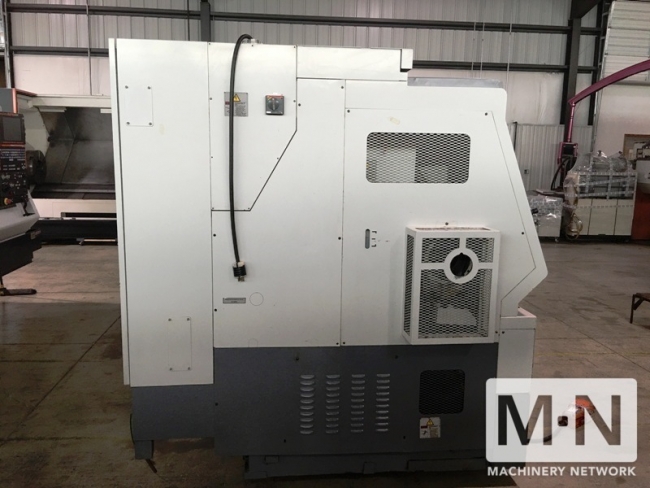

(1) USED MAZAK NEXUS QTN 350/1250 CNC TURNING CENTER
NEW 2003

SPECIFICATIONS:
MAX. SWING...................25.93"
MAX. CUTTING DIAMETER........19.88"
MAX. CUTTING LENGTH..........51"
SPINDLE NOSE................A2-11"
SPINDLE BORE.................4.40"
SPINDLE SPEEDS...............6-2500 RPM
SPINDLE TORQUE...............530 FT-LBS.

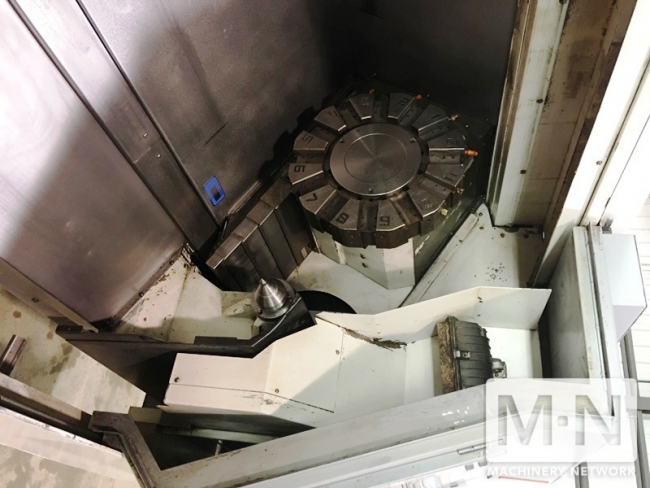

TURRET TYPE..................24 POSITION
TOOL SIZE....................1.25" X 1.25" X 6"
TURRET CLAMPING FORCE........11,700 LBS.
STROKE OF TURRET X , Z.......10.63", 49"03"
RAPID TRAVERSE RATE X , Z....472 IPM , 787 IPM
TAILSTOCK CONTROL............FULLY PROGRAMABLE
TAILSTOCK QUILL DIA..........3.94"
TAILSTOCK CENTER........MT # 4
STROKE OF TAIL BODY..........37.8"
MAIN MOTOR...................40 HP AC
MACHINE WEIGHT...............17,600 lbs.

EQUIPPED WITH

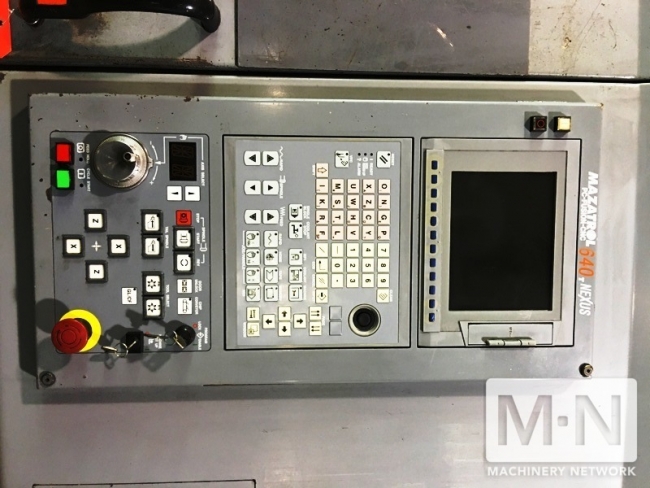

MAZATROL FUSION 640T CNC CONVERSATIONAL CONTROL

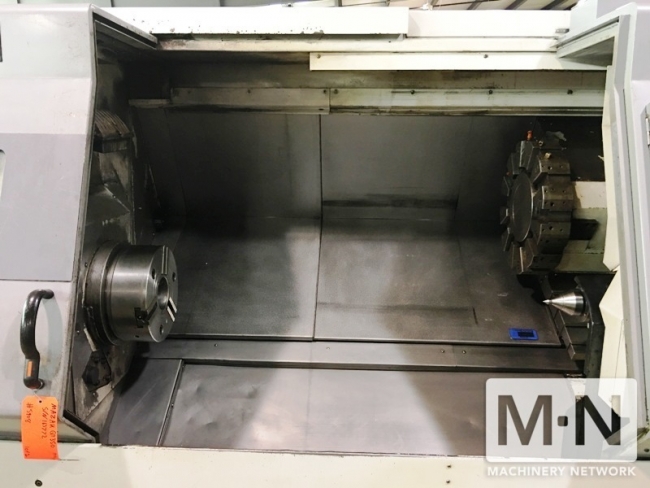

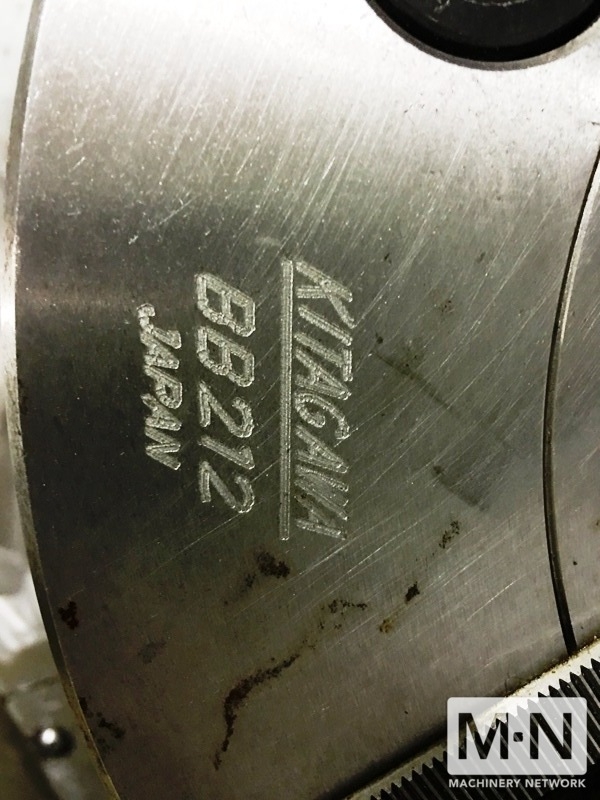

12" 3-JAW HYDRAULIC CHUCK PACKAGE
3.5 FLOPPY DISC
ALL AVAILABLE MANUALS
ALL AVAILABLE TOOL HOLDERS
CHIP CONVEYOR
PCMIA INTERFACE
