MAZAK SLANT TURN 80N/2000

Type:

LATHES, COMBINATION, N/C & CNC

Manufacturer:

MAZAK

Model:

SLANT TURN 80N/2000

Condition:

Not Specified

Year:

2004

Stock #:

33835

Status:

Sold

Description:

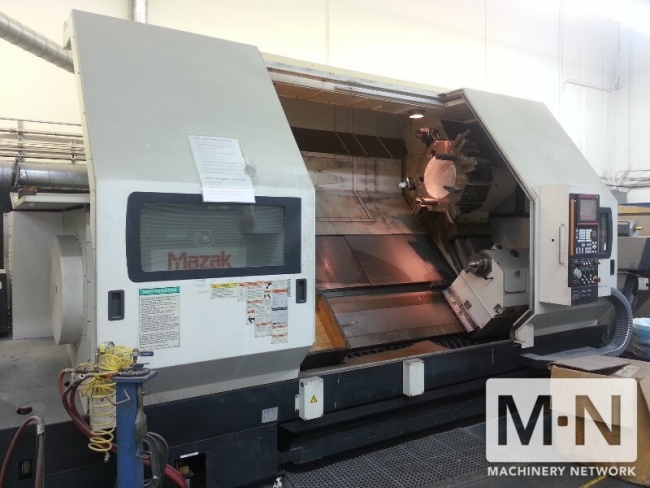

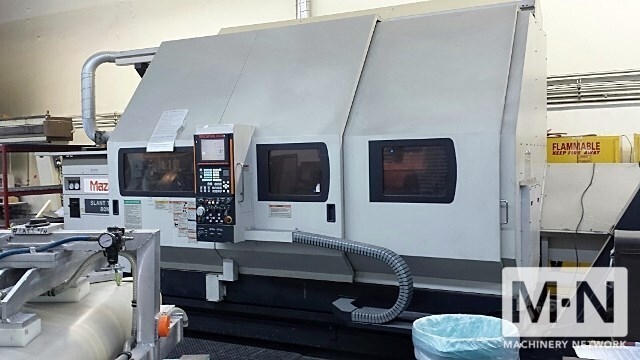

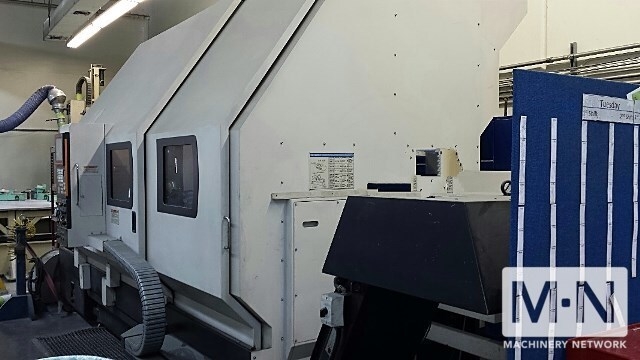

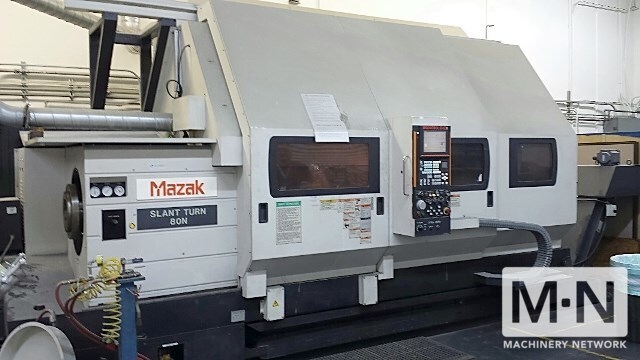

MAZAK SLANT TURN 80N/2000 CNC UNIVERSAL LATHE , 2004

Location:

Illinois, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

1)USED MAZAK SLANT TURN 80N/2000 CNC UNIVERSAL LATHE
NEW 2004

SPECIFICATIONS
MAXIMUM SWING OVER BED .................42.13"
MAXIMUM CUTTIN DIA. CHUCKING/SHAFT .....33"/31.40"
MAXIMUM MACHINING LENGTH ...............73.8"
MAXIMUM DISTANCE BETWEEN CENTERS .......81"
MAIN MOTOR DRIVE .......................80 HP AC
SPINDLE SPEEDS .........................2-1000 RPM
NUMBER OF GEAR RANGES ..................4

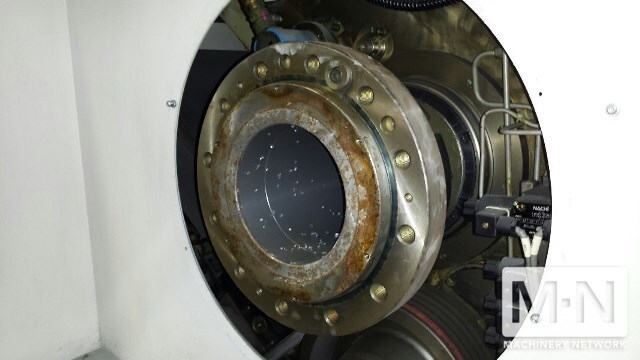

SPINDLE NOSE ...........................A2-15"
SPINDLE HOLE ...........................7.1"

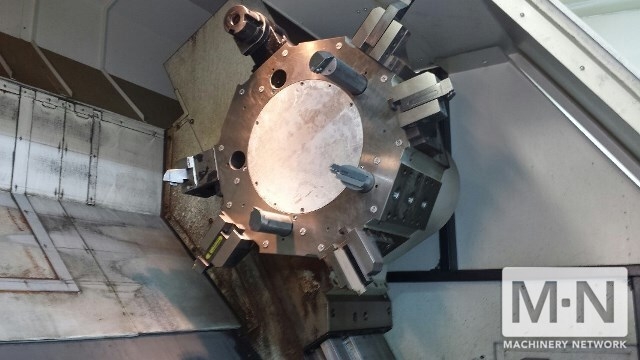

TURRET CONFIGURATION ...................15
X- AXIS TRAVEL .........................27.5"
Z- AXIS TRAVEL .........................80.28"
RAPID TRAVERSE RATE ....................472/551 IPM
TAILSTOCK TRAVEL BODY ..................70"
TAILSTOCK TRAVEL QUILL..................7.09"
TAILSTOCK TYPE..........................HYD. N/C PROGRAMMABLE
MACHINE WEIGHT..........................38,218 LBS.

EQUIPPED WITH

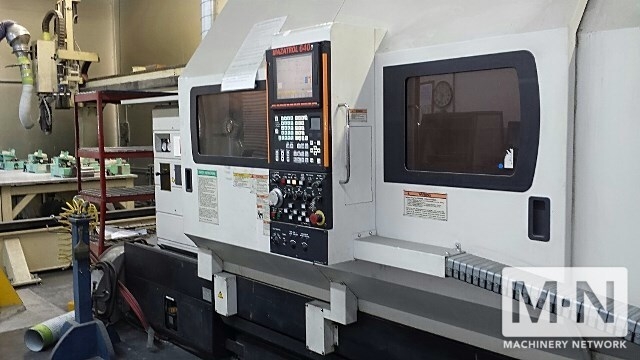

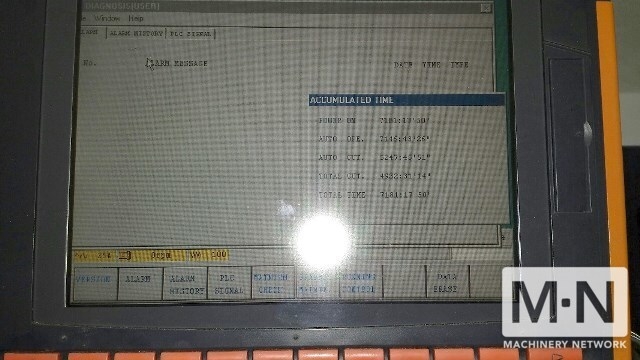

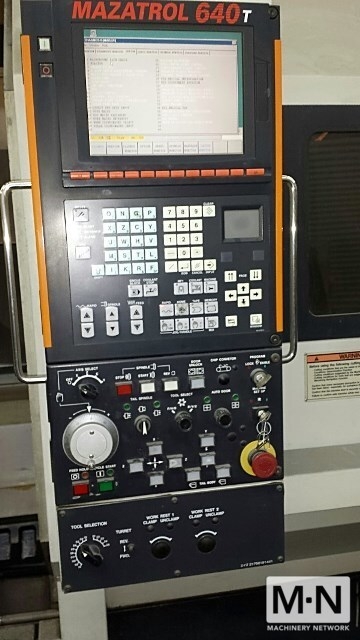

MAZATROL 640T PRO CNC CONVERSATIONAL CONTROL
BACKGROUND TOOL PATH CHECK
EIA/ISO PROGRAMMING
DIRECT DRAWING SIZE INPUT
USER MACRO
600 MACRO VARIABLES
USER MACRO INTERUPT
WORK COORDINATES SELECT
POLAR COORDINATES INPUT
EIA HELICAL INTERPOLATION
EIA COODINATE ROTATION
EIA HELICAL TAP
25" 3-JAW MANUAL CHUCK

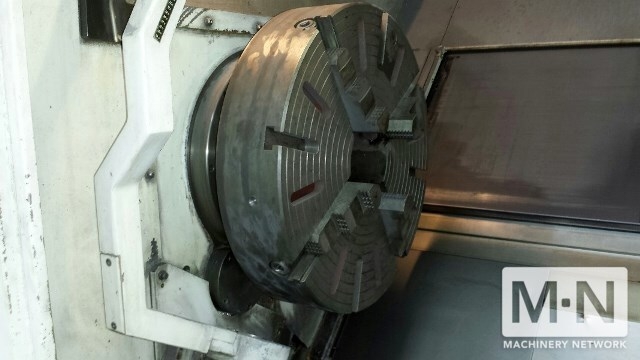

24" 4-JAW MANUAL CHUCK
AUTOMATIC TOOL EYE

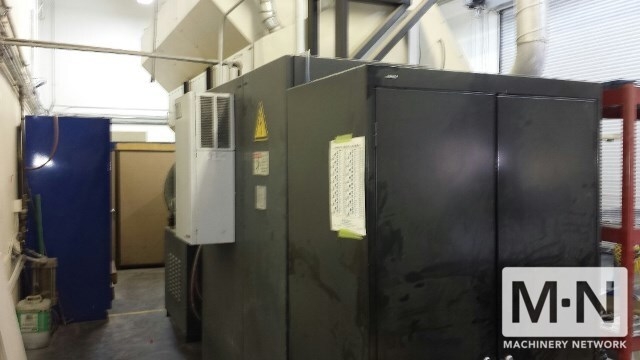

UNIVERSAL TRANSFORMER
CHIP CONVEYOR

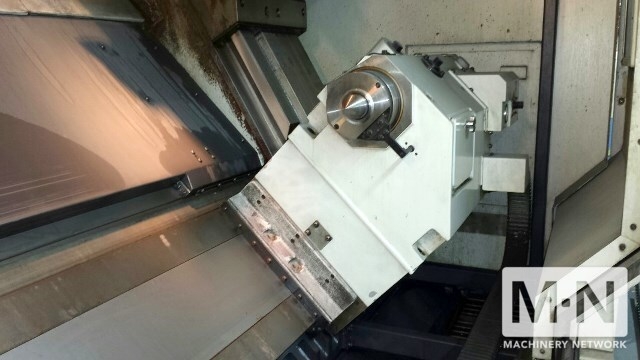

PROGRAMMABLE TAILSTOCK

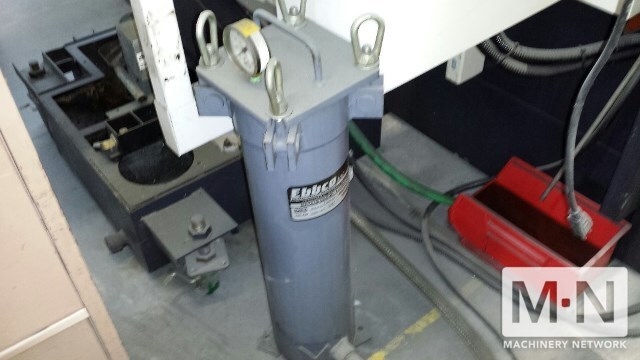

FLOOD COOLANT

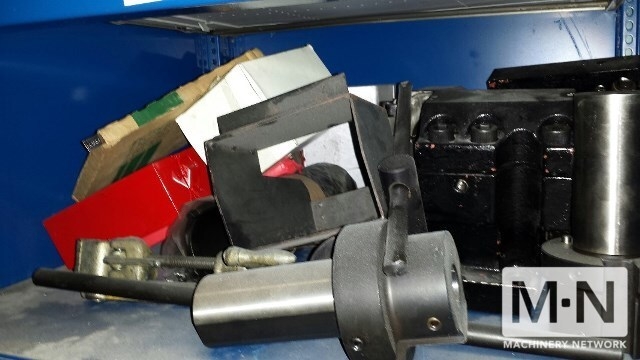

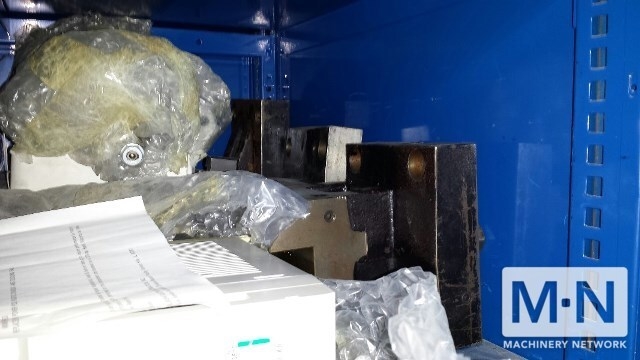

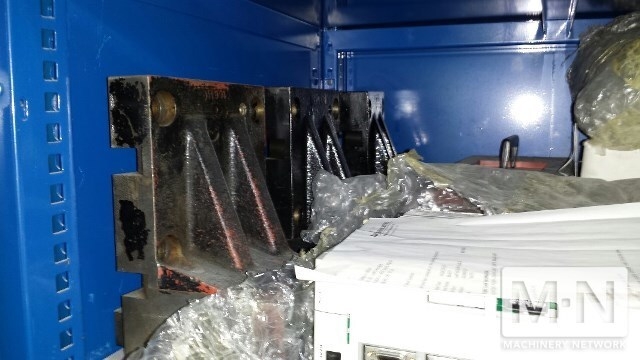

ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
