MAZAK QTN 350-II

Type:

LATHES, COMBINATION, N/C & CNC

Manufacturer:

MAZAK

Model:

QTN 350-II

Condition:

Not Specified

Year:

2007

Stock #:

31624

Status:

Sold

Description:

MAZAK NEXUS QT 350-II, , MAZATROL-MATRIX CONTROL, 12" CHUCK, 26" SWING

Location:

Utah, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

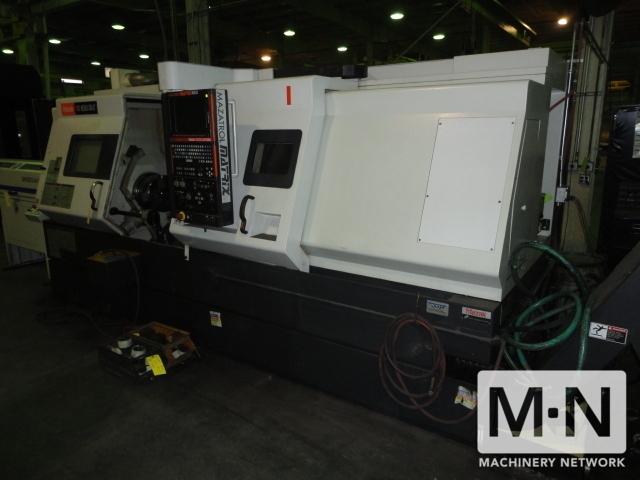

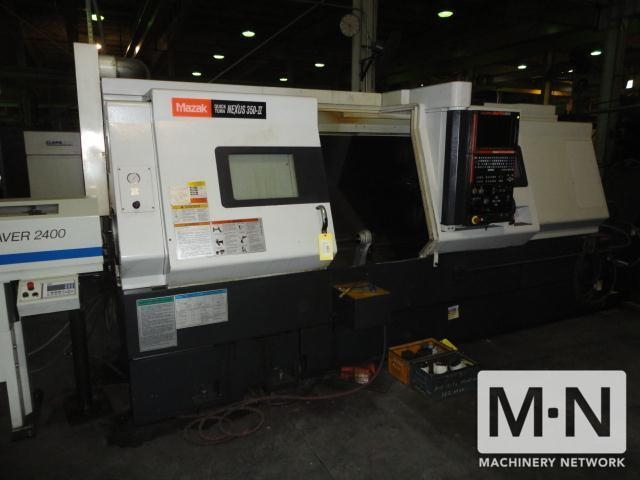

(1) USED MAZAK QTN-350-II CNC TURNING CENTER
New 2007

STANDARD SPECIFICATIONS:

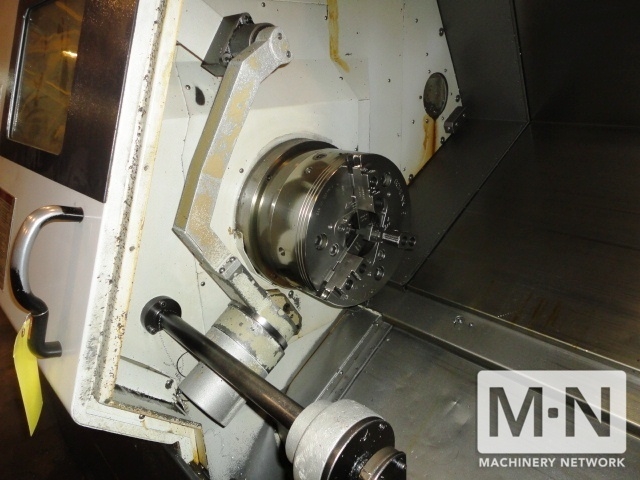

Chuck Size................................. 12"
Maximum Swing.............................. 26.77"
Standard Machining Diameter................ 10.39"
Maximum Machining Diameter................. 16.50"
Spindle Motor.............................. 40HP/ CONT
Spindle Bore............................... 4.4"
Standard Bar Capacity...................... 4.0"
Spindle Speed.............................. 3,300 RPM
Spindle Nose............................... A2-11

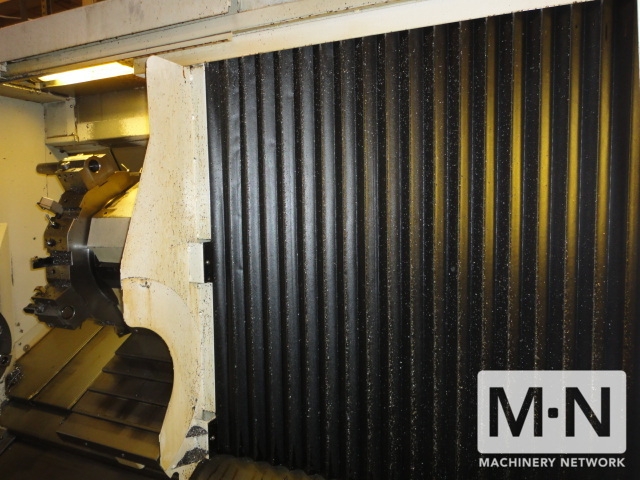

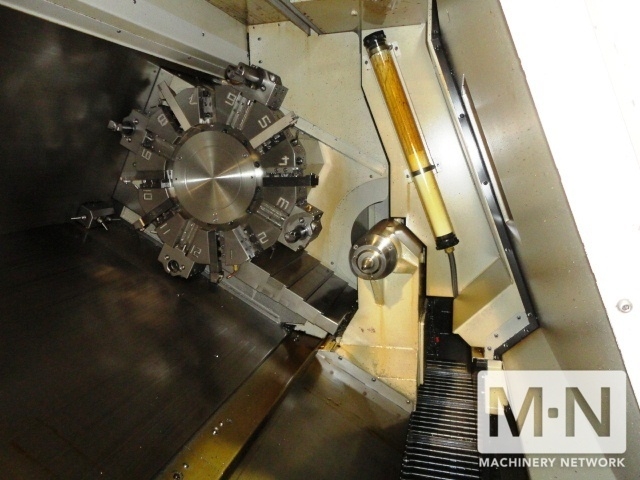

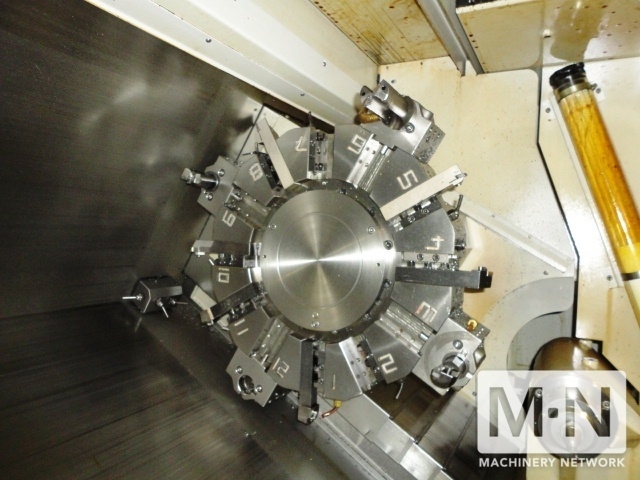

Turret Type................................ DRUM TURRET
Number of Tools............................ 12
Tool Shank Height.......................... 1"
Boring Bar Shank Diameter.................. 1.5"
Turret Index Time........................ .2 SEC (ONE POSITION)
X-Axis Travel.............................. 8.85"
Z-Axis Travel.(Bed Length: 60 /63.38"
Rapid Traverse Rates X-Axis................ 1181 IPM
Rapid Traverse Rates Z-Axis................ 984 IPM
Tailstock Center........................... MT. NO.5
Machine Height............................. 78.74"
Floor Space Requirement
60" Bed.................................... 159.44" X 80"
Weight(60" Bed)............................ 16,975 lbs.

Equipped With:

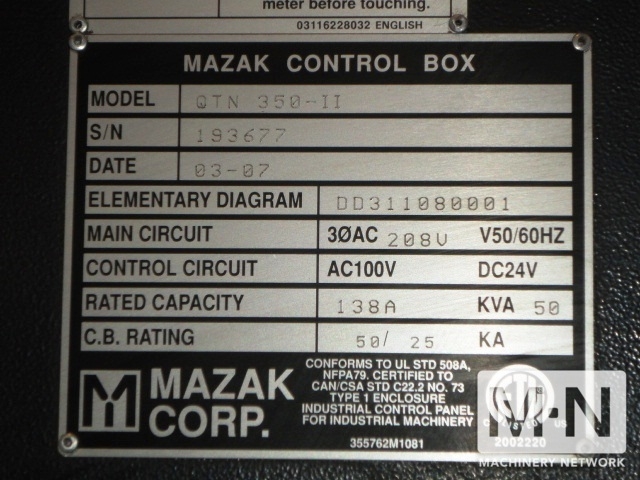

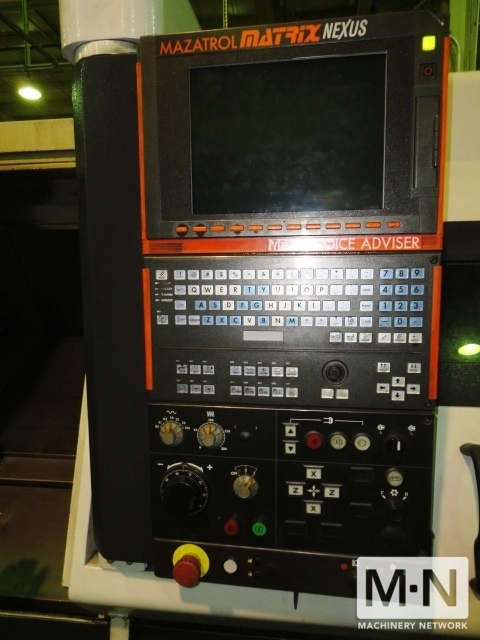

Mazatrol-Matrix CNC Control

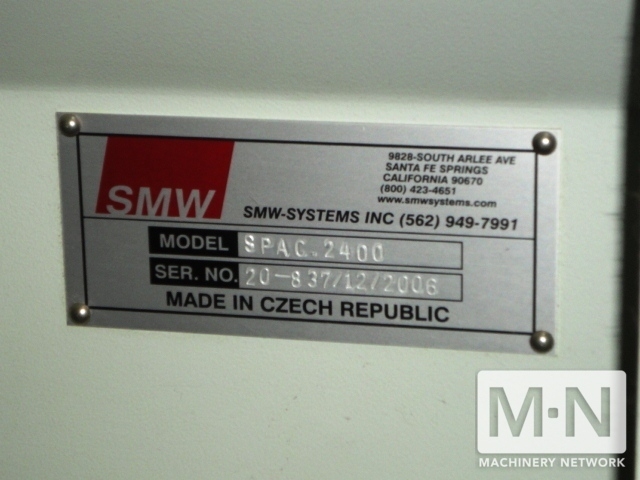

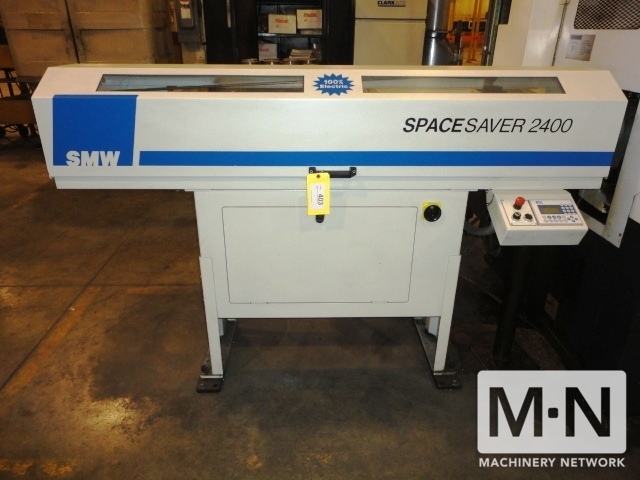

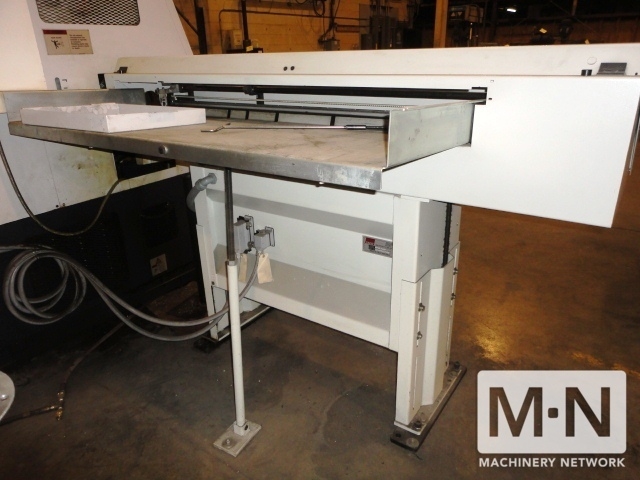

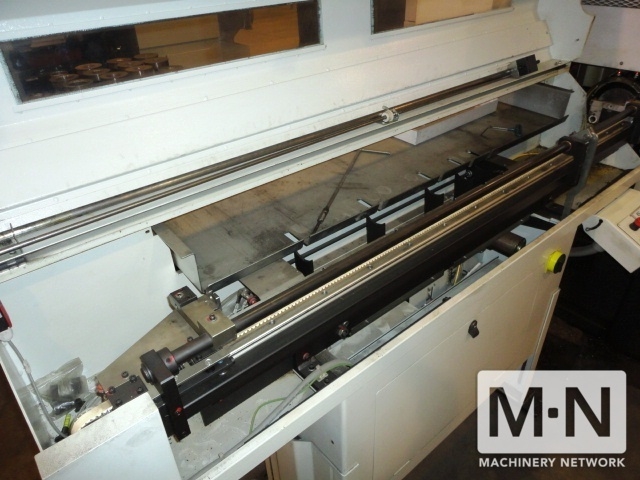

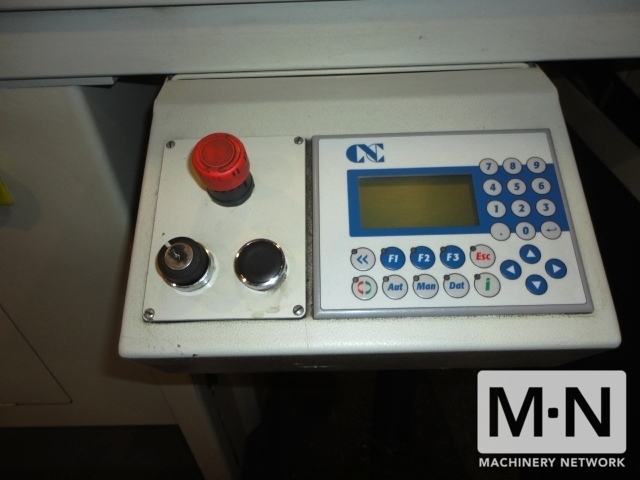

SMW Space Saver SDAC-2400 Auto Bar Feed
Cleated Belt Chip Conveyor
