MAZAK QTN 450-II
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
MAZAK
Model:
QTN 450-II
Condition:
Not Specified
Year:
2012
Stock #:
38046
Status:
Sold
Description:
Mazak QTN-450II
Videos:
Location:
Ohio, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

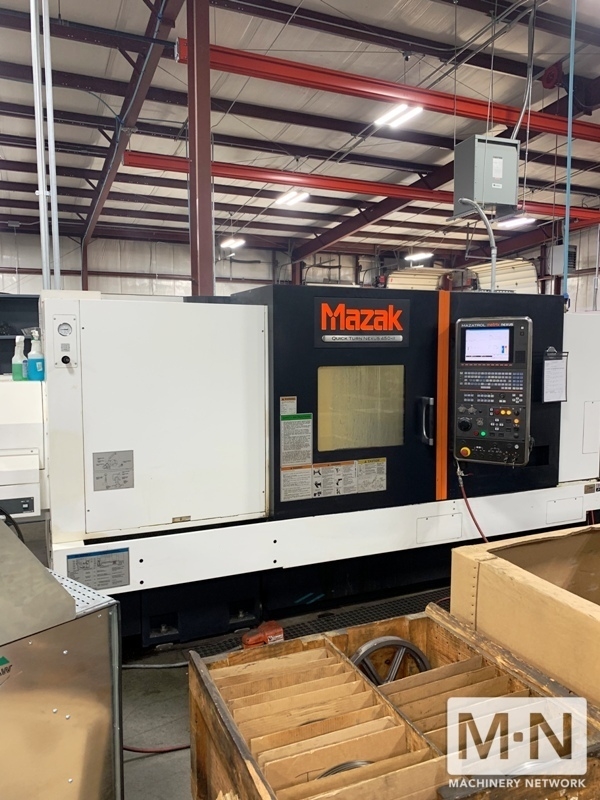

(1) USED MAZAK NEXUS QTN 450II CNC TURNING CENTER
NEW 2012
SPECIFICATIONS
MAX. SWING DIAMETER.....................33.27"
MAX. CUTTING DIA........................22.8"
MAX. CUTTING LENGTH.....................38.6"
SPINDLE HOLE ...........................7.23"
SPINDLE NOSE ..........................A2-15"
SPINDLE SPEEDS .........................2000 RPM
SPINDLE TORQUE .........................1363 FT-LBS
TYPE OF TURRET .........................12 POSITION
RAPID TRAVERSE RATE X & Z ..............1181 IPM
X-AXIS STROKE/ Z-AXIS STROKE............13.375"/43.5"
TAILSTOCK CENTER ................MT NO. 5
TAILSTOCK QUILL DIAMETER ...............5"
TAILSTOCK TRAVEL........................32.5"
TAILSTOCK TYPE .........................HYD. N/C PROGRAMMABLE
MAIN MOTOR .............................50 HP AC
MACHINE WEIGHT .......................24,910 LBS.
EQUIPPED WITH

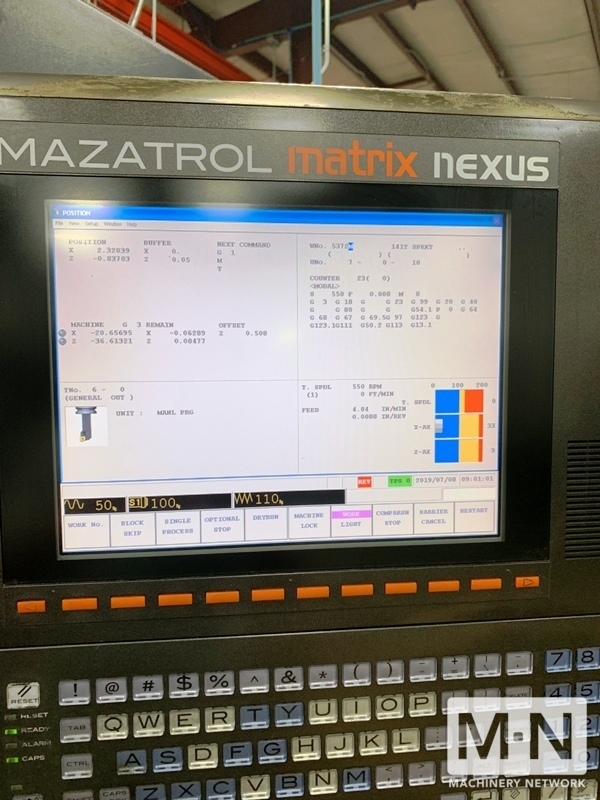

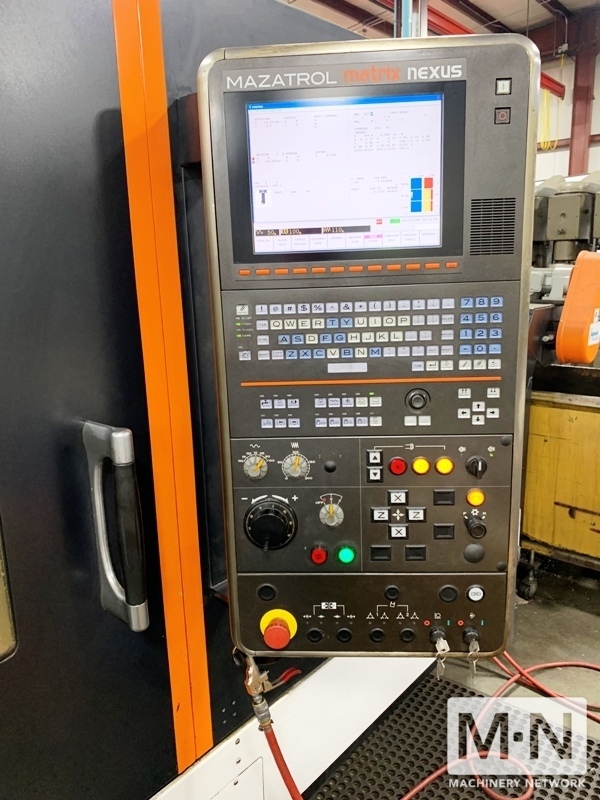

MAZATROL MATRIX CNC CONTROL
12” LCD SCREEN
MT CONNECT
2 USB PORTS
EIA OPTION
ABSOLUTE POSITIONING & END CODING
TOOL EYE
HIGH PRESSURE COOLANT
DOOR INTERLOCK

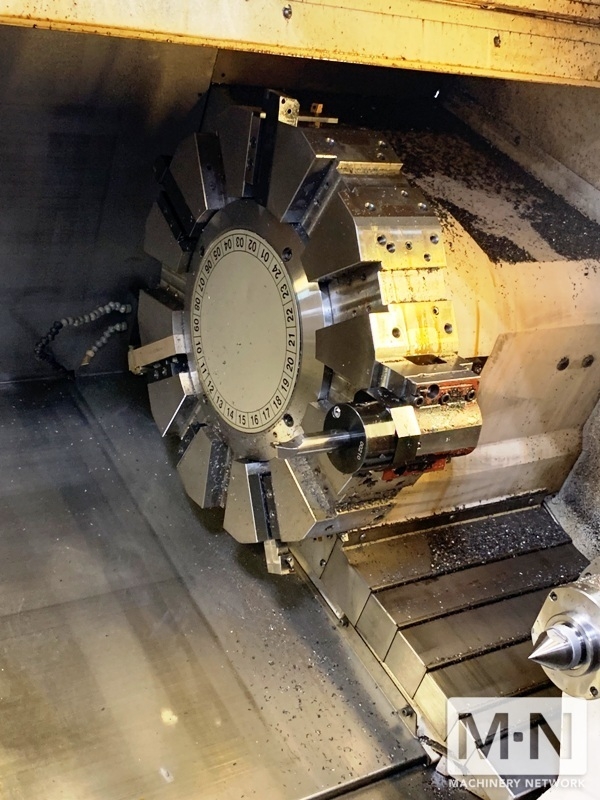

12 DRUM TURRET
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR

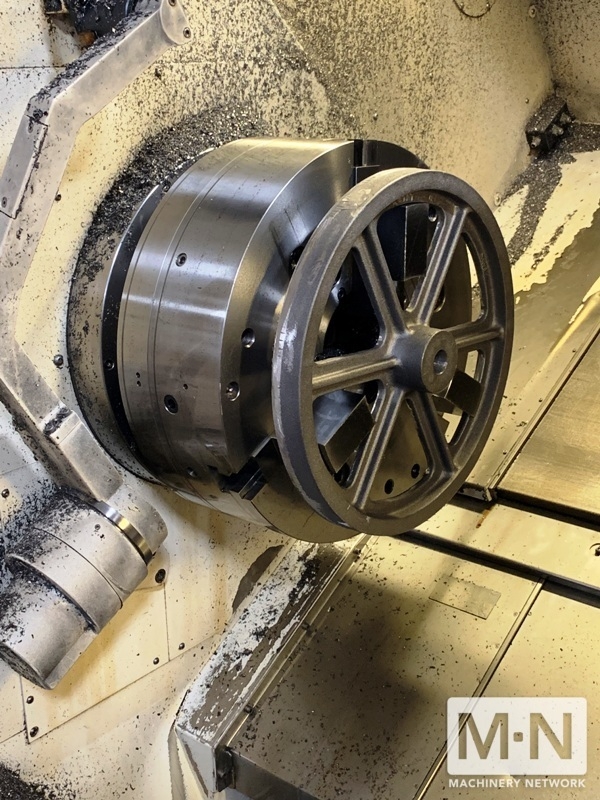

18" (SPECIAL CHUCK 50mm X 155mm QUICK JAW CHANGE CHUCK)
SPINDLE BORE 7.28”
SPINDLE SPEED 2000 RPM
NEW 2012
SPECIFICATIONS
MAX. SWING DIAMETER.....................33.27"
MAX. CUTTING DIA........................22.8"
MAX. CUTTING LENGTH.....................38.6"
SPINDLE HOLE ...........................7.23"
SPINDLE NOSE ..........................A2-15"
SPINDLE SPEEDS .........................2000 RPM
SPINDLE TORQUE .........................1363 FT-LBS
TYPE OF TURRET .........................12 POSITION
RAPID TRAVERSE RATE X & Z ..............1181 IPM
X-AXIS STROKE/ Z-AXIS STROKE............13.375"/43.5"
TAILSTOCK CENTER ................MT NO. 5
TAILSTOCK QUILL DIAMETER ...............5"
TAILSTOCK TRAVEL........................32.5"
TAILSTOCK TYPE .........................HYD. N/C PROGRAMMABLE
MAIN MOTOR .............................50 HP AC
MACHINE WEIGHT .......................24,910 LBS.
EQUIPPED WITH
MAZATROL MATRIX CNC CONTROL
12” LCD SCREEN
MT CONNECT
2 USB PORTS
EIA OPTION
ABSOLUTE POSITIONING & END CODING
TOOL EYE
HIGH PRESSURE COOLANT
DOOR INTERLOCK
12 DRUM TURRET
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR
18" (SPECIAL CHUCK 50mm X 155mm QUICK JAW CHANGE CHUCK)
SPINDLE BORE 7.28”
SPINDLE SPEED 2000 RPM
