MAZAK CYBERTECH 4500M
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
MAZAK
Model:
CYBERTECH 4500M
Condition:
Not Specified
Year:
2010
Stock #:
37817
Status:
Sold
Description:
120" Center s, 21" Hyd Chuck,
Location:
Florida, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

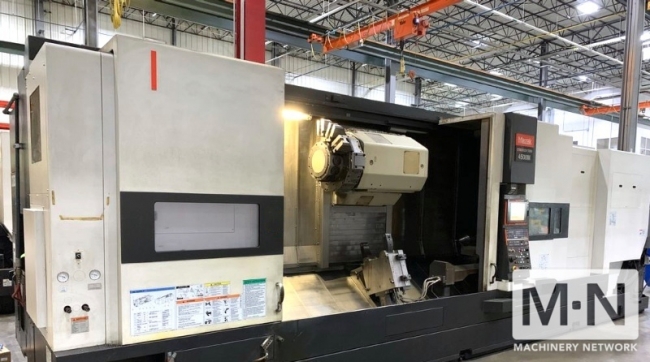

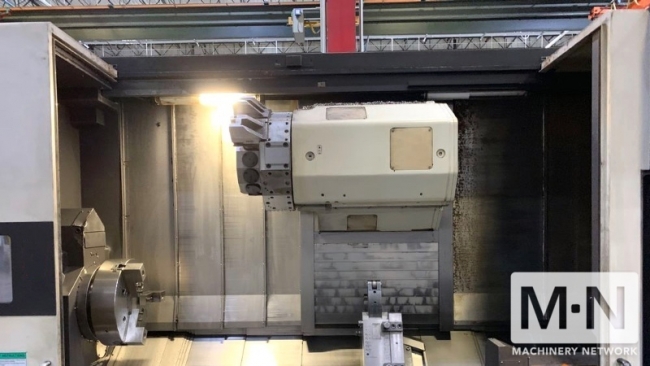

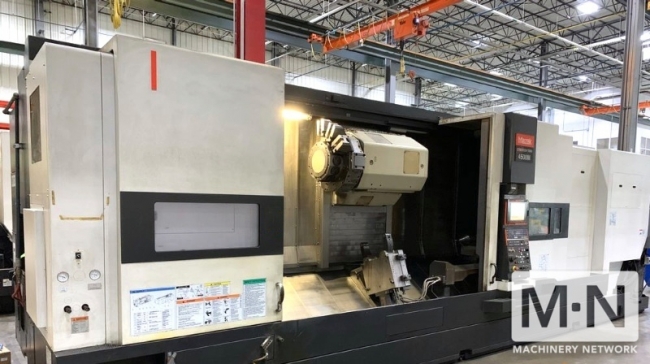

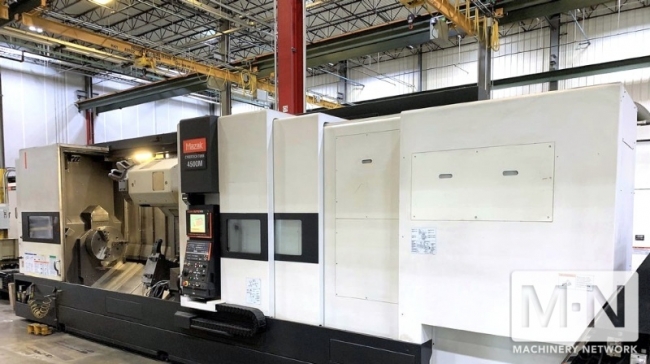

(1) USED MAZAK CYBERTECH TURN 4500M CNC TURNING CENTER
NEW 2010
SPECIFICATIONS:
CHUCK SIZE ........................... 24" CHUCK
MAXIMUM SWING / OVER CARRIAGE ........ 33.88"
MAXIMUM CUTTING DIAMETER ............. 31.88"
MAXIMUM CUTTING LENGTH ............... 120"
X AXIS TRAVEL ........................ 21.375"
Z AXIS TRAVEL ........................ 123.25"
C AXIS INCREMENTAL MOVEMENT .......... 001 DEG
SPINDLE NOSE / SPINDLE BORE .......... A2-15" / 7.28"
SPINDLE SPEEDS - 2 RANGES ............ 2,400 RPM
SPINDLE MOTOR HP ..................... 50 HP
ROTARY TOOL SPEED .................... 3,000 RPM
ROTARY TOOL HP / SPINDLE TORQUE ...... 15 HP / 103 FT/LBS

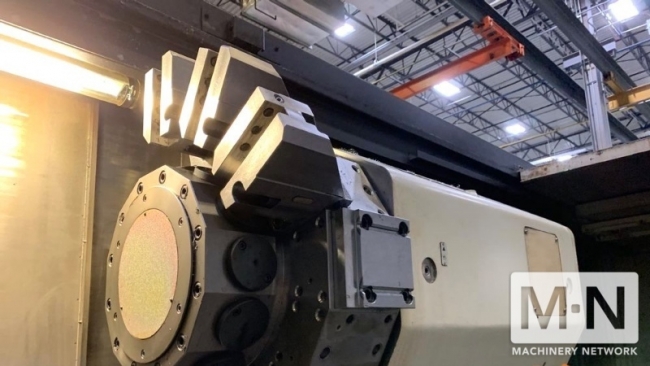

NUMBER OF TURRET POSITIONS-ALL LIVE .. 12 POS TRT
RAPID TRAVERSE RATES X / Z ........... 945/ 1181 IPM
TAILSTOCK TAPER / MAX. BODY TRAVEL ... MT #5 / 100.4"
MACHINE DIMENSIONS ................... 284"X98"X111"
MACHINE WEIGHT ....................... 35,715 LBS.
EQUIPPED WITH:

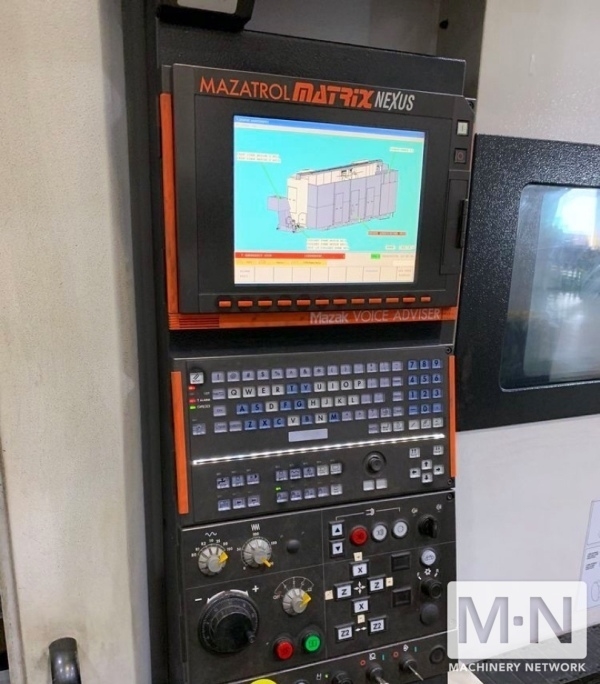

MAZATROL FUSION 640MT CONTROL
7.28" BORE OPTION
LONG BORING BAR STOCKER (2 BAR) UP TO 80"
120" CENTER OPTION

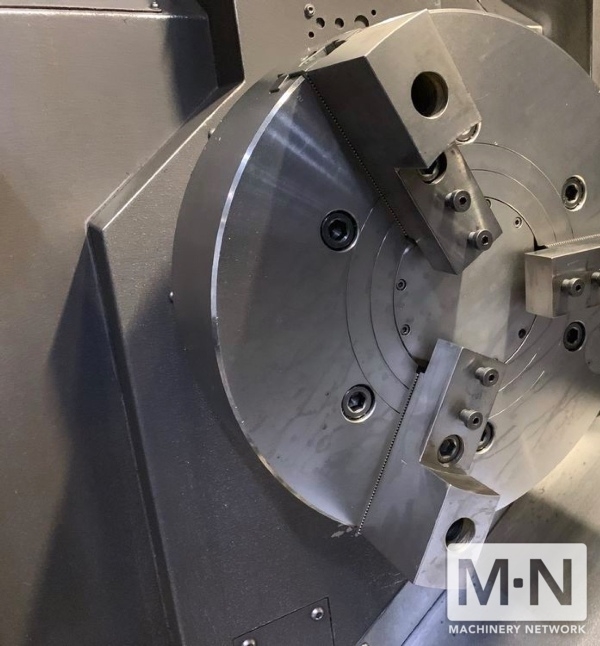

21" HYDRAULIC CHUCK

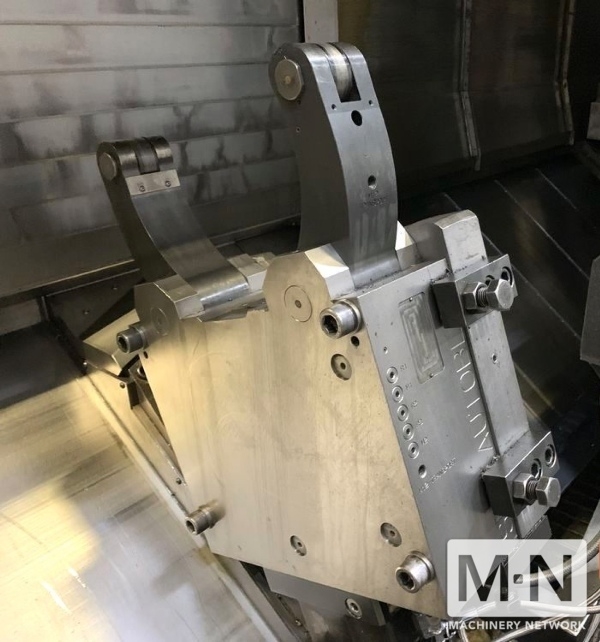

PROGRAMMABLE SMW STEADY REST & BASE
CHIP CONVEYOR, ,CONSEPT
PROGRAMMABLE EXTENDABLE TAILSTOCK (19")
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
MULTITAP TRANSFORMER
213 PSI HIGH-POWER COOLANT
ABSOLUTE POSITIONING SYSTEM
AUTOMATIC TOOL EYE
THREAD CUTTING FUNCTION
DOUBLE FOOT SWITCH CHUCK OPEN/CLOSE
MIST COLLECTOR (CR-1500K)
OPTIMIZER TECHNICAL LIBRARY DIGITAL DOCUMENTATION 2 CDROMS
WINDOWS XP OPERATING SYSTEM
ABSOLUTE POSITIONING SYSTEM
ALL AVAILABLE TOOLING & MANUALS
NEW 2010
SPECIFICATIONS:
CHUCK SIZE ........................... 24" CHUCK
MAXIMUM SWING / OVER CARRIAGE ........ 33.88"
MAXIMUM CUTTING DIAMETER ............. 31.88"
MAXIMUM CUTTING LENGTH ............... 120"
X AXIS TRAVEL ........................ 21.375"
Z AXIS TRAVEL ........................ 123.25"
C AXIS INCREMENTAL MOVEMENT .......... 001 DEG
SPINDLE NOSE / SPINDLE BORE .......... A2-15" / 7.28"
SPINDLE SPEEDS - 2 RANGES ............ 2,400 RPM
SPINDLE MOTOR HP ..................... 50 HP
ROTARY TOOL SPEED .................... 3,000 RPM
ROTARY TOOL HP / SPINDLE TORQUE ...... 15 HP / 103 FT/LBS
NUMBER OF TURRET POSITIONS-ALL LIVE .. 12 POS TRT
RAPID TRAVERSE RATES X / Z ........... 945/ 1181 IPM
TAILSTOCK TAPER / MAX. BODY TRAVEL ... MT #5 / 100.4"
MACHINE DIMENSIONS ................... 284"X98"X111"
MACHINE WEIGHT ....................... 35,715 LBS.
EQUIPPED WITH:
MAZATROL FUSION 640MT CONTROL
7.28" BORE OPTION
LONG BORING BAR STOCKER (2 BAR) UP TO 80"
120" CENTER OPTION
21" HYDRAULIC CHUCK
PROGRAMMABLE SMW STEADY REST & BASE
CHIP CONVEYOR, ,CONSEPT
PROGRAMMABLE EXTENDABLE TAILSTOCK (19")
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
MULTITAP TRANSFORMER
213 PSI HIGH-POWER COOLANT
ABSOLUTE POSITIONING SYSTEM
AUTOMATIC TOOL EYE
THREAD CUTTING FUNCTION
DOUBLE FOOT SWITCH CHUCK OPEN/CLOSE
MIST COLLECTOR (CR-1500K)
OPTIMIZER TECHNICAL LIBRARY DIGITAL DOCUMENTATION 2 CDROMS
WINDOWS XP OPERATING SYSTEM
ABSOLUTE POSITIONING SYSTEM
ALL AVAILABLE TOOLING & MANUALS
