MAZAK V-100 5-FACE

Type:

MACHINING CENTERS, GANTRY TYPE, N/C & CNC

Manufacturer:

MAZAK

Model:

V-100 5-FACE

Condition:

Not Specified

Year:

1989

Stock #:

31434

Status:

Sold

Description:

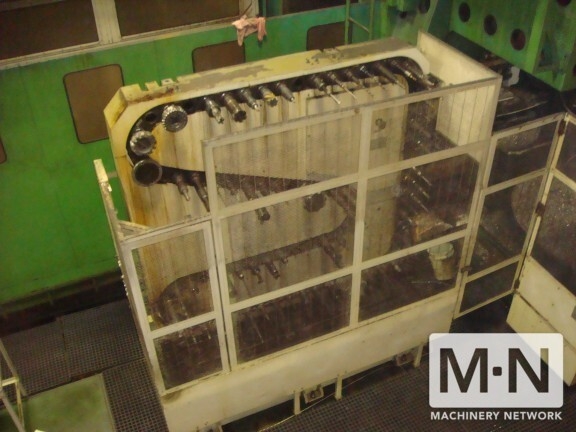

MAZATROL M-32A CONTROL, 196"X137"X39", 2-STATION PALLET CHANGER, 80 ATC,

Location:

New York, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

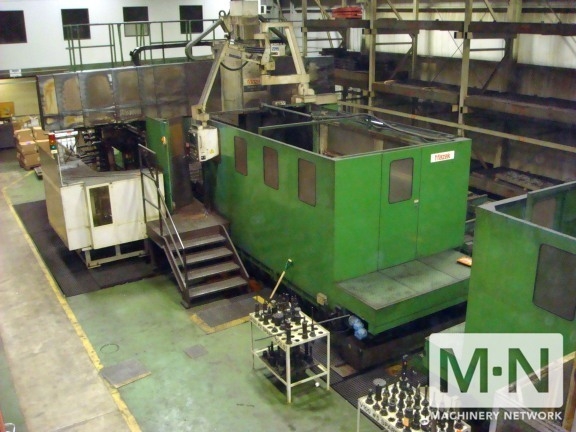

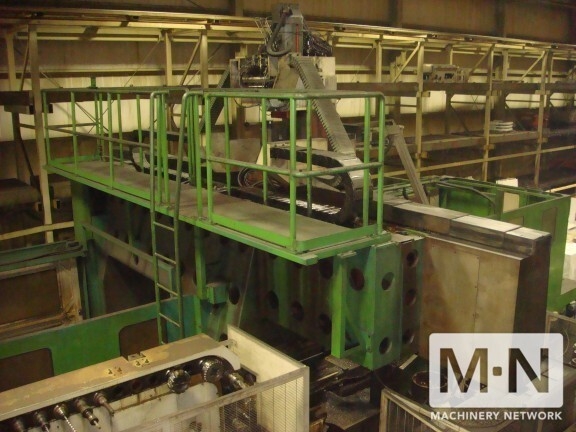

1) MAZAK V-100 CNC 5-FACE DOUBLE COLUMN MACHINING CENTER
YEAR: 1989

SPECIFICATIONS:
X-AXIS, TABLE TRAVEL.................196.85"
Y-AXIS, SPINDLE HEAD TRAVEL..........137.80"
Z-AXIS, RAM TRAVEL...................39.37"
DISTANCE BETWEEN COLUMNS.............98.43"
DISTANCE TABLE TO SPINDLE NOSE.......18.11" TO 57.48"
TABLE SIZE...........................78.74" X 157.98"
TABLE WEIGHT CAPACITY................35,200 LBS
TABLE NOSE TO TABLE TOP..............50.79"
RAPID TRAVERSE, X & Y AXES...........787 IPM
RAPID TRAVERSE, Z-AXIS (RAM).........590 IPM
CUTTING FEED, X & Y AXES.............196.85 IPM
RAM CROSS SECTION....................16.73" X 16.73"
SPINDLE SPEEDS.......................20-4000 RPM
SPINDLE NOSE TAPER CAT...............#50
SPINDLE MOTOR........................50 HP
MAX TOOL DIA , ADJACENT EMPTY........10.24"
MAX TOOL DIA , ADJACENT FULL.........5.12"
MAX TOOL LENGTH......................19.7"
MAX TOOL WEIGHT......................66 LBS
OVERALL HEIGHT.......................212.72"
APPROX WEIGHT........................150,000 LBS

EQUIPPED WITH:
MAZATROL M-32A CNC CONTROL, EIA FUNCTION, UPGRADED
WITH LATEST 5-SIDE MACHINING SOFTWARE, EXTRA MEMORY

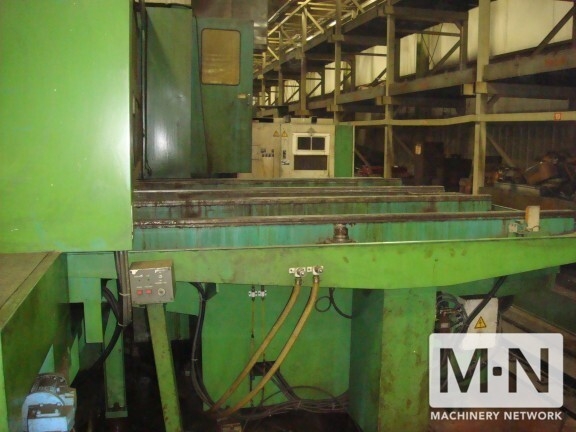

2-APC SIDE-LOADING AUTO PALLET CHANGER (TYPE B)
5-STATION AUTOMATIC HEAD CHANGER

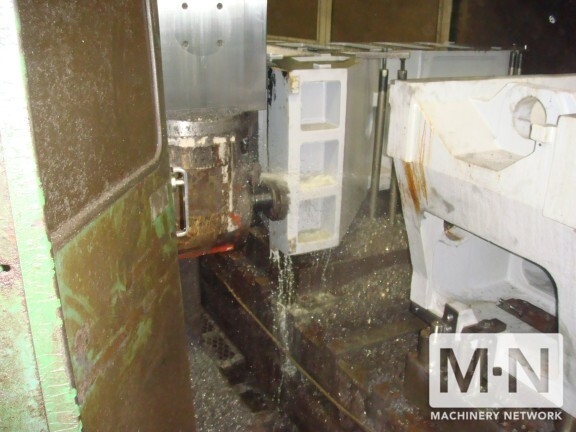

THRU SPINDLE COOLANT
DRILLED AND TAPPED HOLES IN THE TABLE
(1) 4-POSITION (90 DEG.) RIGHT ANGLE HEAD
(1) 2/1 SPEEDER HEAD (8000 RPM)
(1) VERTICAL SPINDLE EXTENSION HEAD
