MIGHTY VIPER PRO-3150
Type:
MACHINING CENTERS, GANTRY TYPE, N/C & CNC
Manufacturer:
MIGHTY VIPER
Model:
PRO-3150
Condition:
Not Specified
Year:
2007
Stock #:
31017
Status:
Sold
Description:
FANUC 18iMB, 120"x61"X34", 6k RPM
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

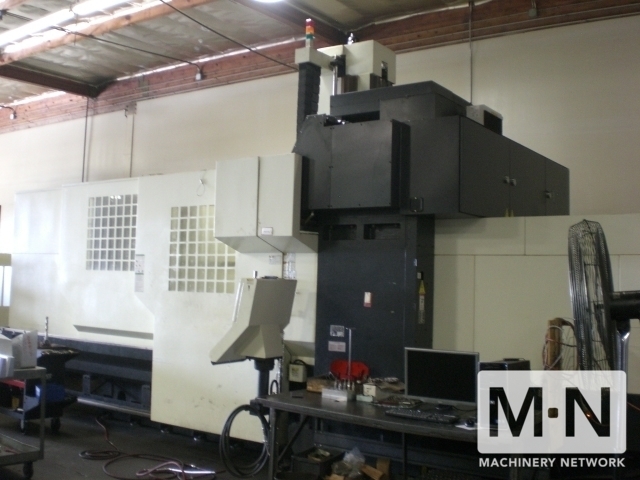

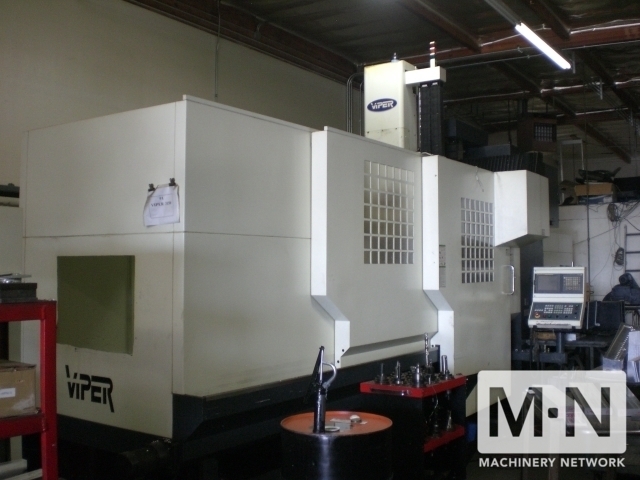

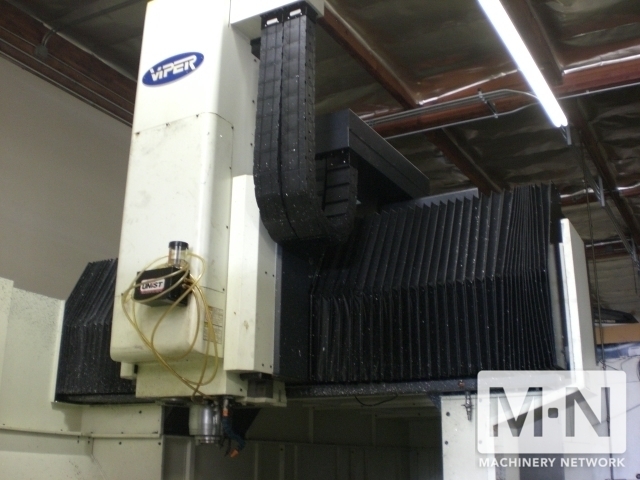

MIGHTY Viper Bridge Mill Model PRO-3150 NEW 2007
SPECIFICATIONS:

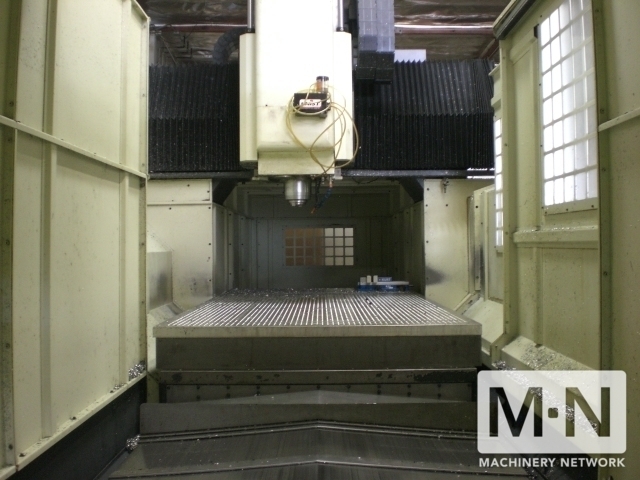

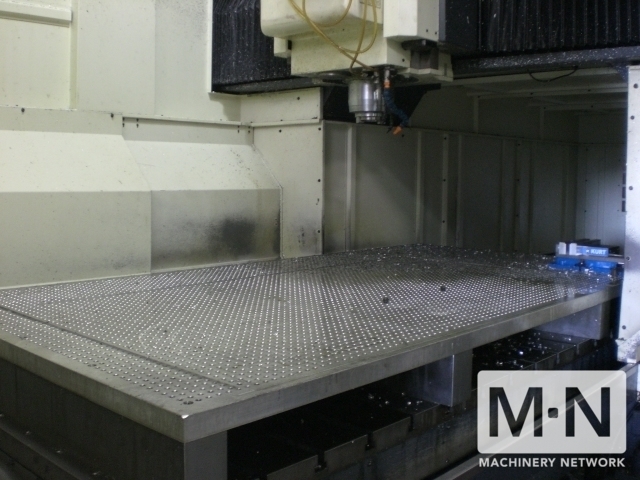

TABLE
Working Surface- 122” x 57.1”
T-slot (Size x Number x Pitch)- 0.87 x 17 x 7.1”
Max. Table Load- 13,227 Lbs
AXES MOVEMENT
X-Axis, Longitudinal Movement- 120.47”
Y-Axis, Saddle in Cross Movement- 61.4”
Z-Axis, head in Vertical Travel- 30.71”
Distance from spindle center to Column- 16.93”
Distance between two Columns- 66.14”
Distance from Spindle end to Table- 6.3” – 37”/10.24”-40.94”(opt)
ACCURACY
Repeatability- ± 0.00018”
Positioning- ± 0.00016/12”
BALL SCREW
X / Y / Z Axis Double Arbor Bearing Support- 1.97”
AXIS DRIVE MOTOR
X Axis Fanuc α30 AC High Torque- 6 HP
Y / Z Fanuc α22 AC High Torque- 5 HP
FEED
Cutting Feed Rate (X, Y & Z Axis)- 275.6 IPM
Rapid Traverse (X, Y & Z Axis)- 472 IPM
SPINDLE
Spindle Nose Taper- CAT 50
Spindle Speed RPM: Pulley (Opt)/Gear(Opt)- 6000K RPM
Two Speed Gear
Spindle Motor: 25 HP (30 min), 35HP(opt)- 30HP DDS
Spindle Max Torque / (30 min rating/ Continues) ( ft-lb)- 494/418(std); 261/211(opt)
AUTOMATIC TOOL CHANGER
Tool Storage Capacity – Drum Type (Opt ARM)- 40 ATC
Max. Tool Weight- 39.7 Lbs
Max. Tool Size (Diameter x Length)- 4.92” x 11.81”
Tool Selection Random
Tool Shank CAT – 50
Tool Change Time Tool to Tool (Approx.)- 12 Second
Retention Stud- P50T-1
Spindle Orientation Electrical
INCLUDES-

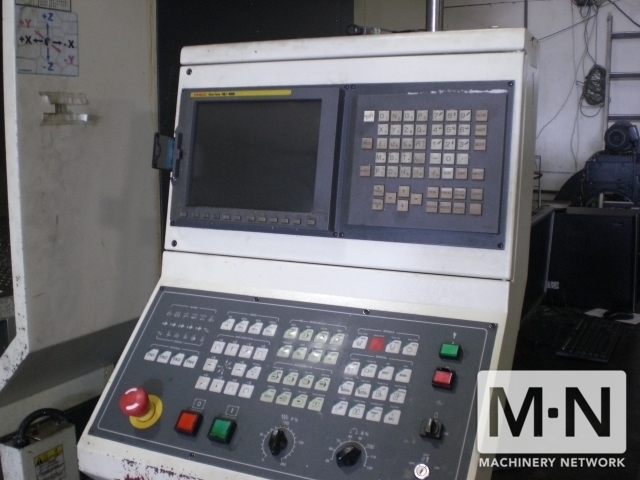

Fanuc 18i Control
Electricity/Power- 208/220 Volts / 50KVA
Compressed Air- 92 PSI / ½” Air Supply Line Min
Machine Weight- Net 57,320 Lbs
Riser Block Tooling Table Included
High Speed Machining Option (Nano)
-ONLY 5621 OPERATING HOURS
SPECIFICATIONS:
TABLE
Working Surface- 122” x 57.1”
T-slot (Size x Number x Pitch)- 0.87 x 17 x 7.1”
Max. Table Load- 13,227 Lbs
AXES MOVEMENT
X-Axis, Longitudinal Movement- 120.47”
Y-Axis, Saddle in Cross Movement- 61.4”
Z-Axis, head in Vertical Travel- 30.71”
Distance from spindle center to Column- 16.93”
Distance between two Columns- 66.14”
Distance from Spindle end to Table- 6.3” – 37”/10.24”-40.94”(opt)
ACCURACY
Repeatability- ± 0.00018”
Positioning- ± 0.00016/12”
BALL SCREW
X / Y / Z Axis Double Arbor Bearing Support- 1.97”
AXIS DRIVE MOTOR
X Axis Fanuc α30 AC High Torque- 6 HP
Y / Z Fanuc α22 AC High Torque- 5 HP
FEED
Cutting Feed Rate (X, Y & Z Axis)- 275.6 IPM
Rapid Traverse (X, Y & Z Axis)- 472 IPM
SPINDLE
Spindle Nose Taper- CAT 50
Spindle Speed RPM: Pulley (Opt)/Gear(Opt)- 6000K RPM
Two Speed Gear
Spindle Motor: 25 HP (30 min), 35HP(opt)- 30HP DDS
Spindle Max Torque / (30 min rating/ Continues) ( ft-lb)- 494/418(std); 261/211(opt)
AUTOMATIC TOOL CHANGER
Tool Storage Capacity – Drum Type (Opt ARM)- 40 ATC
Max. Tool Weight- 39.7 Lbs
Max. Tool Size (Diameter x Length)- 4.92” x 11.81”
Tool Selection Random
Tool Shank CAT – 50
Tool Change Time Tool to Tool (Approx.)- 12 Second
Retention Stud- P50T-1
Spindle Orientation Electrical
INCLUDES-
Fanuc 18i Control
Electricity/Power- 208/220 Volts / 50KVA
Compressed Air- 92 PSI / ½” Air Supply Line Min
Machine Weight- Net 57,320 Lbs
Riser Block Tooling Table Included
High Speed Machining Option (Nano)
-ONLY 5621 OPERATING HOURS
