SNK RB-250F
Type:
MACHINING CENTERS, GANTRY TYPE, N/C & CNC
Manufacturer:
SNK
Model:
RB-250F
Condition:
Not Specified
Year:
2011
Stock #:
37516
Status:
Sold
Description:
206"X114"x23",BT-50, 40 HP,
Videos:
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

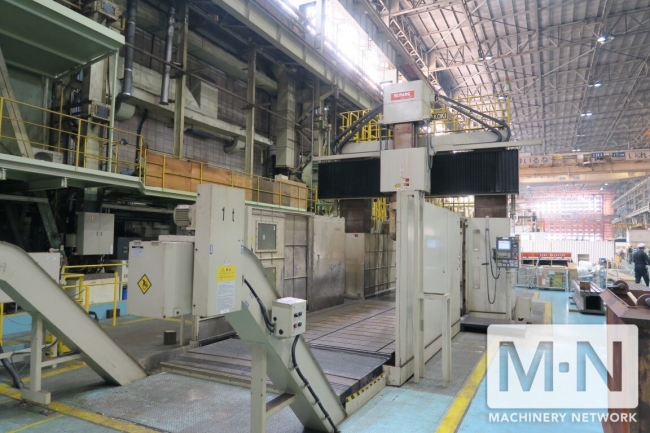

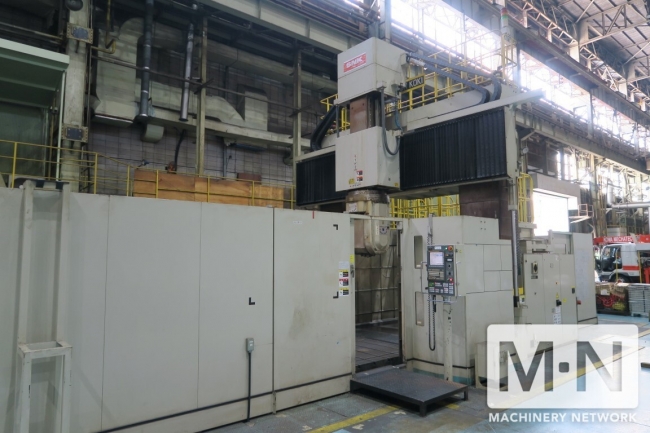

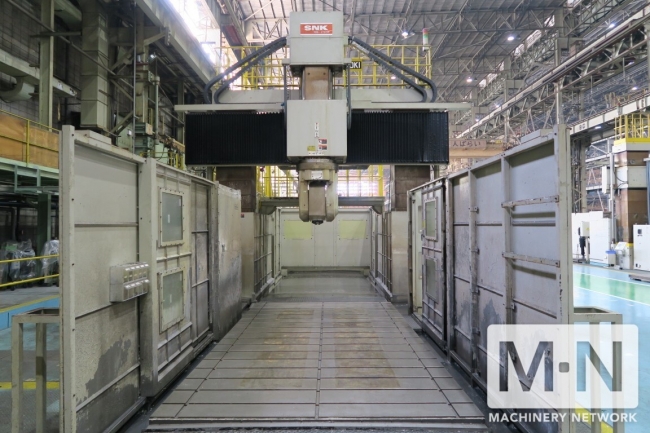

(1) USED SNK RB-250F 5-AXIS DOUBLE COLUMN VERTICAL MACHINING CENTER
NEW 2011
SPECIFICATIONS:
DISTANCE BETWEEN COLUMNS...................112.20"
X-AXIS TABLE TRAVEL........................206.69"
Y-AXIS HEAD TRAVEL.........................114.17"
Z-AXIS RAM TRAVEL..........................23.62"
W-AXIS CROSSRAIL VERTICAL TRAVEL...........33.46"
B-AXIS NUTATING HEAD TILT..............+/- 95 DEGREES
C-AXIS NUTATING HEAD ROTATION..........+/- 360 DEGREES
DISTANCE, SPINDLE END TO TABLE TOP (VERT)..57"
DISTANCE, SPINDLE END TO TABLE TOP (HORIZ).68"

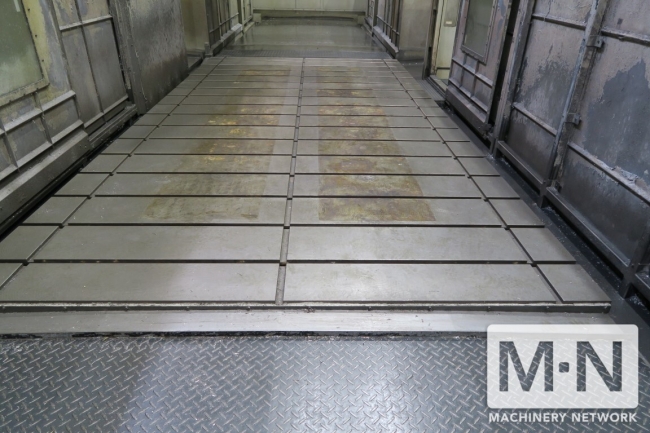

TABLE:
TABLE SIZE.................................196.85" X 98.42""
TABLE WEIGHT CAPACITY......................33,000 LBS
SPINDLE & RAM:
SPINDLE SPEED RANGE........................6000 RPM

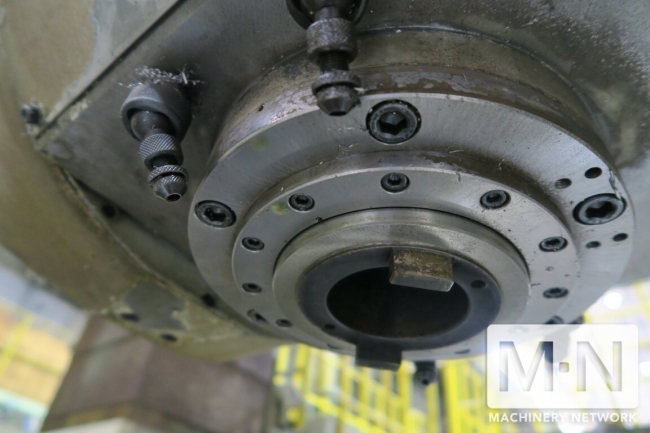

SPINDLE TAPER..............................BT-50
SPINDLE MOTOR..............................40 HP/35 HP
RAM SIZE...................................17.71" X 17.71"
RAPID TRAVERSE:
RAPID TRAVERSE, X & Y AXES.................800 IPM
RAPID TRAVERSE, Z-AXIS.....................240 IPM
RAPID TRAVERSE, W-AXIS.....................120 IPM
RAPID TRAVERSE, B & C AXES.................3600 DPM
FEED RATE:
FEED RATE, X,Y AXES........................400 IPM
FEED RATE, Z-AXIS..........................240 IPM
FEED RATE, W-AXIS..........................120 IPM
FEED RATE, B,C AXES........................3600 DPM
EQUIPPED WITH:

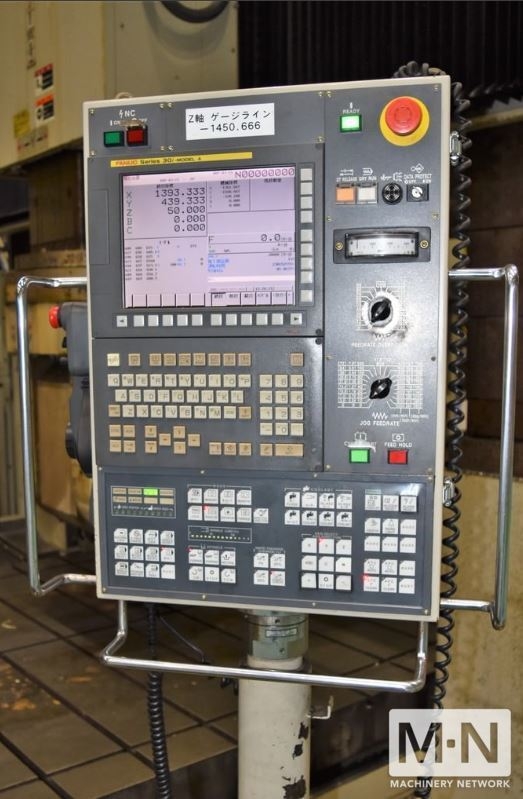

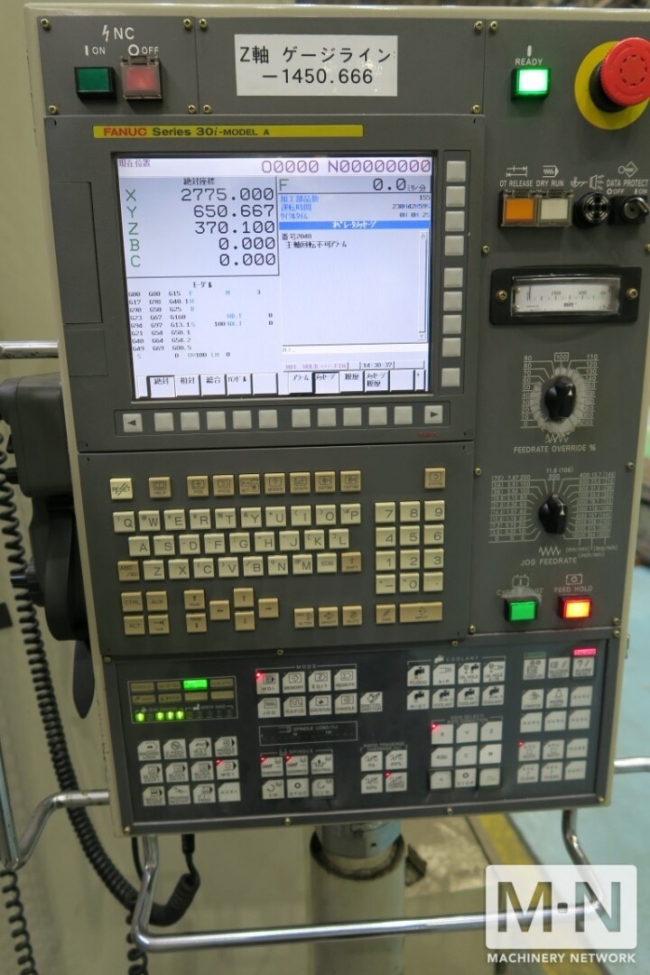

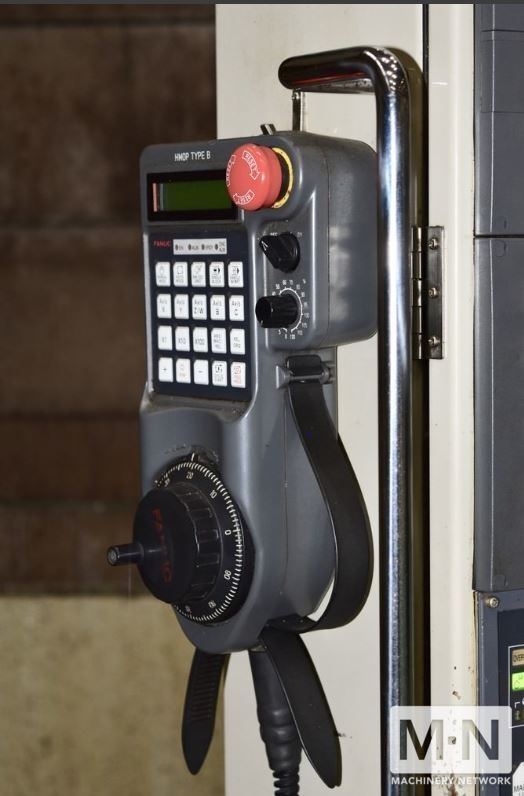

FANUC 30i-MA CNC CONTROL
80-POSITION AUTOMATIC TOOL CHANGER

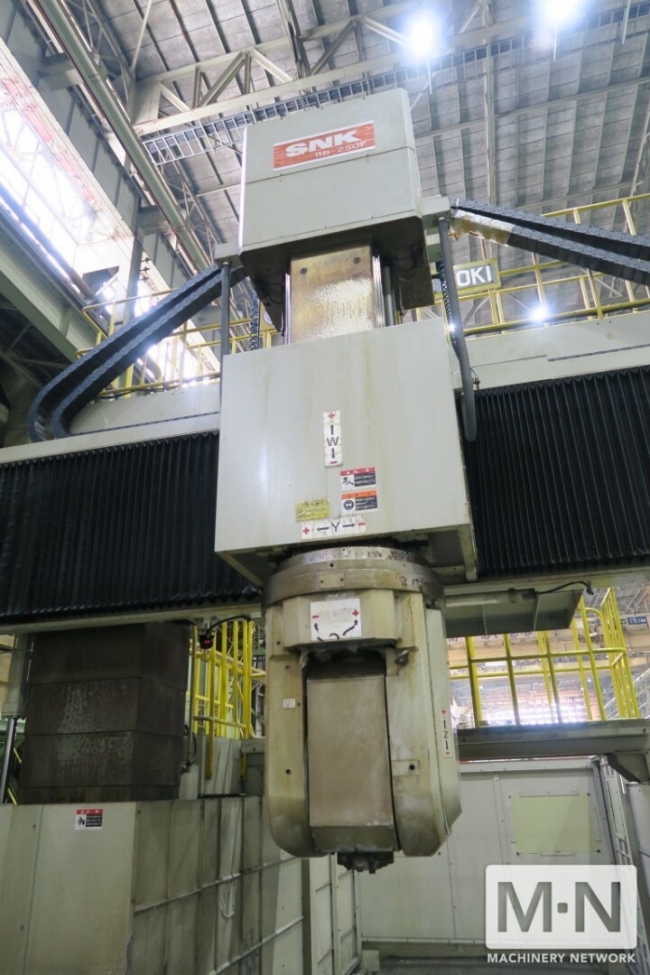

B/C AXIS SWIVEL SPINDLE HEAD
ADJUSTABLE CROSSRAIL
DUAL CHIP CONVEYORS
NOTE:
THIS MACHINE WAS USED TO FINISH SURFACES FOR ROTORS AND TURBINES
FOR THE POWER GENERATION INDUSTRY
NEW 2011
SPECIFICATIONS:
DISTANCE BETWEEN COLUMNS...................112.20"
X-AXIS TABLE TRAVEL........................206.69"
Y-AXIS HEAD TRAVEL.........................114.17"
Z-AXIS RAM TRAVEL..........................23.62"
W-AXIS CROSSRAIL VERTICAL TRAVEL...........33.46"
B-AXIS NUTATING HEAD TILT..............+/- 95 DEGREES
C-AXIS NUTATING HEAD ROTATION..........+/- 360 DEGREES
DISTANCE, SPINDLE END TO TABLE TOP (VERT)..57"
DISTANCE, SPINDLE END TO TABLE TOP (HORIZ).68"
TABLE:
TABLE SIZE.................................196.85" X 98.42""
TABLE WEIGHT CAPACITY......................33,000 LBS
SPINDLE & RAM:
SPINDLE SPEED RANGE........................6000 RPM
SPINDLE TAPER..............................BT-50
SPINDLE MOTOR..............................40 HP/35 HP
RAM SIZE...................................17.71" X 17.71"
RAPID TRAVERSE:
RAPID TRAVERSE, X & Y AXES.................800 IPM
RAPID TRAVERSE, Z-AXIS.....................240 IPM
RAPID TRAVERSE, W-AXIS.....................120 IPM
RAPID TRAVERSE, B & C AXES.................3600 DPM
FEED RATE:
FEED RATE, X,Y AXES........................400 IPM
FEED RATE, Z-AXIS..........................240 IPM
FEED RATE, W-AXIS..........................120 IPM
FEED RATE, B,C AXES........................3600 DPM
EQUIPPED WITH:
FANUC 30i-MA CNC CONTROL
80-POSITION AUTOMATIC TOOL CHANGER
B/C AXIS SWIVEL SPINDLE HEAD
ADJUSTABLE CROSSRAIL
DUAL CHIP CONVEYORS
NOTE:
THIS MACHINE WAS USED TO FINISH SURFACES FOR ROTORS AND TURBINES
FOR THE POWER GENERATION INDUSTRY
