MITSUBISHI MVR30
Type:
MACHINING CENTERS, GANTRY TYPE, N/C & CNC
Manufacturer:
MITSUBISHI
Model:
MVR30
Condition:
Not Specified
Year:
2012
Stock #:
35051
Status:
Sold
Description:
MITSUBISHI MVR30, FANUC 31i, 165"X118"X31", W-AXIS 43"
Location:
Indiana, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

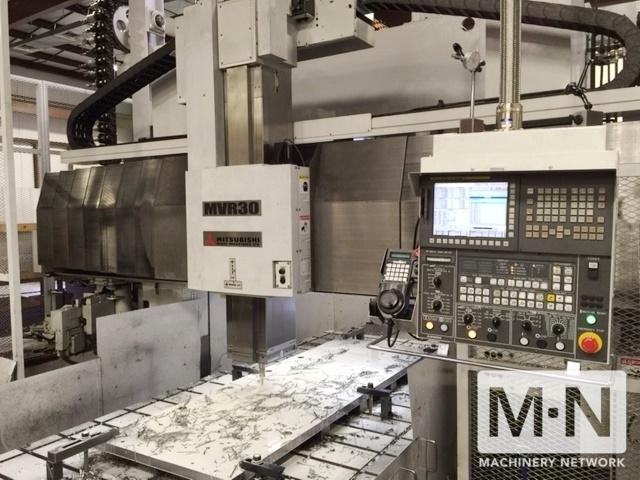

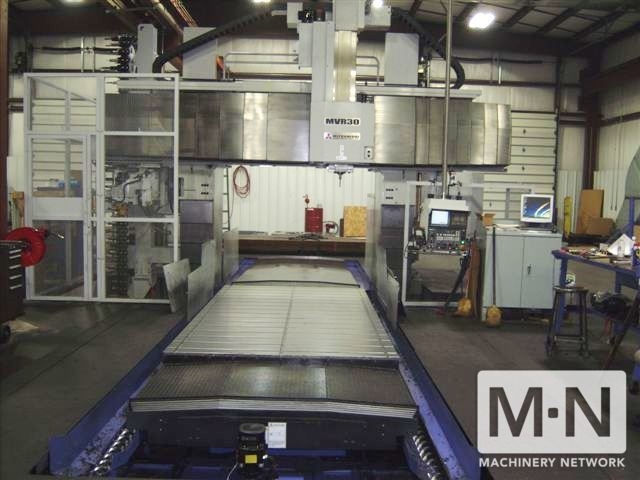

(1) USED MITSUBISHI MVR-30 5-FACE DOUBLE COLUMN MACHINING CENTER
MFG. 2012 | INSTALLED JAN. 2013
*Spindle time is 4,250 hours; The NC Power Time is 12,727 hours
TRAVELS/TRAVERSES: X AXIS: 165.4” (1,181 IPM) Y AXIS: 118.1” (1,181 IPM) Z AXIS SPINDLE: 31.5” (394 IPM) W AXIS CROSS RAIL: 43.8” (181 IPM) Z AXIS RAM SIZE: 14” SQUARE SPINDLE NOSE TO TABLE: 65.0” SPINDLE SPEEDS: 20 – 6,000 RPM SPINDLE HP: 40 TABLE SIZE: 157.5” x 78.7” WIDTH BETWEEN COLUMNS: 100.4” MP SCALES: ALL AXIS
EQUIPPED WITH: FANUC 31 I CONTROL RIGHT ANGLE HEAD 1 DEGREE INDEXING, AUTO CHANGING, STORAGE RACK. 5-FACE MACHINING SOFTWARE ATC UNIT: (8O) TOOL MAGAZINE CAT 50 TAPER RENISHAW PROBE RIGID TAPPING COOLANT/AIR THROUGH THE SPINDLE AND EXTENSION HEAD (5.3 GAL./MIN.) X AXIS SCREW TYPE CHIP CONVEYORS BELT TYPE CHIP CONVEYOR HELICAL INTERPOLATION TRANSFORMER: 460V MAIN
MFG. 2012 | INSTALLED JAN. 2013
*Spindle time is 4,250 hours; The NC Power Time is 12,727 hours
TRAVELS/TRAVERSES: X AXIS: 165.4” (1,181 IPM) Y AXIS: 118.1” (1,181 IPM) Z AXIS SPINDLE: 31.5” (394 IPM) W AXIS CROSS RAIL: 43.8” (181 IPM) Z AXIS RAM SIZE: 14” SQUARE SPINDLE NOSE TO TABLE: 65.0” SPINDLE SPEEDS: 20 – 6,000 RPM SPINDLE HP: 40 TABLE SIZE: 157.5” x 78.7” WIDTH BETWEEN COLUMNS: 100.4” MP SCALES: ALL AXIS
EQUIPPED WITH: FANUC 31 I CONTROL RIGHT ANGLE HEAD 1 DEGREE INDEXING, AUTO CHANGING, STORAGE RACK. 5-FACE MACHINING SOFTWARE ATC UNIT: (8O) TOOL MAGAZINE CAT 50 TAPER RENISHAW PROBE RIGID TAPPING COOLANT/AIR THROUGH THE SPINDLE AND EXTENSION HEAD (5.3 GAL./MIN.) X AXIS SCREW TYPE CHIP CONVEYORS BELT TYPE CHIP CONVEYOR HELICAL INTERPOLATION TRANSFORMER: 460V MAIN
