MAZAK FJV 60/160
Type:
MACHINING CENTERS, GANTRY TYPE, N/C & CNC
Manufacturer:
MAZAK
Model:
FJV 60/160
Condition:
Not Specified
Year:
2002
Stock #:
28662
Status:
Sold
Description:
MAZATROL FUSION 640M, 2-PALLET AUTOMATIC CHANGER,
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

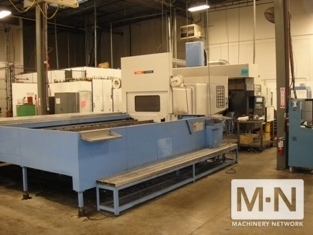

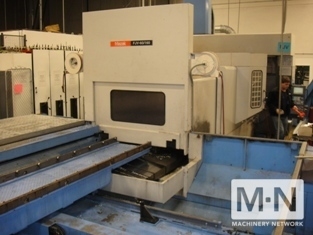

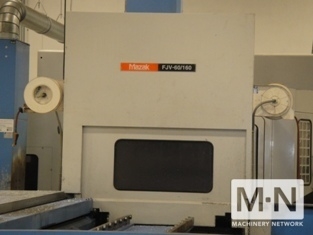

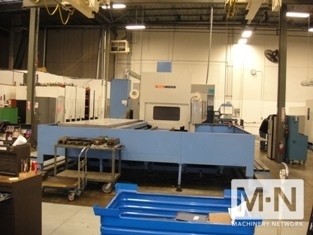

(1) USED MAZAK FJV 60/160 CNC VERTICAL MACHINING
CENTER W/ 2-APC S/N:156866 NEW 2001
SPECIFICATIONS:

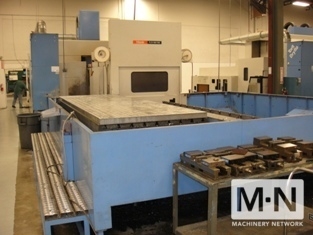

NUMBER OF TABLES: 2
TABLE SIZE: 54.25"x128.32"
TABLE TRAVEL:
X - AXIS: 165.98"
Y - AXIS: 55.12"
Z - AXIS: 23"
DISTANCE FROM SPINDLE NOSE TO TABLE TOP: 7.97"-30.91"
DISTANCE BETWEEN COLUMNS: 58.27"
TABLE LOAD CAPACITY: 11,000 LBS.
RAPID TRAVERSE RATES: 945,1260 X,Y IPM
709 Z IPM
CUTTING FEED RATES: 709 IPM
SPINDLE NOSE: CAT # 50 TAPER
SPINDLE SPEED: 10,000 RPM
SPEED RANGES: 2
TOOL MAGAZINE: 120 ATC
MAX TOOL DIA WHEN ADJACENT EMPTY: 8.27"
MAX TOOL LENGTH: 19.96"
MAIN MOTOR: 50 HP
MACHINE WEIGHT: 64,880 LBS.
EQUIPPED WITH:

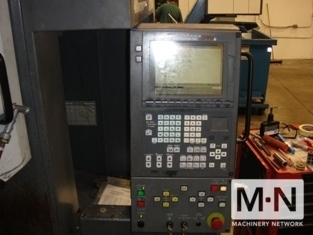

MAZATROL FUSION 640M COLOR CONVERSATIONAL CONTROL
2-PALLET AUTOMATIC CHANGER
HIGH SPEED CONTOURING CONTROL
EIA/ISO PROGRAMMING
TOP COVER
INCH/METRIC CONVERSION
COOLANT THRU THE SPINDLE (213 PSI)

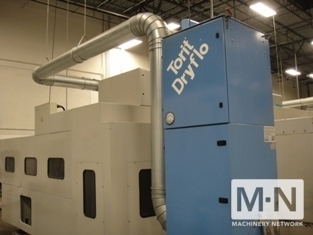

TORI MIST COLLECTOR
SYNCHRONIZED TAPPING
AUTOMATIC TOOL LENGTH MEASUREMENT
TOOL LIFE MONITORING
TOOL BREAKAGE DETECTION
FULL ENCLOSURE
CHIP CONVEYOR
ALL AVAILABLE MANUALS
CENTER W/ 2-APC S/N:156866 NEW 2001
SPECIFICATIONS:
NUMBER OF TABLES: 2
TABLE SIZE: 54.25"x128.32"
TABLE TRAVEL:
X - AXIS: 165.98"
Y - AXIS: 55.12"
Z - AXIS: 23"
DISTANCE FROM SPINDLE NOSE TO TABLE TOP: 7.97"-30.91"
DISTANCE BETWEEN COLUMNS: 58.27"
TABLE LOAD CAPACITY: 11,000 LBS.
RAPID TRAVERSE RATES: 945,1260 X,Y IPM
709 Z IPM
CUTTING FEED RATES: 709 IPM
SPINDLE NOSE: CAT # 50 TAPER
SPINDLE SPEED: 10,000 RPM
SPEED RANGES: 2
TOOL MAGAZINE: 120 ATC
MAX TOOL DIA WHEN ADJACENT EMPTY: 8.27"
MAX TOOL LENGTH: 19.96"
MAIN MOTOR: 50 HP
MACHINE WEIGHT: 64,880 LBS.
EQUIPPED WITH:
MAZATROL FUSION 640M COLOR CONVERSATIONAL CONTROL
2-PALLET AUTOMATIC CHANGER
HIGH SPEED CONTOURING CONTROL
EIA/ISO PROGRAMMING
TOP COVER
INCH/METRIC CONVERSION
COOLANT THRU THE SPINDLE (213 PSI)
TORI MIST COLLECTOR
SYNCHRONIZED TAPPING
AUTOMATIC TOOL LENGTH MEASUREMENT
TOOL LIFE MONITORING
TOOL BREAKAGE DETECTION
FULL ENCLOSURE
CHIP CONVEYOR
ALL AVAILABLE MANUALS
