CINCINNATI 6 AXIS
Type:
MACHINING CENTERS, GANTRY TYPE, N/C & CNC
Manufacturer:
CINCINNATI
Model:
6 AXIS
Condition:
Not Specified
Year:
2007
Stock #:
29436
Status:
Sold
Description:
6 AXIS MACHINING CENTER
Location:
United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

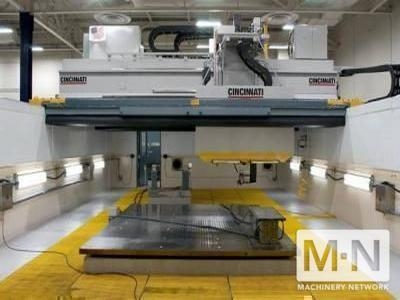

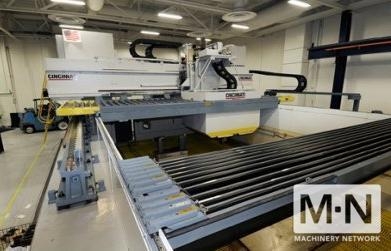

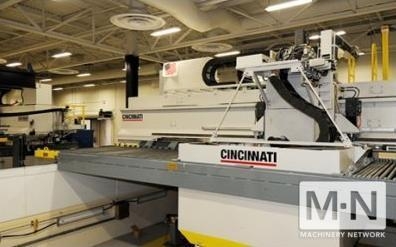

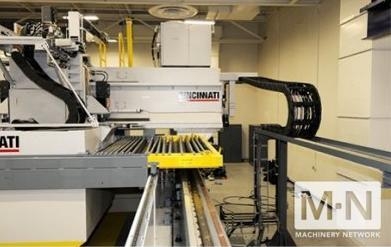

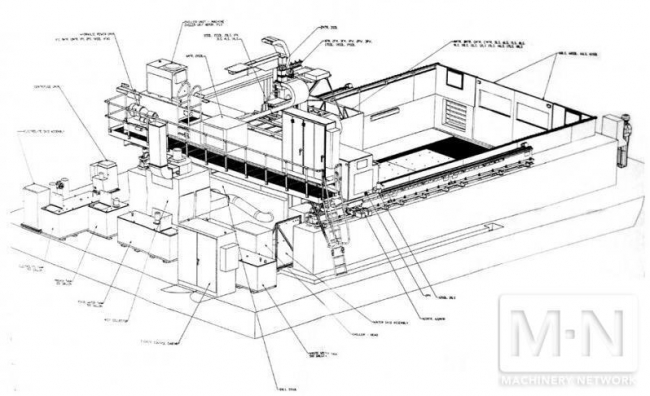

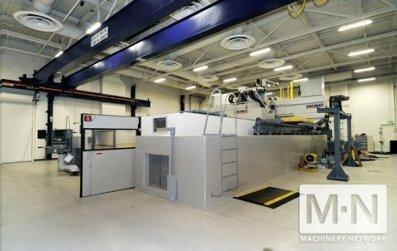

(1) USED CINCINNATI 6 AXIS CNC MACHINING CENTER (NEVER RUN)
MACHINE COST 4 MILLION NEW !!!! new -2007
SPECIFICATIONS:
TRAVELS:
X-AXIS: 265"
Y-AXIS: 160"
Z-AXIS: 42.25"
A-AXIS: +/- 50 DEG
B-AXIS: +/- 20 DEG
C-AXIS: +/- 185 DEG
FEED RATES, X & Z AXES: 0-350 IPM
Y AXIS: 0-300 IPM
A & B AXES: 0-540 DEG/MIN
C AXIS: 0-288 DEG/MIN
ELECTRO CHEMICAL GRINDING WHEEL
MAX WHEEL SIZE: 12"D x 2"W x 3"B
WHEEL SPEED: 1800 RPM
POWER SUPPLY: 2000 AMP D.C.
WORK PLATE DIMENSIONS: 144" x 120"
MACHINE FOOTPRINT: 766" X 470"
EQUIPPED WITH:
SIEMENS 840D CONTROLLER
- WINDOWS XP OPERATING SYSTEM
- 15.1" COLOR TOUCHSCREEN LCD
- HAND HELD PENDANT
- INTEL CELERON III, 256 MB RAM
- 16 MB REAL-TIME MEMORY
- 12 GB DISK DRIVE
EVERITE ELECTRO CHEMICAL GRINDING HEAD
- AUTOMATIC DRESSER & CONDITIONING BLOCK W/RENISHAW TOUCH PROBE
- 500 GAL ELECTROLYTE TANK , 500 GAL RINSE WATER TANK & 500 GAL WASTE WATER TANK
MACHINE COST 4 MILLION NEW !!!! new -2007
SPECIFICATIONS:
TRAVELS:
X-AXIS: 265"
Y-AXIS: 160"
Z-AXIS: 42.25"
A-AXIS: +/- 50 DEG
B-AXIS: +/- 20 DEG
C-AXIS: +/- 185 DEG
FEED RATES, X & Z AXES: 0-350 IPM
Y AXIS: 0-300 IPM
A & B AXES: 0-540 DEG/MIN
C AXIS: 0-288 DEG/MIN
ELECTRO CHEMICAL GRINDING WHEEL
MAX WHEEL SIZE: 12"D x 2"W x 3"B
WHEEL SPEED: 1800 RPM
POWER SUPPLY: 2000 AMP D.C.
WORK PLATE DIMENSIONS: 144" x 120"
MACHINE FOOTPRINT: 766" X 470"
EQUIPPED WITH:
SIEMENS 840D CONTROLLER
- WINDOWS XP OPERATING SYSTEM
- 15.1" COLOR TOUCHSCREEN LCD
- HAND HELD PENDANT
- INTEL CELERON III, 256 MB RAM
- 16 MB REAL-TIME MEMORY
- 12 GB DISK DRIVE
EVERITE ELECTRO CHEMICAL GRINDING HEAD
- AUTOMATIC DRESSER & CONDITIONING BLOCK W/RENISHAW TOUCH PROBE
- 500 GAL ELECTROLYTE TANK , 500 GAL RINSE WATER TANK & 500 GAL WASTE WATER TANK
