MAZAK QT 18N
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
MAZAK
Model:
QT 18N
Condition:
Not Specified
Year:
1993
Stock #:
26641
Status:
Sold
Description:
MAZATROL T32 CTRL, 2.75" BAR CAP, 17" SWING, BAR FEED, 20HP, 3600RPM, CHIP CONV
Location:
Quebec, Canada
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

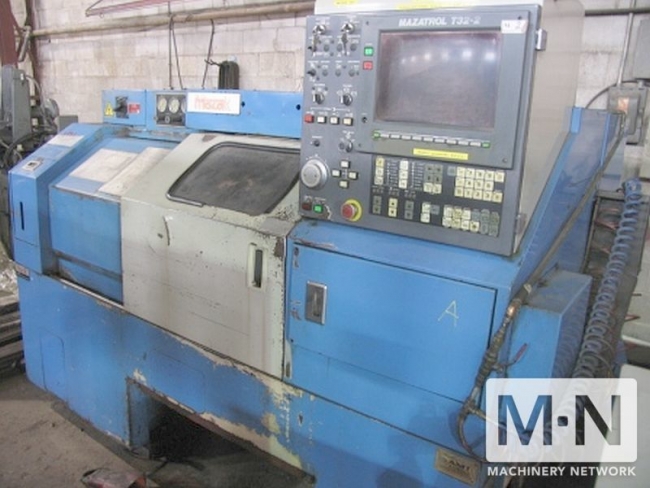

(1) MAZAK QUICK TURN 18N CNC TURNING CENTER
NEW 1993
SPECIFICATIONS:
MAX. DIAMETER BAR CAPACITY................2.75"
MAX. SWING OVER BED / CARRIAGE............17.32"
MAX. TURNING DIAMETER.....................11.81"
MAX. MACHINING LENGTH.....................19.69"
MAIN MOTOR................................20 HP
SPINDLE SPEED.............................3600 RPM
SPINDLE BORE..............................3.15"
RAPID TRAVERSE RATES......................1181 IPM
X-AXIS TRAVEL.............................7.09"
Z-AXIS TRAVEL.............................20.08"
TURRET INDEX (SINGLE STEP/FULL)...........0.35 / 0.72 SECONDS
APPROX. MACHINE DIMENSIONS................97.2" x 60.2"
APPROX. MACHINE WEIGHT....................9,460 LBS.
EQUIPPED WITH:

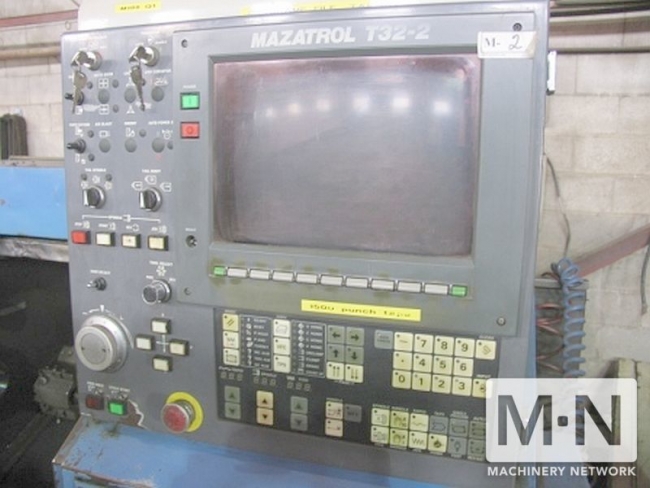

MAZATROL T32-2 CNC CONTOL
CHIP CONVEYOR
NEW 1993
SPECIFICATIONS:
MAX. DIAMETER BAR CAPACITY................2.75"
MAX. SWING OVER BED / CARRIAGE............17.32"
MAX. TURNING DIAMETER.....................11.81"
MAX. MACHINING LENGTH.....................19.69"
MAIN MOTOR................................20 HP
SPINDLE SPEED.............................3600 RPM
SPINDLE BORE..............................3.15"
RAPID TRAVERSE RATES......................1181 IPM
X-AXIS TRAVEL.............................7.09"
Z-AXIS TRAVEL.............................20.08"
TURRET INDEX (SINGLE STEP/FULL)...........0.35 / 0.72 SECONDS
APPROX. MACHINE DIMENSIONS................97.2" x 60.2"
APPROX. MACHINE WEIGHT....................9,460 LBS.
EQUIPPED WITH:
MAZATROL T32-2 CNC CONTOL
CHIP CONVEYOR
