MAZAK SLANT TURN 20
Type:
LATHES, COMBINATION, N/C & CNC
Manufacturer:
MAZAK
Model:
SLANT TURN 20
Condition:
Not Specified
Year:
1990
Stock #:
24400
Status:
Sold
Description:
T-32-3 TRL, 2" HOLE, 6" CK, 36" CENTERS, 20 ATC, LNS MODEL, 6.45HS.5.2 B.F, TOOL PRESETTER
Location:
Pennsylvania, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.
(1) USED MAZAK SLANT TURN 20 ATC/MC CNC TURNING CENTER
W/ LIVE TOOLING, C-AXIS, TAILSTOCK & MAZATROL T-32-3 CTRL,
NEW 1990, S/N: 97537
SPECIFICATIONS:
CAPACITY MAX SWING:.......... 19.48"
MAX MACHINING DIAM:.......... 10.55"
MAX MACHINING BAR DIAM:...... 2.00"
DIST B/W SPDL - TAILSTOCK:... 40.24"
MAX MACHINING LENGTH:........ 20.875"
AXIS TRAVEL:................. 10-5/8" (X-AXIS)
................. 21" (Z-AXIS)
RAPID FEEDRATE:.............. 944.88 IPM (X-AXIS)
.............. 944.88 IPM (Z-AXIS)
MAX CUTTING FEEDRATE:........ 196.85 IPM (X-AXIS & Z-AXIS)
MAX SUPPORTABLE WEIGHT:...... 220 LBS
SPINDLE NOSE:................ JIS A2-6
HOLE THROUGH SPINDLE:........ 2.4"
SPINDLE SPEED RANGE:......... 36-3,600 RPM
SPINDLE DRIVER MOTOR:........ BUILT IN TYPE AC 15
(20 HP - 30 MIN RATING)
SPINDLE INDEXING:............ 0.001° X 360,000 POS
NC INDEX
TURRET

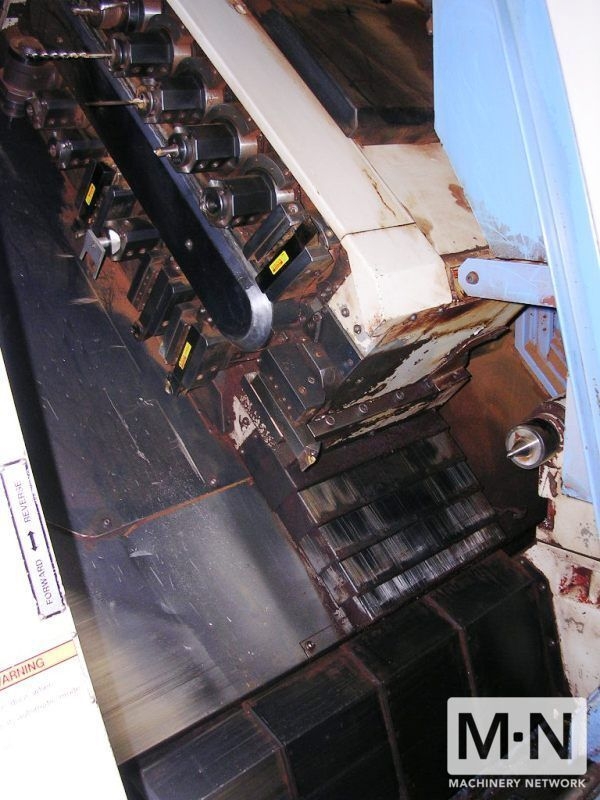

TURRET TYPE:................ ARMLESS ATC TURRET
NO OF TOOLS:................ 16
TOOL SIZE
OD, FACE:................... 1" X 1" X 6"
BORING BAR:................. 1-1/2"
MILLING TOOL (GRIPPING DIA): 0.55" (DRILL)
0.787" (ENDMILL)
½ - 13 (UNC TAP)
TURRET INDEXING TIME:........ 1.3 SEC / 1 STEP
3.4 SEC / 6 STEP
MILL TOOL SPDL SPEED RANGE:.. 100 - 2,500 RPM
DRIVE MOTOR:................. AC 3.7 KW MOTOR
(3.7 KW - 10 MIN RATING)
TAILSTOCK
TYPE:..................... AUTOMATIC HYDRAULIC TAILSTOCK
TRAVEL:................... 28.34"
SPINDLE TAPER:............ MT NO. 4
SPINDLE TRAVEL:........... 5.11
SPINDLE MAXIMUM THRUST:... 1540 LBS
MACHINE DIMENSIONS:....... 113.15" X 67.01" X 82.80"
FLOOR SPACE DIMENSION:.... 132.68" (L) X 103.94" (W)
MACHINE WEIGHT:........... 10,780 LBS
TOTAL POWER REQUIREMENTS:. 33.74 KVA
EQUIPPED WITH

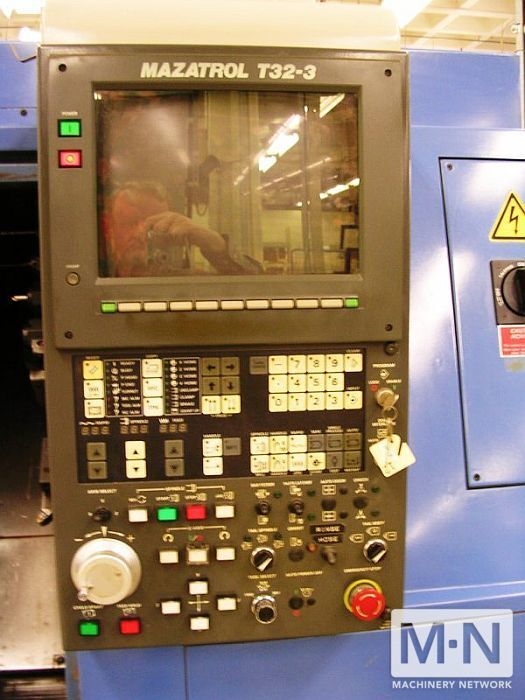

MAZATROL T-32-3 TRL

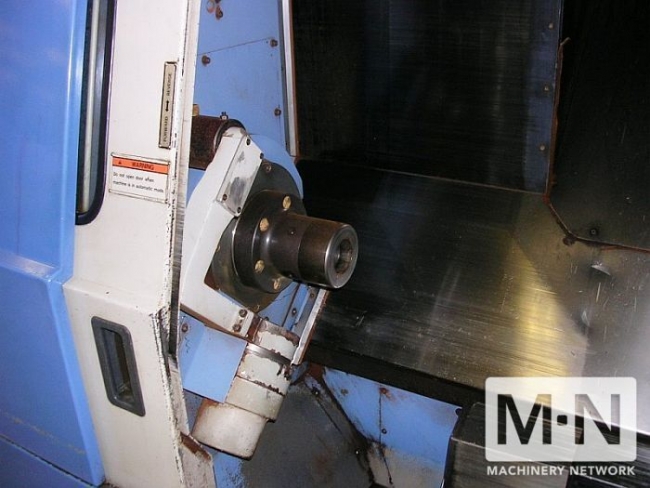

6" 3-JAW CHUCK AND 16C COLLET CHUCK
FULL C-AXIS
TAILSTOCK
TOOL SETTER

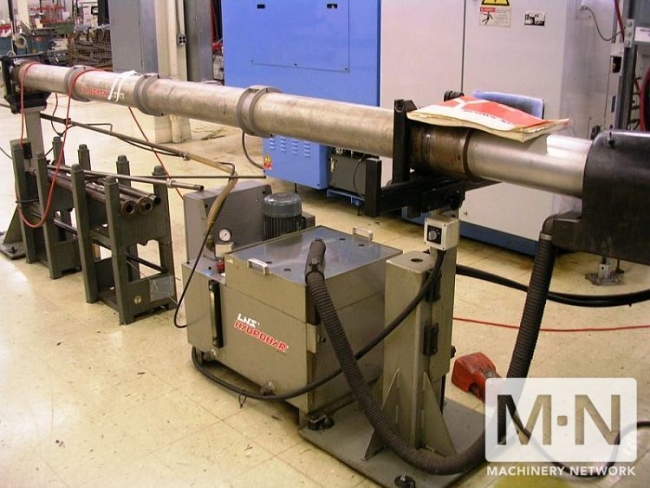

LNS 6.45HS5.2 HYDRAULIC BARFEED S/N: 33452
MISC TOOLING INCLUDING LIVE HOLDERS
W/ LIVE TOOLING, C-AXIS, TAILSTOCK & MAZATROL T-32-3 CTRL,
NEW 1990, S/N: 97537
SPECIFICATIONS:
CAPACITY MAX SWING:.......... 19.48"
MAX MACHINING DIAM:.......... 10.55"
MAX MACHINING BAR DIAM:...... 2.00"
DIST B/W SPDL - TAILSTOCK:... 40.24"
MAX MACHINING LENGTH:........ 20.875"
AXIS TRAVEL:................. 10-5/8" (X-AXIS)
................. 21" (Z-AXIS)
RAPID FEEDRATE:.............. 944.88 IPM (X-AXIS)
.............. 944.88 IPM (Z-AXIS)
MAX CUTTING FEEDRATE:........ 196.85 IPM (X-AXIS & Z-AXIS)
MAX SUPPORTABLE WEIGHT:...... 220 LBS
SPINDLE NOSE:................ JIS A2-6
HOLE THROUGH SPINDLE:........ 2.4"
SPINDLE SPEED RANGE:......... 36-3,600 RPM
SPINDLE DRIVER MOTOR:........ BUILT IN TYPE AC 15
(20 HP - 30 MIN RATING)
SPINDLE INDEXING:............ 0.001° X 360,000 POS
NC INDEX
TURRET
TURRET TYPE:................ ARMLESS ATC TURRET
NO OF TOOLS:................ 16
TOOL SIZE
OD, FACE:................... 1" X 1" X 6"
BORING BAR:................. 1-1/2"
MILLING TOOL (GRIPPING DIA): 0.55" (DRILL)
0.787" (ENDMILL)
½ - 13 (UNC TAP)
TURRET INDEXING TIME:........ 1.3 SEC / 1 STEP
3.4 SEC / 6 STEP
MILL TOOL SPDL SPEED RANGE:.. 100 - 2,500 RPM
DRIVE MOTOR:................. AC 3.7 KW MOTOR
(3.7 KW - 10 MIN RATING)
TAILSTOCK
TYPE:..................... AUTOMATIC HYDRAULIC TAILSTOCK
TRAVEL:................... 28.34"
SPINDLE TAPER:............ MT NO. 4
SPINDLE TRAVEL:........... 5.11
SPINDLE MAXIMUM THRUST:... 1540 LBS
MACHINE DIMENSIONS:....... 113.15" X 67.01" X 82.80"
FLOOR SPACE DIMENSION:.... 132.68" (L) X 103.94" (W)
MACHINE WEIGHT:........... 10,780 LBS
TOTAL POWER REQUIREMENTS:. 33.74 KVA
EQUIPPED WITH
MAZATROL T-32-3 TRL
6" 3-JAW CHUCK AND 16C COLLET CHUCK
FULL C-AXIS
TAILSTOCK
TOOL SETTER
LNS 6.45HS5.2 HYDRAULIC BARFEED S/N: 33452
MISC TOOLING INCLUDING LIVE HOLDERS
