MAZAK SQT-18MS II

Type:

LATHES, COMBINATION, N/C & CNC

Manufacturer:

MAZAK

Model:

SQT-18MS II

Condition:

Not Specified

Year:

1997

Stock #:

16888

Status:

Sold

Description:

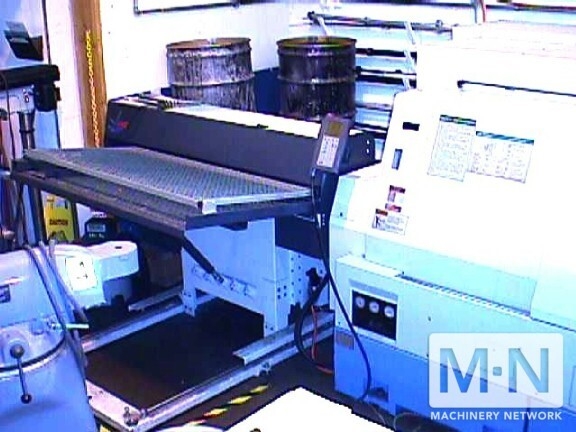

sold , LIVE TOOL, LNS MAG B/F, 3500 ON HRS, TOOLING

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) USED MAZAK SQT-18MS MARK II CNC 3-AXIS
TURNING CENTER - NEW 1997.

SPECIFICATIONS: "ONLY 1500 HOURS RUN TIME"
SWING: 20.9"
CUTTING DIAMETER: 11.75"
DISTANCE BETWEEN CHUCK: 20.47"
MAIN SPINDLE NOSE: A2-6
MAIN SPINDLE BORE: 2.99"
MAIN SPINDLE BAR CAP.: 2.45"
MAIN SPINDLE INDEXING: 360,000 DEG.
MAIN SPINDLE MOTOR/SPEED: 25HP/35-4000RPM
SECOND SPINDLE NOSE/BORE: A2-6/1.22"
SECOND SPINDLE MOTOR/SPEED: 10HP/180-4000RPM
SECOND SPINDLE INDEXING: 5 DEG, 72 POS.
NO. OF TOOL POS.: 12 TOOL POS.
MILLING SPINDLE MOTOR/SPEED: 5 HP/120-3000RPM
X-AXIS TRAVEL: 7.125"
Z-AXIS TRAVEL: 22.75"
B-AXIS TRAVEL: 23.25"
RAPID TRAVERSE RATE(X,Z): 1180 IPM
FLOOR SPACE REQUIREMENT: 125"x63.4"x80"
MACHINE WEIGHT: 14,330 LBS

EQUIPPED WITH:
MAZATROL T-PLUS W/14" COLOR CRT
MARK II NON LIFT TURRET
COMPLETE COOLANT SYSTEM
CHUCK AIR BLAST FOR SECOND SPINDLE
SIDE EXIT HINGE CHIP CONVEYOR
BARFEED INTERFACE
AUTOMATIC TOOL-EYE
10" MAIN SPINDLE CHUCK ,COLLET-CHUCK,
6" SUB-SPINDLE CHUCK.TUBE GUIDES ,PARTS
CONVEYOR.
WORK LIGHT, MAIN AND SECOND SPINDLE
SYNCHRONIZATION, HIGH POWERED COOLANT,TOOLING
PACKAGE, TOOL BREAKAGE DETECTION, FULL C-AXIS,
CHIP CONVEYOR,
