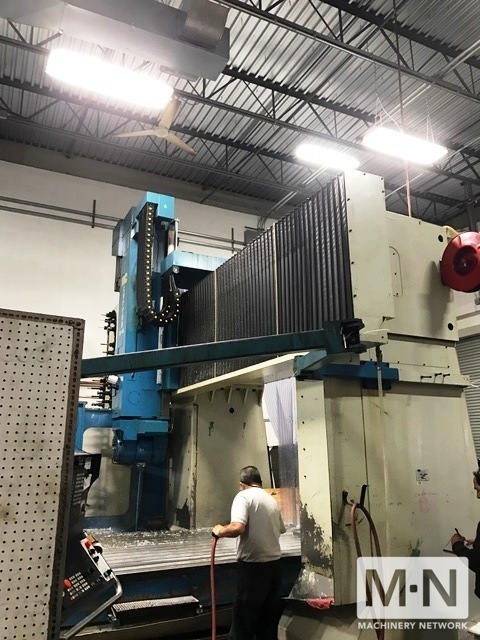

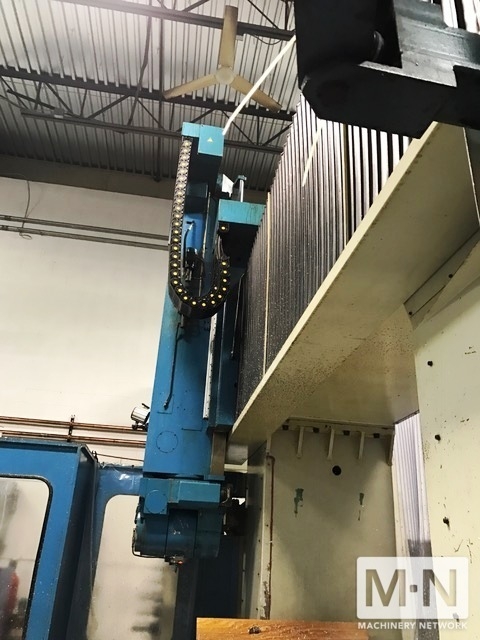

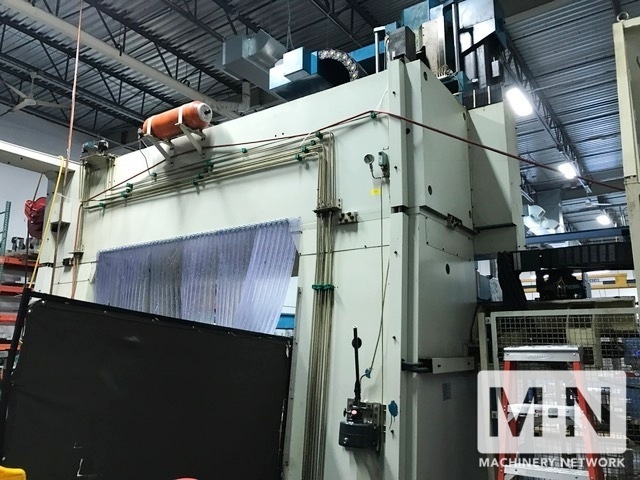

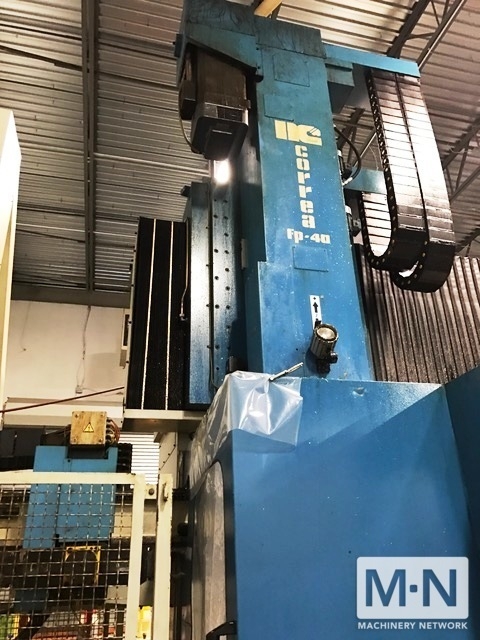

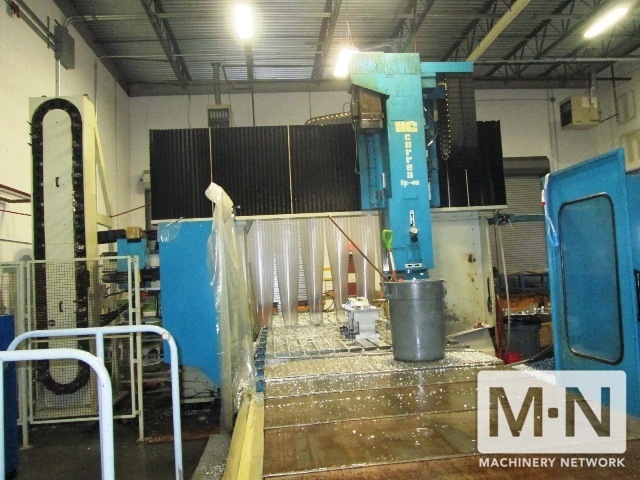

NICOLAS CORREA FP 40/50

Type:

MACHINING CENTERS, GANTRY TYPE, N/C & CNC

Manufacturer:

NICOLAS CORREA

Model:

FP 40/50

Condition:

Not Specified

Year:

1998

Stock #:

36715

Status:

Sold

Description:

Siemens Sinumerik , 195"X79"X35", BT 50 TAPER, 60 ATC,

Location:

Connecticut, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

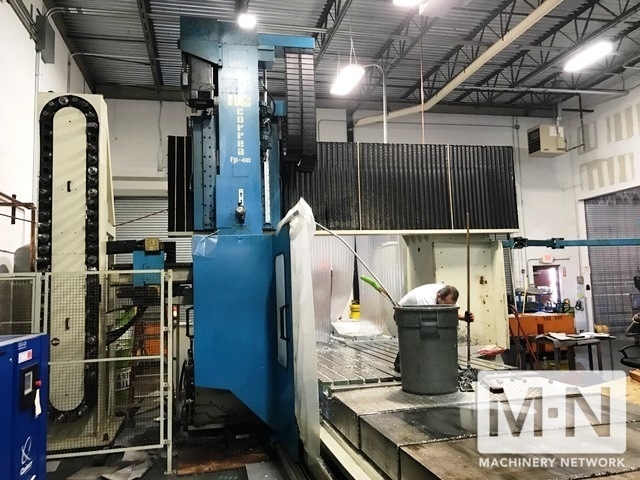

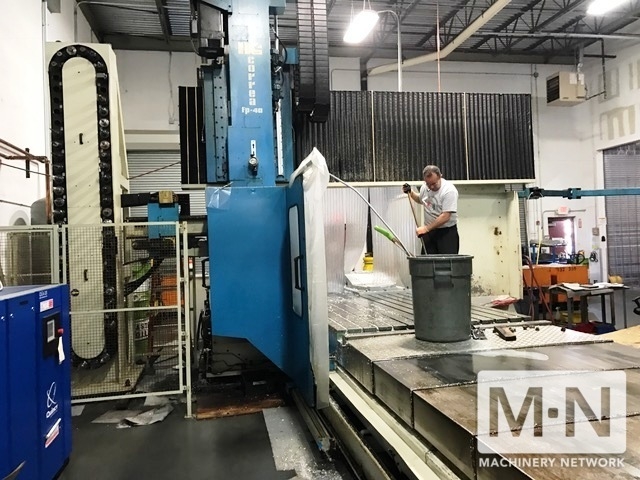

1 USED Nicolas Correa FP 40/50 5 AXIS CNC Bridge Mill New 1998 W Siemens BT50 Taper

FEATURES:

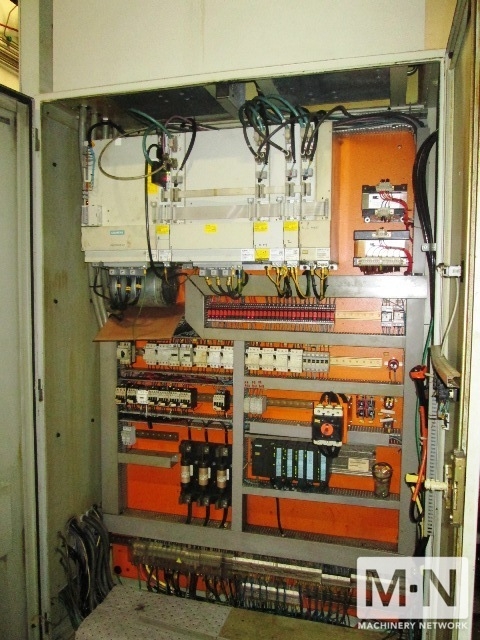

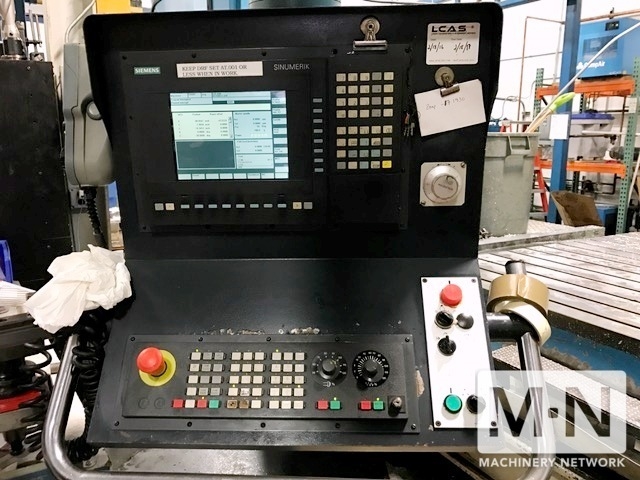

Siemens 840D 5-Axis CNC Controls

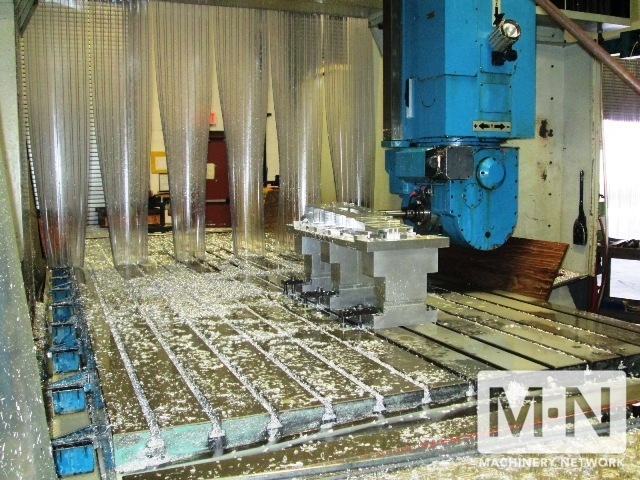

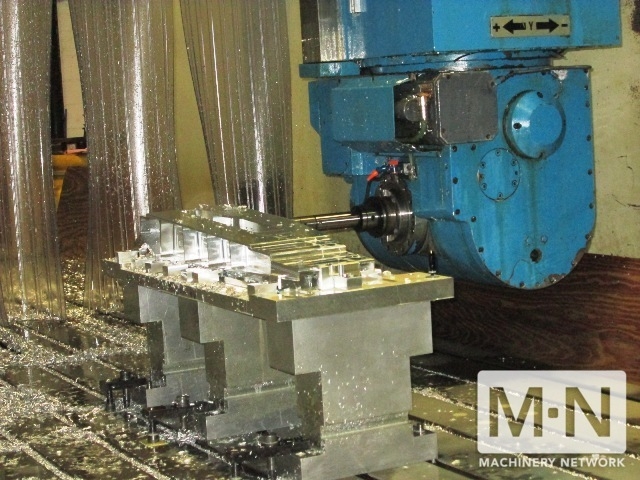

Nicolas Correa C5E 2-Axis Continuous Milling Head

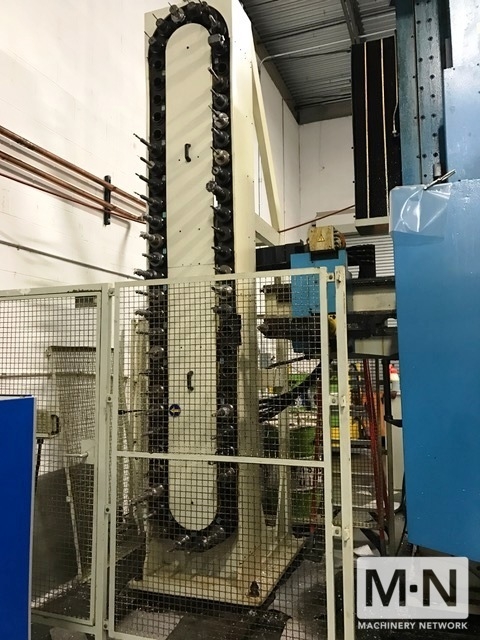

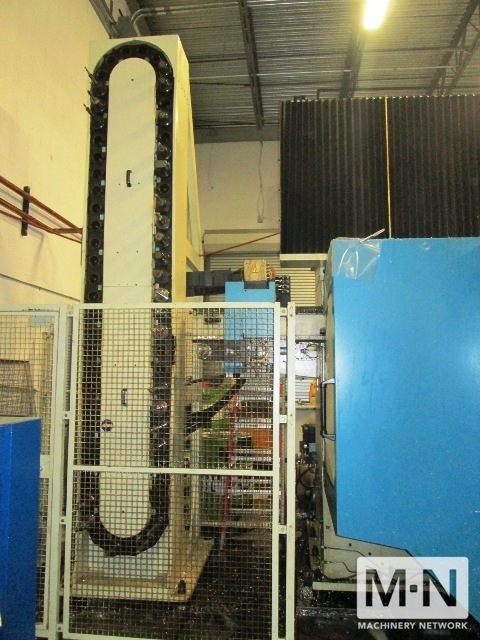

60-Position Automatic Tool Changer

CAPACITY:
X-Axis Travel ......................... 196.85"
Y-Axis Travel ......................... 127.95"
Z-Axis (Ram) Travel ................... 39.37"
Distance Between Columns .............. 98.42"

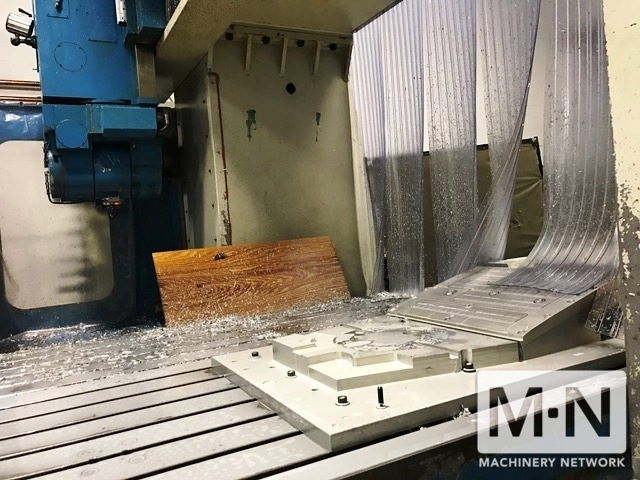

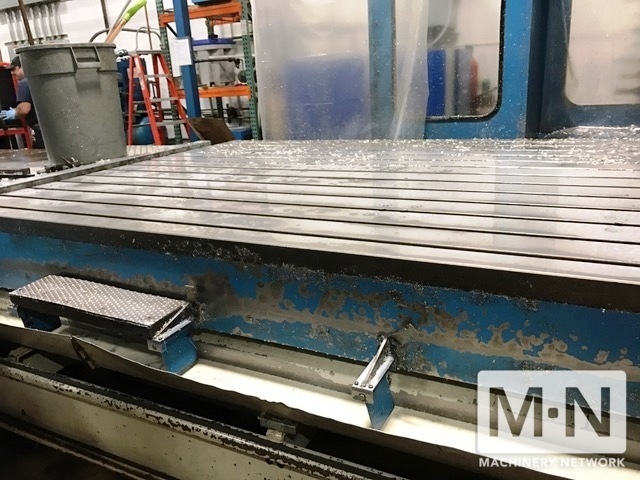

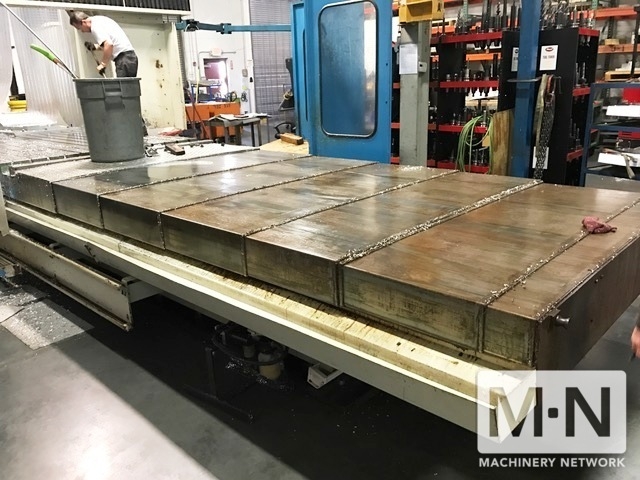

Table Size ............................ 196.85" x 78.74"
Max. Load on Table .................... 55,000 Lbs.
Max Distance, Table to Surface ........ 37.40"
B-Axis Spindle Tilt ................... 90/-100 Degrees
C-Axis Spindle Rotation ............... /- 360 Degrees
Spindle Speed (2-Axis Head) ........... 40 - 4000 RPM
Spindle Motor ......................... 29.5 HP
Spindle Taper ......................... BT #50
Rapid Traverse, X-Axis ................ 590 IPM
Rapid Traverse, Y,Z Axes .............. 472.4 IPM
Feedrates ............................. .08 - 275 IPM
Approx. Machine Weight ................ 123,000 Lbs.

EQUIPPED WITH:
Siemens 840D 5-Axis CNC Controls
Nicolas Correa Model C5E 2-Axis Continuous Milling Head (49 HP)
60-Position Automatic Tool Changer

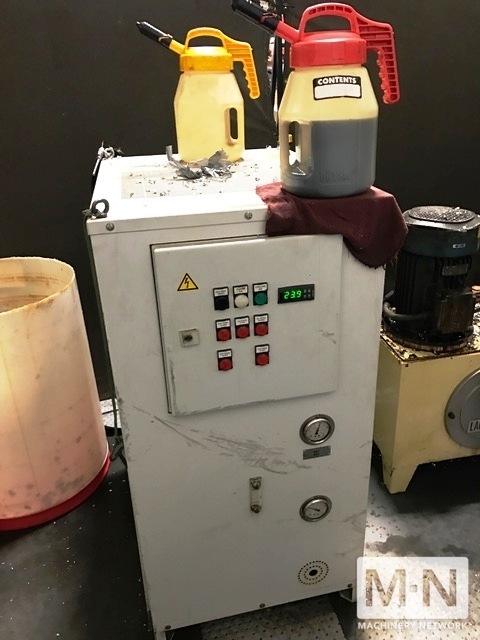

High Pressure Coolant System
