MAKINO V55-5XA
Type:
MACHINING CENTERS, GANTRY TYPE, N/C & CNC
Manufacturer:
MAKINO
Model:
V55-5XA
Condition:
Not Specified
Year:
2002
Stock #:
34604
Status:
Sold
Description:
MAKINO V55-5XA
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

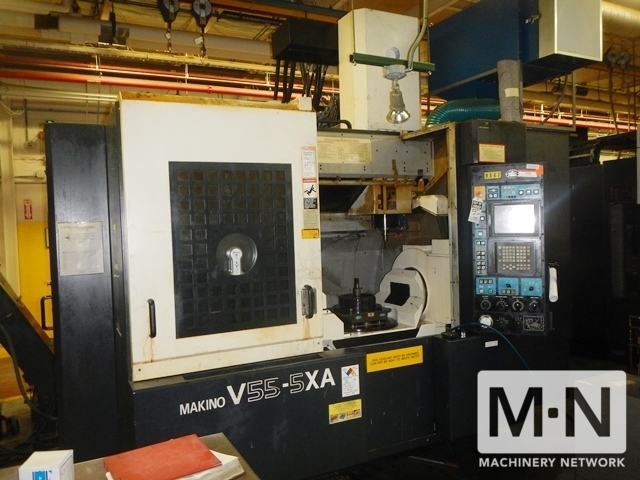

(1) USED MAKINO V55 5-AXIS MACHINING CENTER
NEW 2002
SPECIFICATIONS:
..........................(2) 14 1/4 " PALLETS
TABLE DIMENSIONS: ........39.4" x 19.7"
TRAVELS
- X AXIS: ................35.4"
- Y AXIS: ................19.7"
- Z AXIS: ................17.7"
SPINDLE SPEED: ...........20,000 RPM
SPINDLE MOTOR: ...........30 HP
SPINDLE TAPER: .......HSK-63 TAPER
RAPID TRAVERSE: ..........1,969 IPM
CUTTING FEEDRATE: ........1,968 IPM
MAX. WORKPIECE DIMS: .....39.3" x 24.8" x 17.7"
MAX. PAYLOAD: ............1,540 lbs

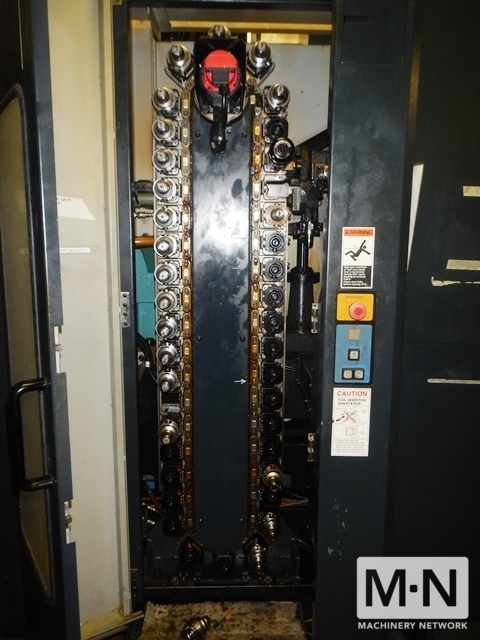

ATC CAPACITY: ............40 POS.
TOOL TO TOOL: ............1.5 secs
CHIP TO CHIP: ............3.9 secs
EQUIPPED WITH:
PRO 3 CONTROL

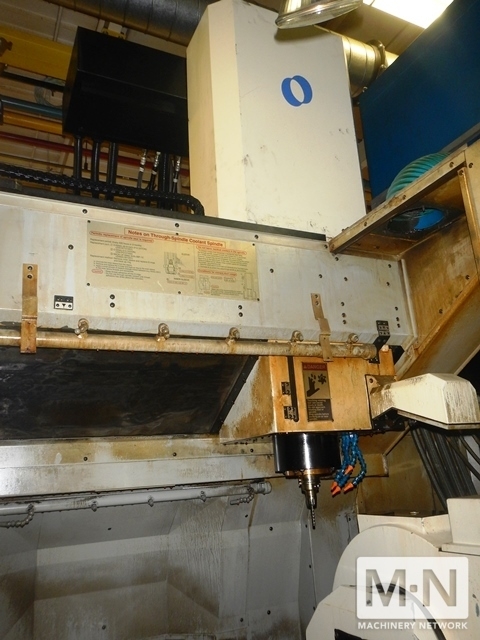

COOLANT THRU SPINDLE

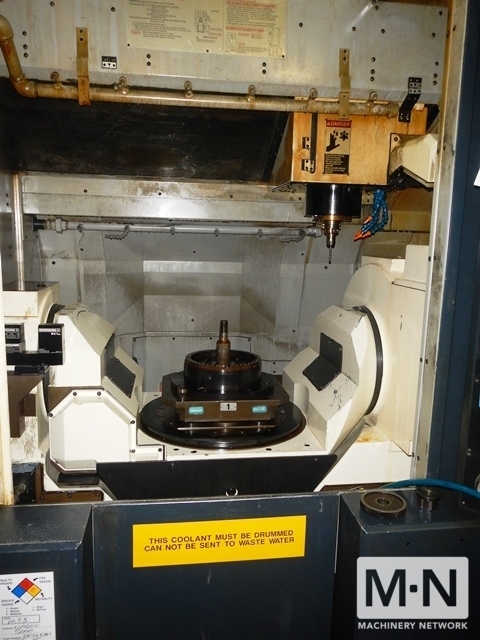

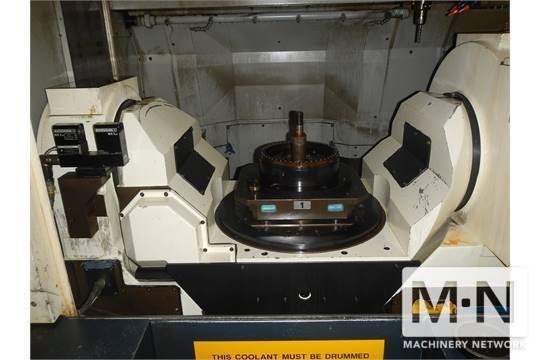

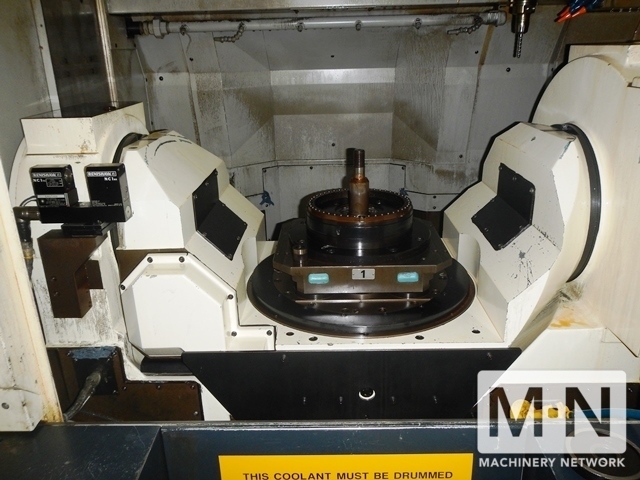

5-AXIS TRUNION TABLE
BUNRI TYPE NAL32HLA-2.5-ELEVATED CHIP CONVEYOR
COOLANT SYSTEM
TSC
DAKIN INVERTER

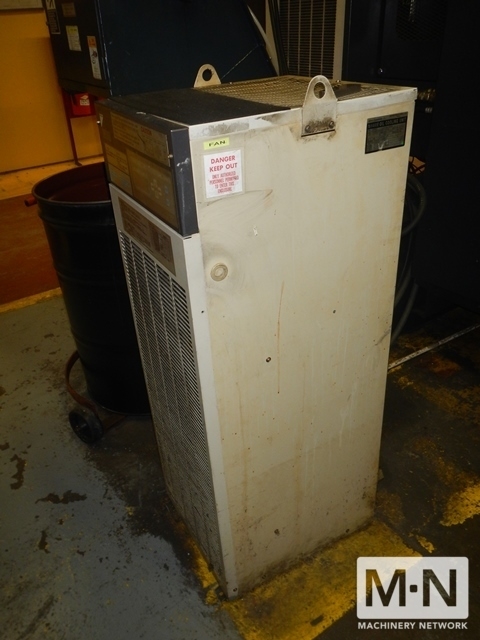

DAKIN OIL COOLER

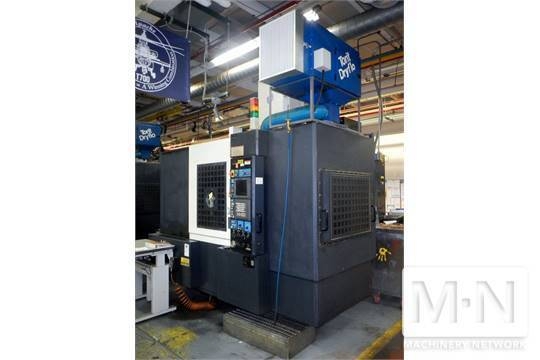

TORIT DONALDSON MDL
DMC-MMB MIST COLLECTOR
NEW 2002
SPECIFICATIONS:
..........................(2) 14 1/4 " PALLETS
TABLE DIMENSIONS: ........39.4" x 19.7"
TRAVELS
- X AXIS: ................35.4"
- Y AXIS: ................19.7"
- Z AXIS: ................17.7"
SPINDLE SPEED: ...........20,000 RPM
SPINDLE MOTOR: ...........30 HP
SPINDLE TAPER: .......HSK-63 TAPER
RAPID TRAVERSE: ..........1,969 IPM
CUTTING FEEDRATE: ........1,968 IPM
MAX. WORKPIECE DIMS: .....39.3" x 24.8" x 17.7"
MAX. PAYLOAD: ............1,540 lbs
ATC CAPACITY: ............40 POS.
TOOL TO TOOL: ............1.5 secs
CHIP TO CHIP: ............3.9 secs
EQUIPPED WITH:
PRO 3 CONTROL
COOLANT THRU SPINDLE
5-AXIS TRUNION TABLE
BUNRI TYPE NAL32HLA-2.5-ELEVATED CHIP CONVEYOR
COOLANT SYSTEM
TSC
DAKIN INVERTER
DAKIN OIL COOLER
TORIT DONALDSON MDL
DMC-MMB MIST COLLECTOR
