CINCINNATI MILACRON 20V120
Type:
MACHINING CENTERS, GANTRY TYPE, N/C & CNC
Manufacturer:
CINCINNATI MILACRON
Model:
20V120
Condition:
Not Specified
Year:
1989
Stock #:
33852
Status:
Sold
Description:
CINCINNATI 20V120 5-AXIS, ACRAMATIC 950, 120"X30"X24", CAT 50, 20 HP
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

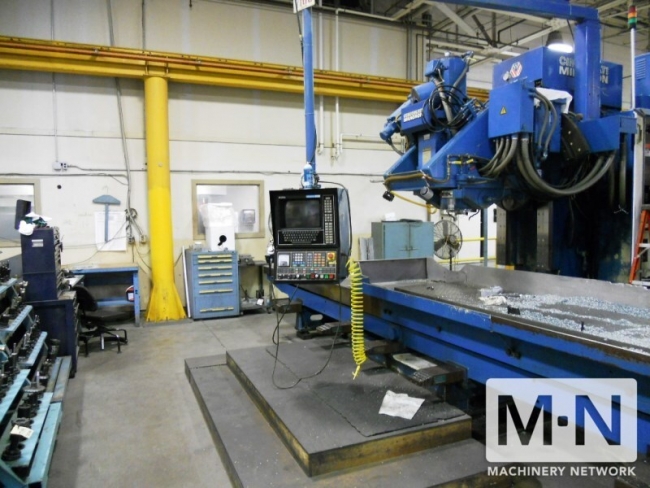

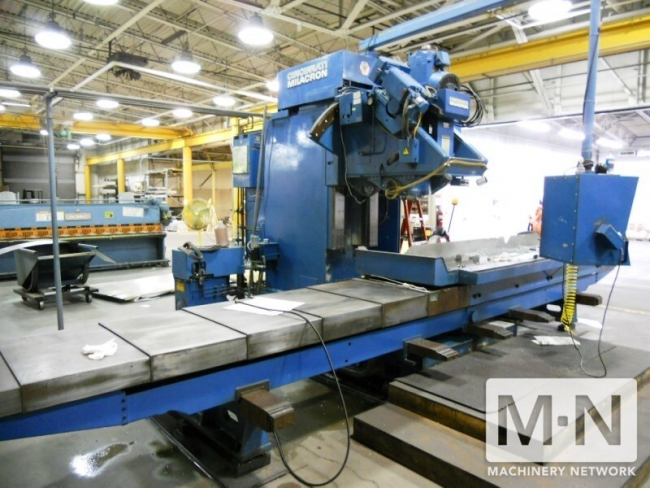

(1) USED CINCINNATI MODEL 20V120 5 AXIS CNC VERTICAL PROFILING/CONTOURING MACHINING CENTER - NEW 1989
AEROSPACE MACHINE
CATALOGUE SPECIFICATIONS:
TABLE WORKING SURFACE, W X L.....................30" X 148"
TABLE LOAD CAPACITY..............................10000 LBS
A AXIS SPINDLE CARRIER TILT (+25 TO - 25)........50 DEGREES
B AXIS SPINDLE CARRIER SWIVEL (+25 TO -25).......50 DEGREES
X AXIS TABLE LONGITUDINAL TRAVEL.................120"
Y AXIS SADDLE CROSS TRAVEL.......................30"
Z AXIS SPINDLE CARRIER VERTICAL TRAVEL...........24"
SPINDLE TAPER...................................#50 CAT
SPINDLE NOSE TO TABLE MAX........................29"
SPINDLE SPEEDS, INFINITE RANGE...................20 TO 3600 RPM
X,Y, & Z AXIS FEEDS, RANGE.......................0 TO 250 IPM
A & B AXIS FEEDRATES, RANGE, DEGREES PER MIN.....0 TO 240 DPM
SPINDLE MOTOR....................................20 HP
APPROXIMATE MACHINE DIMENSIONS...................204"X314"
APPROXIMATE MACHINE HEIGHT.......................140"
APPROXIMATE MACHINE WEIGHT.......................48,000 LBS
EQUIPPED WITH:
CINCINNATI MILACRON ACRAMATIC 950 CNC CONTROL
FULL 5 AXIS SIMULTANEOUS CONTOURING, TOUCH SCREEN PROGRAMMING, FULL KEYBOARD, EXPANDED MULTIPLE PART PROGRAM STORAGE, RS232, SPINDLE LOAD METER, FUNCTION LOCK,
AXIS ERROR COMPENSATION (X, Y, Z, A, B),
AXIS LIMIT ACC/DEC, CUTTER DIAMETER COMPENSATION,
COMBINATION FLOOD/MIST COOLANT SYSTEM.
HAS CONTINUOUS LOAD FOR PROGRAMS!!
AEROSPACE MACHINE
CATALOGUE SPECIFICATIONS:
TABLE WORKING SURFACE, W X L.....................30" X 148"
TABLE LOAD CAPACITY..............................10000 LBS
A AXIS SPINDLE CARRIER TILT (+25 TO - 25)........50 DEGREES
B AXIS SPINDLE CARRIER SWIVEL (+25 TO -25).......50 DEGREES
X AXIS TABLE LONGITUDINAL TRAVEL.................120"
Y AXIS SADDLE CROSS TRAVEL.......................30"
Z AXIS SPINDLE CARRIER VERTICAL TRAVEL...........24"
SPINDLE TAPER...................................#50 CAT
SPINDLE NOSE TO TABLE MAX........................29"
SPINDLE SPEEDS, INFINITE RANGE...................20 TO 3600 RPM
X,Y, & Z AXIS FEEDS, RANGE.......................0 TO 250 IPM
A & B AXIS FEEDRATES, RANGE, DEGREES PER MIN.....0 TO 240 DPM
SPINDLE MOTOR....................................20 HP
APPROXIMATE MACHINE DIMENSIONS...................204"X314"
APPROXIMATE MACHINE HEIGHT.......................140"
APPROXIMATE MACHINE WEIGHT.......................48,000 LBS
EQUIPPED WITH:
CINCINNATI MILACRON ACRAMATIC 950 CNC CONTROL
FULL 5 AXIS SIMULTANEOUS CONTOURING, TOUCH SCREEN PROGRAMMING, FULL KEYBOARD, EXPANDED MULTIPLE PART PROGRAM STORAGE, RS232, SPINDLE LOAD METER, FUNCTION LOCK,
AXIS ERROR COMPENSATION (X, Y, Z, A, B),
AXIS LIMIT ACC/DEC, CUTTER DIAMETER COMPENSATION,
COMBINATION FLOOD/MIST COOLANT SYSTEM.
HAS CONTINUOUS LOAD FOR PROGRAMS!!
