NAKAMURA TOME WT-250
Type:
LATHES, COMBINATION, N/C & CNC, (3-axis Or More)
Manufacturer:
NAKAMURA TOME
Model:
WT-250
Condition:
Not Specified
Year:
2006
Stock #:
33688
Status:
Sold
Description:
NAKAMURA WT-250, FANUC 18iTB, SPINDLE HOLE 3", 12 STATION, CC, COOLANT
Location:
California, United States
Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

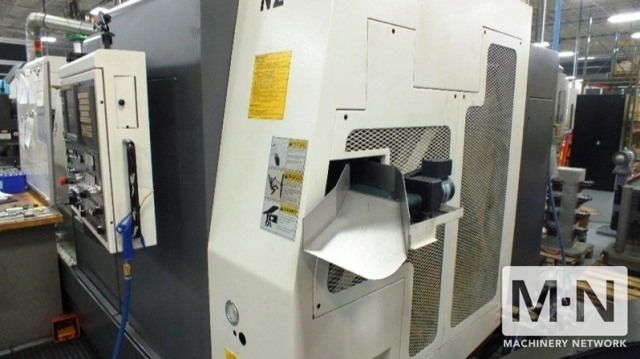

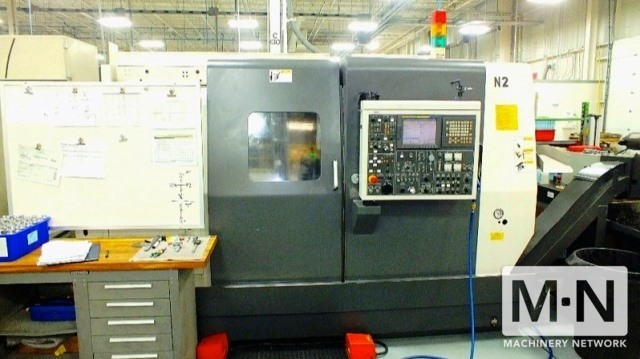

1) USED NAKAMURA-TOME WT-250 MULTI-AXIS CNC TURNING CENTER
NEW: 2006 INSTALLED: 2007
SPECIFICATIONS:
SWING OVER BED ...................... 9.84"
SWING OVER CARRIAGE ................. 9.84"
MAX. TURNING LENGTH ................. 21.85"
MAX. BAR CAPACITY, LEFT SPINDLE ..... 2.56"
MAX. BAR CAPACITY, RIGHT SPINDLE .... 2.01"
AXIS TRAVEL, X1 & X2 ................ 7.68"
AXIS TRAVEL, Z1 & Z2 ................ 23.62"
SPINDLE SPEED, LEFT ................. 4500 RPM
SPINDLE NOSE ........................ A2-6
HOLE THRU SPINDLE ................... 3.15"
SPINDLE SPEED, RIGHT ................ 4500 RPM
SPINDLE NOSE ........................ A2-5
HOLE THRU SPINDLE ................... 2.48"
C-AXIS INDEXING, BOTH SPINDLES ...... 0.001 DEGREE
NUMBER OF TURRET HEADS .............. 2
TURRET HEAD TYPE .................... DODECAGON
NO. OF TOOL STATIONS ................ 12
TOOL SIZE ........................... 1"
ID TURNING TOOL ..................... 1.26"
ROTARY TOOL SPINDLE SPEED ........... 30 TO 3600 RPM
SPINDLE DRIVE MOTOR, LEFT ........... 25/20 HP
SPINDLE DRIVE MOTOR, RIGHT .......... 15/10 HP
ROTARY TOOL DRIVE MOTOR ............. 7.5/5 HP
APPROX. MACHINE WEIGHT .............. 18,000 LBS
EQUIPPED WITH:

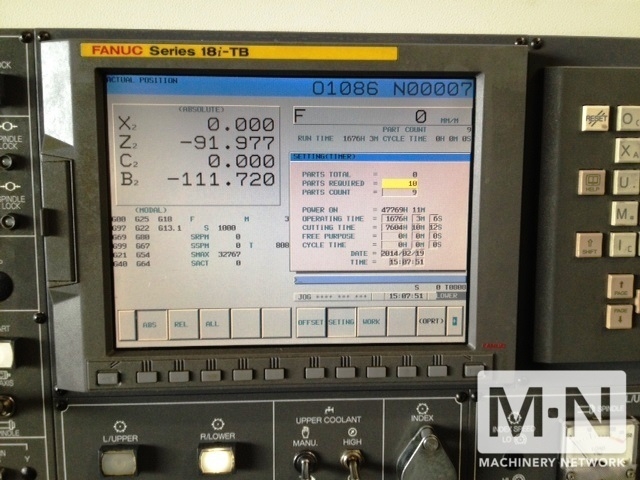

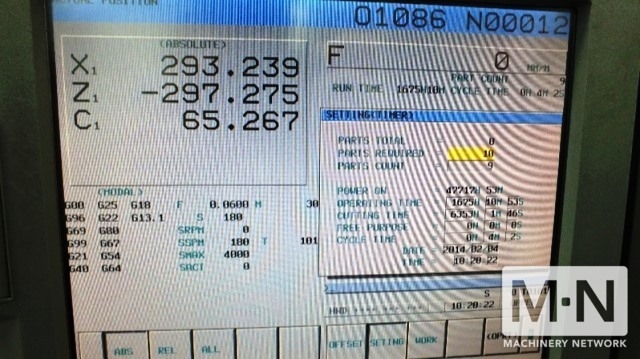

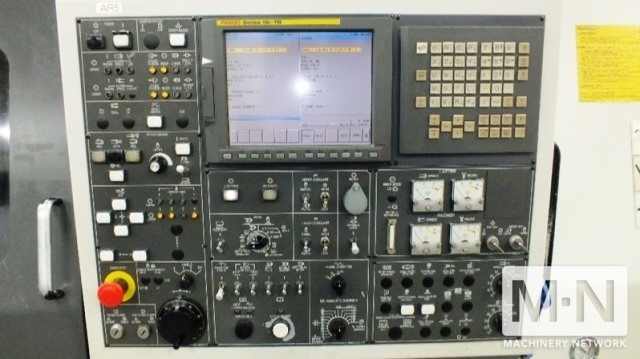

- FANUC 18iTB CNC CONTROL
- COLLET CHUCKS ON LEFT AND RIGHT SPINDLES

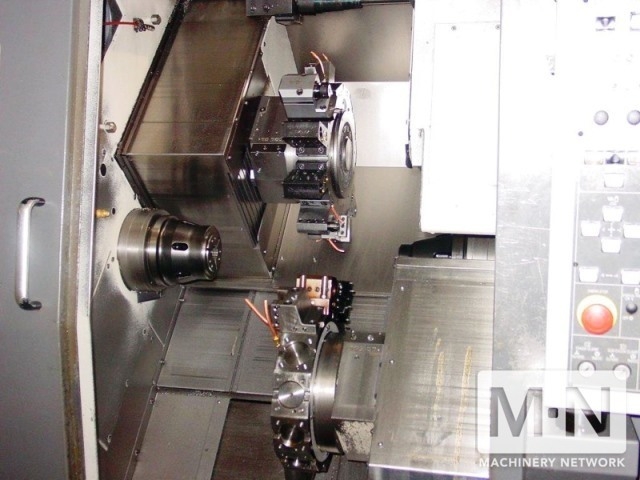

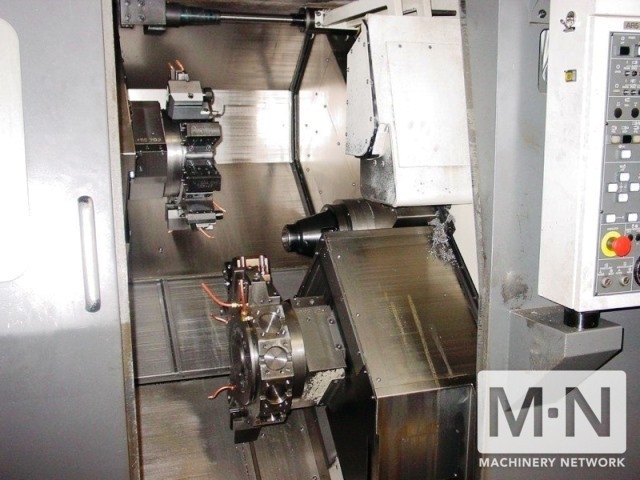

- 12 STATION UPPER AND 12 STATION LOWER TURRETS
- C-AXIS CONTROL FUNCTION FOR BOTH SPINDLES
- PARTS CONVEYOR
- CHIP CONVEYOR
- HIGH PRESSURE COOLANT
- (1) ROTARY TOOLHOLDER
- ALL AVAILABLE STATIC TOOLHOLDERS
- ALL AVAILABLE MANUALS
NEW: 2006 INSTALLED: 2007
SPECIFICATIONS:
SWING OVER BED ...................... 9.84"
SWING OVER CARRIAGE ................. 9.84"
MAX. TURNING LENGTH ................. 21.85"
MAX. BAR CAPACITY, LEFT SPINDLE ..... 2.56"
MAX. BAR CAPACITY, RIGHT SPINDLE .... 2.01"
AXIS TRAVEL, X1 & X2 ................ 7.68"
AXIS TRAVEL, Z1 & Z2 ................ 23.62"
SPINDLE SPEED, LEFT ................. 4500 RPM
SPINDLE NOSE ........................ A2-6
HOLE THRU SPINDLE ................... 3.15"
SPINDLE SPEED, RIGHT ................ 4500 RPM
SPINDLE NOSE ........................ A2-5
HOLE THRU SPINDLE ................... 2.48"
C-AXIS INDEXING, BOTH SPINDLES ...... 0.001 DEGREE
NUMBER OF TURRET HEADS .............. 2
TURRET HEAD TYPE .................... DODECAGON
NO. OF TOOL STATIONS ................ 12
TOOL SIZE ........................... 1"
ID TURNING TOOL ..................... 1.26"
ROTARY TOOL SPINDLE SPEED ........... 30 TO 3600 RPM
SPINDLE DRIVE MOTOR, LEFT ........... 25/20 HP
SPINDLE DRIVE MOTOR, RIGHT .......... 15/10 HP
ROTARY TOOL DRIVE MOTOR ............. 7.5/5 HP
APPROX. MACHINE WEIGHT .............. 18,000 LBS
EQUIPPED WITH:
- FANUC 18iTB CNC CONTROL
- COLLET CHUCKS ON LEFT AND RIGHT SPINDLES
- 12 STATION UPPER AND 12 STATION LOWER TURRETS
- C-AXIS CONTROL FUNCTION FOR BOTH SPINDLES
- PARTS CONVEYOR
- CHIP CONVEYOR
- HIGH PRESSURE COOLANT
- (1) ROTARY TOOLHOLDER
- ALL AVAILABLE STATIC TOOLHOLDERS
- ALL AVAILABLE MANUALS
