NAKAMURA TOME SUPER NTX MULTI AXIS

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

NAKAMURA TOME

Model:

SUPER NTX MULTI AXIS

Condition:

Not Specified

Year:

2009

Stock #:

31847

Status:

Sold

Description:

NAKAMURA TOME SUPER NTX ,Fanuc 16i-TB Control, Max Diam 15", Chip Conveyor

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

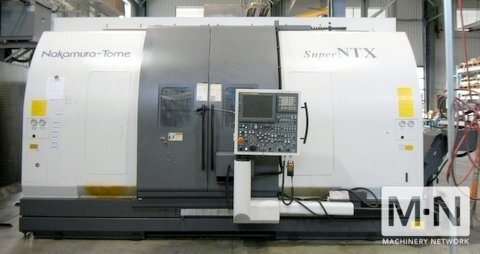

1) USED NAKAMURA TOME SUPER NTX MULTI AXIS LATHE
NEW 2009

SPECIFICATIONS:
MAXIMUM TURNING LENGTH:...............15.35"
DISTANCE BETWEEN SPINDLE NOSE:....MAX 55.11" / MIN 9.84"
BAR CAPACITY:.........................2.55"

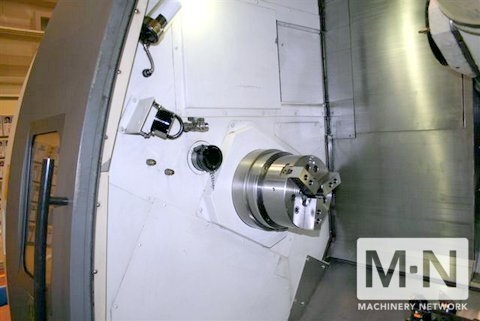

CHUCK SIZE:...........................8"
SLIDE TRAVEL X1/Z1/B2:................24.8"/45.27"/45.27"
SLIDE TRAVEL X2/X3/Z2/Z3:.............10.03"/10.03"/14.76"/14.76"
SLIDE TRAVEL Y:.......................6.29"

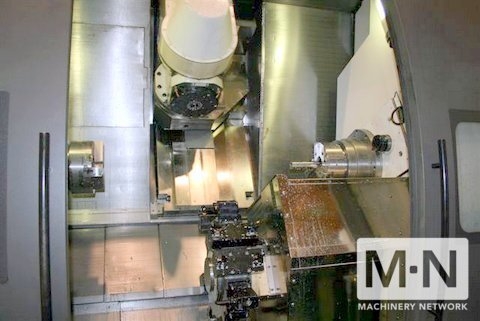

NUMBER OF TURRETS:....................2
NUMBER OF TURRET INDEX POSITIONS:.....24
SPINDLE SPEED:........................4500RPM
LEFT SPINDLE MOTOR:...................22HP
RIGHT SPINDLE MOTOR:..................22HP
TOOL SPINDLE SPEED:...................8000 RPM
TOOL SPINDLE DRIVE MOTOR:.............18.5 HP
TOOL CAPACITY:........................24 TOOL STOCK
FLOOR SPACE (L X W X H) :.............232" X 140" X 124"
MACHINE WEIGHT:.......................42000 LBS

EQUIPPED WITH:

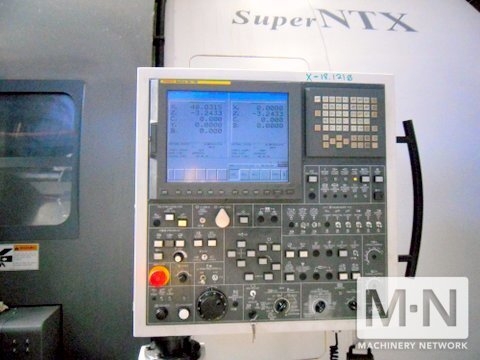

FANUC 16i-TB CONTROL
ASSORTED CAPTO C6 TOOL HOLDERS
CHIP CONVEYOR
COOLANT SYSTEM

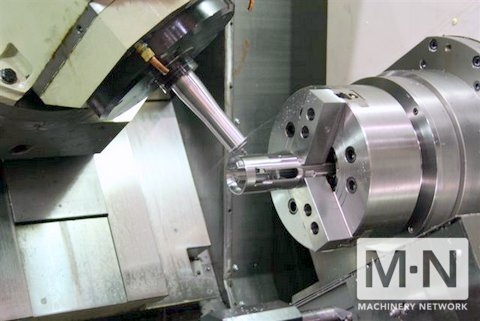

LOWER TURRET WITH LIVE TOOLING
