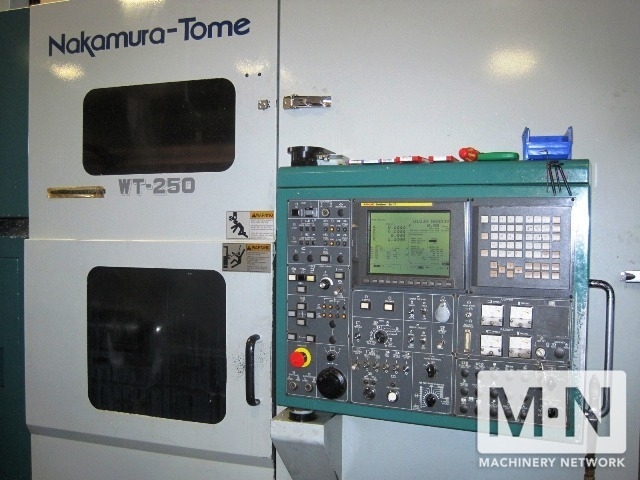

NAKAMURA TOME WT-250

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

NAKAMURA TOME

Model:

WT-250

Condition:

Not Specified

Year:

2004

Stock #:

31090

Status:

Sold

Description:

Fanuc 18-iTB, 2.5" Bar, 6k Rpm, GR-10 Gantry Loader w/ 231 Multi-Layer Rotary Part Stacker

Location:

Illinois, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

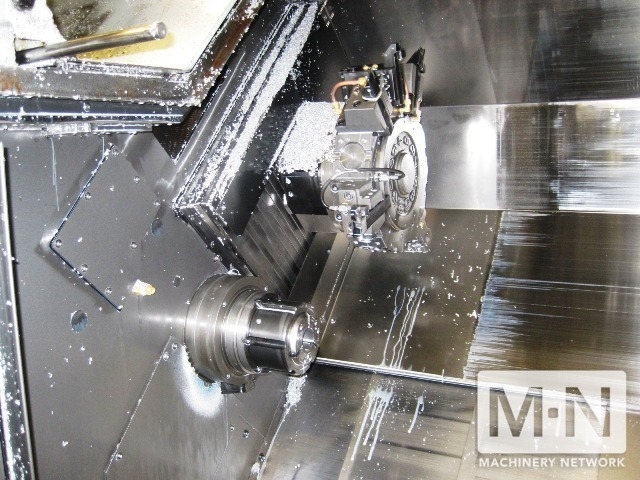

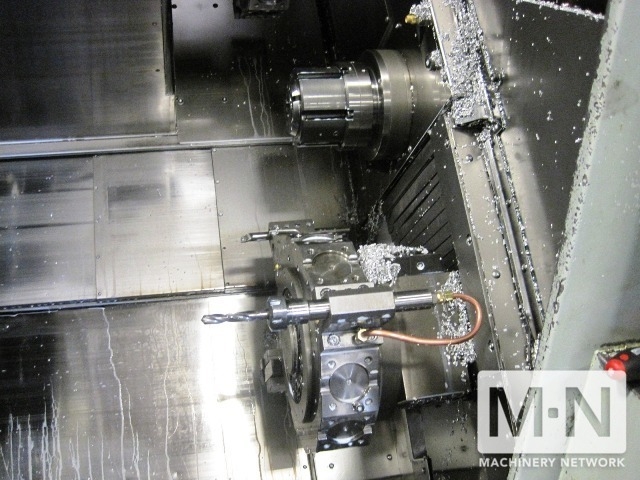

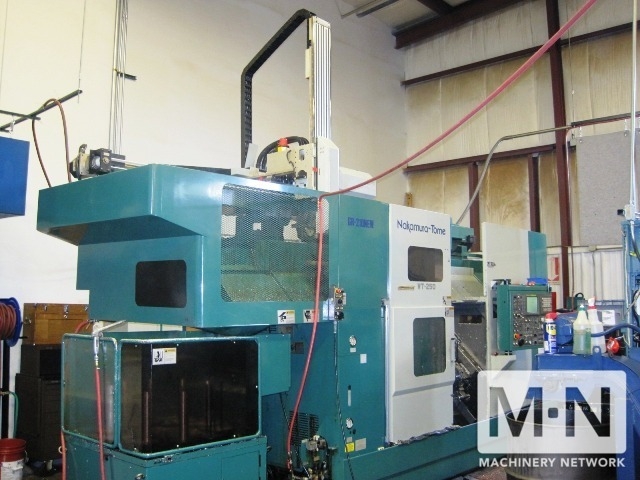

(1) NAKAMURA TOME WT-250 6-AXIS CNC TURNING CENTER
New 2004

SPECIFICATIONS:
Max Turning Diameter.........................9.84 In
Max. Turning Length...........................17.12 In
Max. Bar Size......................................2.5 In
Spindle Speeds (Left & Right)..............4500 RPM
Total No. of Tools................................24(12 x 2)
Effective Slide Travel
X1-Axis............................................7.68 In
X2-Axis.............................................7.68 In
Effective Slide Travel
Z1-Axis ...........................................23.62 In
Z2-Axis............................................23.62 In
Live Tool Speed..................................6000 RPM
Main Spindle Motor..............................AC 15/ 20 HP

EQUIPPED WITH:

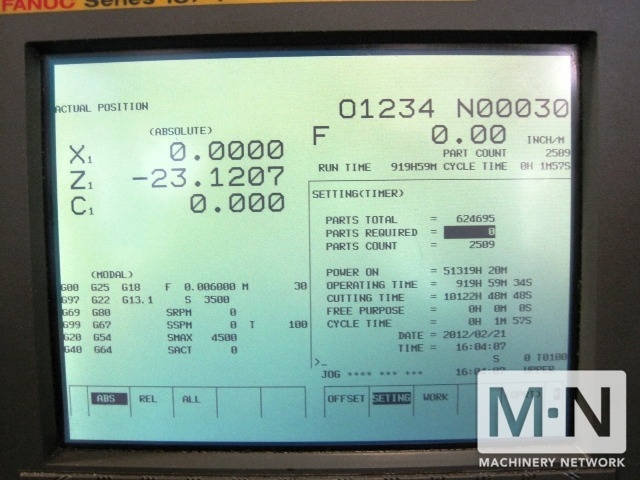

Fanuc 18-iTB Control
Collet Chucks
Chip Conveyor

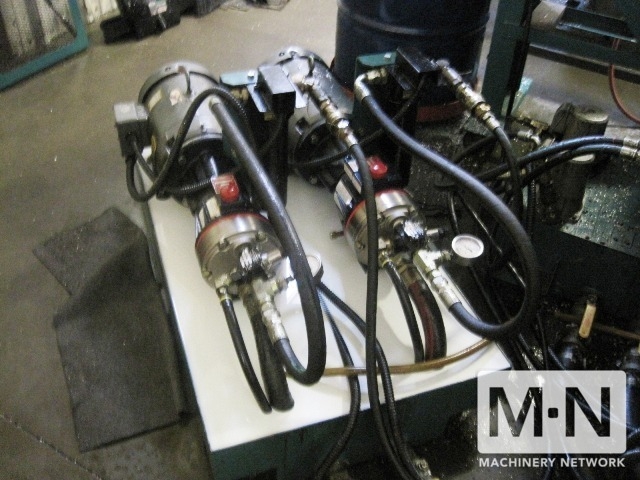

High Pressure Coolant ( 800 PSI Both Turrets )

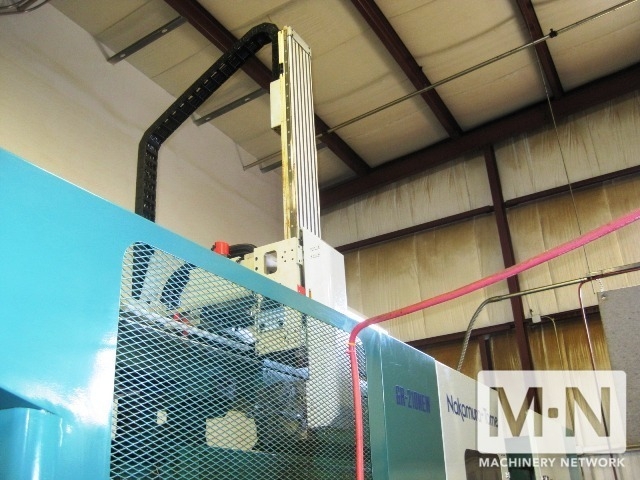

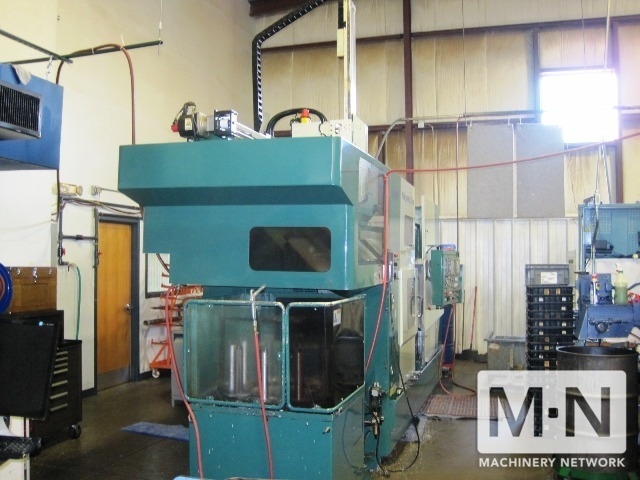

GR-10 Gantry Loader w/ 231 Multi-Layer Rotary Part Stacker
