NAKAMURA TOME WT-150-MMYS

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

NAKAMURA TOME

Model:

WT-150-MMYS

Condition:

Not Specified

Year:

2006

Stock #:

30770

Status:

Sold

Description:

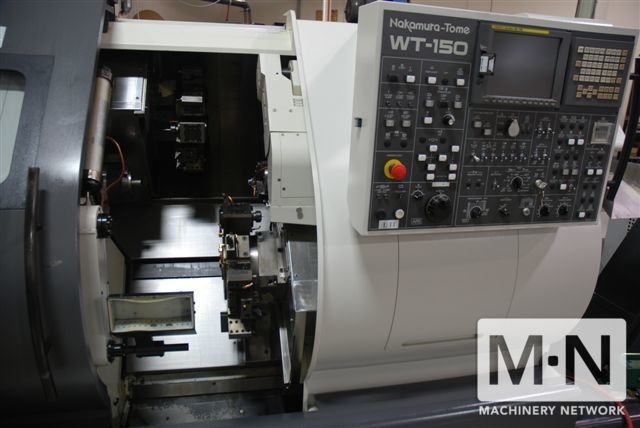

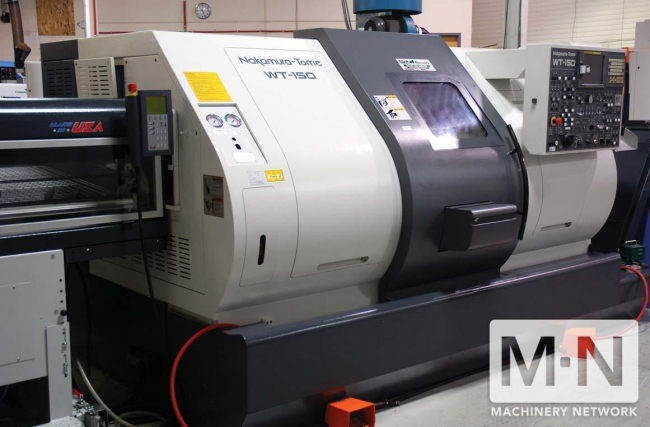

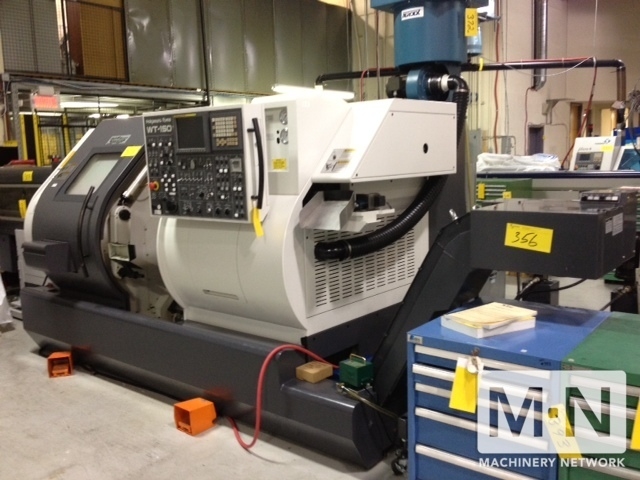

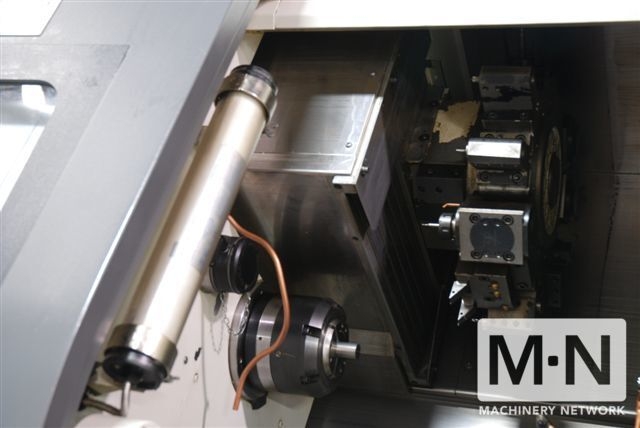

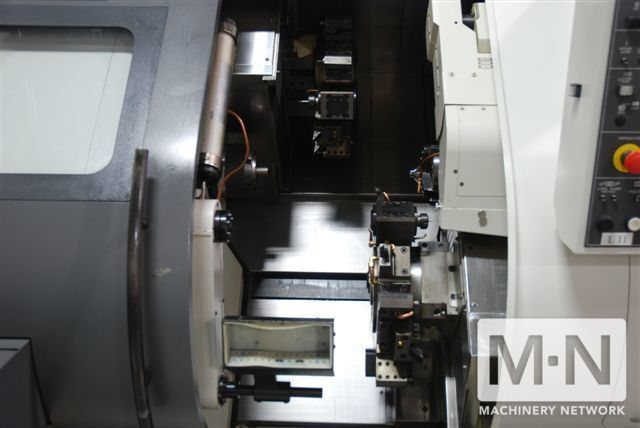

Twin Spindle, Multi Turret, 9-Axis CNC Precision Lathe

Location:

California, United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

(1) USED NAKAMURA TOME WT-150-MMYS 9-AXIS CNC PRECISION LATHE
NEW 2006

SPECIFICATIONS:
MAX TURNING DIAMETER:
7.48" MAX TURNING LENGTH:
15.75" DISTANCE BTWN SPINDLE NOSE:
7.87"-29.53" BAR CAPACITY:

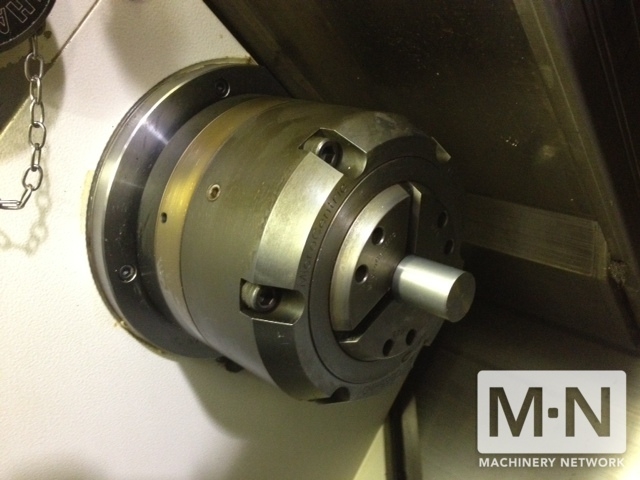

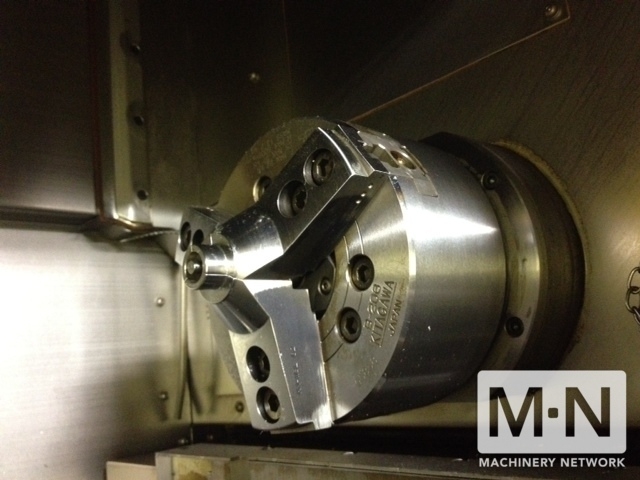

2.01" CHUCK SIZE:
6" SLIDE TRAVELS:
X1-AXIS: 6.2" X2-AXIS:
6.59" Z1-AXIS:
18.3" Z2-AXIS:
18.3" B-AXIS:
21.65" Y UPPER TURRET:
1.38" RAPID TRAVERSE X1/X2:
629.92 IPM
RAPID TRAVERSE Z1/Z2:
1,574.8 IPM
RAPID TRAVERSE Y:
236.22" SPINDLE SPEED L&R:
5,000 RPM
SPINDLE MOTOR:
15 HP
UPPER & LOWER TURRET SPINDLES:
6,000 RPM

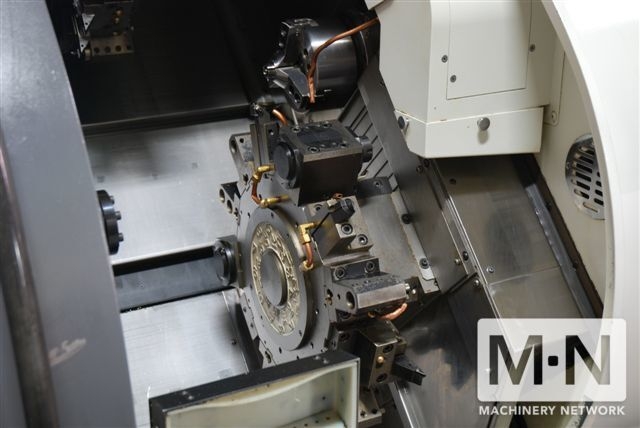

TOOLS: 24 STATION

EQUIPPED WITH:

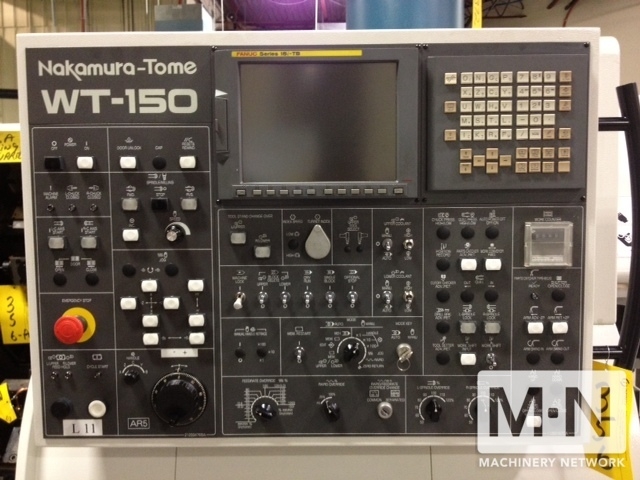

FANUC SERIES 18iTB CNC CONTROL

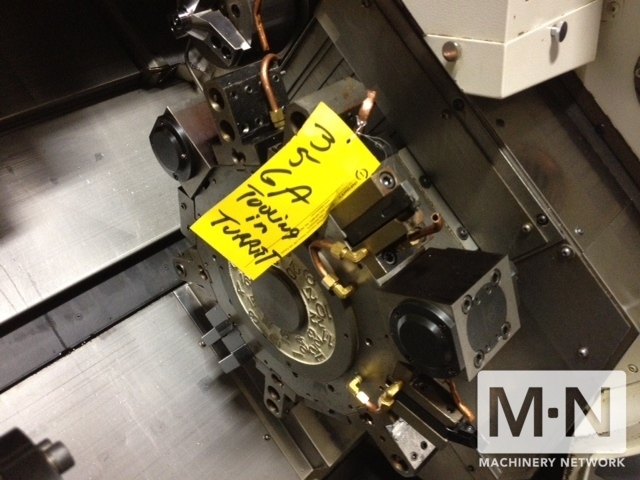

12 LIVE TOOL STATIONS,WITH 6 ROTARY HOLDERS AND FULL PACKAGE OF STANDARD HOLDERS
300 PSI HIGH PRESSURE COOLANT PUMPS FOR BOTH TURRETS
COOLANT SUB TANK
CONTROL MEMORY UPGRADE 1280M
SIX MICROCENTRIC COLLETS
MANUAL COLLET CHANGING TOOL
DETACHABLE TYPE NT TOOL SETTER
HPRA HIGH PRECISION REMOVABLE ARM-AS NEW IN BOX
CHIP CONVEYER
