NAKAMURA TOME SUPER NTY3

Type:

LATHES, COMBINATION, N/C & CNC, (3-axis Or More)

Manufacturer:

NAKAMURA TOME

Model:

SUPER NTY3

Condition:

Not Specified

Year:

2008

Stock #:

29339

Status:

Sold

Location:

United States

Specifications from OEM brochure and equipped with are described to the best of our knowledge. ALL items should be confirmed by buyer.

Quote Request Have one for sale?

For more information call +1 (818) 465-6700 or contact us

Spec Sheet:

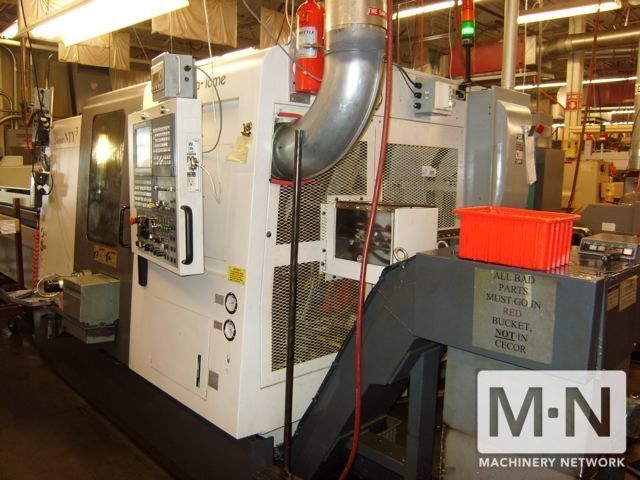

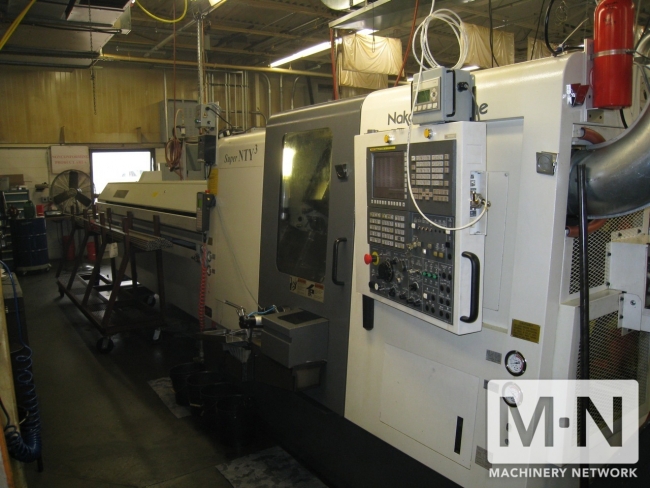

(1) USED NAKAMURA TOME SUPER NTY3 CNC TURNING CENTER
NEW 2008

SPECIFICATIONS:
TRAVEL: X AXIS:................ 5.314"
Y AXIS:................ 2.440"
Z AXIS:................ 22.7"
TURNING DIAMETERS:............. 7.4"
TURNING LENGTHS:............... 23.5"
MAXIMUM SWING:................. 32.2"
CHUCK DIAMETER:................ 6"
BAR CAPACITY:.................. 1.65"
SPINDLE SPEED:................. 6000 RPM
DRIVE MOTOR (HP):.............. 7.5 - 15 HP
SPINDLE NOSE:.................. A2-5
L SPINDLE MOTOR:............... 15 / 11KW
R SPINDLE MOTOR:............... 11 / 7.5KW

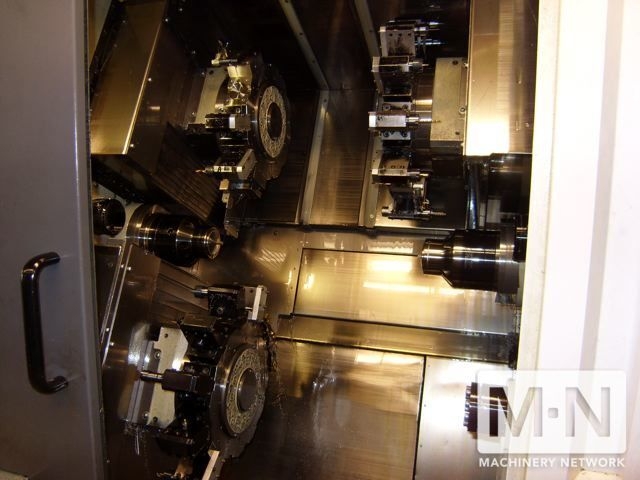

MAX. NUMBER OF TOOLS TURNING:.. 36
(3)MAX. NUMBER OF TOOLS ROTARY:..12 LOWER
MACHINE DIMENSIONS (LxHxW):.... 154.72" x 91.3" x 83.26"

EQUIPPED WITH:

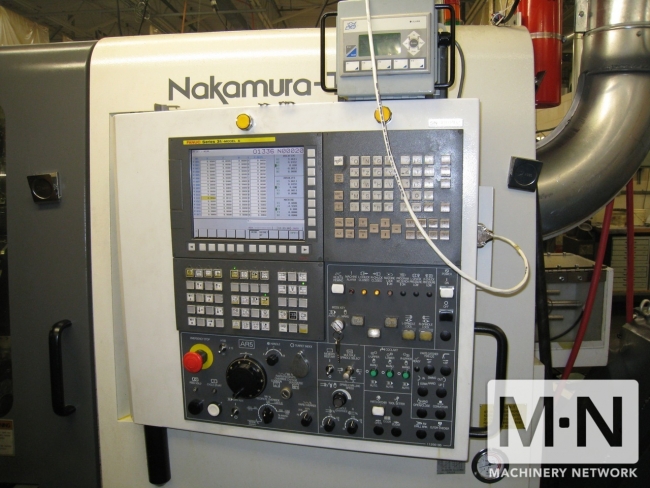

FANUC 31i-A CONTROL
HIGH PRESSURE COOLANT PUMP FOR EACH TURRET (300 PSI)
COOLANT THRU SUBSPINDLE
PROGRAMMABLE PARTS CATCHER
TURBO CHIP CONVEYOR
(2) ATS A53JTL COLLET NOSES
KITAGAWA 6" 3-JAW CHUCK
(8) ER20 CROSS DRILL UNITS
(5) ER20 FACE MILL UNITS
ADDITIONAL M-CODES (FIVE PAIRS)
NT NURSE
NT NAVIGATOR
BAR FEED INTERFACE

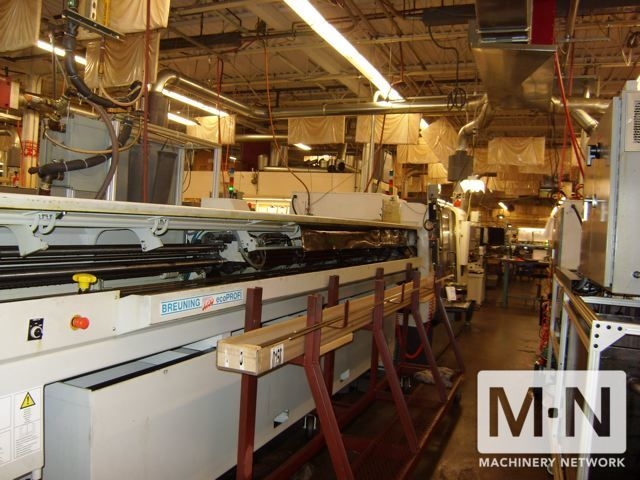

BREUNING IRCO MAGAZINE BAR FEEDER
